Steelcase FlexFrame Bedienungsanleitung

Page 1 of 9

939502138 Rev B

FlexFrame - Cantilever Desk and Table Installation

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

Grand Rapids, MI 49501

U.S.A.

Printed in U.S.A.

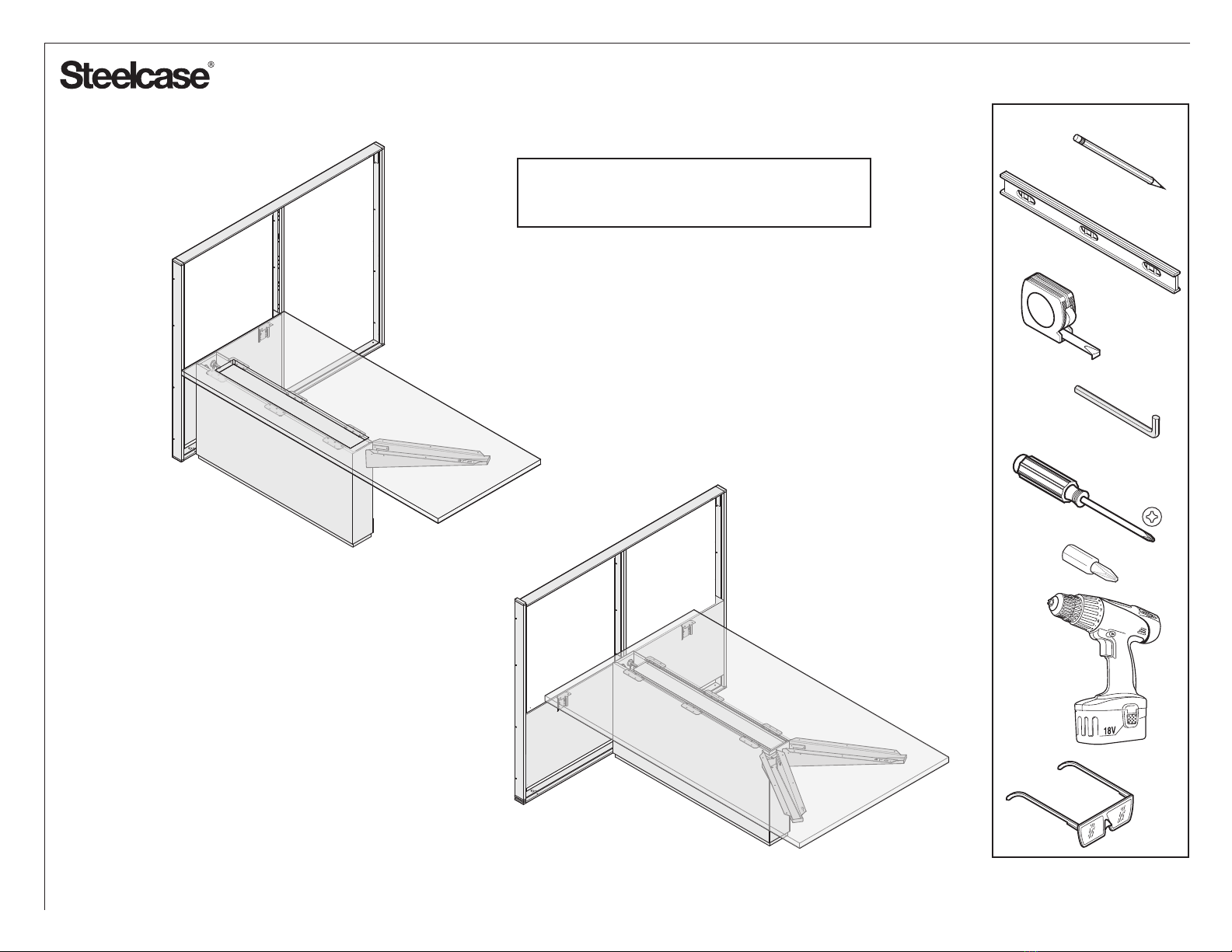

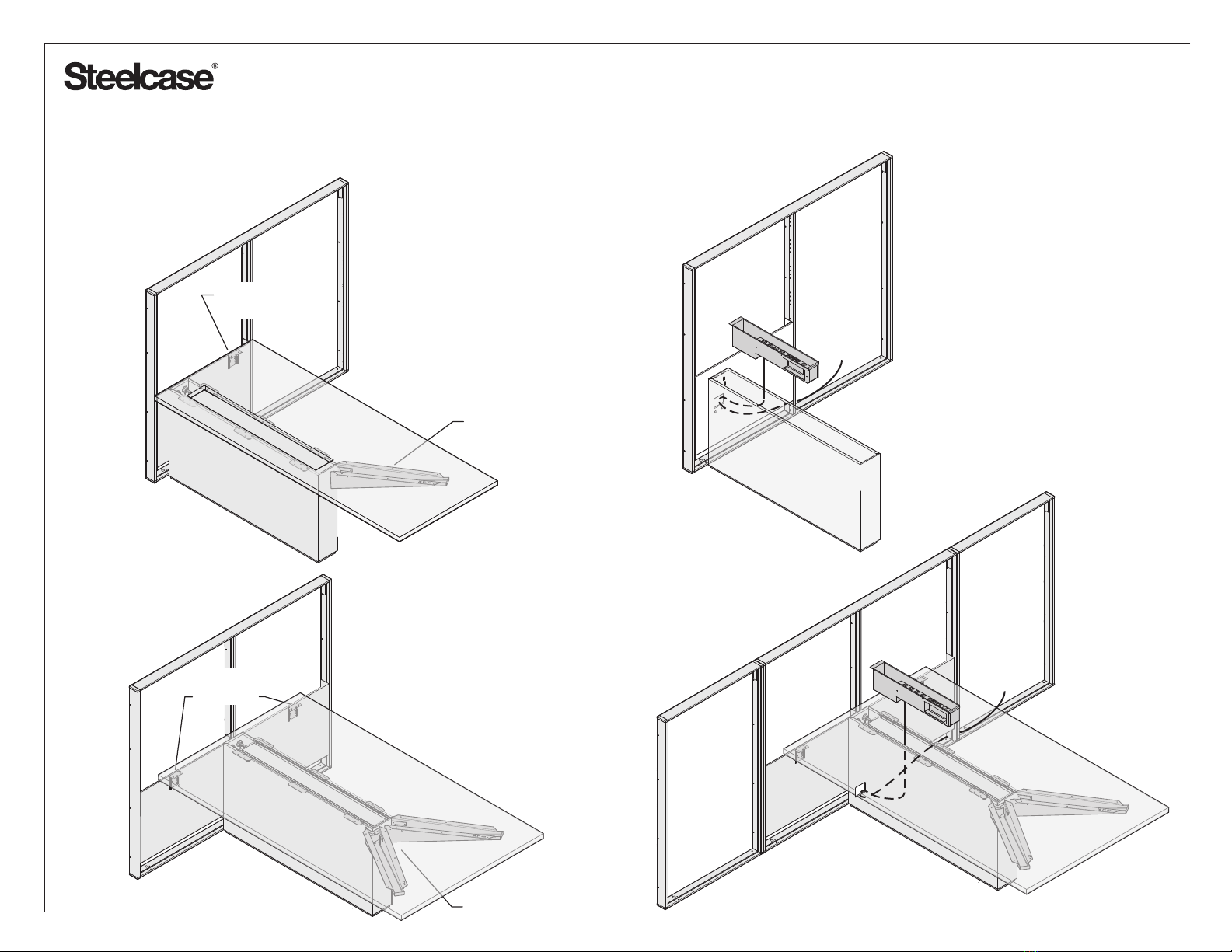

Cantilever Desk

Cantilever Table

5/32”

IMPORTANT: Refer to pages 3 through 6 of

assembly direction 939502107 for information

on locating worksurfaces.

(1) Cantilever

(2) Cantilevers

Page 2 of 9

939502138 Rev B

Cantilever Desk

Cantilever Table

(1) Worksurface

Bracket

(2) Worksurface

Brackets

IMPORTANT: Understanding the differences between

a Cantilever Desk and a Cantilever Table will help you

follow the installation process.

Route cords through opening in rear

of box, through opening in skin, then

down and through cutout in frame.

ROUTING CORDS FOR POWER AND LIGHTING

Route cords through opening

in lower rear of box, under

skin, then through

cutout into

adjacacent

frame.

Page 3 of 9

939502138 Rev B

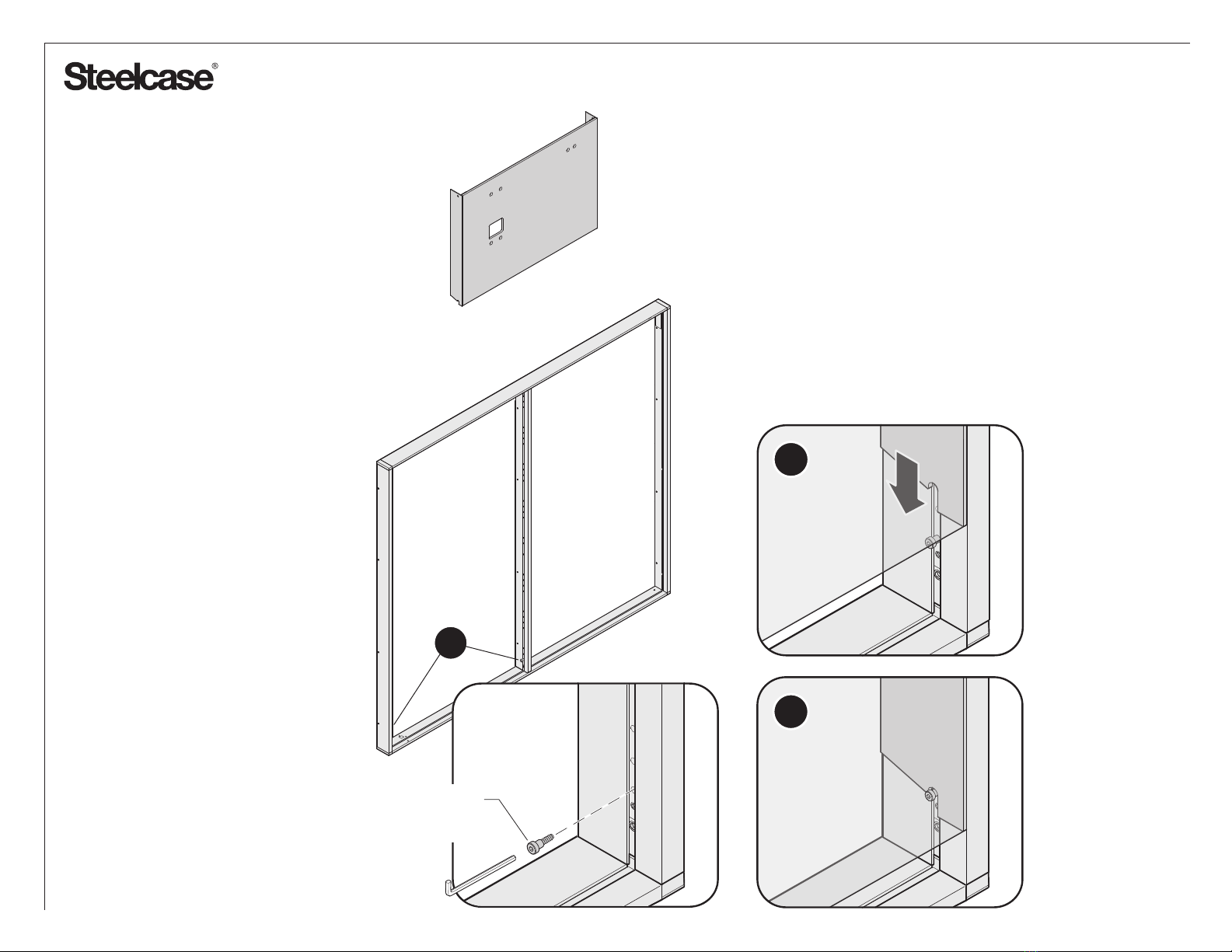

INSTALL SKIN

1. Refer to FlexFrame Workwall

assembly direction # 939502107

for information if needed.

2. Install a shoulder bolt from

skin kit into bottom open holes in

each side of frame.

3. Place bottom of skin onto

shoulder bolts as shown.

Shoulder Bolt

Tighten ¼ turn

past finger tight.

Page 4 of 9

939502138 Rev B

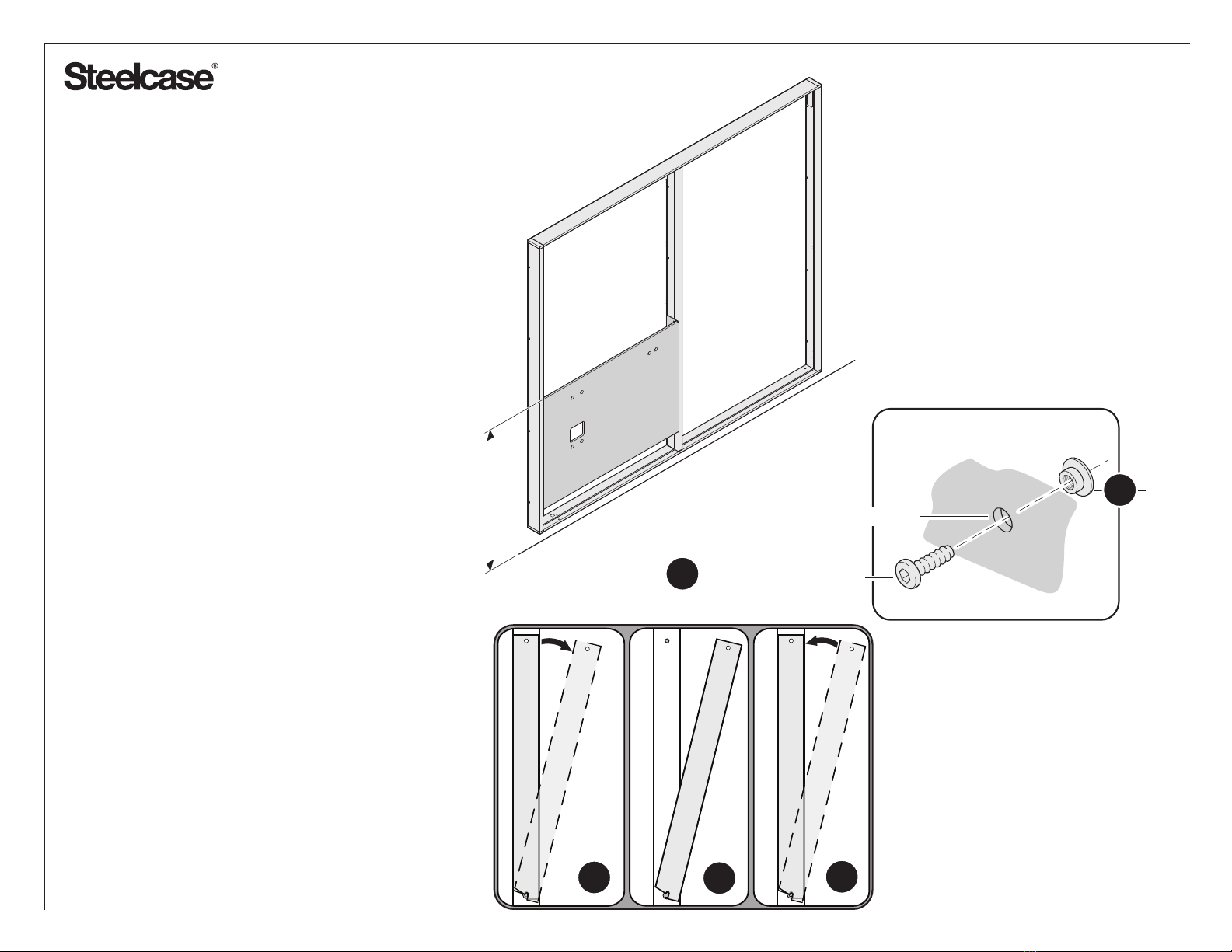

4. Tip the skin out from the frame.

5. Install spacers from skin kit into

holes on each side of skin kit.

6. Tip the skin back into place and

secure with cap screw into threaded

strip.

7. Measure from the high point of the

floor where the desk support will set and

adjust the top of the skin to the dimension

shown.

If Adjustments need to be made, the

skin can be moved by loosening the set

screws in the threaded strip. There is 3/8”

adjustment up, and a 1” adjustment down.

.250-20x.500 button head

Cap Screw (use a 5/32”

Allen Wrench)

Spacer

Upper Hole

29-1/2”

(749 mm) 5

TO FLOOR

TIP: see pages 3 through 6 of assembly

direction 939502107 for information

on locating worksurface.

Page 5 of 9

939502138 Rev B

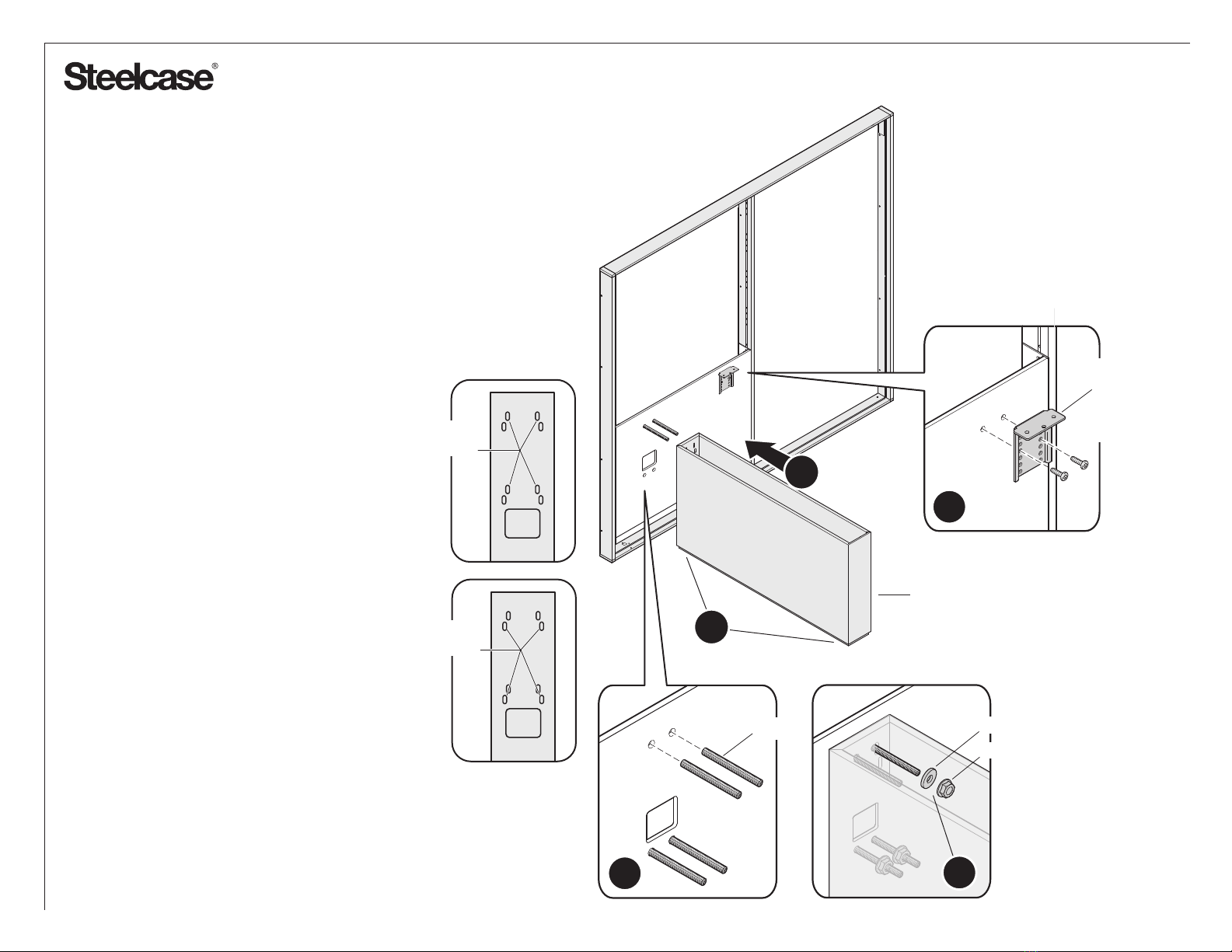

ATTACH COMPONENTS

1. Attach worksurface bracket to skin

as shown with screws provided in kit.

Locate bracket to the mid point

of the adjustment.

2. Install (4) 3” long ¼-20 double

ended studs into holes in skin.

3. Slide support box into position by

inserting studs through slots in back

of box.

4. Loosely install (4) ¼-20 lock nuts

and washers provided in kit.

5. Level top of support box with top of

worksurface bracket by adjusting glides

in bottom of box.

6. Level support box front to back

then tighten lock nuts.

SUPPORT BOX

Use this set of

slots for desk.

Locate

WORKSURFACE

BRACKET

at midpoint of

adjustment.

NUTS

STUDS

Use this set of

slots for table.

WASHERS

Page 6 of 9

939502138 Rev B

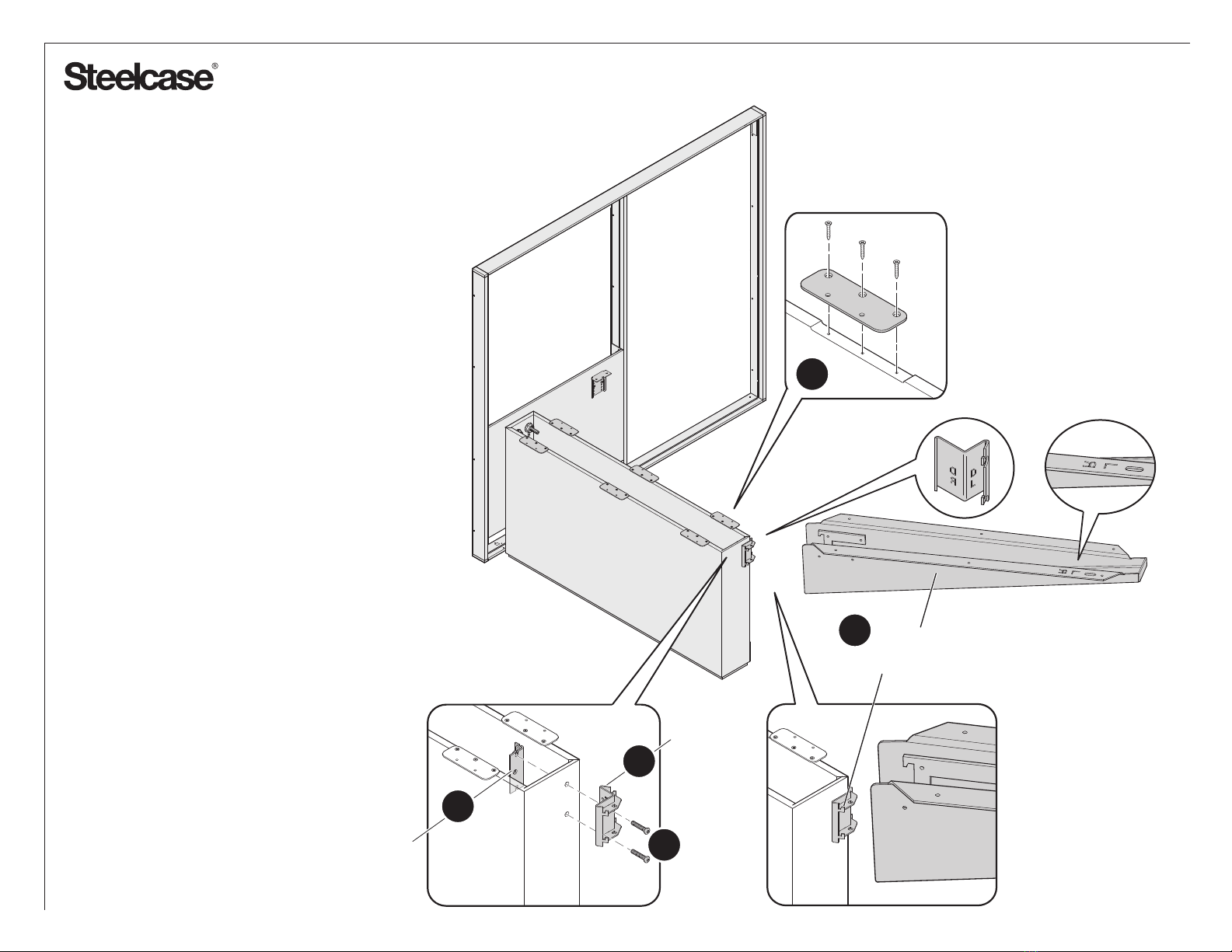

7. Attach worksurface attachment

brackets as shown with screws provided

in kit.

8. Install cantilever attachment bracket.

Locate welded t-nut bracket on the

inside of the support box.

9. Locate the cantilever attachment

bracket on the outside of the support box.

10. Thread (4) ¼-20 bolts through

bracket, support box, and into welded

t-nut bracket.

Tighten bolts equally using a

5/32” hex driver.

11. Install cantilever onto bracket hooks.

12. If unit has the media:scape option

refer to assembly direction #939502141.

Install CANTILEVER

onto

BRACKET HOOKS

T-NUT

BRACKET

OUTSIDE

BRACKET

NOTE: Be sure to use the

right bracket and cantilver

in the correct orientation.

A LH application is

shown here.

Page 7 of 9

939502138 Rev B

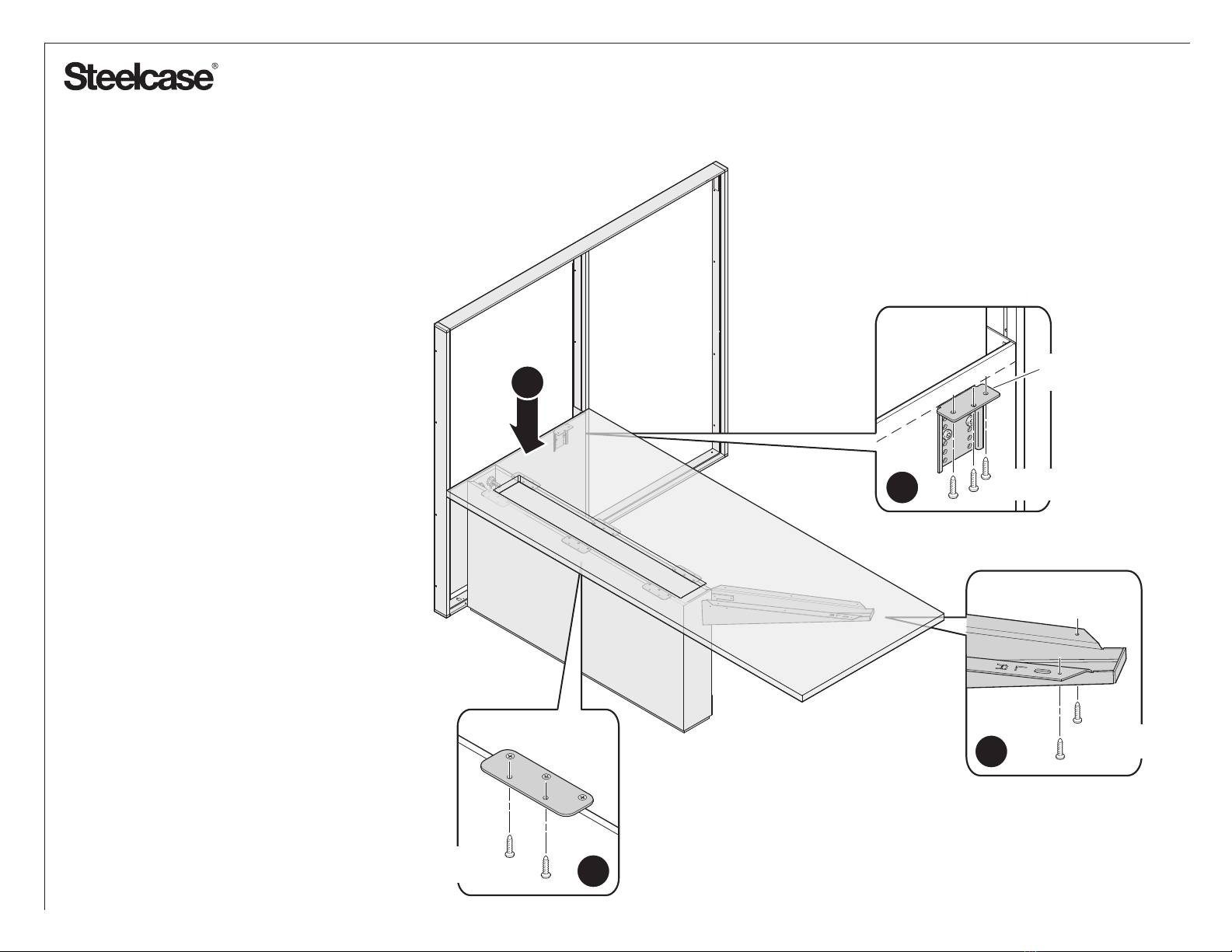

INSTALL WORKSURFACE

1. Lower worksurface onto support box

assembly. Align holes in the bottom of

the worksurface with holes in brackets.

This will assure that the grommet

will fit into opening.

2. Secure worksurface to brackets

with (2) screws, each bracket.

Failure to install screws into

worksurface holes will cause

the grommet to not fit correctly!

3. Secure worksurface to cantilever.

4. Secure worksurface to worksurface

bracket.

WORKSURFACE

BRACKET

#10-9 x .875”

Truss Head Screws

#10-9 x .875”

Flat Head Screws

#10-9 x .875”

Truss Head Screws

Page 8 of 9

939502138 Rev B

NOTE: Refer to page 2 for information

on routing power or lighting cords.

5. Install (6) screws into threaded inserts

in box as shown.

Leave screws slightly loose.

6. Lower grommet sleeve into place in

opening. Tighten all screws to secure.

7. Drop power box into position. Push to

the rear (slide under lid support).

8. Place puck/accessory tray and seat

as shown.

51/4-20 x .50”

Machine Screws

(3) each side

POWER BOX

PUCK/ACCESSORY TRAY

REAR FRONT

Components will fit over

PIN (fixed in support box).

Page 9 of 9

939502138 Rev B

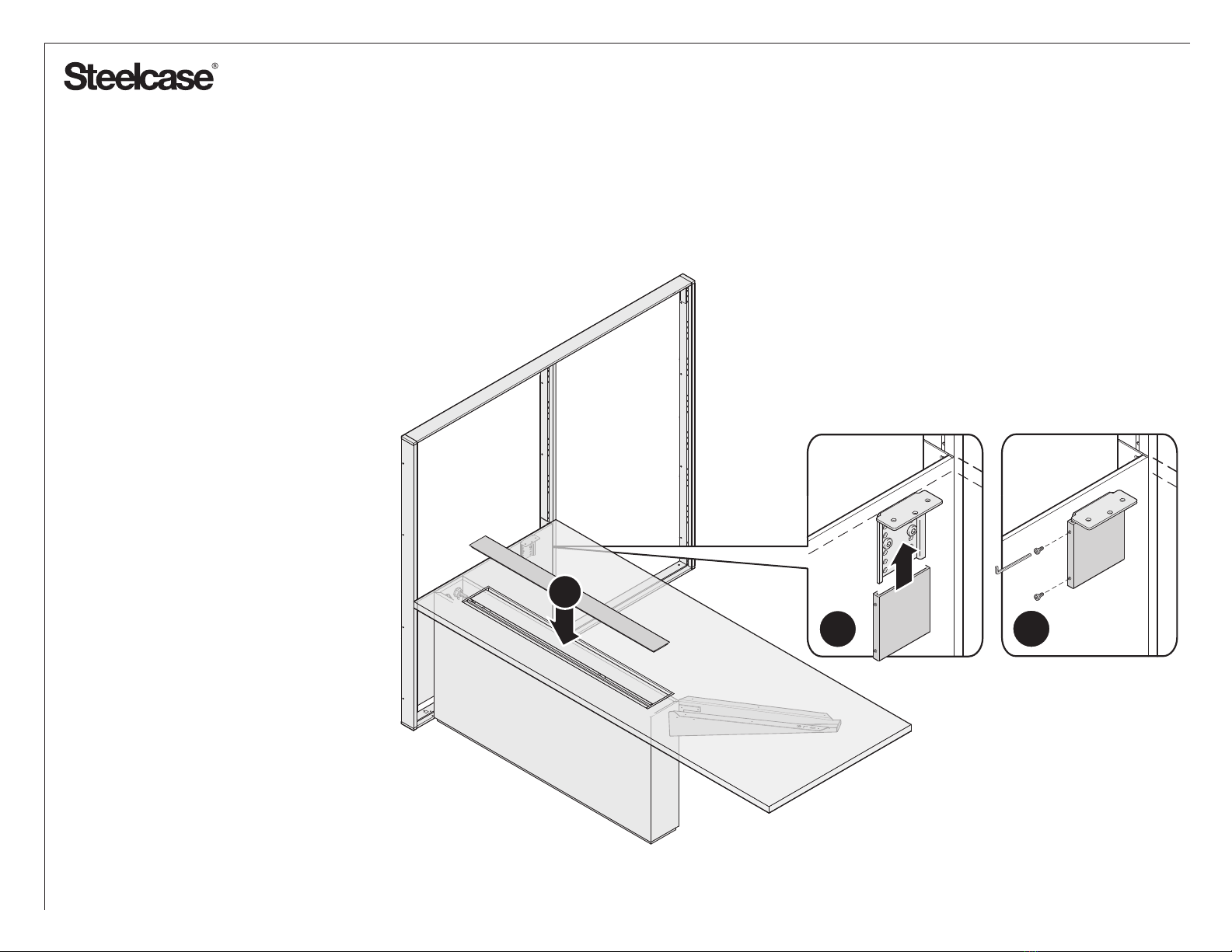

9. Install grommet lid. Position pins on

end of lid into lid supports at each end of

grommet.

10. Slide decorative cover over worksurface

supports, making sure that set screws are on

the inside of units. Tighten set screws with a

1/16” hex drive.

10a 10b
