2easy CDV4791 Bedienungsanleitung

INSTALLATION MANUAL

2Easy 1 User Video Entry Kit

Camera Lens

Night View LED

Speaker

Nameplate

Call Button

Microphone

90 mm

176 mm

23 mm

BUS

S1+ S2+ S-

1 2

MIC adjustment

Lock Control Jumper

Doorstation Code DIP

Main Connect Port

1 2 3

SPK adjustment

Rain Cover

2Easy 1 User Video Entry Kit

CDV4791/2

2.1: Terminal Descriptions

2: CDV91/92 Parts and Functions

160-165cm

1 2 3 4

2.2: Installation & Adjustments

Mounting Without Rain Cover

2Easy 1 User Video Entry Kit

CDV4791/2

160-165cm

1 2 3 4

Mounting With Rain Cover

name label

1 2

4.3 Fitting The Name Label

From the rear of the metal section of the CDV91/92 unclip the plastic to open the transparent name

plate, insert a name label and replace the plastic cover.

4.4 Adjusting Camera Angle

Use a screwdriver to loosen the screw and adjust the

angle of the camera retighten the screw to fix

the angle.

2Easy 1 User Video Entry Kit

CDV4791/2

2Easy 1 User Video Entry Kit

CDV4791/2

The PC6A is a power/bus combiner unit, which is designed for the CDV 2Easy 2 wire

system to supply power for the external station, internal monitor and other accessories on

the bus. It can operate as a normal power/bus combiner or auxiliary PSU. The features are

as follows:

• Universal AC input/full range

• Multi protection: short circuit, overload, over voltage

• Integrated with DT-DPS(power separator), Additional

DT-DPS is not needed.

• Support up to 4~8 monitors(depend on models)

• DIN Rail Mounting

LED

1 2 3

BUS(IM) BUS(DS)

N LPG L

100~240 Vac

PG NLL

PG: Earth ground terminal.

N: AC input terminal.

L: AC input terminal.

LED: Power indicator, on when power connected.

CN: Bus control terminal.

BUS(IM): Indoor monitor connection terminal.

BUS(DS): Door station connection terminal.

3.1:Description:

3: CDV-PC6A Parts and Functions

3.2:Terminal Descriptions:

2Easy 1 User Video Entry Kit

CDV4791/2

Open the AC cover:

1. Push the cover base towards

the centre with your fingers;

2. Lift up and pull out the cover.

After connecting the AC cable, it is

advised to replace the cover.

Note:

1. The AC cable is not included in the

package, it must comply to the specific

requirements of country where installed.

1 2 3

BUS(IM)

Connect to monitor Connect to door staiton

BUS(DS)

AC Input

100~240Vac

N LPG L

Digital TFT LCD Screen

UNLOCK Button

TALK/MON Button

Microphone

Connection Port

Speaker

Mounting Hook

1 2 3

DIPS

Emergency Button

Message Indicator

4: CDV47 Parts and Functions

2. Pins 1&2 should be short-circuited

with a C3-3P link(included in the package)

if the unit operates as a standard power

combiner. If operating as an auxiliary

power combiner, the link should be

removed.

1 2 3

Bit

DIP1&2 Reserved. left to default.

Set to OFF. When the monitor is in the middle of the line in daisy chain connection.

Bit State Description

DIP3

1 2 3

Press to display the camera view when in standby mode

Microphone Transmitsvoice communication

Mounting hook To secure monitor to wall bracket

Connection port Bus connection. DiP switches and door bell input.

Speaker Receivesvoice communication

145~160 cm

LCD screen Displaysthe camera image

Emergency button Press for 3 seconds to send an SOS message*

Message indicator Indicates a new visitor call recording

Unlock button Press to release the door

Talk/Mon button Press to communicate with the visitor when called

2Easy 1 User Video Entry Kit

CDV4791/2

Key functions:

DIP Settings:

Set to ON. When the montior is at the end of the line.

1.Touch icon on

main menu page.

2.Touch UNLOCK

button and hold for 2s.

3.A digital keypad

will be shown.

About

Local Address 00.00

Video Standard AUTO

System Verson 00.01.00

Display Driver 1.0

Front 1.0

UI 1.0

INSTALLER SETUP 123

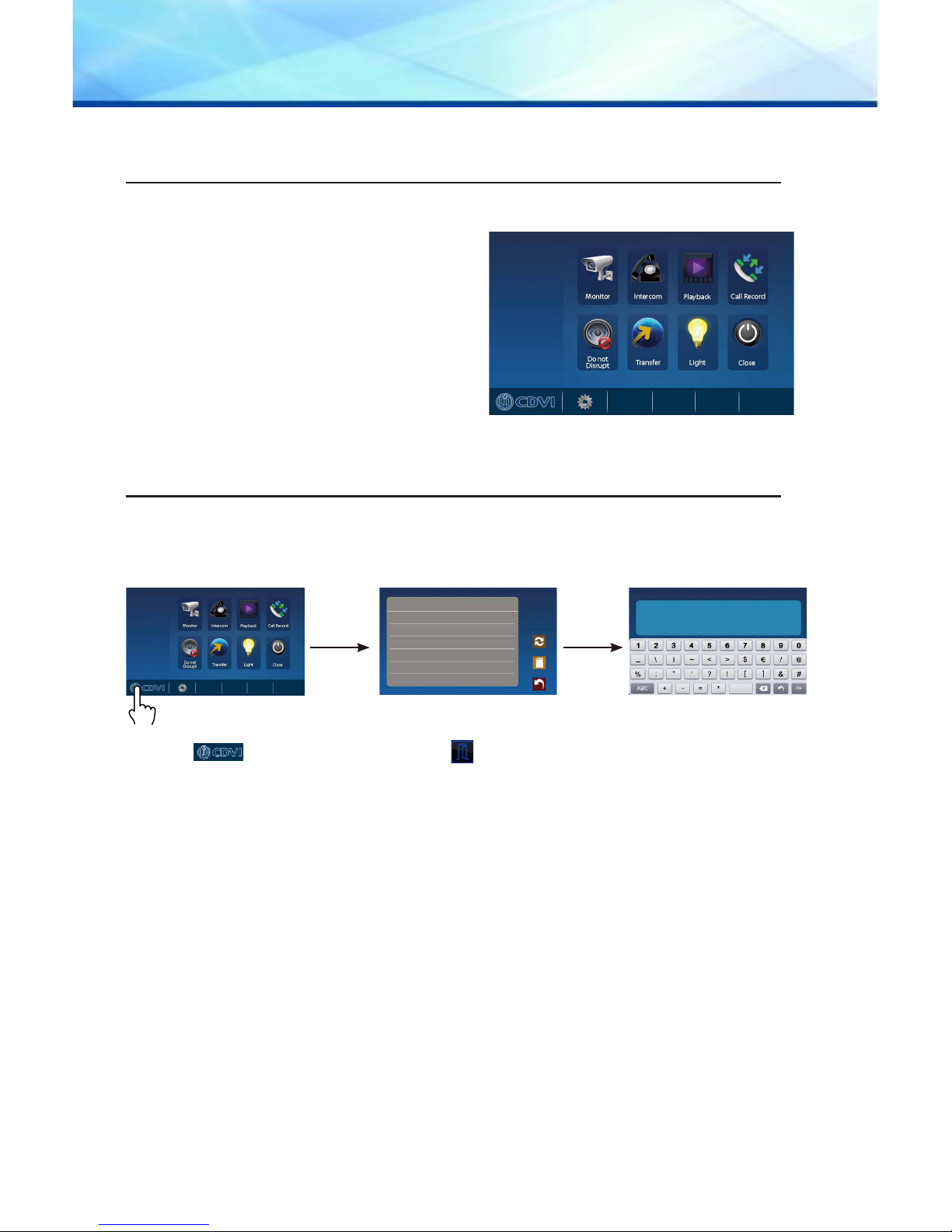

Touch the screen anywhere on monitor

in standby mode, the main menu page

will be shown as follows:

A maximum of 4 monitors can be connected in one apartment (call button),one

master monitor together with 3 slave monitors, the address must be set

correctly.(Note: one monitor to be set as master monitor - address 00)

The code of 8000 is used to set the master monitor.

The code of 8001 is used to set the first slave monitor .

The code of 8002 is used to set the second slave monitor .

The code of 8003 is used to set the third slave monitor .

How to enter the installation setting page:

Setting the Slave address:

2Easy 1 User Video Entry Kit

CDV4791/2



 

   



In default mode, when receive a calling the master and slave monitors will ring at the

same time, however the master monitor will display the image while the slave monitors

will not. This setting can be changed to allow all the slave monitors to display video from

the panel at the same time when receiving a call, enter the code number of 8006 on

each slave monitor. (Note: it is not recommended to have more than 2 monitors se to on

when using cat5/6 cable).

The system offers two methods of date and time.

Code number of 8008 is used to set the date format as month/day/year.

Code number of 8009 is used to set the date format as day/month/year.

Code number of 8012 is used to set the time format as 12 hour system.

Code number of 8013 is used to set the time format as 24 hour system.

There are two unlock modes: 1.power-on- to-unlock type:unlock mode =0 (by default)

2.power-off-to-unlock:unlock mode = 1.

Code number of 8010 is used to set the unlock mode to 0

Code number of 8011 is used to set the unlock mode to 1

Unlock time:

The unlock time can be changed by yourself at any time.it can be set from 1 to 99 seconds.

The code number from 8401 to 8499 are used to set the unlock time to 1~ 99 seconds.

Setting the slave monitor video on:

How to set date and time format:

How to set the unlock parameter:

Unlock mode:

2Easy 1 User Video Entry Kit

CDV4791/2
