3P Technik Twin Filter Bedienungsanleitung

Operating and assembly instructions

3P Twin Filter

Rainwater filter for bigger roof areas

Item No. 1000650 Twin Filter

Item No. 1000650 + 1000654 Twin Filter trafficable

The 3P Twin filter can be installed in an underground chamber or outside in frost-free regions

directly on the wall. The filter can be delivered to the construction site in the shaft in pre-assem-

bled condition. Due to its 2-stage cleaning principle, it has a high degree of efficiency indepen-

dently of the volume of flow. The filtered-out dirt is continuously flushed towards the sewerage

system due to the steep inclination of the filter inserts. The clean water is collected in a sump

and directed to the reservoir.

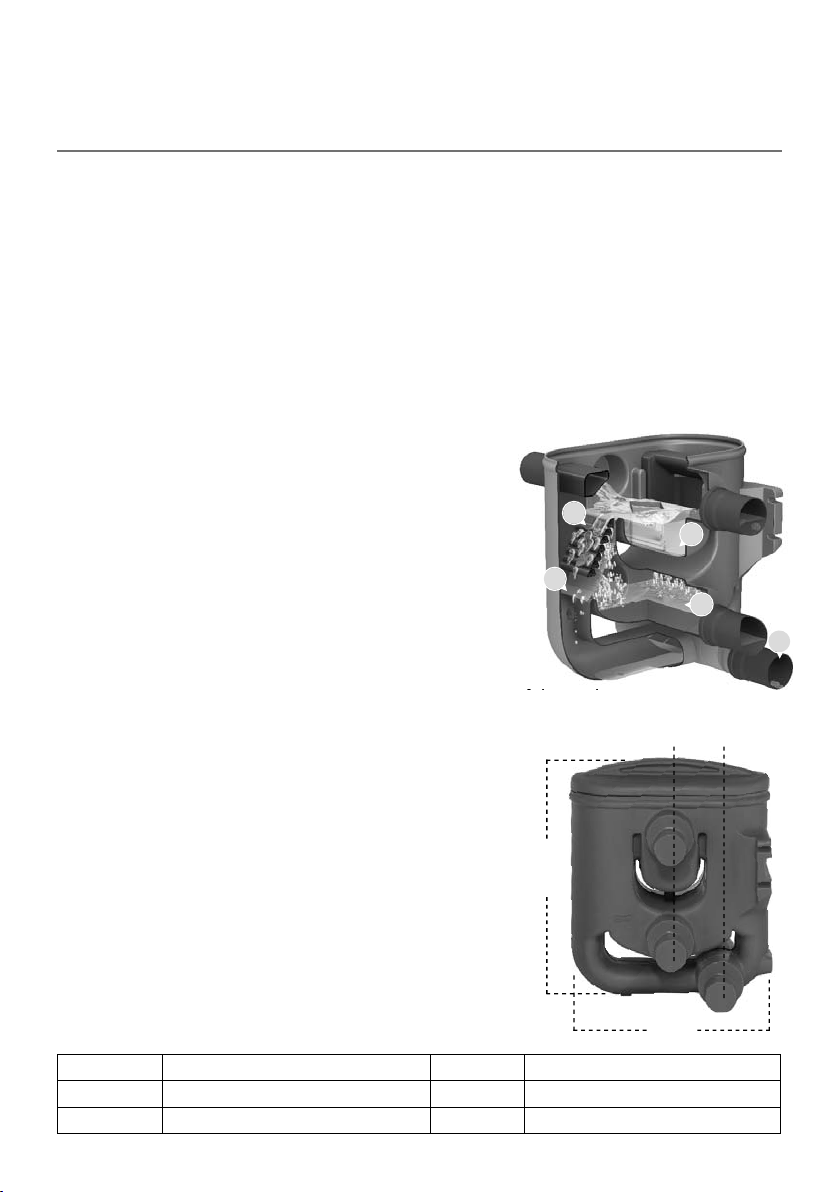

How it works:

1. Incoming rainwater is collected in the sump and

evenly directed on both sides via the cascades =

weir over principle.

2. Pre-cleaning according to the cascade principle.

Coarse dirt is directed straight to the sewerage system

via the cascades.

3. Pre-cleaned water is guided to the filter mesh screens

(mesh width 0.65 mm). The filtered-out dirt is flushed into

the sewerage system via the bottom connections due to

the special owen mesh structure and the steep inclination of the mesh.

4. The cleaned water is collected in the central sump and directed

to the rainwater storage tank via one or both connections.

5. The filtered-out dirt is flushed into the sewerage system

via the shaft or pipe outlet.

Connections:

Rainwater supply 2 x DN 100 / DN 150

Rainwater reservoir supply 2 x DN 100 / DN 150

Dirty water connection

2 x DN 100 / DN 150

Operating and assembly instructions

Twin Filter

680 mm

873 mm

160 mm

Difference Alignment

Sole, supply Sole, drain into reservoir 350 mm directly underneathone another

Sole, supply Sole, drain intosewerage system 510 mm offset by 160 mm

fh h

Rainwater supply

Rainwater reservoir

connection

Dirty water / channel connection

Installation in the pilot shaft:

Standard concrete shafts with a diameter of Ø 1000 mm can be used. The openings for the

supply and drain lines should be made using a core drill. In doing so, please observe the

following points:

1. Determine the diameters of the supply and drain lines

and select the appropriate drill or core bits.

2. Place the filter into the shaft and connect using short

pipe sections rockers through the concrete walls.

The connections can then be later quickly and easily

made on the construction site.

3. Seal off the openings in the concrete shaft either with

seals (Forsheda or Densio) or wall foam.

4. When installing the pipes, pay attention to the height

differences and position of the connections,

see table on the left side below

When inserting the shaft in the ground, compress the soil well and install the shaft in horizontal

position. Compress the soil underneath the pipes well. No ground settlement must occur in order

to keep the filter housing free from tension. The cascade inserts must be easy to remove and

re-install. This ensures perfect functioning.

468 mm

521 mm

680 mm

510 mm

350 mm

Rainwater supply

Draining

of cleaned

water into the

reservoir

Draining of dirty

water into the

sewerage system

Rainwater supply

optionally DN 100 or DN 150

on one side or both sides possible

assembly of a Twin Filter

assembly of a

Twin Filter trafficable

Cleaning and Maintenance:

Cleaning: Spray the inside of the filter with water, clean the sump.

Remove the filter inserts and rinse with water. High-pressure

cleaners may also be used.

Afterwards loosen the filter mash with an Allen key. To degrease the

mesh fabric (pollen, heating oils, etc.) the mesh must be thoroughly-

cleaned using a detergent and a brush.

Rinse well, re-insert the mesh, place the cascade inserts back

into the filter.

Maintenance: In the first year, check the filter every three months,

to obtain an idea of the degree of contamination, then clean

as required, at least twice a year.

Recommended Accessories:

Wall bracket for Twinfilter for installation on the wall

The wall mounting bracket for the Twin Filter* is required for wall installation.

The brackets are fastened to the wall at the desired height (heavy duty steels).

Push the filter rear side first into the recesses provided and fix using the

enclosed washers and nuts. Ensure filter sits horizontally for optimal

functioning. All UK filters come with a wall bracket. Item No. 1000655

*as accessorie available

Guarantee:

3P Technik Filtersysteme GmbH offers this product the guarantee required by law

(from date of purchase).

Öschstraße 14

73072 Donzdorf - Germany

T +49 (0) 71 62 - 94 60 7-0

F +49 (0) 71 62 - 94 60 7-99

[email protected]

www.3ptechnik.com
