417
features of your 3-series loudspeaker

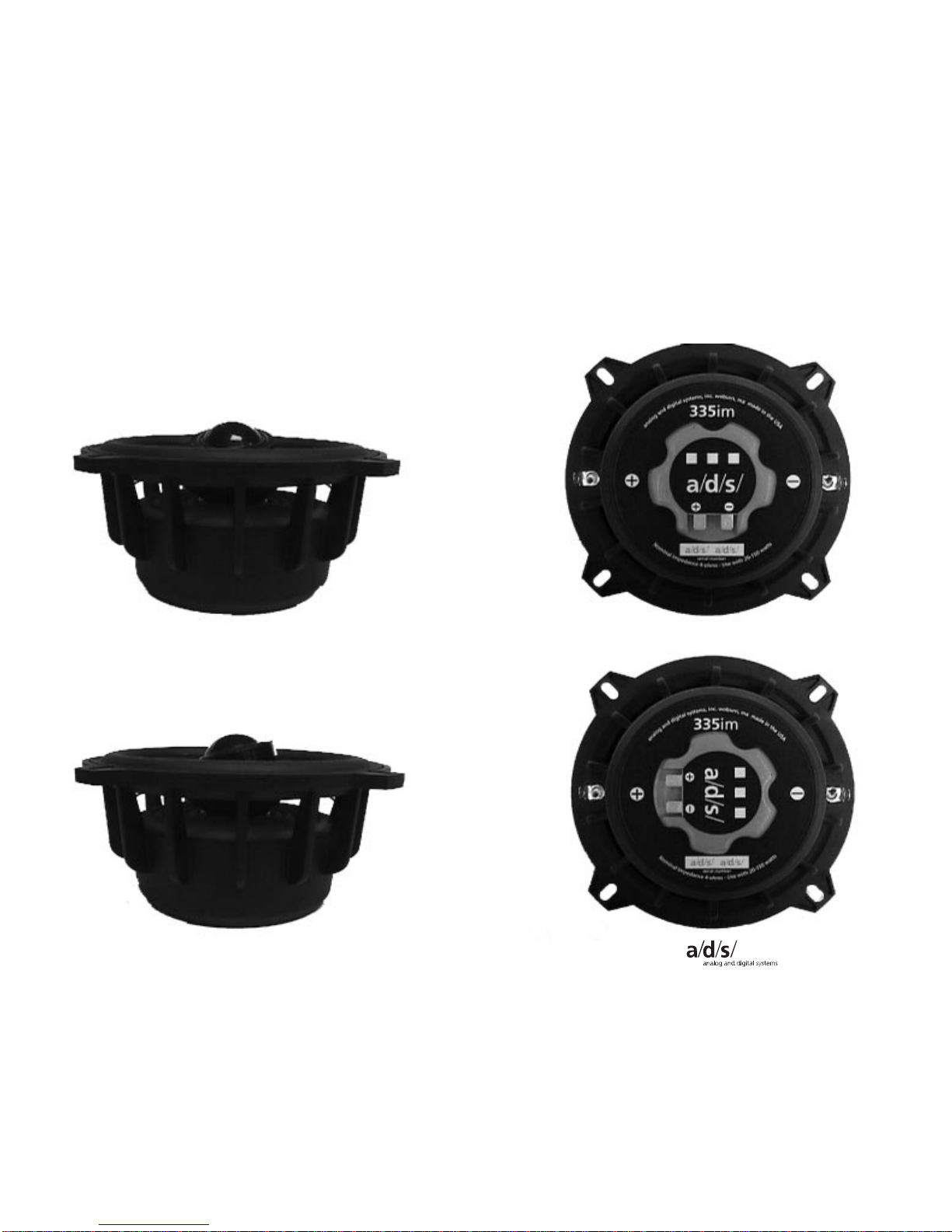

molded woofer basket - the back bone of any good woofer is it’s basket. It provides the
proper alignment and support structure for the magnet while the very thin braces guarantee a
minimumofearlyreflectionsoffthebasketthatwouldbeordinarilytransmittedassoniccolorations
through the cone.
tweeter level control - a three position control adjusts the volume of the tweeter with respect
to the midrange.
midrange contour control - a two position switch offers a frequency response correction
circuit to adjust for flat frequency response in the car on axis or off axis.
swivel-mount tweeter - unique rotatable angle mount allows the high quality ferrofluid cooled
neodymium tweeter to be angled towards the listener (only in the 335im and 336im).
bi-amplifiable / bi-wireable - the passive crossover supplied with this system is bi-amplifiable
or bi-wireable; typically only available in high quality audiophile home loudspeakers.
solid state tweeter protection - advanced protection circuitry provides protection for the
tweeter against overpowering or amplifier clipping.
stifflite III woofer cone - mineral enhanced copolymer which is injection moulded to provide
the ideal balance of mass to stiffness.
vented voice coil - magnet structure cooling vent enhances power handling capabilities of the
woofer.
extended center pole - woofer magnet geometry provides a symmetrical magnetic pattern to
reduce THD.
warranty information
There are two things you must do to ensure trouble free service in the event you need warranty repairs.
1 - Keep your original sales receipt in a safe place. A copy of the receipt will be required to obtain warranty service.
2 - Be sure your retail dealer has written the date, the model number, and the serial number (if applicable) of the Product on the
receipt.
To give yourself an extra measure of protection, make a separate record of the information about your purchase and keep it in
a safe place. In the event you misplace the sales receipt, your dealer may be able to give you a copy.
Take a moment now to read the terms of your warranty. Check to be sure your sales receipt is dated and has the Product model
number and serial number (if applicable) on it. Then put it away in a safe place.
When shipping a Product in for service:
• Enclose a copy of your original sales receipt that has the date, the Product model number and serial number (if applicable)
written on it.
• Always ship Products in the complete original packing material.
• Avoid shipping Products via the Postal service. If you must use the Postal service, be sure to register and insure the package.
a/d/s/ Limited Warranty
Analog and Digital Systems, Inc. (a/d/s/) warrants to the original consumer purchaser of the a/d/s/ Products described in this
manual, that the Product will be free from defects in materials and workmanship for a period of one (1) year after the date of
purchase. If the product is installed by an authorized a/d/s/ retail dealer, the warranty is extended to three (3) years, a/d/s/' sole
obligation under this warranty shall be to provide, without charge, parts and labor necessary to remedy the defects, if any, that
appear during the warranty period.
This warranty is the sole and exclusive express warranty given with respect to the Product. All other express warranties are hereby
excluded. Neither a/d/s/ nor the authorized dealer who sells the Product is responsible for indirect, incidental, or consequential
damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from
state to state.
IMPORTANT - Keep your original sales receipt. Be sure the retail dealer has written on it the date, model number, and serial
number (if applicable) of the Product. This information is required for warranty service.
This warranty is limited to:
• Products purchased from authorized a/d/s/ retail dealers in the United States. a/d/s/ will supply a list of authorized dealers on
request.
In order to obtain warranty service you must:
• Return the Product, freight prepaid, to the a/d/s/ dealer from which it was purchased, an authorized a/d/s/ independent
service agency, or to a/d/s/. If necessary you may call a/d/s/ Customer Service Department for the names and addresses of
authorized independent service agencies in your area.
• Provide proof of purchase in the form of a copy of your original sales receipt. The date, model number, and serial number (if
applicable) of the Product must be written on the sales receipt.
This warranty does not cover:
• Damage that is the result of misuse, abuse, accident (including but not limited to damage by water), faulty hookup, defective
or maladjusted associated equipment, or the use of the Product with equipment for which it was not intended.
• Cosmetic defects that appear more than thirty (30) days after the date of purchase. Cosmetic damage caused by improper
handling is also excluded.
• Products that are used for commercial purposes.
• The cost of removing or reinstalling the Product.
• Damage that occurs while the Product is being shipped to whoever will service it. See the information above regarding
shipping procedures.
This warranty is void if:
• The Product identification or serial number label is removed or defaced in any way.
• The Product is serviced or repaired by any one other than a/d/s/ or an authorized a/d/s/ dealer or service agency.
