USER GUIDE

Water Purifier

www.aosmithindia.com

EXPERT COMPANY SERVICE

Toll Free No.: 1800-103-2468 or

SMS us: +91 99410 32468 or

E-mail us: [email protected]

Monday to Friday: 9 am to 8 pm.

Saturday & Sunday: 9 am to 6 pm.

#For calls registered at A. O. Smith call centre before 4 pm only.

For more details please call our Toll Free No. 1800-103-2468

or log on to www.aosmithindia.com.

SUPERIOR TECHNOLOGY FOR ADVANCED PROTECTION.

Dear Customer,

Congratulations and welcome to A. O. Smith family.

We thank you for the trust you have shown in choosing the A. O. Smith water purifier.

A. O. Smith water purifier is one of the most advanced RO water purifier available in the

market today. It is specially designed keeping in mind today’s water quality and your

needs.

Millions of customers all over the world trust A. O. Smith Products for their quality

and workmanship.

Our customer-centric approach manifests itself in many other ways too. If you need any

information or assistance with your water purifier, just call us from any phone,

anywhere in the country to our Toll Free Customer Care No. 1800-103-2468.

Please go through this simple and easy to read instruction and installation manual to

get the best out of your A. O. Smith RO water purifier.

We once again thank you for choosing A. O. Smith.

Yours Sincerely,

Team A. O. Smith

Contents

Key Features of your A. O. Smith RO water purifier............................................ 01

Pre-instruction literature .......................................................................................... 02

General instructions ................................................................................................. 03

Introduction ............................................................................................................. 04

Water flow ............................................................................................................... 07

Electrical diagram..................................................................................................... 07

Safety precautions.................................................................................................... 08

How to use............................................................................................................... 10

Troubleshooting....................................................................................................... 11

Technical specifications ............................................................................................ 13

FAQs......................................................................................................................... 15

Warranty terms and conditions................................................................................ 17

Warranty card .......................................................................................................... 21

Service and maintenance ......................................................................................... 22

Disclaimer ................................................................................................................ 23

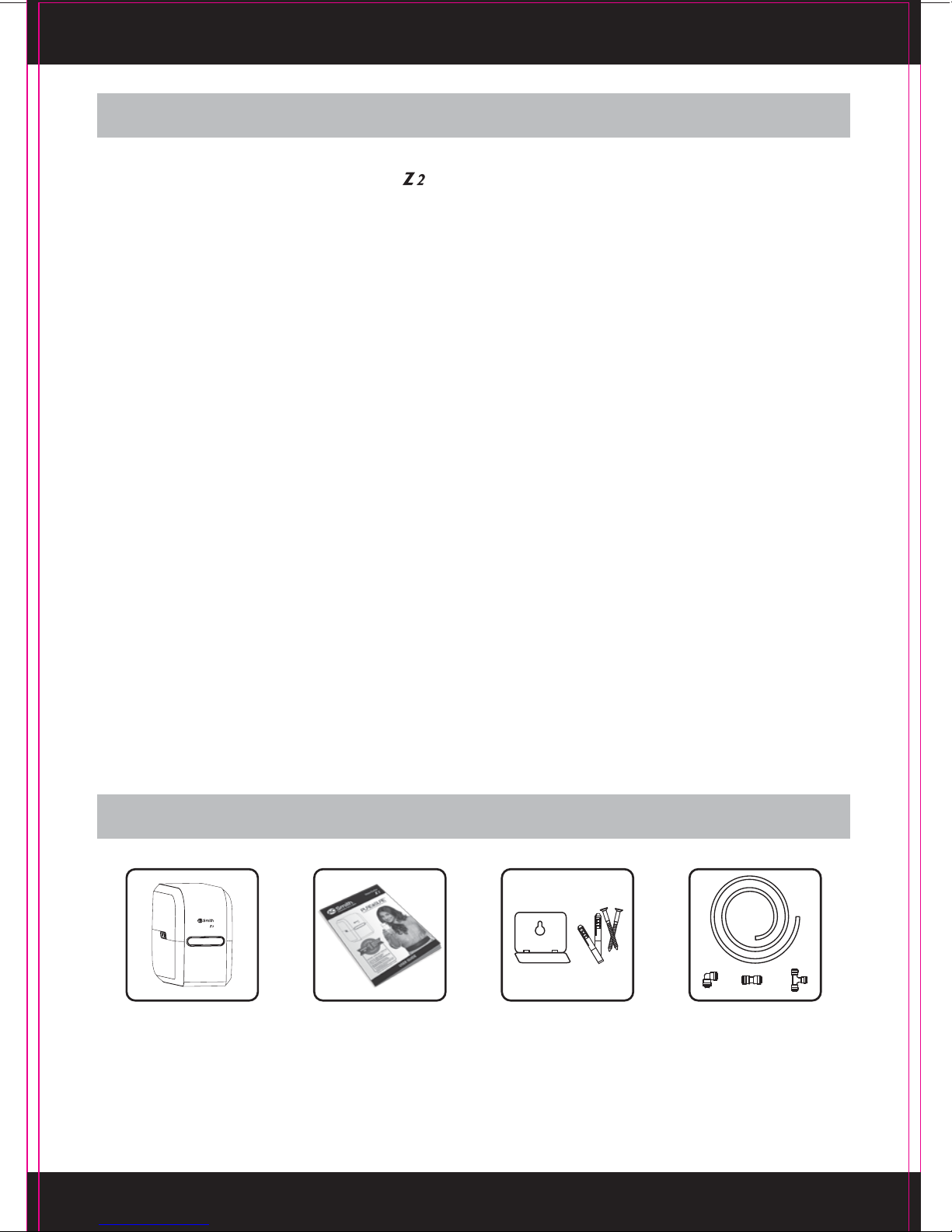

What’s in the box?

User Guide Mounting Accessories Tube & ConnectorsWater Purifier

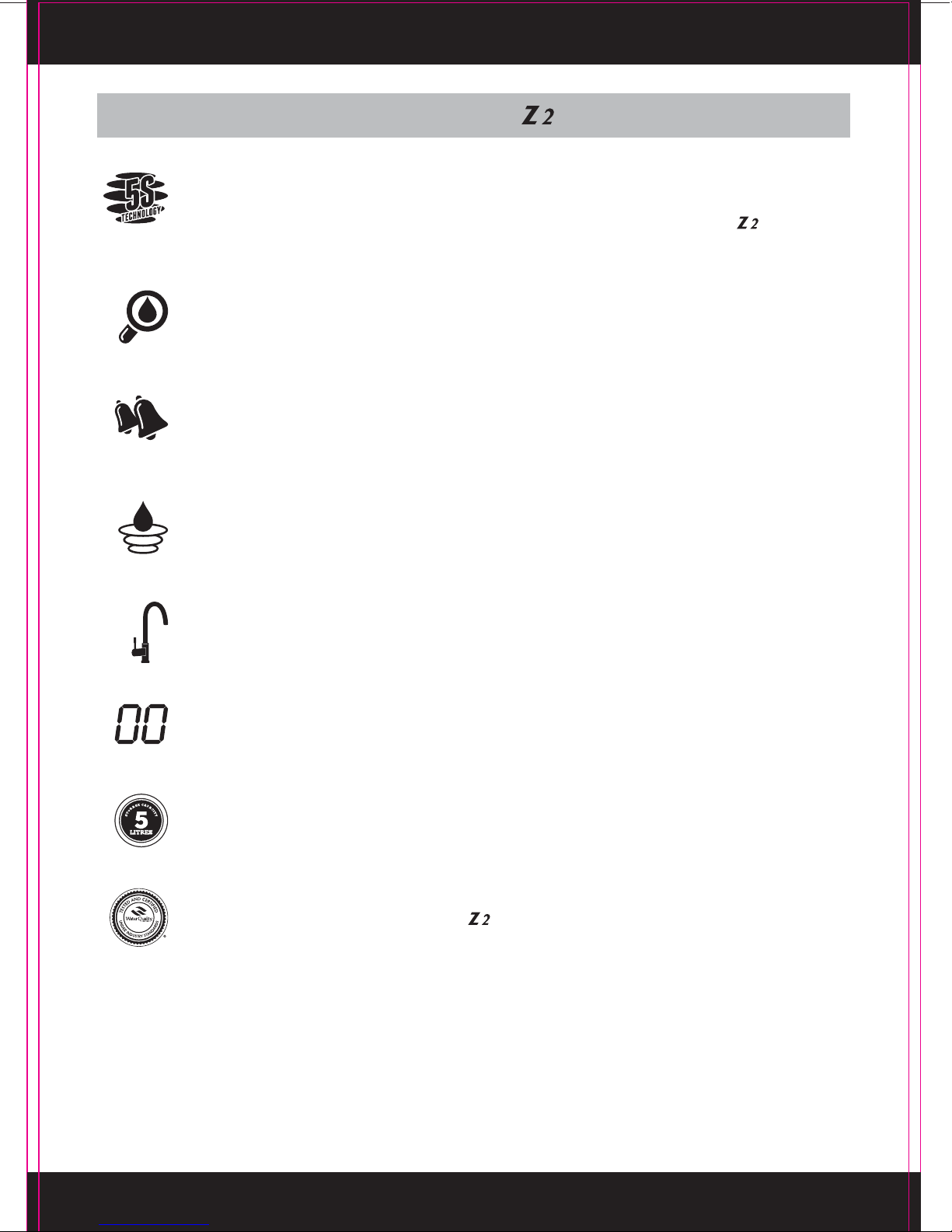

Key Features of your A. O. Smith RO water purifier

ADVANCE ALERT TECHNOLOGY

For Sediment + Pre Carbon filter and RO membrane + Silver Activated Post Carbon

filter change.

ADVANCED PRE-FILTER & SEDIMENT FILTER

For effective removal of suspended solids and sediment from water and to ensure

better life of RO membrane.

ADVANCED PATENTED SSM TECHNOLOGY (SIDE STREAM RO MEMBRANE)

Suitable for water with low and high (upto 2000 ppm) TDS. Wastes less water and

improves pure water recovery.

PURITY THROUGH 5 STAGE PURIFICATION

5S TECHNOLOGY: Pre-filter + Sediment filter + Pre Carbon filter + Patented Side

Stream RO Membrane + Silver Activated Post Carbon filter. In A. O. Smith RO

water purifier 100% water passes through the RO membrane.

STORAGE CAPACITY

Purified water storage capacity of 5 litres.

DIGITAL

Digital display for simple and intelligent display of information.

GOOSENECK FAUCET

Swivel faucet for user convenience.

WQA CERTIFIED RO MEMBRANE

RO Membrane element in A. O. Smith RO water purifier is tested and certified

by WQA against NSF/ANSI 58 standards for material requirements.

On Receipt

It is our policy to promote safe delivery of all orders. This product shipment has been

thoroughly checked, packed and quality certified before leaving our plant.

Visible Loss or Damage

If any of the goods called for on the bill of lading or express receipt are damaged or the

quantity is short, do not accept them until the freight or express delivery agent makes an

appropriate notation on your freight bill or receipt.

Concealed Loss or Damage

When a shipment has been delivered to you in apparent good condition, but upon

opening the crate or container, loss or damage has taken place while in transit, inform

the carrier’s agent / A. O. Smith representative immediately.

About this Manual

This manual is a guide to good practice for operating and periodic maintenance of the

A. O. Smith Under Sink RO water purifier.

This does not contain the full servicing procedures necessary for continued successful

operation of this product. The services of A. O. Smith Company authorised service

technician must be employed periodically on the same.

Do not operate before reading manual supplied with this product.

Please follow instructions in this manual to ensure personal safety and proper operation

of this product. A. O. Smith assumes no liability for installation or servicing performed by

any unauthorised personnel. Always install, operate, inspect and maintain this product in

accordance with all applicable standards. Please store this user manual carefully for any

future reference.

Pre-instruction Literature

These instructions have been written as a guide for the proper installation and operation

of your A. O. Smith Under Sink RO water purifier. A. O. Smith will not accept any

liability where these instructions have not been followed. However, for your safety and

to avoid damage caused by improper installation, it is recommended that water purifier

must be installed by A. O. Smith Company authorised service technician only.

Before proceeding with the installation instructions:

1. Inspect the A. O. Smith Under Sink RO water purifier and its component parts

for possible damage. DO NOT install or attempt to repair any damaged component

parts. If you detect any damage in your A. O. Smith Under Sink RO water

purifier please contact the company through Customer care centre, details of which

are mentioned in this manual and on the product.

2. Verify that the voltage being supplied corresponds to that which is mentioned in the

A. O. Smith Under Sink RO water purifier manual.

IMPORTANT

Safety

Your safety and the safety of your loved ones is paramount to us. There are several

safety related messages in this manual, which have been provided during various stages

such as installation, operation and maintenance of your A. O. Smith Under Sink RO

water purifier. These messages point out potential hazards and also educate on how to

reduce any potential risks. Please always read and follow all safety messages as provided

in this manual.

General Instructions

This is the safety alert symbol. This symbol alerts you to potential

hazards that can hurt you and others. All safety messages will follow the

safety alert symbol and either the word “DANGER” or “WARNING”.

Indicates an imminently hazardous situation which, if not avoided, will

result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could

result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may

result in minor or moderate injury or property damage.

DANGER

CAUTION

WARNING

Introduction

Stage 4 – RO (Reverse Osmosis) membrane

RO membrane contains semi-permeable membrane wherein the water is passed

through the semi-permeable membrane to remove TDS (Total Dissolved Solids) and

heavy metals like mercury, arsenic, lead, chromium, cadmium etc. It also removes

microorganisms like bacteria, virus, protozoa and cysts.

Stage 5 –

Silver Activated Post Carbon

Water is passed through Silver Activated Post Carbon which acts as polisher and

enhances the taste of water.

A. O. Smith Under Sink RO water purifier uses one of the latest technologies that

is used in water purification process. A. O. Smith Under Sink RO water purifier

works under the principle of RO (Reverse Osmosis) technology which is found to be

one of the most effective process. In this process water under pressure is passed

through a semi-permeable membrane. Purified water is collected for drinking in a

storage tank and impurities in the water are flushed to the drain.

Why water purification is important?

Water purification, today is essential due to the presence of harmful contaminants

present in the water supply. Rapid urbanisation and speedy industrial growth have led to

significant pollutants and contaminants being found in the water supply. Below is a list of

some of the harmful contaminants found today in the water supply which if consumed in

excess can be detrimental to human health.

• TDS (Total Dissolved Solids) like Nitrates, Chlorides, Sulphates etc.

• Pesticides and VOC (Volatile Organic Compounds).

• Heavy metals like Mercury, Arsenic, Lead, Chromium, Cadmium etc.

• Microorganisms such as pathogenic bacteria, virus, protozoa and cysts.

A. O. Smith Under Sink RO water purifier removes excessive TDS (Total Dissolved

Solids) in water by more than 95%. A. O. Smith Under Sink RO water purifier reduces

heavy metals and removes pathogens. By this, it ensures you safe and great tasting water.

A.O. Smith Under Sink RO water purifier has 5 stages of purification system, wherein

the water is passed through the various stages and progressively filtered to get purified

water which is stored in the inbuilt storage tank.

 Stage 1 – Pre-filter

The Pre-filter is used to remove physical contaminants such as dirt, dust, soil

particles, turbidity present in the water. This improves the life of the Sediment filter.

 Stage 2 – Sediment filter

The Sediment filter is used to remove fine and coarse physical contaminants present

in the water. This improves life of the Pre Carbon filter and ensures efficient working

of RO membrane.

 Stage 3 – Pre Carbon filter

The Pre Carbon filter uses carbon block with high adsorbtion capacity which reduces

harmful chemicals including pesticides, volatile organic compounds, residual chlorine

etc., from water. It also adsorbs bad taste and odour causing organic compounds

from water.

How does the A. O. Smith Under Sink RO water purifier work?

Figure 1

Stage 4 – RO (Reverse Osmosis) membrane

RO membrane contains semi-permeable membrane wherein the water is passed

through the semi-permeable membrane to remove TDS (Total Dissolved Solids) and

heavy metals like mercury, arsenic, lead, chromium, cadmium etc. It also removes

microorganisms like bacteria, virus, protozoa and cysts.

Stage 5 –

Silver Activated Post Carbon

Water is passed through Silver Activated Post Carbon which acts as polisher and

enhances the taste of water.

Note: The Pre-filter, Ball valve and Gooseneck faucet comes along with the product as

standard accessories.

To drain

LED Display Panel Indicators

3 5

Installation Overview

Part Description

1 Normal water supply

2 Hot water supply

3 Ball valve

4 Under Sink water purifier

5 LED display panel indicators

6 Pre-filter

7 Power adapter

8 Gooseneck faucet

This indicates that the purifier is functioning in normal condition.

Work indicator

When the water pressure is lower than required water pressure limits, this indicator

will start to blink continuously and the buzzer beeps for 8 times until the water

pressure becomes normal.

Source indicator

This indicates that the water purifier tank is full.

Tank full indicator

RO change indicator

This indicates that RO membrane needs to be replaced.

• RO change indicator glows when 5% life is remaining and buzzer beeps for 4 times,

indicating that it is time to replace RO membrane.

• When RO membrane life reaches its end, this indicator will start to blink continuously

and the buzzer beeps for 8 times indicating that RO membrane needs to be replaced.

Note: Call A. O. Smith Customer care centre to replace RO membrane.

Note: Call A. O. Smith Customer care centre if you notice continuous blinking of Source indicator.

Note: Call A. O. Smith Customer care centre to replace the respective filter.

Filter status indicator

This indicates the status of the Sediment filter , Pre Carbon filter and Silver

Activated Post Carbon .

• When the filter status indicator is green, it indicates that these filters are functioning

normal.

• Filter status indicator changes to orange when 5% life is remaining and buzzer beeps

for 4 times, indicating that it is time to replace respective filter.

• When the filter life reaches its end, this indicator changes to red and the buzzer

beeps for 8 times indicating that respective filter needs to be replaced.

3 5

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere A.O. Smith Wasserfiltersystem Handbücher

A.O. Smith

A.O. Smith AOS-HERO-CHR Bedienungsanleitung

A.O. Smith

A.O. Smith Puritee Bedienungsanleitung

A.O. Smith

A.O. Smith PRO AOW-3000-R Bedienungsanleitung

A.O. Smith

A.O. Smith AO-WH-FILTER Bedienungsanleitung

A.O. Smith

A.O. Smith AOW-2000 Bedienungsanleitung

A.O. Smith

A.O. Smith ADR75-V-ET-1 Bedienungsanleitung

A.O. Smith

A.O. Smith CLARYUM AO-US-100-R Bedienungs- und Sicherheitshinweise

A.O. Smith

A.O. Smith X4 Bedienungsanleitung

A.O. Smith

A.O. Smith AO-MF-ADV-R Bedienungs- und Sicherheitshinweise

A.O. Smith

A.O. Smith AOW-3000 Bedienungsanleitung

A.O. Smith

A.O. Smith AO-WH-DSCLR Bedienungsanleitung

A.O. Smith

A.O. Smith AO-MF Bedienungsanleitung

A.O. Smith

A.O. Smith OPAL NW Series Bedienungsanleitung

A.O. Smith

A.O. Smith aosbath MAX4 Bedienungsanleitung

A.O. Smith

A.O. Smith X3 Bedienungsanleitung

A.O. Smith

A.O. Smith AO-WH-PREV Bedienungsanleitung

A.O. Smith

A.O. Smith EWS 6 Bedienungsanleitung

A.O. Smith

A.O. Smith AO-WH-FILTER Bedienungsanleitung

A.O. Smith

A.O. Smith Intelli-UV-Pro Bedienungsanleitung

A.O. Smith

A.O. Smith Pro AOW-AS20-R Bedienungsanleitung

A.O. Smith

A.O. Smith Invi-U1 Bedienungsanleitung

A.O. Smith

A.O. Smith Pure&Sure 329843-000_R0 Bedienungsanleitung

A.O. Smith

A.O. Smith PRO AOW-100 Bedienungsanleitung

A.O. Smith

A.O. Smith AO-US-200 Bedienungsanleitung

Beliebte Wasserfiltersystem Handbücher anderer Marken

Wisy

Wisy LineAir 100 Bedienungsanleitung

Schaffner

Schaffner Ecosine FN3446 Series Betriebsanleitung

Pentair

Pentair FLECK 4600 SXT Benutzerhandbuch

H2O International

H2O International H20-500 Bedienungsanleitung

Renkforce

Renkforce 2306241 Bedienungsanleitung

Neo-Pure

Neo-Pure TL3-A502 Bedienungsanleitung

FLTR

FLTR OBF Bedienungsanleitung

STA-RITE

STA-RITE VERTICAL GRID DE FILTERS S7D75 Bedienungsanleitung

Applied Membranes

Applied Membranes W-G844EM Bedienungsanleitung

BEGA

BEGA 116 Bedienungsanleitung

WATA

WATA Standard Bedienungsanleitung

Price

Price FFU series Handbuch

Gaggenau

Gaggenau BRITA INTENZA 467873 Bedienungsanleitung

Brita

Brita SAFF-100 Bedienungsanleitung

HEISSNER

HEISSNER FPU24000-00 Bedienungsanleitung

BGS technic

BGS technic 1518 Bedienungsanleitung

Reverse Osmosis

Reverse Osmosis RF Series Bedienungsanleitung

ubbink

ubbink Filtramax Series Bedienungsanleitung
