AAXA Technologies M4 Bedienungsanleitung

aaxa

TECHNOLOGIES

User Guide

M4Pico Projector

Caution!

WARNING: Please use this product as instructed. Misuse may cause

injury or death.

DO NOT use while driving

DO NOT expose to water or wet

surfaces. Electric shock may occur.

DO NOT expose the projected LED

image to your eyes or the eyes of

others

DO NOT block or restrict airow

from ventilation holes as this may

cause the projector to overheat

Keep the projector, battery, or

charger away from any heat sources

Caution for Battery Use

• Do not pierce or puncture the battery

with sharp objects

• Do not heat the product or expose it to

high temperature.

• Do not wet it or place it in any liquid

Caution for Headphone Use

• Prolonged use at high volume may

impair your hearing.

• High volume during walking or driving

may cause distractions and result in

injury or death

Table of Contents

Connecting a Micro SD Card

Connecting to a USB Host

Chapter 3: Menu Screens

Chapter 4: Technical Details

Troubleshooting

Specications 1

Chapter 1: M4 at a glance

Main Unit Front/Back

Remote & Keypad

Accessories

Main menu

Video Player Menu

Video FAQ

Photo Viewer Menu

Photo FAQ

Music Player Menu

Music FAQ

Setup Menu

Keystone Adjustments

Connecting to Speaker or

Headphones

Chapter 2: Getting Started

Powering On / OFF

FocusAdjustment/Throw

Distance

Battery Pack Information

Connecting to a Computer VGA

Connecting to a Computer HDMI

Connecting to HDMI Video

DTV Setup

Chapter 1

Power On/Off

Main Menu

Navigation

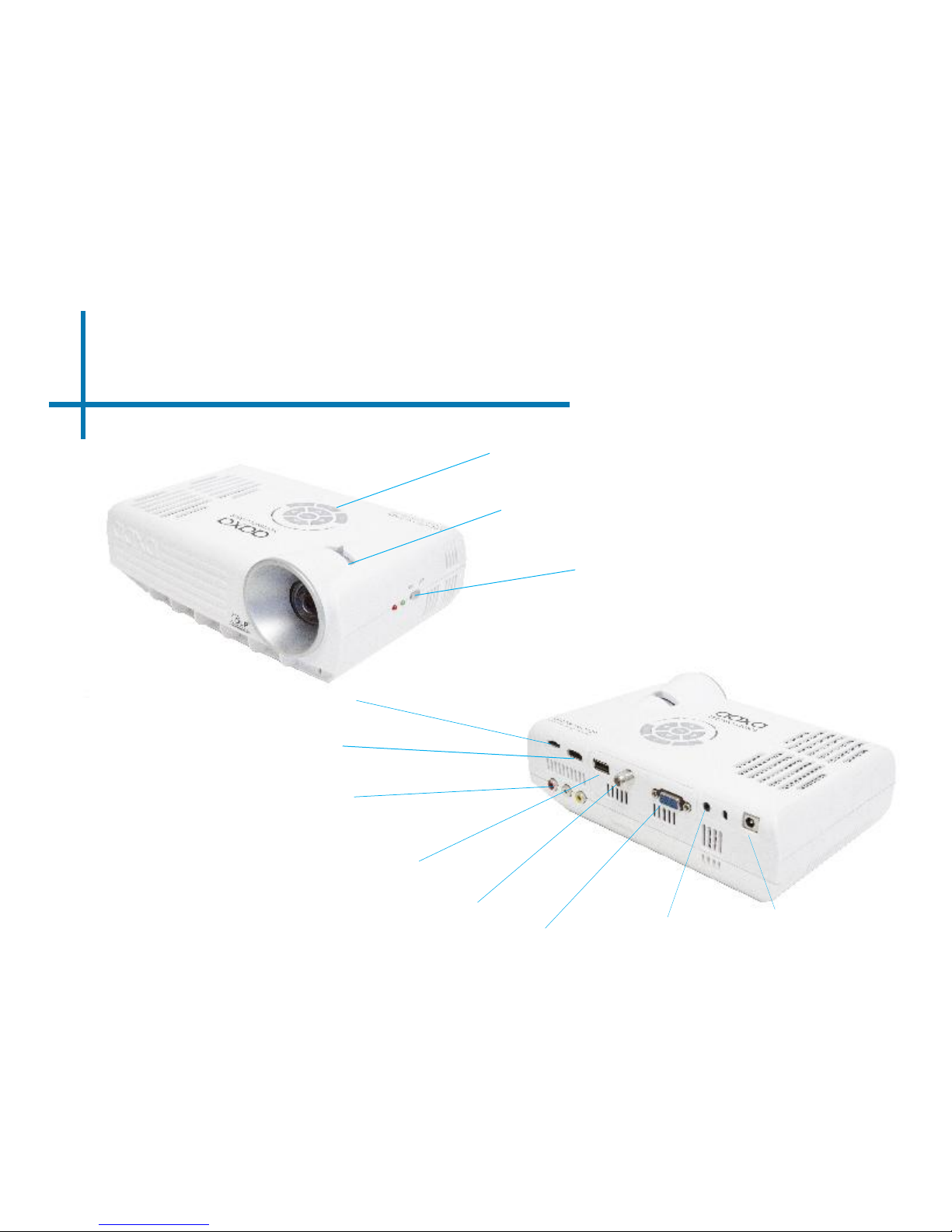

Main Unit Front/Back Power Button

M4 at a Glance

Power Switch

Focus Wheel

Component Port

MicroSD Card Slot

HDMI Input

USB

TV Antenna

3.5mm Audio DC Adapter

VGA

PWR Gamma

NU U

UP EXIT

VOL-

VOL+

U/D DOWN R/L

VGA Menu AV

Remote & Keypad

Power On/Off

Select Source

Media Player Menu

Navigation

Input Exit/Back

Direction Pad

LED Lights

Keystone Adjustment Keystone Adjustment

Main Menu Navigation

Volume Adjustment Volume Adjustment

On / Off

Both the keypad and remote can be used to navigate through the menus. The Main Menu

Navigation on the remote functions exactly the same as the directional pad on the M4 unit

for all modes except DTV mode. In DTV mode the remote control is necessary to perform

the “scan” feature

Accessories

*Under various circumstances, the actual accessories may be different from

those shown in the pictures above.

PWR Gamma

MENU U

UP EXIT

VOL-

OK VOL+

U/D DOWN R/L

VGA Menu AV

Internal Battery

(pre-installed)

Remote

Power Adapter

Getting Started

Powering ON the projector

Chapter 2

Powering OFF the projector

Note: The M4 Projector battery does not charge when it is in operation. For first time

operation charge the battery for 120 minutes to ensure a full charge.

1. Connect the power adapter to the projector and power outlet

2. Switch the On / Off switch on the side of the projector to the “ON” position

There are two "idle" modes for the projector. "Off" and "Standby". The "Off"

mode complete turns off the projector. The "Standby" mode allows the projector

to be turned on with the remote control. The standby mode consumes a little

battery power when left in this mode.

1. To fully power off the projector, switch the On / Off switch on the side of the projector

to the "Off" position

2. To put the projector in "Standby" mode press the POWER button on the keypad

3. A window will pop up asking "Do you want to power off?"

4. Press the power button again to put the projector in "Standby" mode

Focus Adjusment / Throw Distance

Focus Adjustment

DIAGONAL SCREEN SIZE

16:9 Aspect Ratio

Throw Distance Chart

• Adjust the focus wheel left and right until the image

becomes clear.

Screen Size (Inch)

102

Distance (Meters)

2.8

2.6

2.4

2.2

1.8

1.6

1.4

1.2

0.8

0.6 Throw Ratio 1.360

1. Remove the three screws

circled in blue holding the M4

battery compartment.

2. Disconnect the battery harness

to the battery receptacle on the

PCBA

**Please notethat the battery pack is pre-installed in the M4. The instructions

below is how to remove the battery unit if replacement is needed.

3. Remove the battery and

replace with new battery unit

using previous instructions

in reverse order.

Battery Pack Installation

Connecting to a Computer via VGA

Connect the large end of the

VGA Cord

to your computer’s

VGA Adapter

Step 1:

Step 2:

Step 3:

In the Main Menu

Select “VGA” iconSelect “INPUT” icon

to your M4

VGA Cord

Connect the large end of the

VGA Adapter
