User Guide

PICO PROJECTOR

Caution!

WARNING: Please use this product as instructed. Misuse may cause

injury or death.

DO NOT use while driving

DO NOT expose to water or wet

surfaces. Electric shock may occur.

DO NOT expose the projected LED

image to your eyes or the eyes of

others

DO NOT block or restrict airow

from ventilation holes as this may

cause the projector to overheat

Keep the projector, battery, or

charger away from any heat sources

Caution for Battery Use

• Do not pierce or puncture the battery

with sharp objects

• Do not heat the product or expose it to

high temperature.

• Do not wet it or place it in any liquid

Caution for Headphone Use

• Prolonged use at high volume may

impair your hearing.

• High volume during walking or driving

may cause distractions and result in

injury or death

Table of Contents

Chapter 1: P3X at a glance

Main Unit Front/Back

Remote & Keypad

Accessories

Chapter 2: Getting Started

Powering On / OFF

Focus Adjustment / Throw

Distance

External Input/Outputs

Connecting to a Computer HDMI

Connecting to Composite Video

Connecting to HDMI Video

Connecting to Speaker or

Headphones

Connecting a Micro SD Card

Connecting a MicroSD Card

Connecting a USB Stick

Charging a Phone or

USB Device

Chapter 3: Menu Screens

Main menu

Video Player Menu

Photo Viewer Menu

Music Player Menu

Ebook Viewer Menu

Setup Menu

Chapter 4: Technical Details

Troubleshooting

Specications

Notes 31

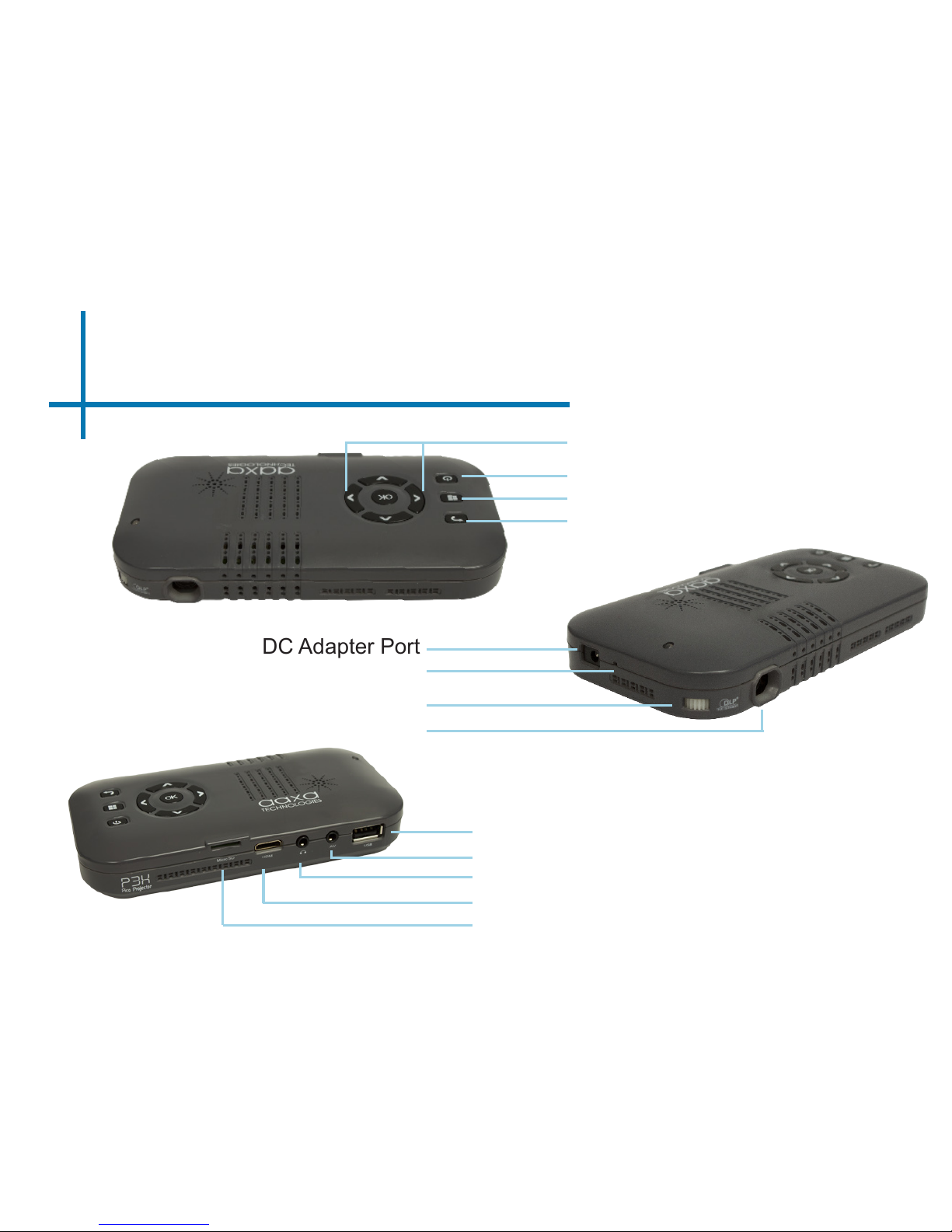

P3X at a Glance

Chapter 1

HDMI Input

USB Port

3.5 mm Audio Jack

Micro SD Reader

3.5 mm Composite Jack

Focus Wheel

DC Adapter Port

Lens

Reset Button

Menu Button

Navigation Pad

Back Button

Power Button

Keypad

Menu Navigation

Pad

Navigation Pad

Back

(Previous Screen)

(Main and Submenus)

Power

Button

The Main Menu Navigation on the

remote functions exactly the same as

the directional pad on the P3X unit.

Use the directional buttons on the

“Navigational Pad” to scroll through les

and navigate the main and submenus.

Use the “OK” button in the center of the

navigational pad to select a le or a menu action.

Use the “Back” button to return to a

previous menu screen.

Press and hold the “Menu” button to jump back

to the main menu.

*(Pressing the “Menu” button without

holding it will return to the submenu.)

OK Button

Back Button

Menu Button

Accessories

*Under various circumstances, the actual accessories may be different from

those shown in the pictures above.

TripodPower Adapter

A/V CableHDMI Cable

Getting Started

1. If using power supply connect the power adapter into the P3X.

**If running the P3X on the battery power proceed to step 3.

2. Plug the opposite end of the power cord into a wall outlet.

3. Press the POWER button on the keypad and hold for 2-3 seconds to start the

projector.

Powering ON the projector

Chapter 2

Powering OFF the projector

1. Press and hold the power button on the keypad for 3 seconds.

2. The optical engine should power off and the fan should stop spinning.

Note: The P3X Projector battery does not charge when it is in operation.

**The P3X is equipped with an internal lithium-ion battery and can be used without the power supply.

Be sure that the battery is fully charged before the rst use.

Focus Adjusment / Throw Distance

Focus Adjustment

DIAGONAL SCREEN SIZE

16:9 Aspect Ratio

Throw Distance Chart

Throw Ratio 1.5

*minimum throw distance: 6.6 inches

Located beside the projector lens, turn the

focus wheel left or right until the image

becomes clear.

166

332

498

664

797

995

1327

1669

110.7

221.4

332.1

442.8

531.1

664.1

885.5

1106.9

62.3

124.5

186.8

249.1

298.9

373.6

498.1

622.6

Min

Default

Max

Diagonal inch (“)

Screen Width (mm)

Screen Height (mm)

Distance from

Lens to Screen (mm)

External Inputs and Outputs

Headphones/speakers

Composite Cable

HDMI

USB Stick

MicroSD

Connecting to a Computer via HDMI

Connect one end of the HDMI Cable

to your computer’s HDMI Adapter.

Step 1:

Step 2:

Step 3:

In the Main Menu Select “HDMI” icon.

Connect the other end of the HDMI

Cord to your P3X’s HDMI port.
