A43/A44

INSTALLATION MANUAL

ABB AB

Cewe - Control

P O Box 1005, SE 611 29 NYKÖPING, Sweden

Telephone: +46 155 29 50 00

Telefax: +46 155 28 81 00

http://www.abb.com/lowvoltage

Installation manual 2CMC484003M0201, Version A, August 2011

Prod. ABB AB/Cewe-Control

English

Svenska

Norsk

Dansk

Suomi

Deutsch

Nederlands

Français

Español

Italiano

Português

Polski

Česky

Pyccкий

ﺔﻴﺑﺮﻌﻟا

Conﬁ guration

Declaration of conformity

Installation guide

A43/A44

INSTALLATION MANUAL

Contents

Disclaimer ......................................................................................... 2

Trademark......................................................................................... 2

Introduction ....................................................................................... 3

Product Overview.............................................................................. 3

Installation......................................................................................... 8

Installation Requirements.................................................................. 9

Troubleshooting ................................................................................ 9

Configuration..................................................................................... 9

Service and Maintenance................................................................ 10

Disclaimer

The information in this document is subject to change without notice

and should not be construed as a commitment by ABB AB. ABB AB as-

sumes no responsibility for any errors that may appear in this docu-

ment.

In no event shall ABB AB be liable for direct, indirect, special, incidental

or consequential damages of any nature or kind arising from the use of

this document, nor shall ABB AB be liable for incidental or consequen-

tial damages arising from use of any software or hardware described in

this document.

This document and parts thereof must not be reproduced or copied

without written permission from ABB AB, and the contents thereof must

not be imparted to a third party nor used for any unauthorized purpose.

The software or hardware described in this document is furnished un-

der a license and may be used, copied, or disclosed only in accordance

with the terms of such license.

Trademark

ABB AB is a registered trademark of the ABB Group. All other brand or

product names mentioned in this document may be trademarks or reg-

istered trademarks of their respective holders.

EN EN

Introduction

The A43/A44 meters are electricity meters for DIN-rail mounting in dis-

tribution boards or small enclosures. The meters are connected directly

and/or via external current and voltage transformers.

Read the information in this manual carefully before you install the

equipment.

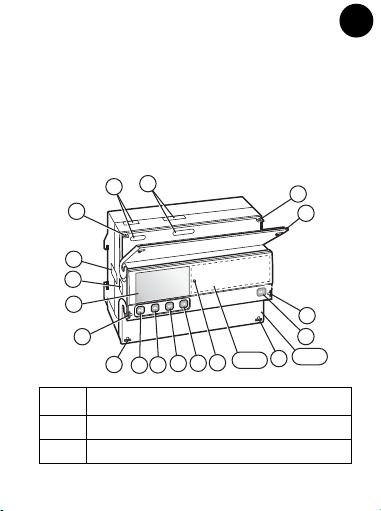

Product Overview

Part Description

1 Terminal for communication connection

2 Terminal for I/O connection

314 13 12 11 59,10 7,8

3 Sealing point.

4 Sealable terminal cover with printed wiring diagram

5 LED, flashes in proportion to the energy measured

6 Set button

7 Sealable terminal cover with printed wiring diagram

8 Terminal block

9 Sealable cover

10 Product data

11 OK button

12 Down button

13 Up button

14 Exit button

15 LCD

16 IR Interface

17 Sealing

Part Description

EN EN

Technical Data Direct connected Transformer conn.

Voltage

Voltage 3x57.7-288/100-500 V (-20% - +15%)

3x100-400/173-690 V (-20%- +15%)

Terminal wire area

Tightening torque

1 - 25 mm²

2.5 Nm

0.5 - 10 mm²

2 Nm

Current

- base Ib

- rated In

- reference Iref

- maximum Imax

- minimum Imin

5 A

80 A

0.25 A

1 A

6 A

0.02 A

Frequency 50 or 60 Hz ± 5%

Accuracy 1%, 2% 0.5%, 1%

Material Polycarbonate in transparent front glass,

casing and terminal cover. Glass reinforced

polycarbonate in terminal block.

Operating temp. -40 °C - +70 °C

Storage temp. -40 °C - +85 °C

Humidity 75% yearly average, 95% on 30 days/year

Resistance to heat Terminal 960°C, cover 650°C (IEC 60695-

2-1)

Outputs

Current 2 - 100 mA

Voltage 24VAC - 240VAC, 24VDC - 240VDC. For me-

ters with only 1 output 5 - 40VDC.

Pulse frequency 1 imp/MWh - 9999 imp/Wh

Pulse length 10 - 990 ms

Terminal wire area 0.5 - 1 mm²

Tightening torque 0.25 Nm

Comm. terminal

Terminal wire area 0.5 - 1 mm²

Tightening torque 0.25 Nm

Transformer ratios

Voltage ratio

Current ratio

Max tot. transf. ratio

1-9999

999999

Pulse indicator(LED)

Red LED/freq. 1000 imp/kWh

Pulse width 40 ms

Technical Data Direct connected Transformer conn.

EN EN

Installation

For information about how to mount and install the equipment, follow

the instructions in the Installation Guide at the end of this manual.

E Warning – Working with high voltage is potentially lethal. Per-

sons subjected to high voltage may suffer cardiac arrest, burn

injuries, or other severe injuries. To avoid such injuries, make

EMC compatibility

Impulse voltage test 6 kV 1.2/50μs (IEC 60060-1)

Surge voltage test 4 kV 1.2/50μs (IEC 61000-4-5)

Fast trans. burst test 4 kV ( IEC 61000-4-4 )

Immunity HF-fields 80 MHz - 2 GHz at 10 V/m (IEC61000-4-3)

Immunity conducted 150kHz – 80MHz ( IEC 61000-4-6 )

RF Emission EN 55022, class B (CISPR22)

ESD 15 kV ( IEC 61000-4-2 )

Standards IEC 62052-11, IEC 62053-21 class 1 & 2,

IEC 62053-22 class 0.5s, IEC 62053-23

class 2, IEC 62054-21, GB/T 17215.211-

2006, GB/T 17215.321-2008 class 1 & 2,

GB/T 17215.322-2008 class 0.5s, GB

4208-2008, EN 50470-1, EN 50470-3 cat-

egory A,B & C

Technical Data Direct connected Transformer conn.

sure to disconnect the power supply before you start the instal-

lation.

Electrical equipment should only be installed, accessed, ser-

viced and maintained by qualified electrical personnel.

E Warning – For safety reasons it is recommended that the

equipment is installed in a way that makes it impossible to

reach or touch the terminal blocks by accident.

The best way to make a safe installation is to install the unit in

an enclosure. Further, access to the equipment should be lim-

ited through use of lock and key, controlled by qualified electri-

cal personnel.

W Warning – The meters must always be protected by fuses on

the incoming side.

In order to allow for maintenance of transformer rated meters,

it is recommended that there should be a short circuiting device

installed near the meter.

Do not operate the equipment outside the specified technical

data.

Installation Requirements

To comply with the protection requirements the meter must be

mounted in protection class IP 51 enclosures, or better, according to

IEC 60259.

Meters with wireless communication should not be installed closer

than 20 cm from people.

EN EN

Troubleshooting

If any of the following icons,W C V, appear in the display after the

installation has been completed and power has been connected to the

meter, refer to the A43/A44 User Manual for detailed information.

Configuration

To configure the meter and change the default settings, follow the in-

structions in the Configuration Guide at the end of this manual.

Default Settings

The following table lists the default settings of the meter that normally

needs to be changed. Check the settings to see if any of them needs to

be changed.

N Note – For all other settings, including communication default

settings, refer to the A43/A44 User Manual.

Parameter Direct connected Transformer conn.

Clock xxxxxx xxxxxx

Ratios CT ---- 1

Ratios VT --- 1

Pulse frequency 100 10

Pulse length 100ms 100ms

No. of wires 4 4
