ABB JSM D28 Bedienungsanleitung

2TLC010040M0201 REV. B 1/5

—

SAFETY PRODUCTS

Installation guide

JSM D28 Handle profile for Magne

JSM D28 is an aluminum profile used as door handle for Magne 3 and Magne 4 on hinged (conventional)

doors. Designed for doors with a minimum opening radius of 200 mm.

Installation shall be done in accordance with a risk assessment for the individual application.

Installation must be carried out by authorized personnel and in accordance with instructions in this

document and the ‘Magne Product Manual’.

Read and understand ‘Magne Product manual’ and ‘Eden Product manual’ before starting the

installation. Manuals are found at www.abb.com/jokabsafety

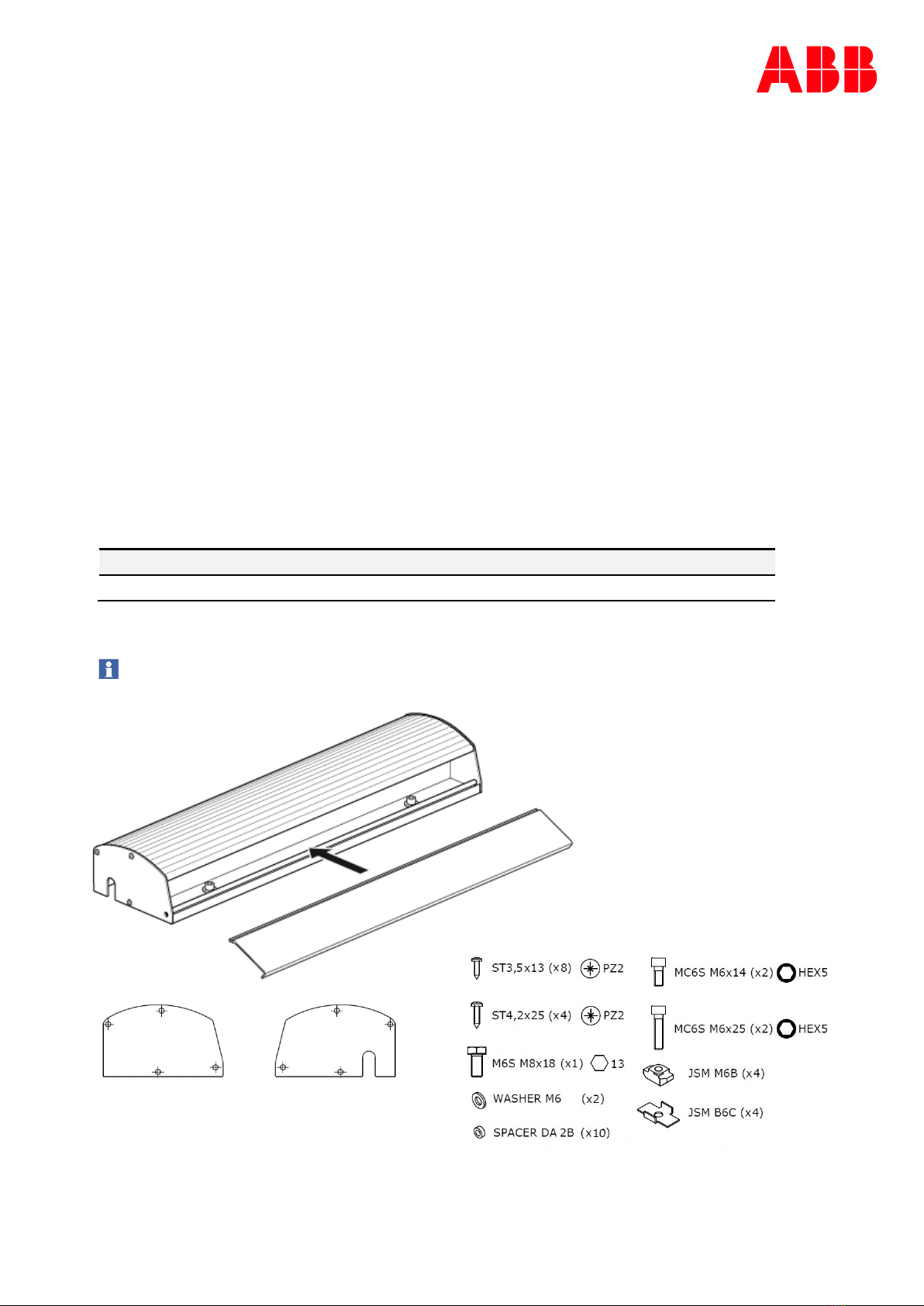

Parts overview

Product ID

Description

2TLA042023R0100

JSM D28 Handle profile in aluminum

The mounting kit includes all bolts and nuts necessary to install Magne on ABB Quick-Guard © fencing

system.

Note!

Magne, Eva, anchor plate and cellular rubber are not included in the

kit. These items

must be ordered separately

Handle profile (x1)

Cover profile (x1)

End cover (x1)

End cover with hole

for cabling (x1)

Special nut

Centering plate

INSTALLATION GUIDE

REV. B 2/5

Dimensions

All dimensions are in millimeter (mm).

Handle profile dimensions

Installation and orientation of Eva sensor

Depending on how Magne is installed on the fence, Eva and the anchor plate can be installed in two

ways. Ensure that Eva is installed and oriented in the holes to which the corresponding Magne model is

installed. See figures below for alternative ways of installation and orientation of Eva.

INSTALLATION GUIDE

REV. B 3/ 5

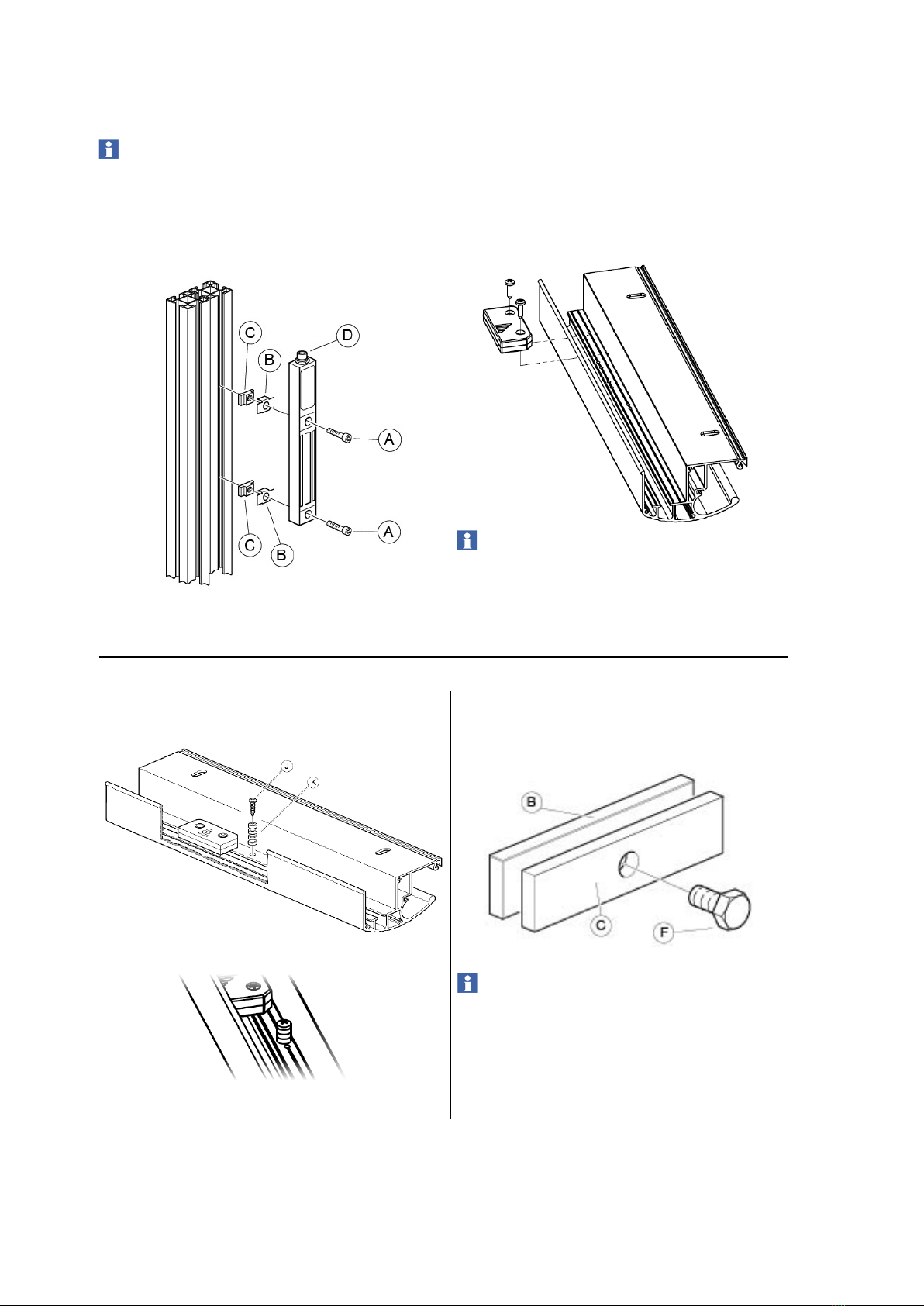

Installation and assembly

Note!

In the following step by step instructions, a Magne 4 is

installed.

Pre-assemble Magne (D) using screw (A),

centering plate (B) and special nut (C

) and install

it on the door post

2. Install Eva sensor with self-tapping screw

4.2 x 25 (x2). Make sure Eva is oriented correctly

and that the correct installation holes are used.

Note!Installation and orientation position of

Eva depends on Magne model and how Magne is

installed on the fence. Use DA 2B spacers (x2),

one in each hole at the back side of Eva.

Install positioning/stop screw (J) 4.2 x 25 (x1)

and

DA 2B spacer (K) (x4) for the anchor plate.

4. Pre-assemble the anchor plate (B) with cellular

rubber (C). Tighten the screw M8 x 18 (F) by hand,

do not use any tool.

Note! Do not overtighten the screw. This can

deform the anchor plate, causing reduced or no

holding force. A deformed anchor plate shall be

replaced.

INSTALLATION GUIDE

REV. B 4/5

. Insert/slide the anchor plate into the handle

profile

6. Install the positioning/stop screw (J) 4.2 x 25 (x

and DA 2B spacer (K) (x4) for the anchor plate.

Pre-assemble the handle profile (H) using suitable length of M6 screw (A), washer (R), centering plate

(B) and special nut (C).

8. Install end cap (N) (x2) on both sides of the profile using self-tapping screws (O) 3.5 x 13 (x6).

Note! End cap with opening for cabling can be installed on any profile end.

The fourth screw is

installed later (see step 11).

INSTALLATION GUIDE

REV. B 5/5

Install the handle profile on the door and

fasten with screws (A). M

ake sure the profile

placement is aligned with Magne

10. Insert the cover profile (P).

11.

Install the two remaining self-tapping screws

(O)

3.5 x 13 mm (x2) to fixate the cover plate and

to finalize the installation

12. Check the function by opening and closing

the door several times.

Complete product range and accessories are found at www.abb.com/jokabsafety
