ABC Hobby GOOSE Bedienungsanleitung

Instruction Manual

Study the instructions thoroughly

before assembly.

・REAR 2 WHEEL DRIVE

・REAR MOUNTED MOTOR

・BELT DRIVE

・DOUBLE DECK CHASSIS

・BALL DIFFERENTIAL

・FULL ADJUSTABLE SUSPENSION

・WHEEL BASE：210mm

・BODY WIDTH：157mm-163mm

・ROAD CLEARANCE：4-10mm

ABC HOBBY ORIGINAL RADIO CONTROL CAR

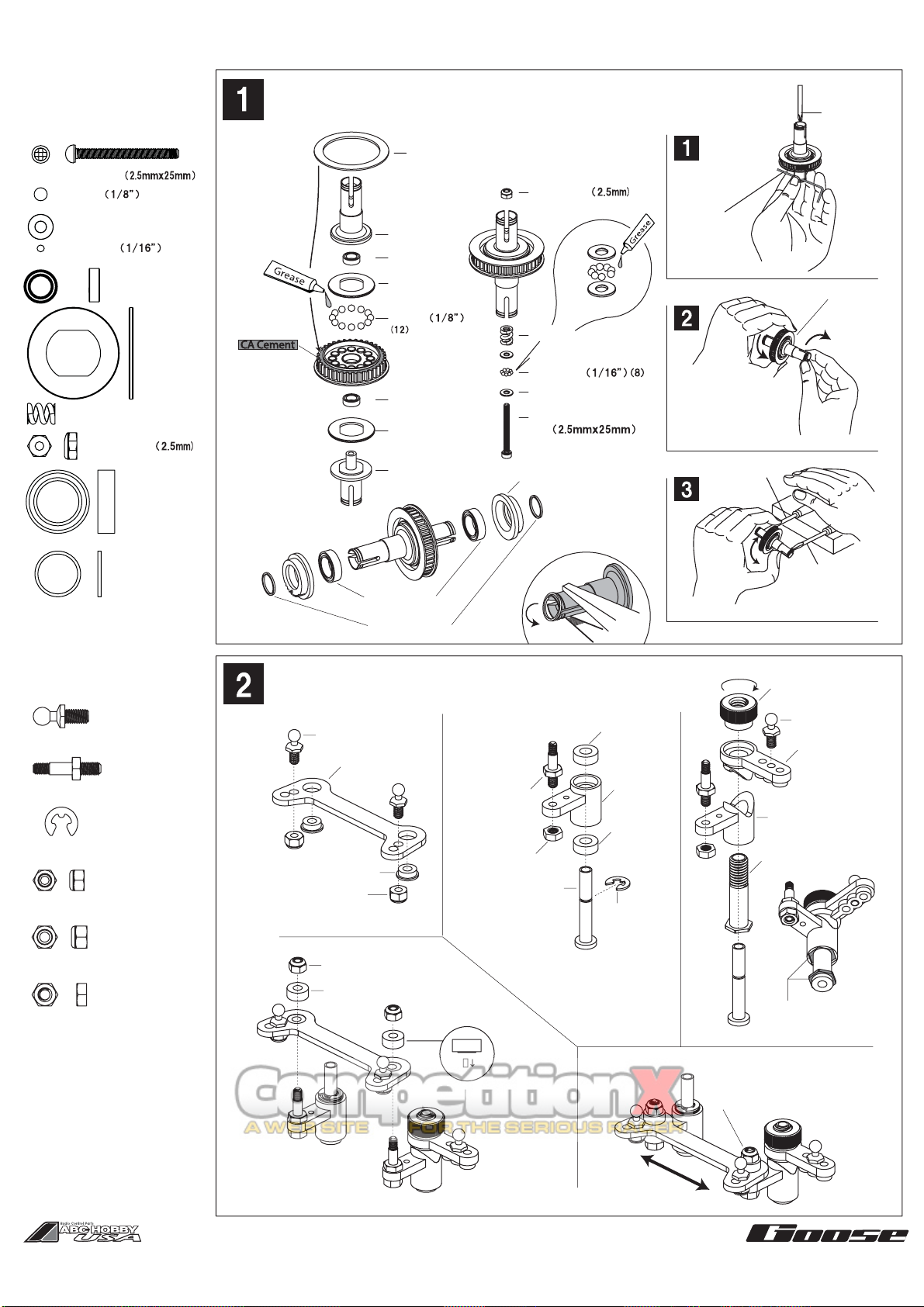

New Generation Rear Wheel Drive

DIFFERENTIAL

+ Philip Driver

Allen Wrench

**Don’t tighten too much it

Turn Diff Joint

Cup A to Right

Then, Diff Joint

Cup B turns to

the left.

Repeat 1-2-3 so that

demister moves

smoothly.

- Flat Driver

Ball Stud 4mm

Steering Shaft

RIGHT

LEFT

Steering

Wiper

Right

Steering Wiper

Left

!! Direction !!

Steering Pipe

Steering Post

Fit Hex Shape

Steering Arm

Steering Nut

Steering Bridge

Steering Shaft Spacer

Plastic Bearing 3x6F

↓

凸

①

②③

④

Nylon Nut

Cap Screw

Thrust Washer

Thrust Ball

850 Bearing

1510 Bearing

Diff Ball

Diff Ring

Diff Spring

Diff Joint Ring

850 Bearing

Diff Joint Cup A

Diff Ring

Diff Ball

Ball Diff Pulley

(35)

850 Bearing

Diff Ring

Diff Joint Cup B

Nylon Nut

Diff Spring

Thrust Washer

Thrust Ball

Thrust Washer

Cap Screw

Diff Pulley Flange

1510 Bearing

Diff Joint Ring

Pulley Tensioner

Hold Pulley.

HOLD A and B, then turn

the diff gear.The gear

must not turn easily

When Put Diff Joint

Ring, Use Pliers.

STEERING COMPONENT

3mm E Clip

Nylon Nut (2.5mm)

Nylon Nut (3mm)

Nut (3mm)

Plastic

Bearing 4x8

Plastic Bearing 4x8

Nut (3mm)

Don't over tighten the nylon

Nuts. Rack must move

smoothly without bind.

Smooth

1

Steering Wiper

Left

5.5mm 5.5mm

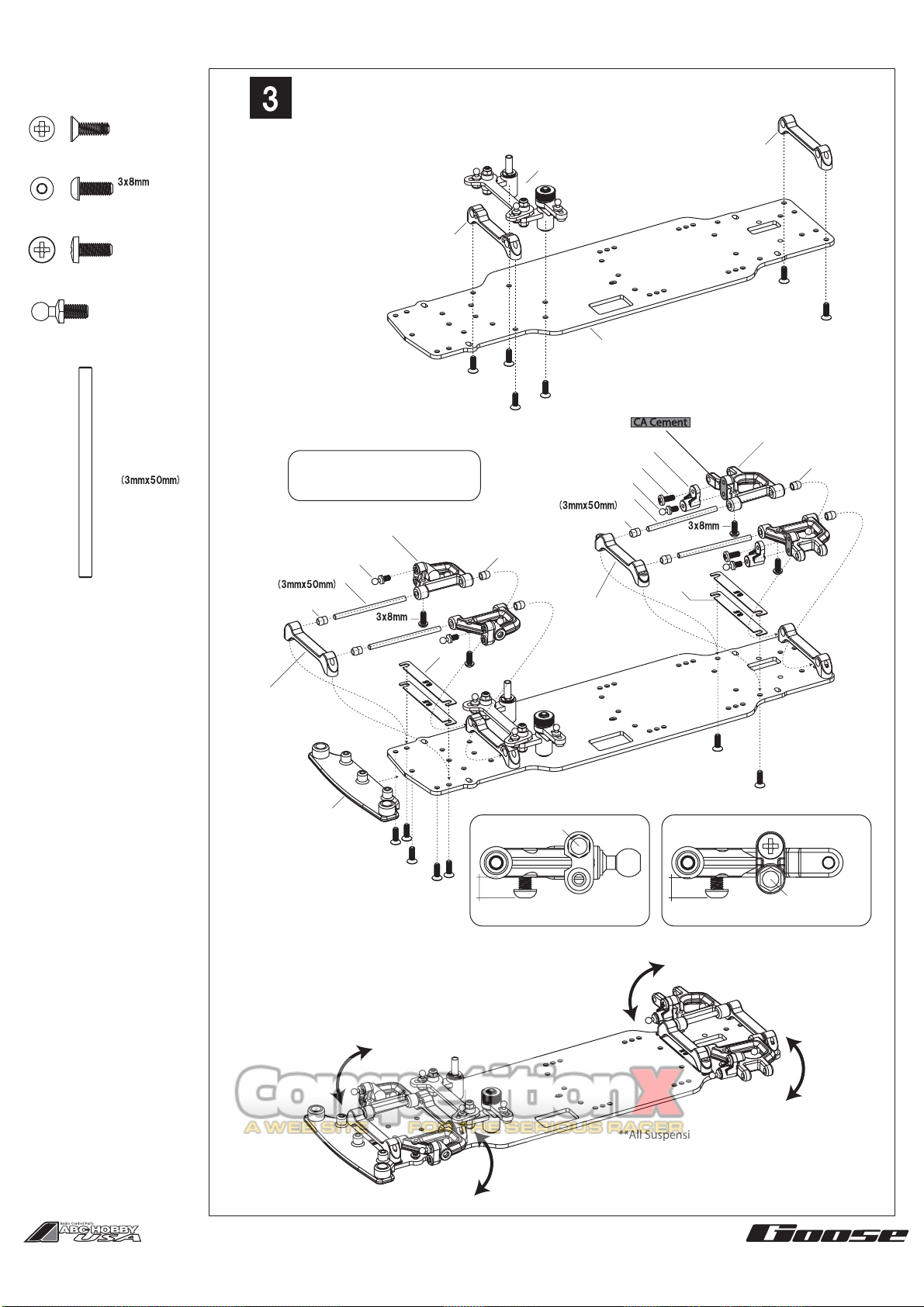

STEERING / ROWER ARM

3x8mm Button

Head Screw

3x8mm Button Head Screw

Steering Unit

Suspension

Arm Holder B

Suspension

Arm Holder A

Mail Chassis

3X10mm

Flat Head Screw

3X10mm

Flat Head Screw

3X10mm

Flat Head Screw

3X10mm

Flat Head Screw

Suspension

Arm Holder A

Suspension

Arm Holder D

4mm Ball Stud

Lower Suspension Arm (Front)

STR Lower Suspension Arm (Rear)

Bumper

Lower Suspension Arm

STR Lower Suspension Arm

Sus. Arm Pin Ball

4mm Ball Stud

STR Ball Stud Base

Sus. Arm Pin Ball

Hex Cap Screw

Skid Plate

*You can adjust suspension feeling by

Skid Plate. You got more effect at

bumpy surface such a parking lot.

3X10mm

Flat Head Screw

Hex Cap Screw

4mm Ball Stud

Lower Arm Shaft

**All Suspension Arms

must move smoothly

without slack.

4mm Ball Stud

Smooth

2

STR Upper Suspension Arm

Only for Genetic

Check this deference

*Do not use for Goose.

For Goose / Genetic

Center Gear Spacer 5x8x1.6

Center Gear Spacer 5x8x2.3 Center Gear Spacer 5x8x2.3

Center Gear Spacer 5x8x5.7

Pulley Mount

Center Pulley Flange

Center Pulley 17T

MF105 Bearing

Center Gear Shaft

BULKHEAD / SHOCK TOWER

2.6X5mm Binding Screw

3x10mm

Binding Scre

w

3x8mm

Binding Screw

3X8mm

Flat Head Screw

3X8mm Flat Head Screw

3x3mm Set Screw

(For Anti-Roll Bar)

3x3mm Set Screw

(For Anti-Roll Bar)

Ball Stud 6mm

Ball Stud 5.8x11mm

Upper

Suspension Pin

(3mm x 24mm)

Front Suspension Arm

2.6X5mm Binding Screw

Upper Suspension Pin

(3mm x 24mm)

Upper Suspension Holder

Rear Upper Bulkead

Front Bulkhead

Rear Shock Tower

3x3mm Set Screw

(For Anti-Roll Bar)

Anti-Roll Bar Holder

3x8mm

Binding Screw

3x8mm

Binding Screw

3x8mm

Binding Screw

3x8mm

Binding Screw

3x8mm

Binding Screw

Rear Shock Tower

Front Shock Tower

Front Bulkhead

Front

Rear

Ball Stud 6mm

3X8mm

Flat Head Screw

3x10mm

Binding Scre

w

Suspension Arm (Front)

Suspension Arm

(Rear)

3x6mm

Binding Screw

3x6mm

Binding Screw

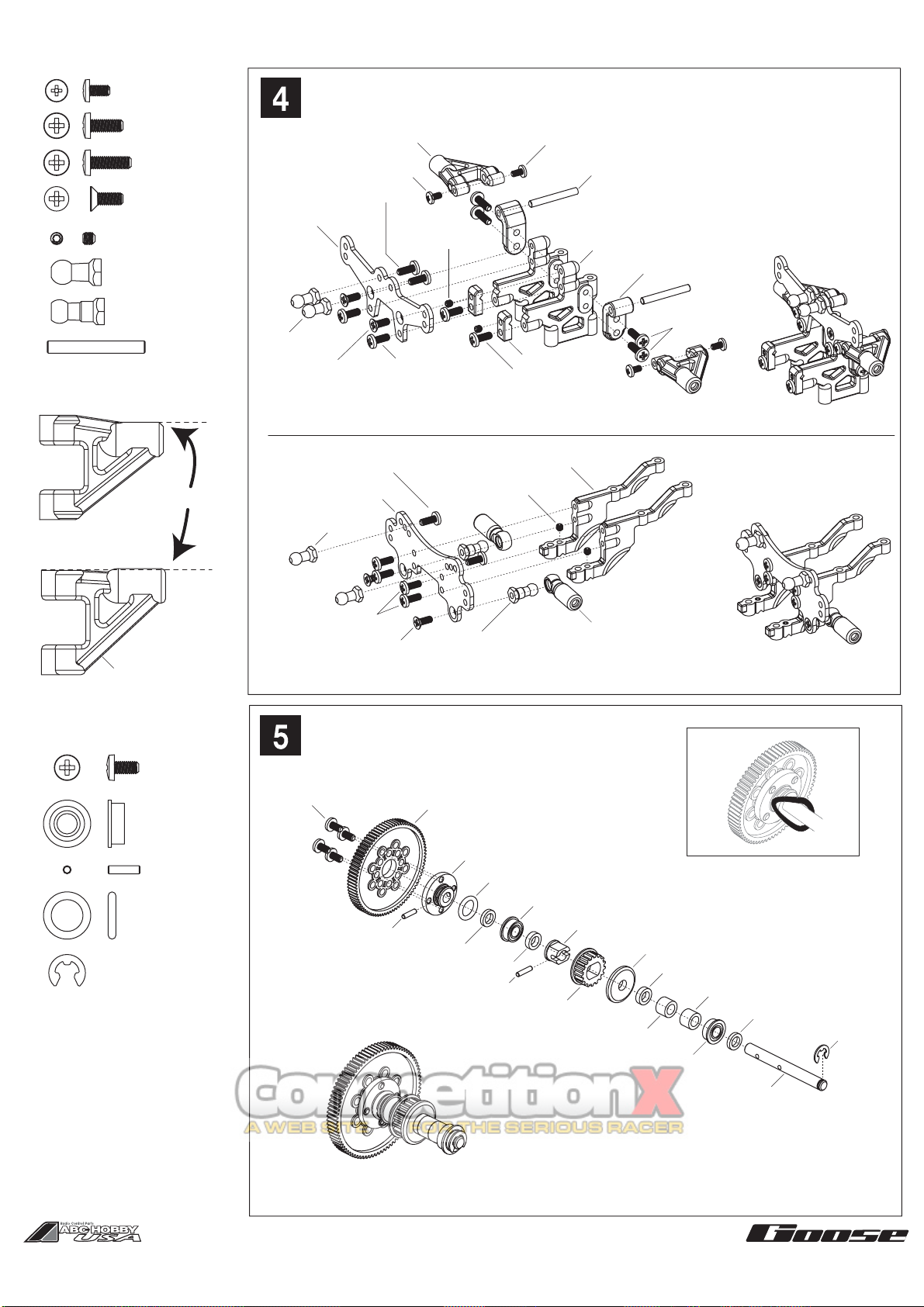

CENTER GEAR UNIT

2X7.8mm Pin

P8 O Ring

4 mm E Clip

Spur Gear 84T

**Install P8 O Ring in slot of

Spur Gear Holder for

prevention of falling off

of

2X7.8mm Pin.

Spur Gear Holder

P8 O Ring

2X7.8mm Pin

MF105 Bearing

4 mm E Clip

Center Gear Unit

3

4 mm E Clip

3X10mm Flat Head Screw

Bulkhead Spacer

**Through in the Drive Belt

Bulkhead

Spacer

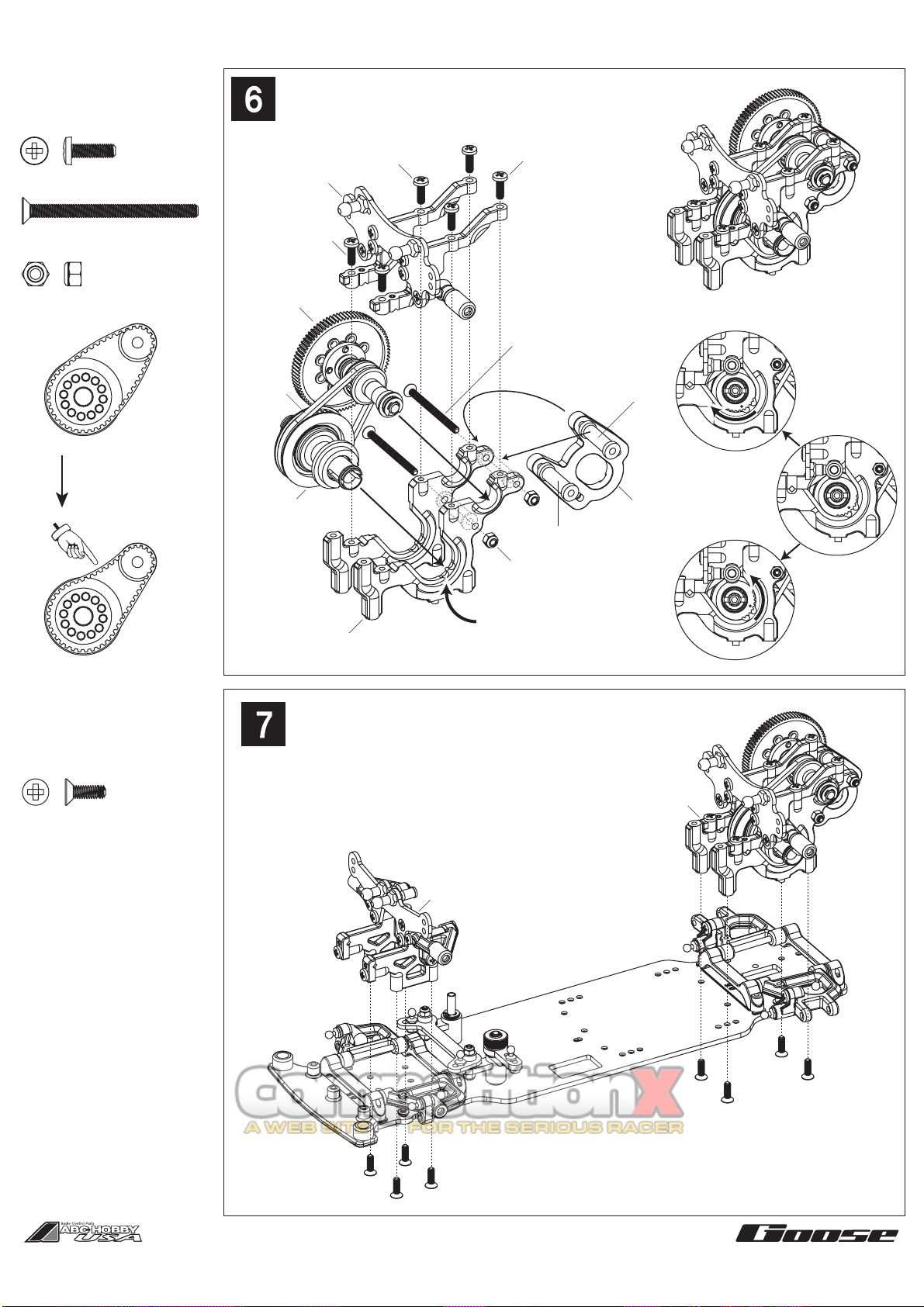

REAR BULKHEAD

3X10mm Button Head Screw

3X10mm Button

Head Screw

Rear Shock Tower

Spur Gear

Drive Belt

Ball Diff Pulley

Rear Lower Bulkhead

3X10mm Button Head Screw

3X40mm Flat Head Screw

Nylon Nut (3mm)

3X40mm Flat Head Screw

Nylon Nut (3mm)

Motor Holder

Standard (Center)

Loose

Tight

Push the Drive Belt.

Best Slackness is 2-3mm.

If Belt tension is tight,

make a drag, If loose, gear

will be skip.

**Use same slot for right and left.

MAIN CHASSIS

Front Bulkhead

Rear Bulkhead

3X10mm Flat Head Screw

Rear Bulkhead

4

Steering Ball

Knuckle Arm

Rear Upright

Steering Ball Washer

Dog Bone

Axle Shaft

7mm Ball Nut

1510 Bearing

1150 Bearing

Wheel Hub

2x9.8mm Pin

Tighten 7mm Ball Nut in

4mm Allen Wrench.

Smooth

Front

Rear

Smooth

Steering

Ball

Washer

**See Direction of

Steering Ball Washer

You can adjust front

tread by position of

Wheel Hub Spacer.

Flat

In Side

Out Side

Tapered

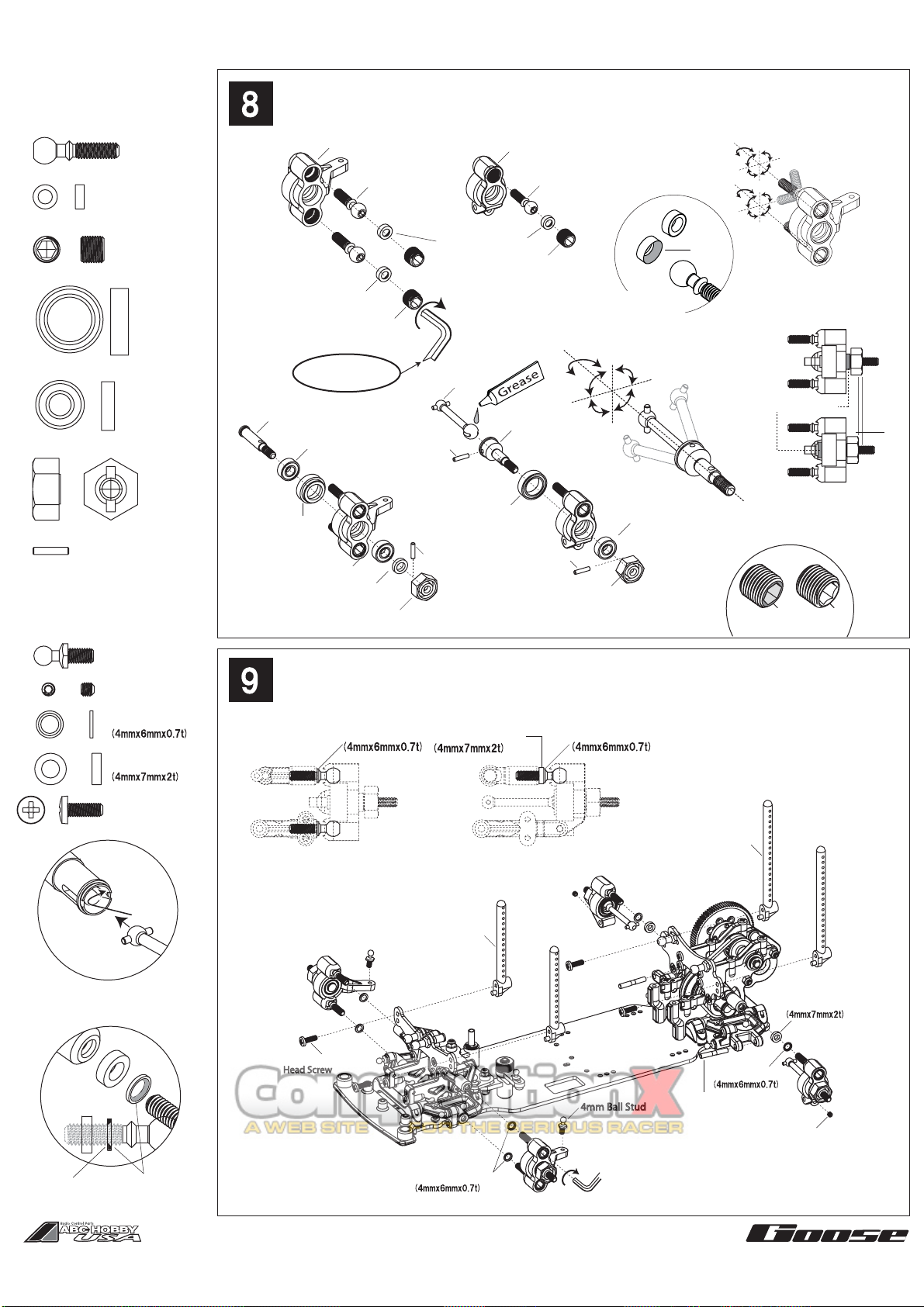

ASSEMBLE SUSPENSION PARTS

Tapered Spacer

Aluminum Spacer

3X10mm Button

Head Screw

3X10mm Button

Head Screw

Fit Dog bone in the slit of Diff

joint before tighten Steering

ball in 2.5mm Allen Wrench..

Tapered

Flat

2mm

STR Upright Pin

(3mmx20mm)

KNUCKLE ARM/REAR UPRIGHT

7mm Ball Nut

1510 Bearing

Front Axle Shaft

Axle Spacer

1150 Bearing

Wheel Hub

Wheel Hub Spacer

2x9.8mm Pin

Wheel Hub Spacer

4mm Ball Stud

Front

Body Post Short

Body Post Long

Rear

3x3mm Set Screw

Tapered Spacer

3x3mm Set Screw

4mm Ball Stud

Tighten Steering Ball in 2.5mm Allen Wrench.

**Do not too much tight.

5

3x8mm Button

Head Screw

3x8mm Button

Head Screw

3x30mm Set Screw

1.5mm Hex Wrench

Change direction

for

adjustingangleofthe

servohorn.

Use this part that

fit for each servo.

Use the screw that

comes with Servo.

Servo Rod : 49mm

Ball End Long

Keep symmetrical,

Right and Left.

3x30mm Set Screw

12

When the Power is on, the Servo

Horn should be in the neutral

position as shown in the picture.

90

Change direction

foradjusting

angleoftheservohorn.

3X6mm

Hex Cap Screw

3X6mm

Hex Cap Screw

3x3mm Set Screw

Deck Pillar

540 Size Motor

Pinion Gear

1.5mm Hex Wrench

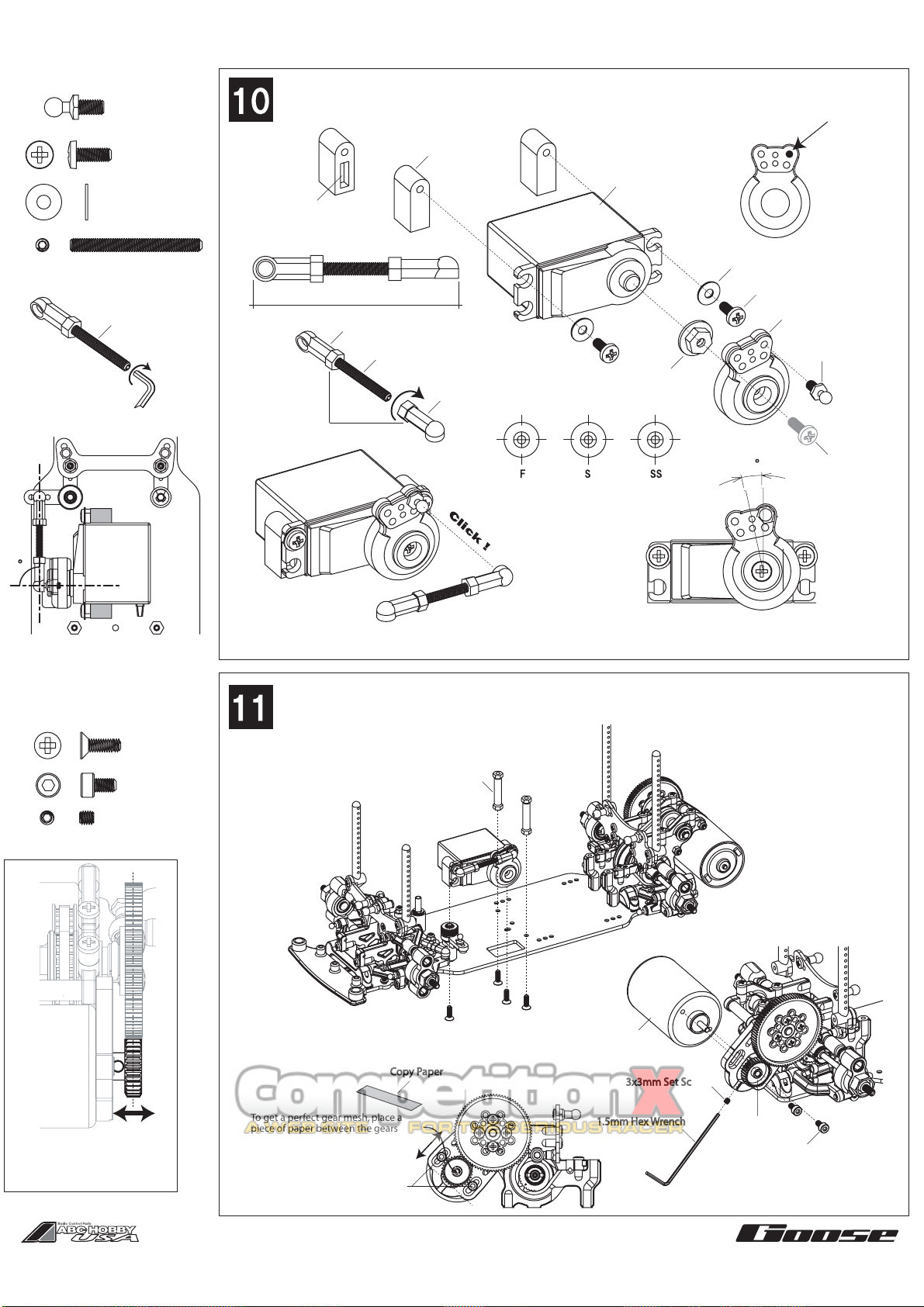

SERVO SAVER

4mm Ball Stud

Servo Mount

Servo Saver

Steering Servo

3mm Washer

4mm Ball Stud

Futaba

TAMIYA

Airtronics

KO

JR

Mini-Servo

INSTALLATION SERVO AND MOTOR

INSTALLATIONSERVOANDMOTOR

3x10mm Flat

Head Screw

3x10mm Flat

Head Screw

Adjust the position of the pinion

gear to put the centers of two

gears together. Then fix it with a

set screw.

3X6mm

Hex Cap Screw

Copy Paper

To get a perfect gear mesh, place a

piece of paper between the gears

and tighten the motor mount

screws. Adjust motor position for

smooth gear mesh.

6

UPPER DECK

SHOCK ABSORBER

2.0mm E-Clip

Shock shaft

P3 O Ring

Shock Shield

2.0mm E-Clip

Dumper Piston

(1.2 x 2)

Shock Cap A

Dumper Top

Shock Shield

Shock Body

Shock Cap B

Fill Shock Oil,when

piston is bottom.

Move the Shock Shaft

up and down slowly to

remove all air bubbles.

Attach Shock Cap A,

when Piston is top.

**Use Hobby Knife

Spring Stopper A

Spring Stopper B

Dumper Spring

Use masking tape to protect Shock Shaft.

Screw Ball End all of the way onto the Shock Shaft.

61

3x8mm

Button Head

Screw

3x10mm Button

Head Screw

3x8mm Button

Head Screw

3x10mm Button

Head Screw

3x10mm Button

Head Screw

3x12 Set Screw

1.5mm Hex Wrench

Steering Tie Rod

Steering Tie Rod : 28mm

(Make 2 sets)

Steering Tie Rod

3x12 Set Screw

Keep symmetrical,

Right and Left.

Ball End Short

Ball End Long for Rear

Ball End Short for Front

Front

Dumper Adjust

2mm

Ball End Short

Rear

Dumper Adjust

4mm

Ball End Long

Maximum Length for Front

Maximum Length for Rear

7

TIRES & WHEELS

Foam Insert

Rubber Cement

Wheel

Tire

Quick Cement

**Clean up the oil of a wheel

and the tire with a cleaner

before gluing tires and wheels.

Spur Gear made by XENON

Gear Ratio

(48 Pitch)

81T 84T 87T

22 7.861 8.142

23 7.519 7.788

24 7.206 7.463

25 6.671 6.918 7.165

26 6.414 6.652 6.889

27 6.176 6.405 6.634

28 5.956 6.176 6.397

29 5.751 5.963 6.176

30 5.559 5.765 5.971

31 5.38 5.579 5.778

32 5.211 5.404 5.597

33 5.053 5.241 5.428

34 4.905 5.087 5.268

35 4.765 4.941 5.118

36 4.632 4.804 4.975

37 4.507 4.674 4.841

38 4.389 4.551 4.714

39 4.276 4.434 4.593

40 4.169 4.324 4.478

41 4.067 4.218 4.369

42 4.118

43 4.022

Ball End Short

Front Shock

SHOCK / RC ELECTRONICS

Rear Shock

Ball End Long

Receiver

Speed Contoroller

Double Tape

8

Body Clip

Body

Body Clip

WHEEL NUT 4mm

3mm Washer

**Insert Between Main Chassis and

Battery Tray

3mm Washer

**Adjust Washers by Battery Size

Battery

7.4V Lipo

7.2V Ni-cd Ni-MH

6.6V Li-fe

3mm Washer

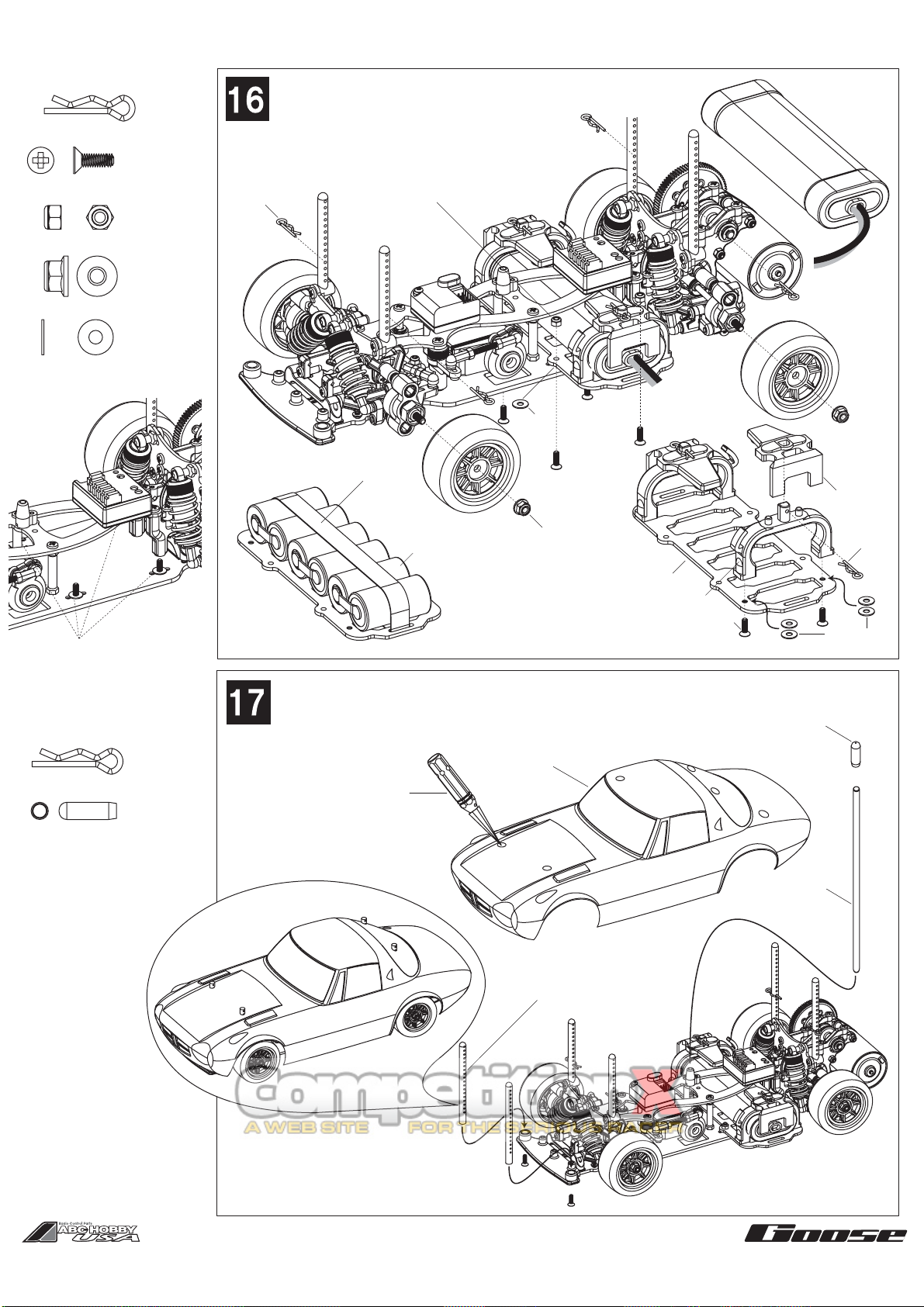

ANTENNA / BODY

Antenna Cap

Knife Edge Reamer (#69006)

or

Lexan Hole Punch 7mm (#69002)

Antenna Cap

Antenna Pipe

Body Post on Front Bumper.

You can choose from 2 Front

Body Post Locations.

TIRES/BATTERY

3x10mm Flat

Head Screw

Nylon Nut (3mm)

WHEEL NUT 4mm

Sub-C Cells

(Seperate

Type)

Straping Tape

Battery Tary

Battery Gate

3x10mm Flat

Head Screw

3x10mm Flat Head Screw

Body Clip

Battery Holder

3x10mm Flat Head Screw

9
