Abit IS-20 Bedienungsanleitung

IS-10/IS-11/IS-12/IS-20

Intel Pentium 4 System Board

Socket 478

User’s Manual

4200-0383-03

Rev. 1.01

The information in this document is subject to change without notice and does not

represent a commitment on part of the vendor, who assumes no liability or

responsibility for any errors that may appear in this manual.

No warranty or representation, either expressed or implied, is made with respect to the

quality, accuracy or fitness for any particular part of this document. In no event shall

the manufacturer be liable for direct, indirect, special, incidental or consequential

damages arising from any defect or error in this manual or product.

Product names appearing in this manual are for identification purpose only and

trademarks and product names or brand names appearing in this document are

property of their respective owners.

This document contains materials protected under International Copyright Laws. All

rights reserved. No part of this manual may be reproduced, transmitted or transcribed

without the expressed written permission of the manufacturer and authors of this

manual.

IS-10 / IS-11 / IS-12 / IS-20

Table Of Contents

Chapter 1. Introduction .................................................... 1-1

1.1. Features & Specifications....................................................... 1-1

1.2. Layout..................................................................................... 1-3

1.3. Jumpers & Connectors Description........................................ 1-4

Chapter 2. Hardware Setup.............................................. 2-1

2.1. Install The Motherboard......................................................... 2-1

2.2. Install Pentium®4 CPU and Heatsink Supporting-Base........ 2-2

2.3. System Memory ..................................................................... 2-3

2.3.1. Memory Configuration Table...................................2-3

2.3.2. Installing and Removing Memory Modules............. 2-4

2.4. Connectors, Headers, and Switches ....................................... 2-5

2.4.1. ATX Power Connectors............................................ 2-5

2.4.2. FAN Power Connectors............................................ 2-6

2.4.3. CMOS Memory Clearing Header............................. 2-7

2.4.4. AGP Display Card Slot (IS-10/IS-11/IS-12)............. 2-8

2.4.5. Front Panel Switches & Indicators Connection

Headers ..................................................................... 2-9

2.4.6. Front Panel Audio Connection Header...................2-10

2.4.7. Additional USB Port Connection Headers ............. 2-11

2.4.8. System Management Bus Connection Header ....... 2-12

2.4.9. Additional IEEE1394 Port Connection Headers

(IS-12) ..................................................................... 2-13

2.4.10. Internal Audio Source Connectors .........................2-14

2.4.11. Floppy and IDE Disk Drive Connectors................. 2-15

2.4.12. Serial ATA Connectors........................................... 2-16

2.4.13. CPU Core Voltage Selector.................................... 2-17

2.4.14. External I/O Panel Connectors ............................... 2-18

User’s Manual

Chapter 3. BIOS Setup...................................................... 3-1

3.1. Standard CMOS Features....................................................... 3-2

3.2. Advanced BIOS Features ....................................................... 3-6

3.3. Advanced Chipset Features.................................................... 3-8

3.4. Integrated Peripherals........................................................... 3-10

3.5. Power Management Setup.................................................... 3-17

3.6. PnP/PCI Configurations ....................................................... 3-19

3.7. PC Health Status................................................................... 3-21

3.8. Load Fail-Safe Defaults........................................................ 3-22

3.9. Load Optimized Defaults ..................................................... 3-22

3.10. Set Supervisor Password ...................................................... 3-22

3.11. Set User Password ................................................................ 3-22

3.12. Save & Exit Setup ................................................................ 3-22

3.13. Exit Without Saving ............................................................. 3-22

Chapter 4. Driver Installation .......................................... 4-1

4.1. Setup Items ............................................................................. 4-2

Appendix A. How to Get Technical Support ..................... A-1

IS-10 / IS-11 / IS-12 / IS-20

Introduction 1-1

Chapter 1. Introduction

1.1. Features & Specifications

Processor

• Supports Intel Pentium 4 Socket 478 processors with 800/533/400MHz

Front Side Bus

• Supports Intel Hyper-Threading Technology

Chipset

• Intel 865G / ICH5 (IS-10/IS-11/IS-12)

• Intel 865GV / ICH5 (IS-20)

• Integrated Intel Extreme Graphics 2

• Supports Advanced Configuration and Power Interface (ACPI)

Memory

• Two 184-pin DIMM sockets

• Supports 2 DIMM Single / Dual Channel DDR 400/333/266 memory

(Max. 2GB)

Graphics

• Integrated Intel Extreme Graphics 2

• Accelerated Graphics Port connector supports AGP 8X/4X (0.8V/1.5V)

(IS-10/IS-11/IS-12)

Serial ATA

• 2-Channel Serial ATA with 150MB/s data transfer rate

Audio

• 6-Channel AC 97 CODEC on board

• Professional digital audio interface supports optical S/PDIF Output

System BIOS

• Supports Plug-and-Play (PNP)

• Supports Advanced Configuration Power Interface (ACPI)

• Supports Desktop Management Interface (DMI)

• Write-Protect Anti-Virus function by AWARD BIOS

LAN

• Onboard 10/100Mb LAN (IS-10/IS-12/IS-20)

User’s Manual

1-2 Chapter 1

• Onboard Gigabit LAN (IS-11)

Internal I/O Connectors

• 1x AGP (IS-10/IS-11/IS-12)

• 3x PCI slots

• 1x Floppy Port supports up to 2.88MB

• 2x Ultra DMA 33/66/100 Connectors

• 2x Serial ATA 150 Connectors

• 2x USB 2.0 Headers (Each header support two USB 2.0 devices)

• 1x CD-IN, 1x AUX-IN Header

• 1x FP-Audio header

• 2x IEEE1394 Headers (IS-12)

External I/O Connectors

• 1x PS/2 Keyboard, 1x PS/2 Mouse

• 1x Printer Port, 1x COM Port

• 1x VGA Port

• 1x AUDIO Connector (Rear-Left / Rear-Right, Center/Subwoofer,

S/PDIF Output, Mic-In, Line-In, Front-Left/Front-Right)

• 2x USB 2.0 Connectors

• 2x USB 2.0 Connectors, 1x RJ-45 LAN Connector

Miscellaneous

• Micro ATX Form Factor (244mm x 234mm)

• Hardware Monitoring - including Fan Speed, Voltages, CPU and

System Temperature

 Specifications and information contained herein are subject to change

without notice.

IS-10 / IS-11 / IS-12 / IS-20

Introduction 1-3

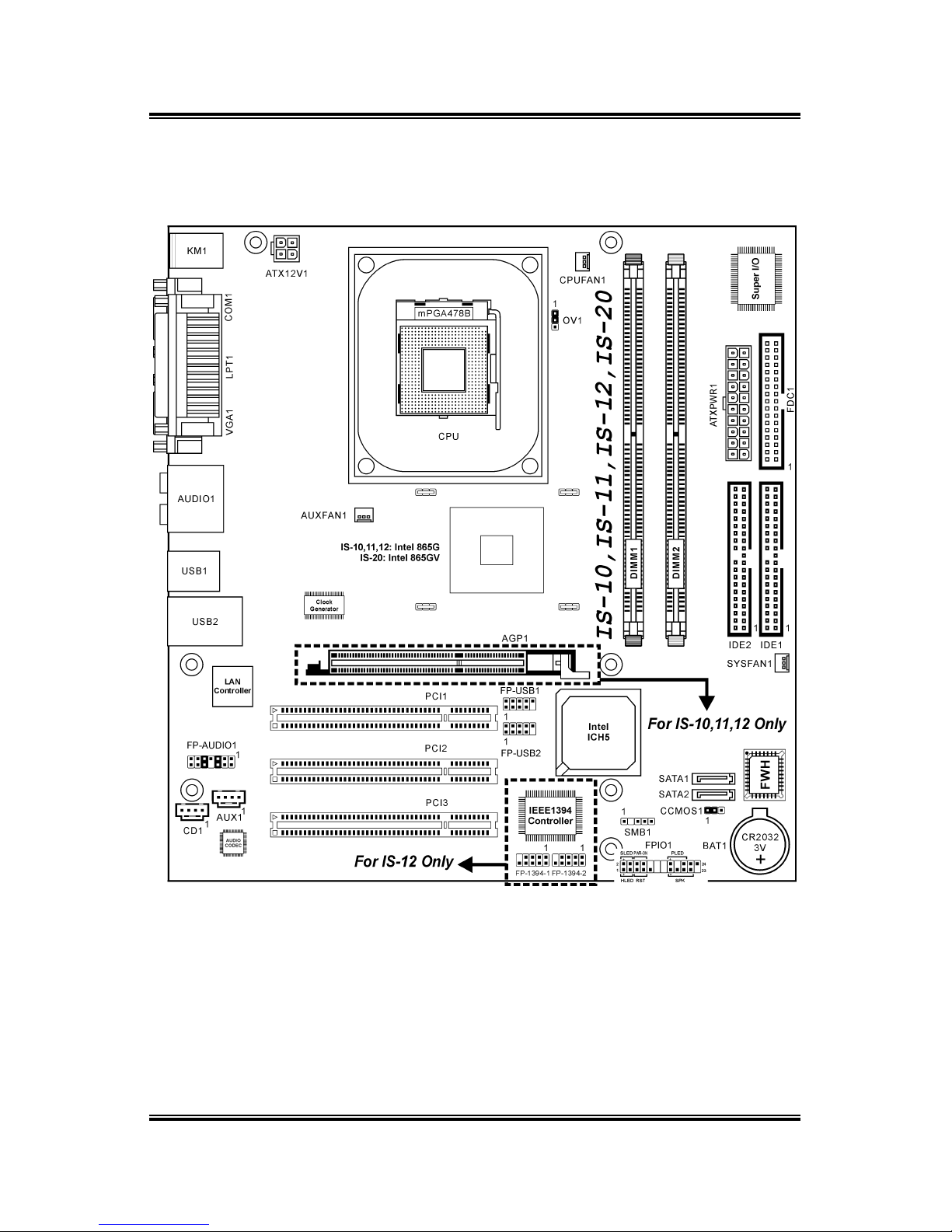

1.2. Layout

User’s Manual

1-4 Chapter 1

1.3. Jumpers & Connectors Description

Jumpers Description Default Setting

CCMOS1 CMOS Memory Clearing Header Pins 1-2 Closed (Normal)

OV CPU Core Voltage Selector Pins 1-2 Closed (Normal)

Connectors Description

AGP1 AGP Display Card Slot (IS-10/IS-11/IS-12)

ATXPWR1/ATX12V1 ATX Power Connectors

CD1/AUX1 Internal Audio Sources Connectors

CPUFAN1

SYSFAN1

AUXFAN1

CPU Fan Power Connector

System Fan Power Connector

Auxiliary Fan Power Connector

DIMM1/DIMM2 DDR DIMM Slots

FDC1 Floppy Disk Drive Connector

FP-1394-1/FP-1394-2 Additional IEEE1394 Port Connection Headers (IS-12)

FP-AUDIO1 Front Panel Audio Connection Header

FPIO1 Front Panel Switches & Indicators Connection Headers

FP-USB1/FP-USB2 Additional USB Port Connection Header

IDE1/IDE2 Hard Disk Drive Connectors

PCI1/PCI2/PCI3 32bit/33MHz PCI Slots

SATA1/SATA2 Serial ATA Connectors

SMB1 System Management Bus Connection Header

IS-10 / IS-11 / IS-12 / IS-20

Hardware Setup 2-1

Chapter 2. Hardware Setup

Before the Installation: Turn off the power supply switch (fully turn off the +5V

standby power), or disconnect the power cord before installing or unplugging any

connectors or add-on cards. Failing to do so may cause the motherboard components

or add-on cards to malfunction or damaged.

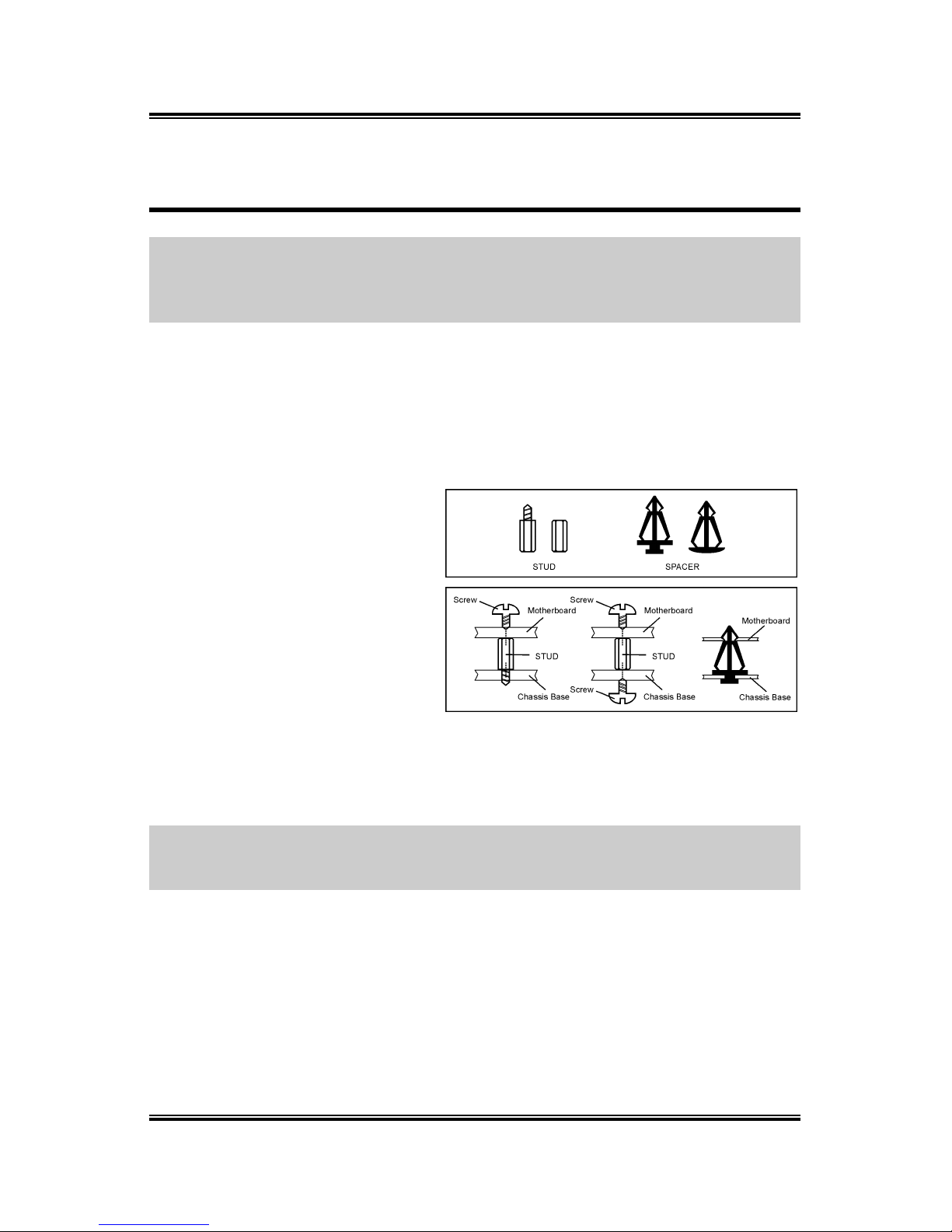

2.1. Install The Motherboard

Most computer chassis have a base with many mounting holes to allow motherboard

to be securely attached on and at the same time, prevented from short circuits. There

are two ways to attach the motherboard to the chassis base:

1. use with studs

2. or use with spacers

In principle, the best way to attach

the board is to use with studs. Only

if you are unable to do this should

you attach the board with spacers.

Line up the holes on the board with

the mounting holes on the chassis. If

the holes line up and there are screw

holes, you can attach the board with

studs. If the holes line up and there are only slots, you can only attach with spacers.

Take the tip of the spacers and insert them into the slots. After doing this to all the

slots, you can slide the board into position aligned with slots. After the board has been

positioned, check to make sure everything is OK before putting the chassis back on.

ATTENTION: To prevent shorting the PCB circuit, please REMOVE the metal studs

or spacers if they are already fastened on the chassis base and are without

mounting-holes on the motherboard to align with.

User’s Manual

2-2 Chapter 2

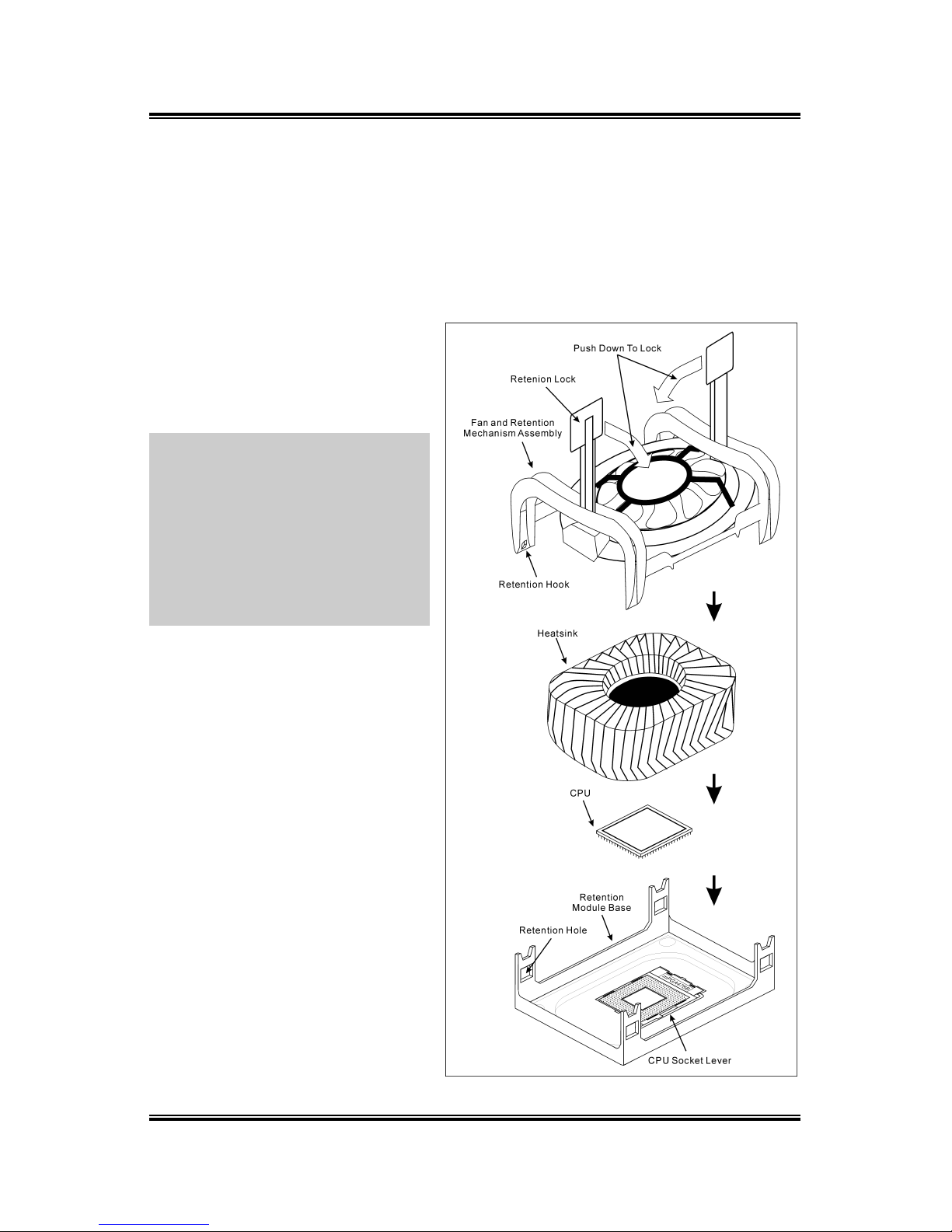

2.2. Install Pentium®4 CPU and Heatsink Supporting-Base

This motherboard provides a ZIF (Zero Insertion Force) Socket 478 to install Intel®

Pentium®4 CPU. The CPU you bought should have a kit of heatsink and cooling fan

along with. If that’s not the case, buy one specially designed for Pentium®4 Socket

478.

1. Locate the 478-pin ZIF socket

on the motherboard. Fasten the

Retention Module Base onto the

motherboard.

ATTENTION: If you are using

chassis specially designed for

Pentium®4, please pay attention to

the location of Metal Studs or

Spacers if they are already installed

on the chassis. Be careful not let the

Metal Studs or Spacers contact the

printed circuit wire or parts on the

PCB.

2. Pull the CPU socket lever

sideways away from the socket

and then upwards to 90 degree.

Insert the CPU with the correct

orientation. Do not use extra

force to insert CPU; it only fits

in one orientation. Close down

the socket lever while holding

down the CPU.

3. Put the heatsink faces down

onto the CPU until it completely

covers the CPU.

4. Put the Fan and Retention

Mechanism Assembly onto the

heatsink. Make sure all the four

Retention Locks at each side of

the Fan and Retention

Mechanism Assembly snap into

the Retention Holes.

IS-10 / IS-11 / IS-12 / IS-20
