Abit WI-2P Bedienungsanleitung
WI-2P
Dual Socket 604 Workstation Board
User’s Manual
4200-0303-22
Rev. 1.00
Copyright and Warranty Notice
The information in this document is subject to change without notice and does not
represent a commitment on part of the vendor, who assumes no liability or
responsibility for any errors that may appear in this manual.
No warranty or representation, either expressed or implied, is made with respect to the
quality, accuracy or fitness for any particular part of this document. In no event shall
the manufacturer be liable for direct, indirect, special, incidental or consequential
damages arising from any defect or error in this manual or product.
Product names appearing in this manual are for identification purpose only and
trademarks and product names or brand names appearing in this document are
property of their respective owners.
This document contains materials protected under International Copyright Laws. All
rights reserved. No part of this manual may be reproduced, transmitted or transcribed
without the expressed written permission of the manufacturer and authors of this
manual.
WI-2P
Contents
Chapter 1. Introduction .................................................... 1-1
1.1. Features & Specifications....................................................... 1-1
1.2. Package Checklist................................................................... 1-3
1.3. Layout Diagram...................................................................... 1-4
Chapter 2. Hardware Setup.............................................. 2-1
2.1. Precautions ............................................................................. 2-1
2.2. Installing the Workstation Board ...........................................2-2
2.3. Install Xeon CPU and Heatsink ............................................. 2-3
2.4. System Memory ..................................................................... 2-4
2.4.1. Memory Configuration Table................................... 2-4
2.4.2. Installing and Removing Memory Modules............. 2-4
2.5. Connectors, Headers, and Switches .......................................2-6
2.5.1. ATXPWR1, ATX12V1: EPS12V Power Connectors
.................................................................................. 2-6
2.5.2. FAN1~6: FAN Connectors....................................... 2-7
2.5.3. CCMOS1: CMOS Memory Clearing Header........... 2-8
2.5.4. FPIO1: Front Panel Switches and Indicators Header
.................................................................................. 2-9
2.5.5. FDC1, IDE0/IDE1 Connectors:.............................. 2-10
2.5.6. PCI1 ~ PCI5: PCI Card Slots: ................................2-11
2.5.7. 6CHAUD1: 5.1-Channel Audio Interface Header . 2-12
2.5.8. USB1/USB3: Additional USB Ports Headers ........ 2-13
2.5.9. CD1, AUX1: Internal Audio Connector................. 2-14
2.5.10. IR1: Infrared Device Header .................................. 2-15
2.5.11. Back Panel Connectors:.......................................... 2-16
2.5.12. J4: RAID Card Connector ......................................2-17
2.5.13. JP4: Terminator/Raptor II RAID Card Selector..... 2-18
2.5.14. SCSI1/SCSI2: Ultra 320 SCSI Channels Connector
................................................................................ 2-19
User’s Manual
Chapter 3. BIOS Setup...................................................... 3-1
3.1. Main Menu ............................................................................. 3-2
3.2. Advanced Menu ..................................................................... 3-6
3.2.1. Advanced BIOS Features ......................................... 3-6
3.2.2. Advanced Chipset Features ...................................... 3-9
3.2.3. Integrated Peripherals ............................................. 3-11
3.2.4. Power Management Setup ...................................... 3-16
3.2.5. PnP/PCI Configurations.......................................... 3-20
3.3. Security Menu ...................................................................... 3-22
3.4. PC Health Menu ................................................................... 3-23
3.5. Clk/Misc. Menu.................................................................... 3-25
3.6. Exit Menu ............................................................................. 3-26
Chapter 4. Driver Installation .......................................... 4-1
4.1. Setup Items ............................................................................. 4-2
4.2. Installing Ultra320 SCSI Controller....................................... 4-3
4.2.1. Installing Windows 2000 with an Ultra320 SCSI
Controller .................................................................. 4-3
4.2.2. Installing the Driver when Windows 2000 is Already
Installed..................................................................... 4-3
4.2.3. Changing SCSI Boot Controllers in Windows 2000
.................................................................................. 4-4
Appendix A. Trouble Shooting ........................................... A-1
Appendix B. How to Get Technical Support ..................... B-1
WI-2P
Introduction 1-1
Chapter 1. Introduction
1.1. Features & Specifications
CPU
• Supports Dual IntelXeon processor (603-pin or 604-pin)
Chipset
• IntelE7505 chipset supports 400MHz/533MHz Front Side Bus
• Intel82801DB (ICH4) supports PCI 2.2, Ultra DMA100 IDE
protocol
• Intel82870P2 (P64H2) supports PCI-X 66/100MHz
Memory
• Six 184-pin DIMM sockets support DDR200/DDR266 RAM module
• Supports up to 12GB (Registered ECC)
• Supports up to 8GB (Unbuffered, Non ECC)
LAN
• Onboard Intel 82545EM (Kenai-64) Gigabit Ethernet Controller
• 10/100/1000 Mb Ethernet
Graphics
• AGP8x/4x AGP Pro
SCSI
• Adaptec AIC-7902, Dual channel Ultra 320 controller on board.
• Support Adaptec SCSI RAID card - 2015S (Raptor II) or “Terminator”
System BIOS
• AWARD Plug and Play BIOS supports APM, DMI, and ACPI
• Write-Protect Anti-Virus function by AWARD BIOS
• 4M-bit Flash ROM
I/O Slot
• 2 PCI 33MHz/32bit PCI slots
• 1 PCI-X 100MHz/64bit slot
User’s Manual
1-2 Chapter 1
• 2 PCI-X 100MHz/64bit slots (JP4 pin-1 and pin-2 shorted for Adaptec
Terminator RAID card -- Default)
or 2 PCI 66MHz/64bit (JP4 pin-2 and pin-3 shorted Adaptec Raptor II
RAID card)
• 1 AGP Pro slot
Multi I/O Functions
• 1 floppy port
• 2 channels of bus master IDE ports supporting up to four Ultra
DMA100 devices
• 1 parallel port, 2 serial ports and 1 game port
• PS/2 keyboard and PS/2 mouse connectors
• Support 6 USB ports
• Support AC97, 5.1Channel (Option)
• Support S/PDIF (Option)
Miscellaneous
• 24-pin and 8-pin EPS 12V power connectors
• Extend ATX form factor (12” x 13”)
Specifications and information contained herein are subject to change
without notice.
WI-2P
Introduction 1-3
1.2. Package Checklist
(1) WI-2P Workstation board
(1) Brief Installation Guide
(1) Driver & Utilities CD
(1) Ribbon cable for (1) 3.5” floppy disk drive
(2) Ribbon cables for master and slave IDE drives
(1) 68-pin LVD/SE SCSI cable with terminator for 5 Ultra 320 SCSI devices
(2) CPU Retention Mechanism
(2) Retention Clips for 603-pin CPU
(2) Retention Clips for 604-pin CPU
(1) I/O Shield
(1) 2-port USB 2.0 cable
User’s Manual
1-4 Chapter 1

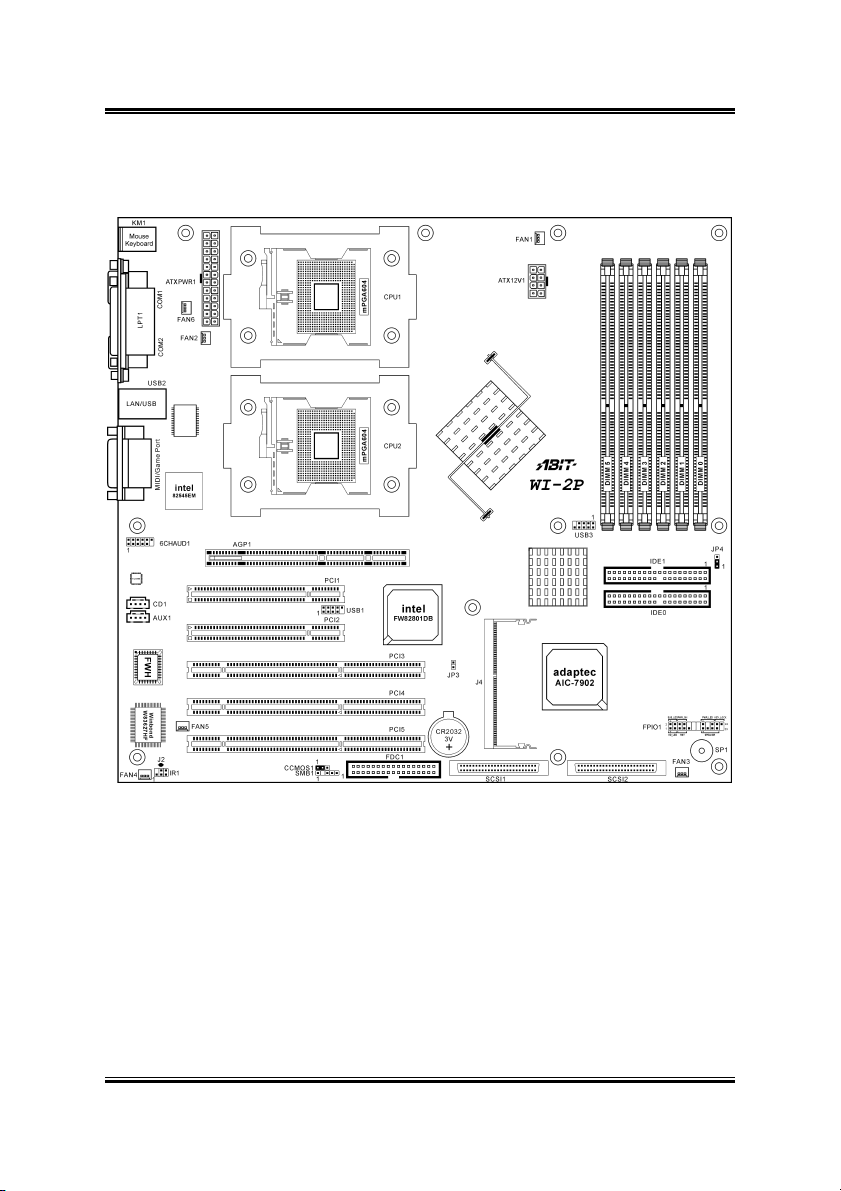

1.3. Layout Diagram
WI-2P
Introduction 1-5
Jumpers Description Default Setting
CCMOS1 CMOS Clear Pins 1-2 Closed (Normal)
JP4 RAID Card Selector
(Terminator/Raptor II)
Pins 1-2 Closed
(“Terminator” RAID Card)
Connectors Description
6CHAUD1 Optional ABIT CA-20 Interface Connector
AGP1 Slot for AGP8x/4x AGP Pro Display Card
ATX12V1 8-pin EPS12V Power Connector
ATXPWR1 24-pin EPS12V Power Connector
CD1/AUX1 Internal Audio Sources Connectors
DIMM 0~5 DDR DIMM Slots
FAN1 CPU1 Fan Connector (Speed monitoring support)
FAN2 CPU2 Fan Connector (Speed monitoring support)
FAN3 System Fan Connector (Speed monitoring support)
FAN4/5/6 System Fan Connector (No speed monitoring support in BIOS
menu)
FDC1 Floppy Disk Drive Connector
FPIO1 Front Panel Switches & Indicators Headers
IDE0/IDE1 Hard Disk Drive Connectors
IR1 Optional Infrared Devices Connector
J4 Adaptec Zero Channel RAID Card Connector
JP3 Chassis Intrusion Header
PCI1/2 PCI 33MHz/32bit
PCI3 PCI-X 100MHz/64bit
PCI4/PCI5 PCI-X 100MHz/64bit (JP4 pin1-2 shorted)
or PCI 66MHz/64bit (JP4 pin2-3 shorted)
SCSI1 Ultra 320 SCSI Channel A Connector
SCSI2 Ultra 320 SCSI Channel B Connector
SMB1 System Management Bus (SMBus) Header
USB1/USB3 Additional USB Ports Connectors
User’s Manual
1-6 Chapter 1
