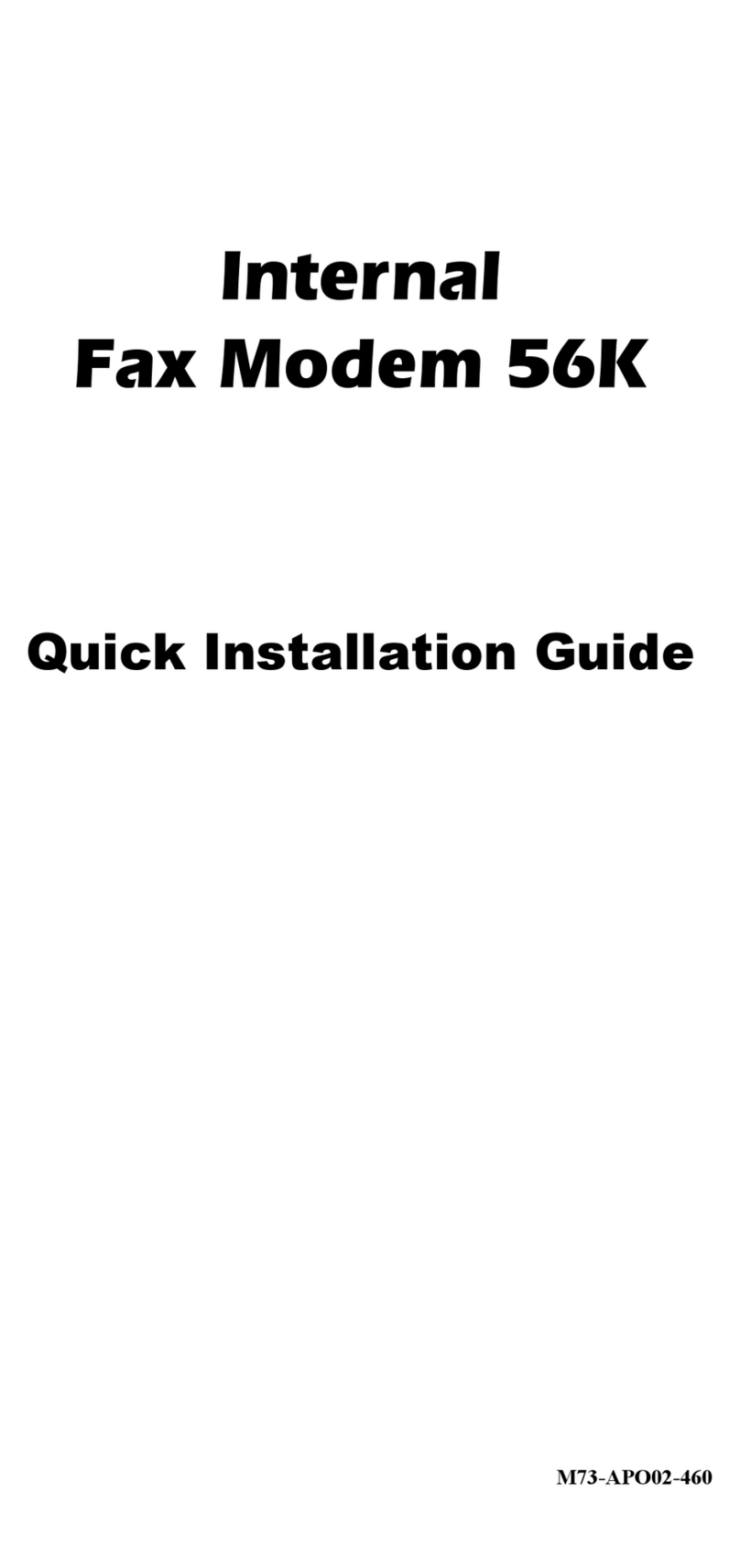

Abocom ISM56CR Bedienungsanleitung

M73-APO02-300

Internal

Fax Modem 56K

Quick Installation Guide

- 1 -

FCC REGULATORY STATEMENTS

FCC Part 68 Registration

This device complies with FCC Part 68 rules, and the use of

this device is subject to the following restrictions:

1. The FCC has established rules which permit this device to

be directly connected to the telephone network.

Standardized jacks are used for these connections. This

equipment should not be used on party lines or coin

phones.

2. If this device is malfunctioning, it may also be causing

harm to the telephone network; this device should be

disconnected until the source of the problem can be

determined and until repair has been made. If this is not

done, the telephone company may temporarily disconnect

service.

3. The telephone company may make changes in it's facilities,

equipment, operation and procedures; if such changes

affect the compatibility or use of this device, the telephone

company is required to give adequate notice of the

situation with the FCC.

4. If the telephone company requests information on what

equipment is connected to their lines, inform them of:

a. The telephone number to which this unit is connected.

b. The Ringer Equivalence Number (REN).

c. The USOC jack required.

d. The FCC Registration number.

Items (b) and (d) are indicated on the label. The Ringer

Equivalence Number (REN) is used to determine how many

devices can be connected to your telephone line. In most

areas, the sum of the REN's of all the devices on any one line

should not exceed 5.0. If too many devices are attached, they

may not ring properly.

FCC Part 15 Registration

This device complies with Part 15 of FCC rules. Operation is

subject to the following two conditions:

1. This device may not cause harmful interface, and

2. This device must accept any interface received including

interface that may cause undesired operation.

- 2 -

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate

radio frequency energy, and if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

turning off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the distance between the equipment and

receiver

 Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

 Consult an experienced radio/TV technician for help.

CTR 21 pan-European Certification

This equipment has been approved in accordance with

Council Decision 98/482/EC for pan-European single

terminal connection to the public switched telephone network

(PSTN). However, due to differences between the individual

PSTNs provided in different countries, the approval does not,

of itself, give an unconditional assurance of successful

operation on every PSTN network termination point. In the

event of problems, you should contact your equipment

supplier in the first instance.

This device is designed to work with the notified networks in

all EC member states. Nevertheless, some of the network

services in individual countries might not be supported, but

they will not affect the normal data and fax applications. For

example, the metering charge service in Germany. Besides

you may encounter difficulty of using PULSE dialing

function in some of the countries, such as Nordic countries.

This kind of network compatibility is dependent on the

- 3 -

physical and software settings of this device. If the users are

desired to use this device on those networks, they should

contact the vendor or supplier first.

Table of Contents

HARDWARE INSTALLATION ................... 1

SOFTWARE INSTALLATION..................... 2

WINDOWS 95/98/98SE

INSTALLATION................................................ 2

WINDOWS 2000 INSTALLATION ..................... 4

WINDOWS ME INSTALLATION........................ 7

WINDOWS XP INSTALLATION ........................ 9

WINDOWS NT INSTALLATION ...................... 15

HARDWARE INSTALLATION

Precautions:

Please be sure you take adequate anti-static

precautions when handling this product. The

simplest way to achieve this is; before you begin

and every minute or so during the hardware

installation touch a non-painted surface of the

computer’s chassis.

1. Before installing the device, make sure the

computer is turned off.

2. Remove the expansion slot cover from the

computer.

3. Carefully slide the PCI modem card into an

available PCI slot, push it evenly and firmly

home and ensure it is screwed securely in

place using the mounting screw (PCI slots

are 85mm long and positioned 40mm from

the PC’s rear panel. Generally there are

several PCI slots side by side).

4. Plug one end of the telephone cable into the

Modem line jack and the other end to the

telephone jack in the wall.

5. Replace the cover.

6. After hardware installation is done, move on

to the software installation.

-1-

SOFTWARE INSTALLATION

Windows 95/98/98SE Installation

1. Restart the computer system after the

modem is correctly plugged into the PCI

slot of your computer. Windows will

automatically detect the device. Click Next.

2. When the following dialog box appears,

insert the device driver compact disc into

your CD-ROM drive and click Next.

3. Select Specify a location and press Browse

to choose the folder driver/win95/98 in

your CD-ROM drive. Then click Next.

-2-

-3-

4. Click Next to continue.

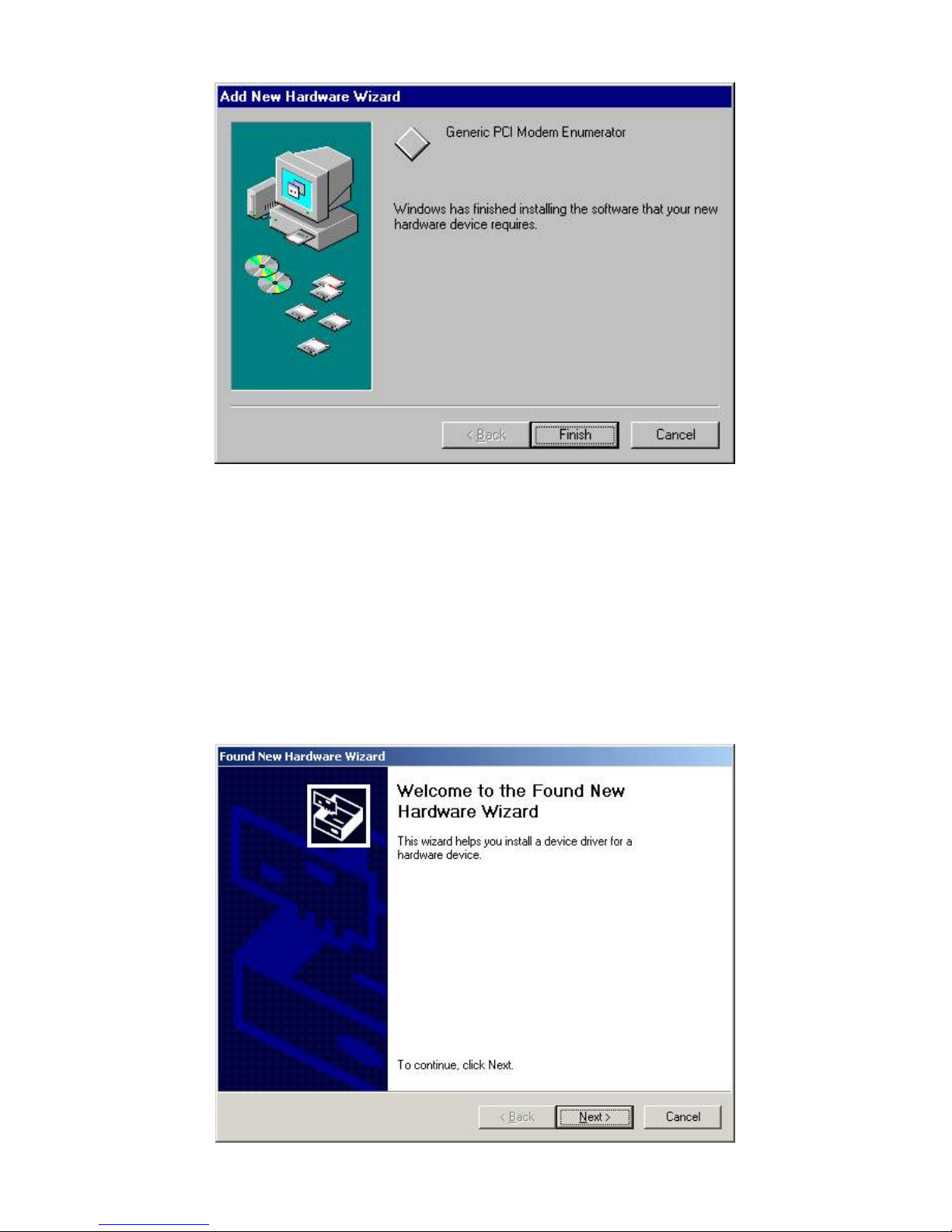

5. When the following figure appears, click

Finish. The Installation program will

continue.

-4-

6. The program will proceed automatically.

Click Finish to complete software

installation.

Windows 2000 Installation

1. Restart the computer system after the

modem is correctly plugged into the PCI

slot of your computer. Windows will

automatically detect the device. Click Next.

-5-

2. Follow the on-screen instructions to proceed.

(Click Next to continue.)

3. Select Specify a Location. Click the Next

button.

4. Load the Compact Disc that contains the

device driver into your CD-ROM drive.

Click Browse and select the proper file
