User Guide
Dynamic Gating & Rhythm Effect
Dynamic Gating & Rhythm Effect
Page 1 of 4
ON: Left: Power On
Right: Power Off
FLIP: Left: Internal Pattern Logic setting 1
Left: Internal Pattern Logic setting 2
SWAP: Left: Internal Pattern Logic setting 3
Left: Internal Pattern Logic setting 4
LED: Power On indicator
LEVEL A: Sets the Volume of Pattern section A
LEVEL B: Sets the Volume of Pattern section B
LEVEL C: Sets the Volume of Pattern section C
PART X: Sets the Trigger/Threshold/Pattern of section X
PART Y: Sets the Trigger/Threshold/Pattern of section Y
PART Z: Sets the Trigger/Threshold/Pattern of section Z
Page 2 of 4
SPECIFICATIONS: Dimensions (mm): (W) 132 x (H) 68 x (D) 77
Weight (kg): 0.45
Case Construction: 0.9mm Mild Steel (CR4)
Dynamic Gating & Rhythm Effect

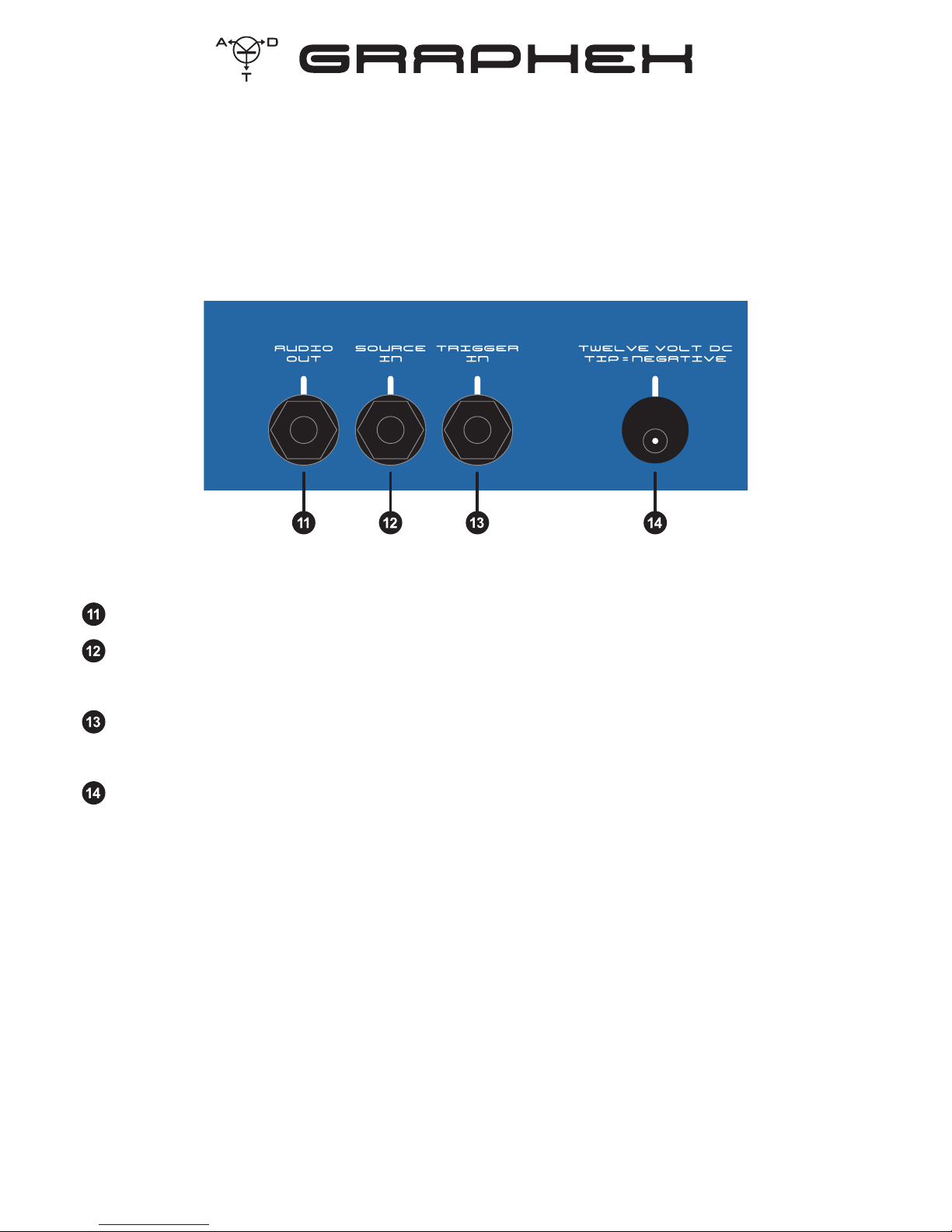

AUDIO OUT: Main Audio Output: 6.5mm (1/4”) Mono Socket
SOURCE IN: Main Audio Signal Input
Line-Level Audio Signal
6.5mm (1/4”) Mono Socket
TRIGGER IN: Trigger Audio Signal Input
Line-Level Audio Signal
6.5mm (1/4”) Mono Socket
*POWER IN: 12 Volt DC @ approx. 300mA
2.1mm Socket
Tip = Negative
Using the wrong adapter can cause damage to your instrument.
Please make sure you are using a good quality, balanced adapter with an Earth
plug set to the correct Voltage and Polarity.
Please also conserve energy and resources by powering down and unplugging
Graphex when it is not is use.
*Power adapter not included
Page 3 of 4
Dynamic Gating & Rhythm Effect
AUDIO INPUT OPTIONS:
SIGNAL PATH:
1) Dual Mono Signals
2) Split Stereo Signal
3) Split Mono Signal
Mono Audio
Mono Audio
TRIGGER IN
SOURCE IN
TRIGGER IN
SOURCE IN
TRIGGER IN
SOURCE IN
Mono Audio
Stereo Audio (Left)
Stereo Audio (Right)
AUDIO
OUT
Splitter
Splitter Pattern
Logic
Mixer
SOURCE
IN
Pattern
Logic
Pattern
Logic
Pattern
Logic
PART
X
PART
Y
PART
Z
LEVEL
A
LEVEL
B
LEVEL
C
TRIGGER
IN
FLIP SWAP
Page 4 of 4
GRAPHEX SETTINGS: Print or photocopy this sheet to record the settings of your favourite sounds.
Description:
––––––––––––––––––––––
––––––––––––––––––––––
––––––––––––––––––––––
TRIGGER IN:
––––––––––––––––––––––
––––––––––––––––––––––
SOURCE IN:
––––––––––––––––––––––
––––––––––––––––––––––
Description:
––––––––––––––––––––––
––––––––––––––––––––––
––––––––––––––––––––––
TRIGGER IN:
––––––––––––––––––––––
––––––––––––––––––––––
SOURCE IN:
––––––––––––––––––––––
––––––––––––––––––––––
Description:
––––––––––––––––––––––
––––––––––––––––––––––
––––––––––––––––––––––
TRIGGER IN:
––––––––––––––––––––––
––––––––––––––––––––––
SOURCE IN:
––––––––––––––––––––––
––––––––––––––––––––––
