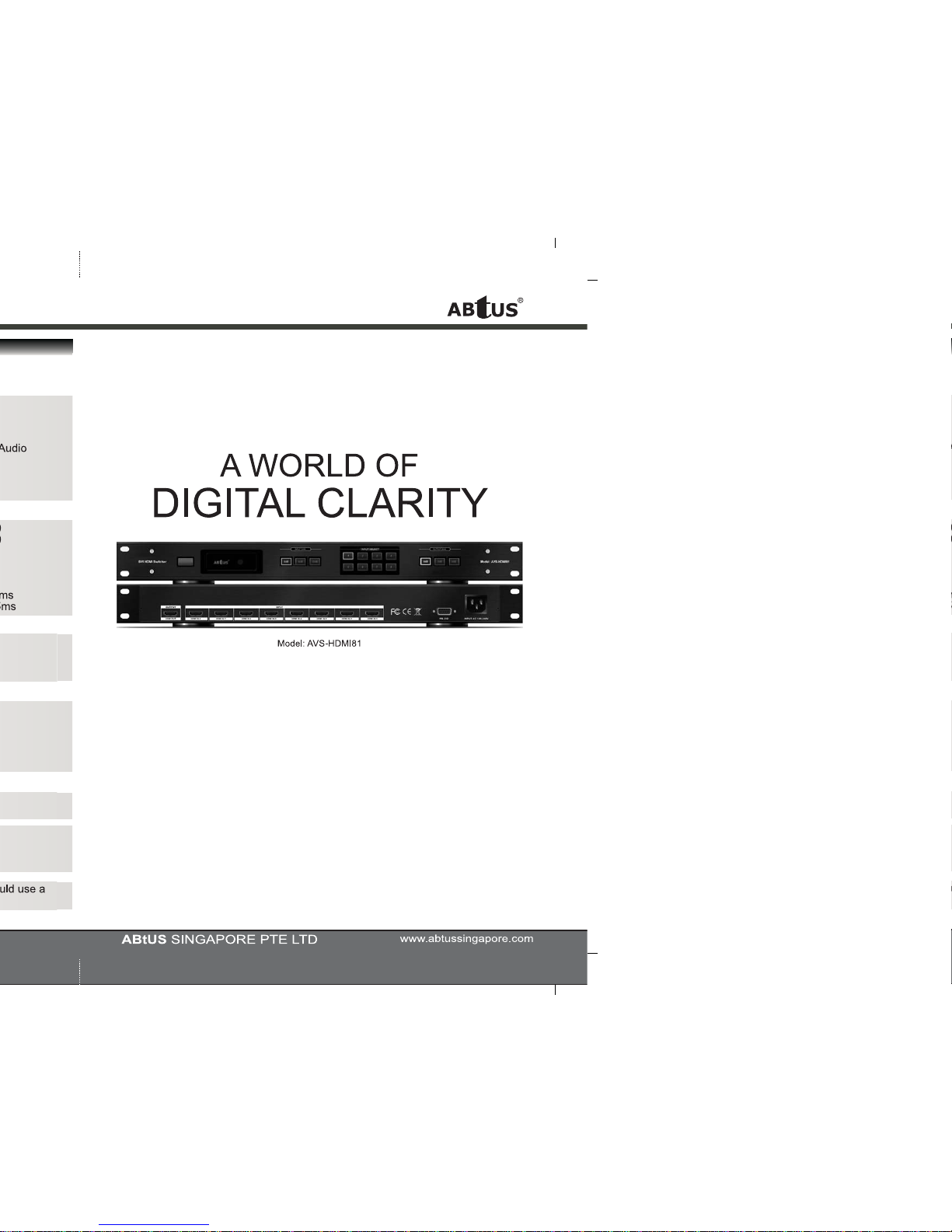

Abtus AVS-HDMI81 Bedienungsanleitung
Parameter Setting:
Baud Rate: 9600
Data bit: 8
Parity Bit: Non parity
Stop Bit: 1
HDMI 8X1 RS232 Control Codes Version:1.0 Date:2008/2/5
Item Function Transmission Receiver
1 Power ON SETC10P31 RETC10P31
2. Power OFF SETC10P30 RETC10P30
3 Select Source SETC60S3xxx001
xxx is select source.
xxx = 001,002,….,008.
RETC60S3xxx001
xxx is select source.
xxx = 001,002,….,008.
4 Select Input Gain SETC70G31000xxx
xxx is input gain level.
xxx = 000,001,002.
RETC70G31000xxx
xxx is input gain level.
xxx = 000,001,002.
5 Select Output Gain SETC70G30000xxx
xxx is output gain level.
xxx = 000,001,002.
RETC70G30000xxx
xxx is output gain level.
xxx = 000,001,002.
6 Panel Lock SETC10L31
RETC10L31
7 Panel Unlock
SETC10L30
RETC10L30
8 Get Power state SETC01P0 RETC11P2x
x is Power state.
0: Power off
1: Power on
9 Get Source state
SETC01S0
RETC61S1xxx001
xxx is select source.
xxx = 001,002,….,008.
10 Get Input Gain level SETC11G01 RETC31G3xxx
xxx is input gain level.
xxx = 000,001,002.
11. Get Output Gain level
SETC11G00
RETC31G3xxx
xxx is input gain level.
xxx = 000,001,002.
12 Get Panel Lock state
SETC01L0
RETC11L2x
x is Panel Lock state.
0: Lock
1: Un-Lock.
13 RS232 control code no
support.
RETCx!
x is no support command.
