Video surveillance camera
Installation Guide
TV7029
TV7027
TV7028
TV7026
9
10
1. Preface
Dear Customer,
Thank you for purchasing this ECOLINE digital surveillance camera.
You made the right decision in choosing this state-of-the-art technology.
This product complies with the current standards of domestic and European
regulations. The CE has been proven and all related certifications are
available from the manufacturer upon request. To maintain this status and
to guarantee safe operation, it is your obligation to observe these operating
instructions!
This ECOLINE camera is equipped with a camouflaged motion detector
housing and a 1/3” SONY Super HAD interline transfer CCD image sensor.
The all state circuitry provides extremely long life and a high level of
reliability. These cameras use first class microelements that are resistant to
external electromagnetic fields. They offer cutting-edge technology for
advanced video surveillance.
11
2. Scope of delivery
ECOLINE camera in a motion detector housing (model as described)
Wall and ceiling mount
Installation instructions
Fastening screws
3. Features
All cameras of the ECOLINE series in motion detector housings have the
following functions:
a) Auto electronic shutter (AES)
b) Auto gain control (AGC)
Additional for colour cameras of this series:
c) Auto white balance (AWB)
d) Digital signal processing (DSP)
4. Precautions
To reduce the risk of electric shock, do not remove cover (or back) – there
are no user serviceable parts inside. Refer servicing to qualified service
personnel.
Do not expose the camera to rain or moisture or try to operate in wet
areas. This camera is designed for indoor use only. If the camera becomes
wet, turn the power off immediately and ask a qualified service technician to
check it before turning the power on again.
Never point the camera towards the sun. Whether the camera is in use
or not, never aim the CCD at the sun or other very bright objects (laser
12
light). This can damage the CCD element and create white dots on the
monitor, a sign that CCD pixels are destroyed.
Operate the camera only within the specified temperature, humidity
and power ranges. Operating the camera outside the prescribed ranges
can lead to reduced product life and early malfunction. Greatly exceeding
the specified operating ranges can also result in immediate failure of the
camera. All specifications can be found in the technical data. Observe the
correct camera model.
Handle the camera with care. Do not abuse the camera. Avoid striking,
shaking, etc. Mount the camera in a shake-free area. The camera could be
damaged by improper handling, storage or transport.
13
5. Installation instructions
This camera is designed for indoor use only. If the camera is used
outdoors, damage may occur as a result of dampness and temperatures
outside the prescribed range. The ECOLINE colour cameras are equipped
with an IR cut and cannot be used in combination with IR illumination.
Perfect (colour) video pictures depend a great deal on the illumination.
Please take this into account when installing artificial light sources. Light
sources with a colour temperature different from daylight may effect colour
drifts for colour cameras.
The cause of bad picture quality goes hand in hand with improper cabling.
Ensure professional installation and avoid passive video distributors.
Always select the shortest distance between the camera and the video unit.
Before installing a video surveillance system with camouflaged cameras,
please be aware of any possible legal regulations that may apply.

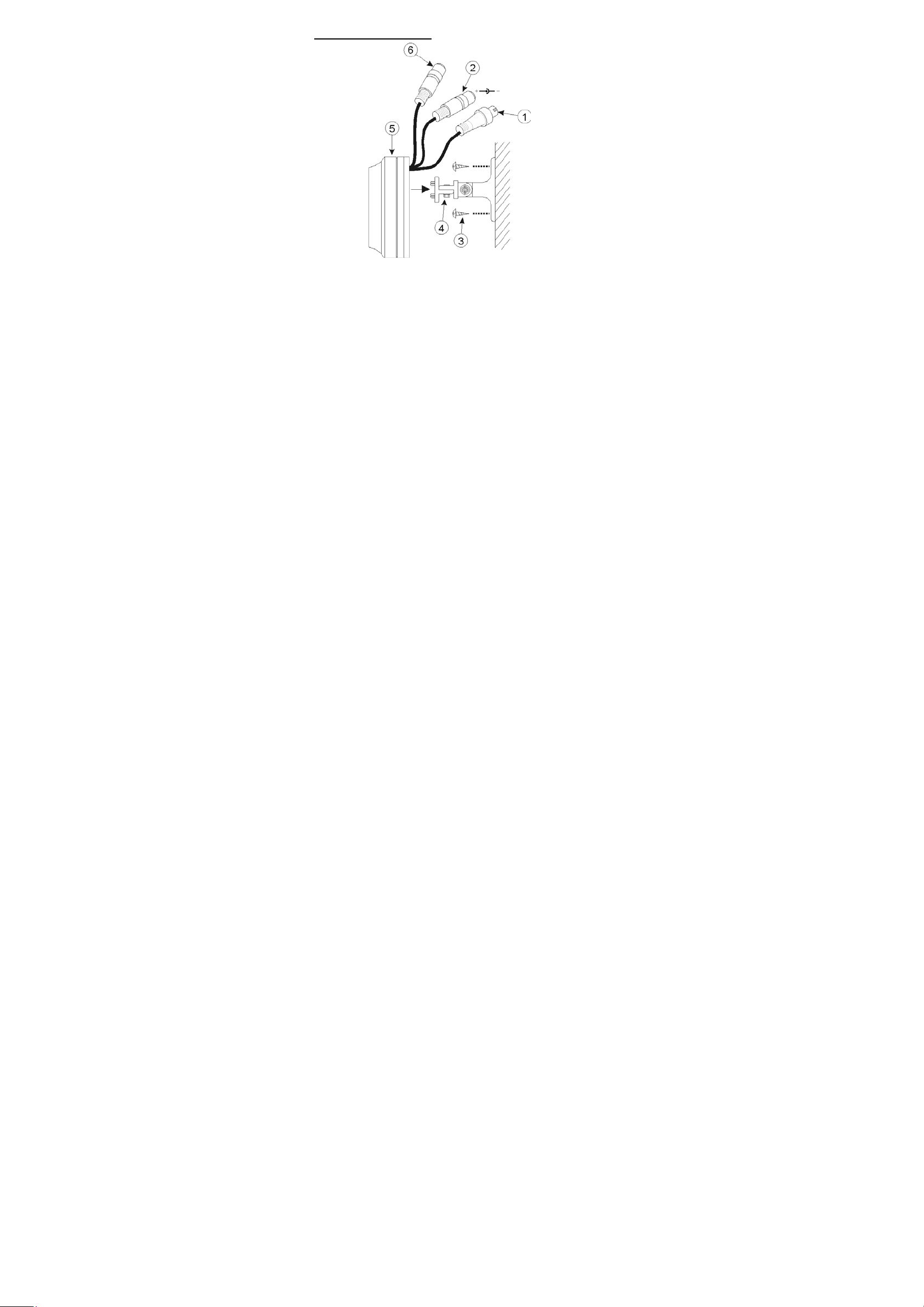

6. Description of the camera
14
(1) Video output connector (VIDEO OUT)
BNC output. This connector is for connecting the camera video signal to the
VIDEO IN connector of, for example, the monitor (composite signal: 1Vp-p).
(2) Power input
15
12V DC voltage. Approved for DC voltage are class 2 power supply units
only. Ensure the polarity is correct.
(6) Microphone output
Chinch output. The audio signal of the built-in microphone is received here
(composite signal: 2Vp-p).
7. Installation
Proceed as follows when installing the camera.
1. Select a suitable place to mount the camera.
2. Connect the video cable (recommended cable type: RG58) to the BNC
video out (1) of the camera and to the following connected video unit.
The maximum cable length should not exceed 200 m.
3. Connect a 12V DC power supply to the power input of the camera (2).
4. Connect the microphone output (6) of the camera to the audio input of
a monitor or similar device.
5. Hold the camera at the location where you want to mount it. Check the
orientation and angle of the camera.
6. Fasten the camera housing directly to the desired installation location
or use the supplied wall/ceiling mount.
16
8. Technical data
Model number TV7026 TV7027 TV7028 TV7029
Image sensor 1/3” SONY Super HAD CCD
TV lines / pixels 420 /
291,000 600 /
438,000 380 /
291,000 550 /
438,000
Minimum
illumination
(IRE 30)
0.1 lux
(F2.0) 0.2 lux
(F2.0) 0.2 lux
(F2.0) 0.4 lux
(F2.0)
Signal-to-noise
ratio > 48 dB
AES 1/50s – 1/110,000s
Lens 1/3” / 3.7 mm / F2.0 / needle eye lens
Horizontal angle 71°
Video out 1Vp-p / 75 Ohm / BNC connector
Audio output 2Vp-p / 50Ohm / Chinch socket
Power source 12V DC
Power
consumption 1.68W 2.88W
Video norm CCIR PAL
Dimensions /
Weight H: 120 x W: 70 x D: 48 mm / max. 180 g
Ambient operating
temperature -10°C – +50°C
Ambient operating
humidity max. 90% non-condensed
Protection type IP50
