Accutrol Apex Premier Gebrauchsanweisung

Apex Premier

Face Velocity Monitor

Installation, Operation & Maintenance Manual

Manual 0133MAN00015 Rev J

*WRITTEN FOR APM FIRMWARE VERSION 3.2TA OR LATER

Accutrol LLC

21 Commerce Dr.

Danbury, CT, 06810

Tel: 203-445-9991

www.accutrolllc.com

Warranty

The monitor has no serviceable parts inside, removal of

the rear enclosure or any other type of tampering shall

void all warranties stated and contained herein.

Accutrol LLC. warrants that this product, under normal

use and service as described in this Operation and Service

manual, is free from defects in workmanship and material

for a period of twenty-four months from the date of

shipment to the customer. This limited warranty is subject

to the following conditions:

With respect to any repair services rendered, Accutrol

warrants that the parts repaired or replaced will be in

good working condition, under normal use, for the period

of the original warranty, or for 90 days from date of

repair if the original warranty period has expired.

Unless specifically authorized by Accutrol in writing, no

warranty is made with respect to, and no liability is

assumed in connection with, any goods, which are

incorporated into other products or equipment by the

Buyer.

The foregoing is in lieu of all other warranties and is

subject to the conditions and limitations stated herein. No

other expressed or implied warranty of fitness for

particular purpose or merchantability is made.

The exclusive remedy of the user or purchaser, and the

limit of the liability of Accutrol or any other seller for

any and all losses, injuries, or damage resulting from the

use of this product shall be the return of the product

and the refund of the purchase price or, at the option of

Accutrol or any authorized seller, the repair or

replacement of the product. In no event shall Accutrol

or any other seller be liable for any incidental or

consequential damages.

Table of Contents

MODEL CODE DESCRIPTION...............................................................................................................................5
OPTIONAL AND/OR SPARE PARTS LIST:..........................................................................................................5
INTRODUCTION .......................................................................................................................................................6
GETTING STARTED / UNPACKING.....................................................................................................................8
STANDARD INSTALLATION .................................................................................................................................9
STEP 1: CHOOSING A SUITABLE LOCATION................................................................................................................9
STEP 2: CUTTING THE MOUNTING HOLE....................................................................................................................9
STEP 3: (OPTIONAL)LOCATING THE EXTERNAL REFERENCE PROBE .........................................................................9
STEP 4: (OPTIONAL)INSTALLING THE EXTERNAL REFERENCE PROBE.....................................................................10

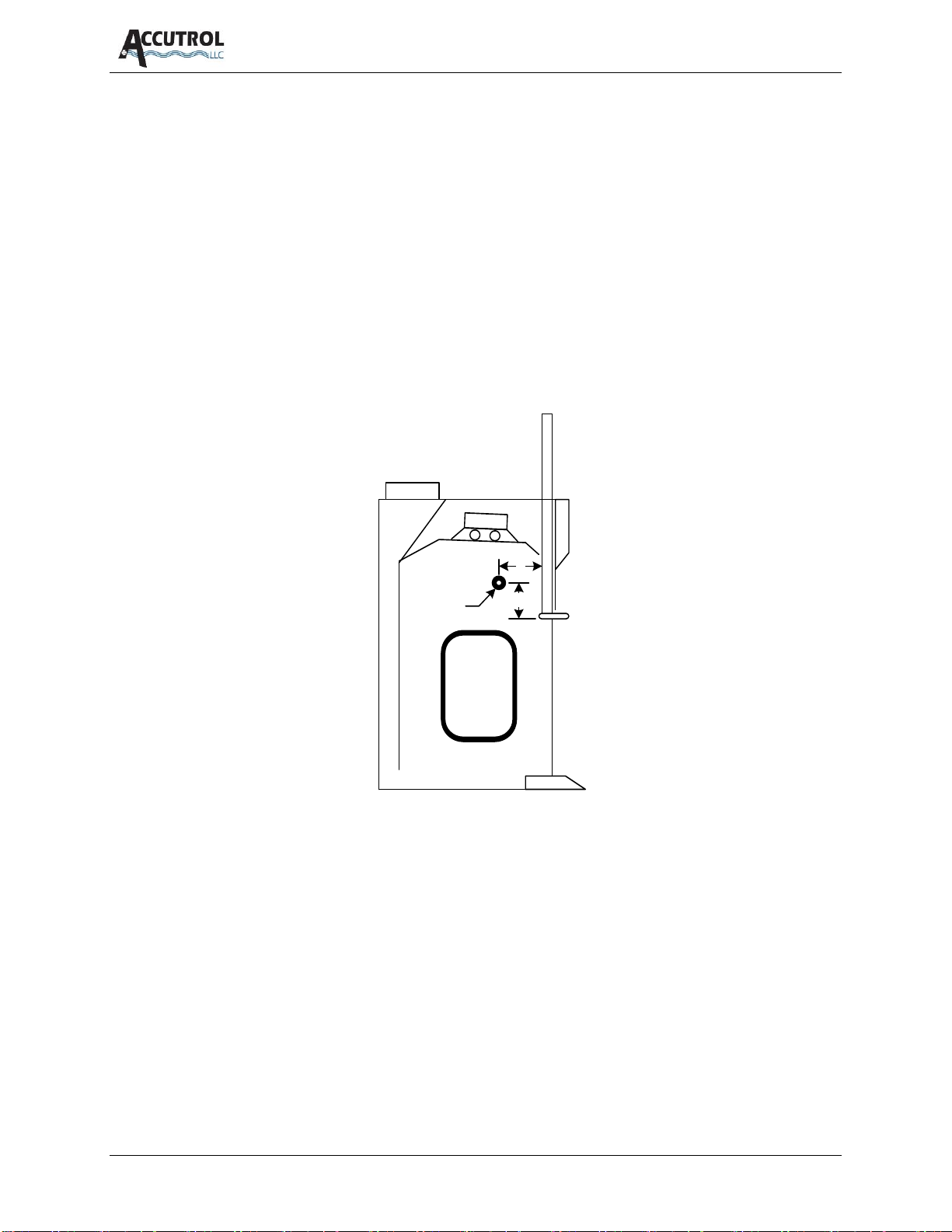

STEP 5: LOCATING THE HOOD PROBE......................................................................................................................10
STEP 6: INSTALLING THE HOOD PROBE....................................................................................................................10
ELECTRICAL CONNECTIONS............................................................................................................................11
STEP 1: POWER ........................................................................................................................................................11
STEP 2: DIGITAL INPUTS ..........................................................................................................................................11
STEP 3: RELAY OUTPUTS.........................................................................................................................................11
STEP 4: (OPTIONAL)ANALOG OUTPUT....................................................................................................................11
INITIAL POWER-UP OF MONITOR ...................................................................................................................12
TOUCH SCREEN & PASSWORD PROTECTION..............................................................................................12
STEP 1: ENABLE THE TOUCH SCREEN......................................................................................................................12
STEP 2: PASSWORD PROTECTION.............................................................................................................................12
CALIBRATION BASICS.........................................................................................................................................13
TWO-POINT CALIBRATION PROCEDURE......................................................................................................14
STEP 1: ENABLE TWO-POINT CALIBRATION MODE .................................................................................................14
STEP 2: MOVE SASH TO FULL OPEN (LOW VELOCITY POINT) .................................................................................14
STEP 3: TRAVERSE HOOD FACE AT MAX.OPEN SASH (LOW VELOCITY POINT)......................................................14
STEP 4: ENTER TRAVERSED READING (LOW VELOCITY POINT) ..............................................................................14
STEP 5: MOVE SASH(ES)TO MIN.OPEN POSITION (HIGH VELOCITY POINT)...........................................................14
STEP 6: TRAVERSE HOOD FACE AT MIN.SASH POSITION (HIGH VELOCITY POINT) ................................................14
STEP 7: ENTER TRAVERSED READING (HIGH VELOCITY POINT)..............................................................................14
STEP 8: COMPLETION OF THE TWO-POINT CALIBRATION ........................................................................................14
THREE-POINT CALIBRATION PROCEDURE..................................................................................................15
STEP 1: ENABLE CALIBRATION MODE.....................................................................................................................15
STEP 2: MOVE SASH(ES)TO FULL OPEN (LOW VELOCITY POINT)...........................................................................15
STEP 3: TRAVERSE HOOD FACE AT FULL OPEN.......................................................................................................15
STEP 4: ENTER TRAVERSED READING .....................................................................................................................15
STEP 5: MOVE SASH A MID-OPEN POSITION (MID VELOCITY POINT) .....................................................................15
STEP 6: TRAVERSE HOOD FACE AT MID-OPEN POSITION (MID VELOCITY POINT)..................................................15
STEP 7: ENTER TRAVERSED READING (MID VELOCITY POINT) ...............................................................................15
STEP 8: MOVE SASH(ES)TO MIN.POSITION (HIGH VELOCITY POINT).....................................................................15
STEP 9: TRAVERSE HOOD FACE AT MIN.SASH POSITION (HIGH VELOCITY POINT) ................................................16
STEP 10: ENTER TRAVERSED READING (HIGH VELOCITY POINT)............................................................................16
STEP 11: COMPLETION OF THE THREE-POINT CALIBRATION ...................................................................................16
ONE-POINT CALIBRATION.................................................................................................................................16
STEP 1: ENABLE ONE-POINT CALIBRATION MODE..................................................................................................16
STEP 2: MOVE SASH TO NOMINAL WORKING HEIGHT.............................................................................................16
STEP 3: TRAVERSE HOOD FACE...............................................................................................................................16
STEP 4: ENTER TRAVERSED READING .....................................................................................................................16
STEP 5: COMPLETION OF THE ONE-POINT CALIBRATION.........................................................................................17
MANUAL CALIBRATION ADJUSTMENTS.......................................................................................................18
➢
 MANUAL CALIBRATION ADJUSTMENT FOR ONE-POINT CALIBRATION ROUTINE................................................18
STEP 1A:ENABLE CALIBRATION ADJUSTMENT MODE ............................................................................................18
STEP 2A:ENTER IN DESIRED OFFSET VALUE...........................................................................................................18
STEP 3A:VERIFY NEW READING .............................................................................................................................18
STEP 1B:ENABLE CALIBRATION ADJUSTMENT MODE.............................................................................................18
STEP 2B:SELECT CALIBRATION POINT TO ADJUST..................................................................................................18
STEP 3B:HIGH VELOCITY CALIBRATION POINT ADJUSTMENT ................................................................................18

STEP 4B:VERIFY NEW READING .............................................................................................................................19
STEP 5B:LOW VELOCITY CALIBRATION POINT ADJUSTMENT.................................................................................19
STEP 6B:VERIFY NEW READING .............................................................................................................................19
STEP 7B:EXITING OUT OF THE CALIBRATION ADJUSTMENT MENU.........................................................................19
CONFIGURATION OF THE APM ........................................................................................................................20
DISPLAY MODES....................................................................................................................................................21
ALPHA DISPLAY MODE ...........................................................................................................................................21
GRAPHIC DISPLAY MODE ........................................................................................................................................21
NUMERIC DISPLAY MODE .......................................................................................................................................22
MUTE, PURGE & ALARM HORN SETTINGS...................................................................................................22
DIGITAL INPUT CONFIGURATION...................................................................................................................24
RELAY OUTPUT CONFIGURATION..................................................................................................................26
ANALOG OUTPUT CONFIGURATION (OPTIONAL)......................................................................................26
CONTRAST ADJUSTMENT...................................................................................................................................27
ALARM CONFIGURATION ..................................................................................................................................28
CHANGE PASSWORD............................................................................................................................................29
CALIBRATION MENU SELECTION ...................................................................................................................30
RESTORE FACTORY DEFAULTS.......................................................................................................................30
CALIBRATE TOUCH SCREEN.............................................................................................................................30
EXIT CONFIGURATION AND CALIBRATION.................................................................................................30
MAINTENANCE.......................................................................................................................................................31
APPENDIX A: MOUNTING HOLE TEMPLATE DIMENSIONS ....................................................................32
APPENDIX B: APM DETAILED DESCRIPTION ..............................................................................................33
APPENDIX C: PROPER WIRING TECHNIQUES.............................................................................................34
APPENDIX D: REFERENCE PROBE INSTALLATION...................................................................................35
APPENDIX E: ...........................................................................................................................................................36
SPECIFICATIONS...................................................................................................................................................36
APPENDIX F: CONFIGURATION AND CALIBRATION SCREENS.............................................................37
APPENDIX G: OPERATOR SCREEN FLOW CHARTS...................................................................................42
APPENDIX H: AVAILABLE EXTERNAL ALARM MESSAGES....................................................................44
APPENDIX I: DEFAULT VALUES OF APM......................................................................................................45
APPENDIX J: TROUBLESHOOTING.................................................................................................................47
APPENDIX K: ADDITIONAL MOUNTING OPTIONS.....................................................................................48
APPENDIX L: DOCUMENT REVISION HISTORY..........................................................................................57
INDEX........................................................................................................................................................................58



T-APM - Apex Premier FUME HOOD MONITOR

T-APM 0133MAN00015 - Rev J ECN - JUL 2017 Page 5 of 61

Model Code Description

T –A P M - __ __

Basic Model Number Includes;

(1) Apex Premier Monitor

(1) Hood Probe with 5’ Tubing

(2) Mounting Screws

(1) Quick Reference Guide

(1) Mounting Template

Analog Voltage Output Option

0 = Standard I/O: (2) Digital Inputs

(2) Relay Outputs

1 = Analog Option: (2) Digital Inputs

(2) Relay Outputs

(1) 0-10Vdc Analog Output

External Reference Probe

0 = No External Reference Probe

1 = External Reference Probe

Example: T-APM-10

Includes the following:

(1) Apex Premier Monitor

(1) Hood Probe with 5’ Tubing

(2) Mounting Screws

(1) Quick Reference Guide

(1) Mounting Template

Analog Option:

(2) Digital Inputs

(2) Relay Outputs

(1) 0-10Vdc Analog Output

Optional and/or Spare Parts List:

Item Description

Accutrol Part Number

120 VAC Power Adaptor

1436PSW00003

5’ Probe Assembly

2001ASM00551

Mounting Screws

2015HDW00410

Terminal Block Kit

1508TBK00016

Battery Backup System

2001ASM00553

Dual Probe Kit (>8’ wide hood)

2001ASM00555

APM Extender Kit #1 **

T-APM-EXTENDER1

APM Extender Kit #2 **

T-APM-EXTENDER2

** Reference Appendix K for more information

T-APM - Apex Premier FUME HOOD MONITOR

T-APM 0133MAN00015 - Rev J ECN - JUL 2017 Page 6 of 61

Introduction

Welcome to the Apex Premier Fume Hood Monitor Installation, Operation and Maintenance Manual. The

Apex Premier Monitor (APM) has been designed to provide accurate and reliable real-time monitoring of

fume hood face velocity on a wide variety of fume hoods including; variable air volume, constant air

volume, and high performance - low flow.

LED Status

Indicators

Room Reference

(Standard)

Touch Sensitive

Graphic Display

User Push Buttons

Mounting Screws

Figure 1, Front View of APM

The revolutionary touch screen display allows the technician to easily calibrate and configure the APM

with no external tools or interfaces, yet remains completely invisible to the operator. Password protection

is utilized to prevent any unauthorized personnel from changing calibration or configuration items.

The APM utilizes 3 front-mounted push buttons that allow the operator to mute the alarm horn, enable

purge mode, and also view the internal settings of the APM. The mute and purge push buttons can also

be disabled if not required.

NOTE: The protection and performance provided by the APM may be impaired if used in a manner

not specified or contained in this manual.

T-APM - Apex Premier FUME HOOD MONITOR

T-APM 0133MAN00015 - Rev J ECN - JUL 2017 Page 7 of 61

Introduction

APM Features

Password Protection

Touch Screen Setup with User-Friendly On-Screen Instructions

Jumbo L.E.D.’s to Indicate Hood Status at a Glance

Loud Audible Horn to Alert the Operator of Alarm Conditions

Three Display Modes of Operation

oAlpha Mode –displays hood performance using text only

oNumeric Mode –displays actual face velocity at all times

oGraphic Mode –displays trend line of face velocity over a time interval

Configurable High & Low Velocity Alarms with Selectable Time Delays

Configurable Warning Bands to Alert Operator of Potential Alarm Conditions

Full Unoccupied Mode, Enabling Alternate Alarm Configuration Settings.

Dual Digital Inputs for Communicating External Alarms or Occupancy Status

Selectable External Warning Messages to Inform Operator of External Problems Not Directly

Relating to the Fume Hood

Dual Relay Outputs for Purge Mode or Communicating Alarms

One, Two or Three Point Calibration Routines Built-in

Available Calibration Adjustments to “tweak” Velocity to Exact Values

Built-in Internal Reference Probe, with Optional External Reference Available. Note: External

Reference Must be Ordered at Time of Purchase

Operates from Industry Standard 24VAC or 120 VAC Using Optional Wall Plug Transformer

Removable Terminal Blocks to Simplify Wiring

Important Considerations

Prior to installing and calibrating your Accutrol APM , reference ANSI/ASHRAE STANDARD 110-

1995 for proper methods of testing performance of laboratory fume hoods.

Per ASHRAE guidelines, “The performance of a laboratory fume hood in providing protection for the

worker at the face of a hood is strongly influenced by the aerodynamic design of the hood, the ventilation

of the laboratory room, and by other features of the laboratory in which it is installed.”

The following items are identified by ASHRAE as being important factors contributing to the safe

operation of laboratory fume hoods:

1. Cross-drafts. Air currents may, by creating turbulent air pockets, draw contaminants from the hood.

Such cross-drafts could be caused by air supply diffusers or grilles, open windows or doors, or rapid

movements of people in front of the hood.

2. Work procedures. There is substantial evidence to suggest that all work in a hood should be

conducted as far back in the hood as practical. Typically, users have standardized the requirement that

all work should occur at least 6 inches behind the face of the hood. However, significantly improved

protection can be achieved by working farther than 6 inches from the face of the hood.

3. Internal obstructions. The location of too much laboratory equipment (bottles, glass, etc.) in the hood

will disturb airflow patterns into the hood.

4. The procedure being performed. The intrinsic hazard of the procedure being performed can affect

the level of safety required by the user.

5. Thermal challenge. Heat produced in the hood can cause significant disturbance in the hood

performance and even cause leakage of warm and possibly contaminated air from the top of the hood or

from behind the sash.

6. Rate of response. The transient state or interval required for a variable-air-volume hood to respond to

a rapid opening of the sash, or the time interval required for a hood to respond to a change in static

pressure in the main exhaust duct serving multiple hoods, may affect hood performance.

T-APM - Apex Premier FUME HOOD MONITOR

T-APM 0133MAN00015 - Rev J ECN - JUL 2017 Page 8 of 61

Getting Started / Unpacking

Figure 2 shows all the components shipped standard with each APM. Before proceeding, verify all

components are accounted for and are not damaged.

Figure 2, Supplied Equipment

Item 1 - One (1) Apex Premier Fume Hood Monitor (APM), Part Number T-APM

Item 2 - One (1) Quick Reference Guide, Part Number 0133MAN00016

Item 3 - One (1) Mounting Hole Template, Part Number 2111TAG00643

Item 4 - One (1) Hood Probe, Part Number 2001ASM00551

Item 5 - Two (2) Mounting Screws, Part Number 2015HDW00410

T-APM - Apex Premier FUME HOOD MONITOR

T-APM 0133MAN00015 - Rev J ECN - JUL 2017 Page 9 of 61

Standard Installation

Step 1: Choosing a Suitable Location

Care must be observed when choosing a suitable location for the APM if the internal reference is being

utilized (typical install). Locate a position on the fume hood pillar that is free from piping, electrical conduit

or obstacles. The APM requires at least 4” (10.2cm) of depth behind it for tubing and wiring clearance.

Care must be taken to stay away from external air influences such as air registers, diffusers, equipment

cooling fans, cross drafts, doors, windows, or anything influencing air flow. Reference Appendix K for

other available mounting options.

Figure 3 shows a typical location for mounting the APM. When possible, always install the APM above

the maximum height of the sash pane bottom to decrease the chances of a cross draft across the face of

the APM and into the fume hood.

Monitor

Bottom of

Sash Pane

Figure 3, Typical Fume Hood Installation Location

Step 2: Cutting the Mounting Hole

Use the template provided to aid in finding the best location (see Appendix A). Cut along the inner

dashed dimensions of the template and drill the two pilot holes. Slip the APM into the cutout to test fit the

unit and confirm the depth is correct. Do not attach the unit to the hood until all electrical connections and

the hood probe and tubing have been installed. Once all connections have been completed, use the two

screws provided to permanently mount the APM to the fume hood.

Step 3: (Optional) Locating the External Reference Probe

If the APM was ordered from the factory with an external reference probe in lieu of the internal reference,

observe the same precautions in choosing a good location for the external reference as previously stated

in step 1. Typical good locations are on the side of the hood casing or on the front pillar, above operator

height to avoid cross drafts developed by moving quickly in front of the hood.

Warning: Do not install the reference probe in a location that is not common with the hood to which it is

measuring. Unacceptable locations include; closets, inside the base cabinet, inside the hood chase,

corridors, ceilings, etc. Always keep the tubing length to a minimum (less then 5 feet) when possible.

Exercise care so tubing does not become kinked or pinched due to installation or moving internal parts of

the sash.

T-APM - Apex Premier FUME HOOD MONITOR

T-APM 0133MAN00015 - Rev J ECN - JUL 2017 Page 10 of 61

Standard Installation

Step 4: (Optional) Installing the External Reference Probe

Once a suitable location has been selected for the Room Reference Probe, drill a 7/16” diameter (11mm)

hole for mounting probe. Referencing Appendix D, feed the supplied clear tubing connected to the probe,

through the drilled hole. Carefully push the tubing over the room reference port located on the rear of the

APM enclosure (refer to Appendix B). Press the room reference probe firmly to seat properly into

location. Note: various sealants can be used but are not required.

Step 5: Locating the Hood Probe

The hood side wall probe is best located on the same side of the fume hood as the APM to keep tubing

length to a minimum. Due to the wide variety of fume hood types and configurations available, there is no

single standard hood probe location that will work for all fume hoods manufactured. Typical hood probe

locations are approximately 4” to 10” (10.2cm to 25.4cm) back from the rear of the sash panel and

approximately 2” to 8” (5.1cm to 20.3cm) above the highest vertical opening of the sash. Refer to Figure

4 for a diagram of approximate locations. If possible, contact the fume hood manufacturer for

optimum side wall probe location guidelines.

Sill

SASH WINDOW

Typical

Hood Probe

Location

Side Profile of Fume Hood

A dim. = approx. 4" - 10" (10.2 cm - 25.4 cm)

B dim. = approx. 2" - 8" (5.1 cm - 20.3 cm)

Back Front

Figure 4 Typical Hood Reference Probe Locations

Step 6: Installing the Hood Probe

Once a suitable location has been selected for the Hood Probe, drill a 7/16” diameter (11mm) hole in the

side wall of the fume hood. Note: Reference fume hood manufacturer recommendations for best

method for drilling hood sidewall. Referencing Appendix D, feed the supplied clear tubing through the

drilled hole and carefully push it over the sensor port located on the rear of the APM enclosure (refer to

Appendix B). Press the hood probe firmly to seat it properly into the side of the fume hood. Note: various

sealants can be used but are not required. Contact the fume hood manufacturer for acceptable sealant

types and information.

NOTE:

Sash is Shown In the

Full-Open Position.

Inhaltsverzeichnis

Andere Accutrol Monitor Handbücher

Accutrol

Accutrol AVC5000 Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
