Ace 598-1214-03 Bedienungsanleitung

Remote

ContRolled

PRoduCts

This manual includes operating instructions for

the remote controlled products shown above. All

products work on the same principle and use the

same code setting information. Please read all

instructional information and note any speciﬁc

information pertaining to your particular product.

FEATURES

• Products are UL/cUL and/or FCC/IC tested and

approved.

• Operational range of up to 100 feet.

ACE®wireless lighting controls are designed

to work together. Simply determine which

transmitter(s) you would like to have controlwhich

receiver(s) and set the code setting to match.

Wireless

Motion

Sensor

Floodlight

Converter

Indoor

Plug-In

Converter

Lamp

Socket

Converter

Remote

Control

2598-1214-03

CODE SETTINGS

Note: Most single system installations will

not require any change to the code setting.

Transmitter(s) and receiver(s) must have

the same code and group setting to work

together.Switches 1 through 3 set the code.

Switch 4 sets the Group (A or B). See Code

Switch Locations for switch locations.

Transmitter(s)/

Receiver(s) Code

Group B

Transmitter(s)/

Receiver(s) Code

Group A

Example 1 - Code Switch Settings, System 1

(Factory Setting)

1 2 3 4

WARNINGS

• FOR USE ONLY with 120 volt incandescent

or halogen bulbs.

• DO NOT USE with ﬂuorescent bulbs, appli-

ances, power supplies, low voltage lighting, or

any other electrical devices.

( – Indicates Position of Switch)

598-1214-03

Note: When operating more than one system

independently of each other, set each system to

a different code. There are 8 codes available by

changing the settings of switches 1 through 3.

Example 2 - Code Switch Settings, System 2

Receiver(s)

Code

Group A

Transmitter(s)

Code

Group Switch

(Group A Selection Shown)

Example 3 - Code Switch Settings with Single

Transmitter

Receiver(s)

Code

Group A

Remote Motion

Sensor Code

When using the wireless motion sensor, the code

and group settings must match receiver(s) for the

system to function properly.

Note:This setting will work independently of exam-

ples 1 and 2 because the code setting is different.

Note: The channel can also be changed to reduce

interference problems from other wireless products

(i.e. wireless phones, garage door openers, etc.). See

Troubleshooting Guide for more information.

Group A

1 2 3 4

4598-1214-03

Floodlight

Converter

Wireless Motion

Sensor

CODE SWITCH LOCATIONS

Code Switches

Close-Up of Typical Code Switch

(Factory Default Setting is Off)

Note: The “X” has been placed on the

switches to help clarify the illustra-

tions under Code Settings.

DETECT

CODES

1234

DAY

NIGHT

ONLY

1 2 3 4

12 3 4

1 234

Lamp Socket

Converter

Indoor Plug-In

Converter

Code Switches

ON DIP

1 2 3 4

ON DIP

1 2 3 4

Remote Control

Left Side Code

Switches

Right Side

Code Switches

Battery Cover

598-1214-03

One remote control is able to independently operate

two receiver units. If more than two receiver units,

operating independently, are desired, additional

remote controls will need to be purchased.

1. Remove Tab from Battery Chamber. Remove

cover from back of transmitter. Gently pull tab

out of battery chamber (see Figure 1). Slide

cover onto transmitter.

REMOTE CONTROL

2. Remote Control Functions. The three buttons

on the left side of the remote will operate one

or more receiver units with matching code set-

tings. The three buttons on the right side of the

remote will operate a second set of one or more

receiver units (see Figure 2).

• ON: Turns on any receiver unit set to the same

code as this remote control.

• OFF: Turns off any receiver unit set to the same

code as this remote control.

Battery Chamber

(Type A23)

Battery Cover

Tab

ON DIP

1 2 3 4

ON DIP

1 2 3 4

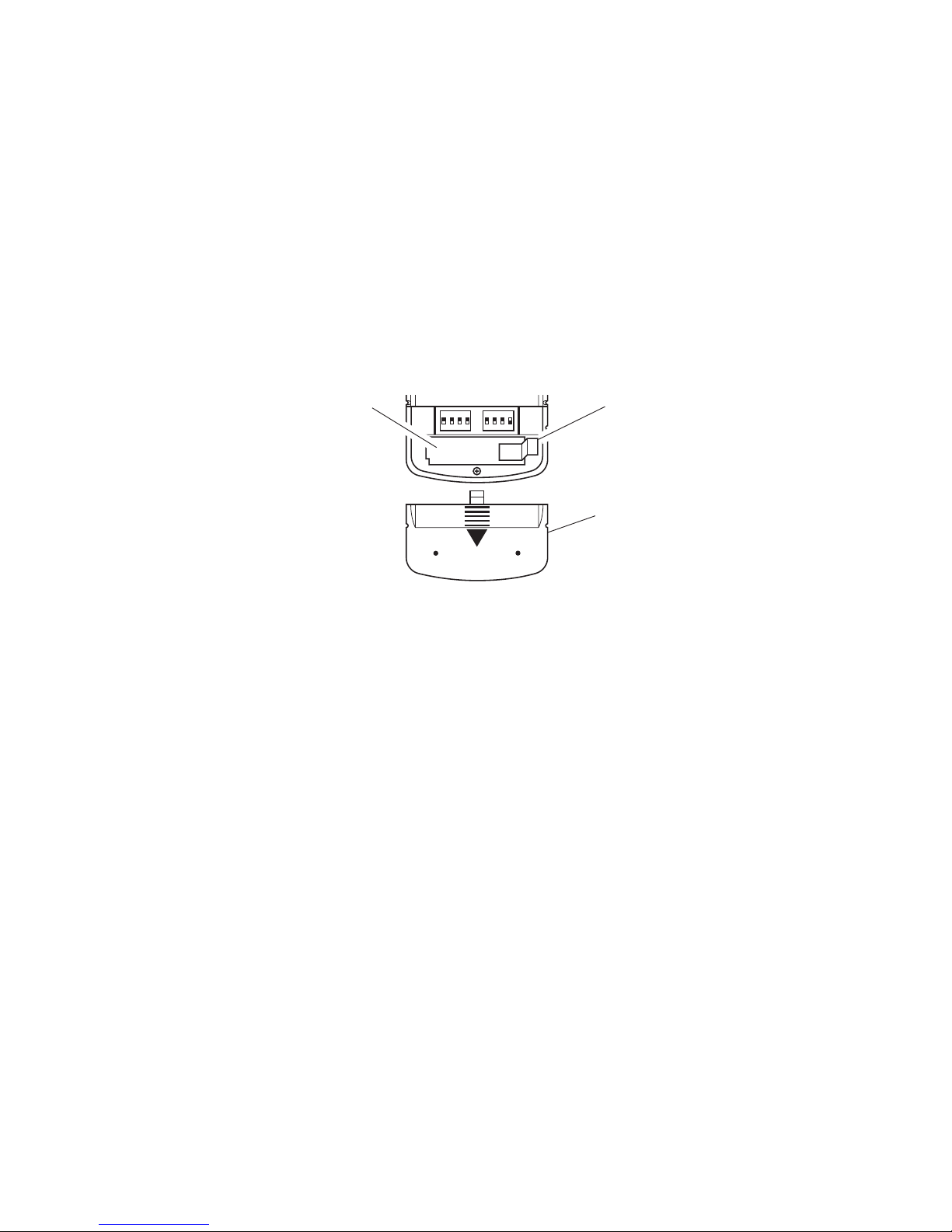

Figure 1 - Rear View of Remote Control

6598-1214-03

4 5 43

1 2 32

Note: To independently operate a second receiver

unit using a single remote control, make sure the

second set of code switches (Right Side) and the

code switches on each receiver match (see Code

Settings section).

• Left Side - Set left side code switches.

• Right Side - Set right side code switches.

IMPORTANT: Wait 1 to 2 seconds after you press

a transmitter button before you press it again to

allow the transmission to be completed.

Note: If light does not turn on or intermittently

turns on and off when transmitter buttons are

pushed, see Troubleshooting Guide.

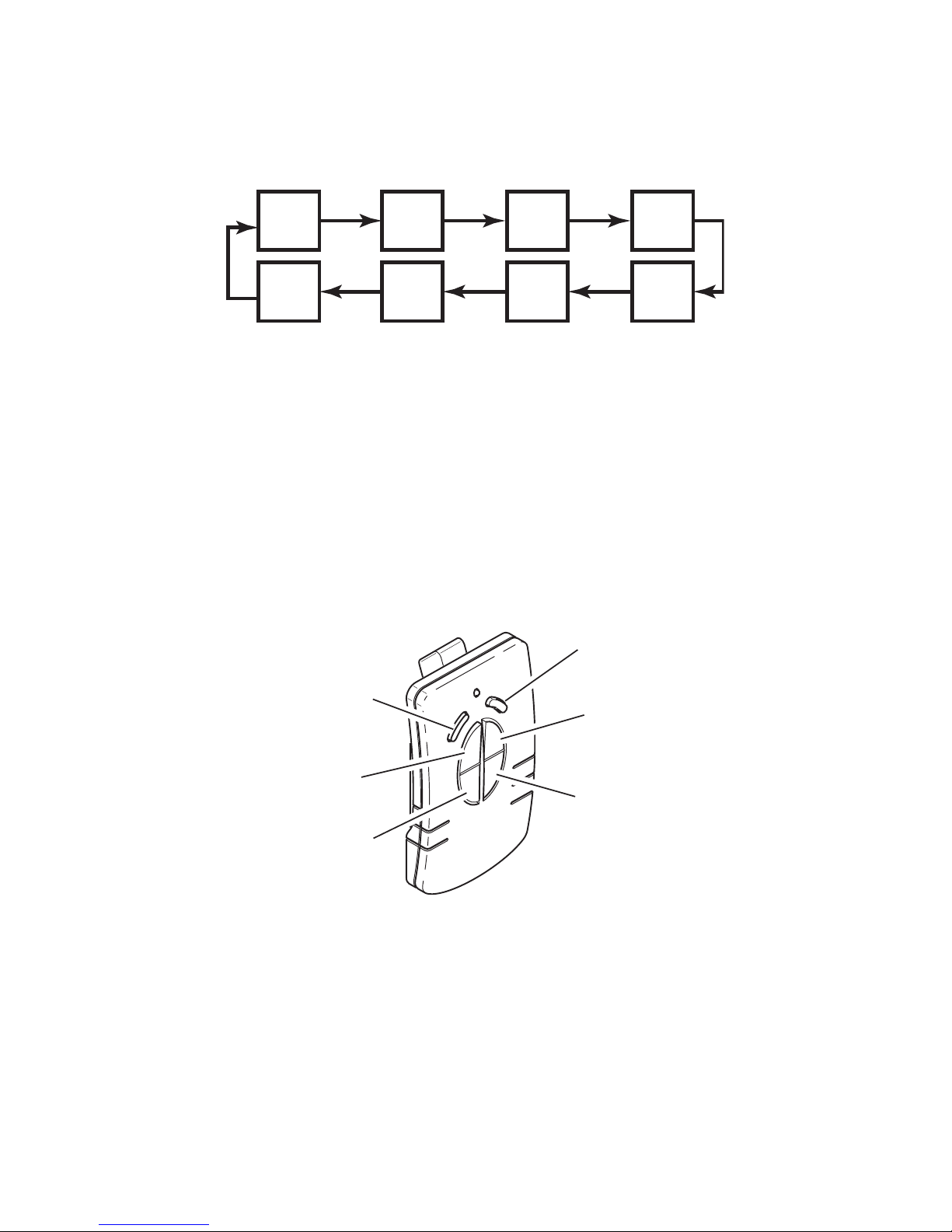

Figure 2 - Function Controls

Left Side DIM

Left Side ON

Left Side OFF

Right Side DIM

Right Side ON

Right Side OFF

• DIM:Activates the DIM feature for any receiver

unit set to the same code as this remote control.

Note: Pressing the DIM button steps through

ﬁve brightness levels.

598-1214-03

Figure 3 - Removing Visor Clip (Rear View)

Flat-Head

Screwdriver Optional

Visor Clip

Optional Car Visor Clip (Included)

The remote control includes an optional car visor

clip for added convenience that may be installed.

1. To attach car visor clip to remote control (if

desired) push it into slot on rear of remote unit

until it snaps into place (see Figure 3).

2. To remove car visor clip, insert a small, ﬂat-

head screwdriver into slot on back of remote.

Gently push down on portion of visor clip inside

slot with screwdriver while pulling clip out of

remote from top (see Figure 3).

8598-1214-03

WIRELESS MOTION SENSOR

Features:

• No wiring required.

• Up to 70 feet sensing range, 180° Coverage.

• Adjustable sensitivity.

• Day/Night or Night only operation.

• Test mode.

• Uses 2 AA batteries.

• Wall or eave mount.

• Controls receivers up to 100 feet away.

Select Night or 24 Hour Mode

This sensor is able to detect motion day and night or

night only. To set the detection mode, remove rear

panel by sliding the panel down. Remove batteries

if necessary. Slide the DETECT switch to either the

DAY/NIGHT or NIGHT ONLY position. Replace

rear panel by reversing the above instructions.

Installing Batteries

Before mounting sensor, remove rear panel by

sliding the panel down. Install 2 AA batteries

according to polar-

ity markings inside

the battery compart-

ment (see Figure 4).

Replace rear panel

by reversing the

above instructions. Figure 4 - Battery

Compartment (Rear View)

DETECT

CODES

1234

DAY

NIGHT

ONLY

Detect

Control

Polarity

Mark

598-1214-03

Figure 5 - Installing Motion Sensor

Installing Motion Sensor

1. Install sensor mounting bracket where motion

detection is desired. Attach sensor mounting

bracket to a sturdy object (i.e. tree, post, house,

etc.) using two screws provided (see Figure 5).

Make sure unit has an unobstructed view. Note:

If mounting bracket to a curved surface, attach

mounting bracket vertically.

2. Install motion sensor to mounting bracket. Us-

ing a Philips-head screwdriver, loosen the clamp

screw on the mounting bracket. Insert swivel

ball mount on sensor into mounting bracket

socket (Note: You should hear a snap). Aim

sensor toward area where detection is desired.

Tighten clamp screw (see Figure 5).

IMPORTANT: The sensor must be mounted with

the bottom cover facing down in order to maintain

water tightness.

Mounting Bracket

Clamp Screw

Nut

Sensor

Mounting Screw

Swivel Ball Mount

Mounting Bracket

Socket

10 598-1214-03

Check Operation and Adjustment

Note: When ﬁrst turned on or when switching

modes wait 1 1/2minutes.

The RANGE control and ON-TIME control are

located on the bottom of the sensor (see Figure 6).

Using your ﬁngernails or a small, ﬂat-head screw-

driver, gently pry the cover until it opens.

1. Check Operation. Set the ON-TIME control to

TEST mode. Walk in front of sensor unit. The

LED indicator light located on the bottom of

the sensor should ﬂash when motion is detected

(see Figure 6).

2. Adjust Sensor. Turn the RANGE control to the

mid position and ON-TIME control to the TEST

position (see Figure 6). Walk through coverage

area noting where you are when the LED begins

to ﬂash. Loosen the clamp screw and move the

sensor to change the coverage area (see Figure

7). Tighten clamp screw when ﬁnished. Do not

overtighten clamp screw.

Figure 6 - Motion Sensor Controls (Bottom View)

5 1 TEST

ON-TIME

(MINUTES)

RANGE

MAX MIN

ON-TIME

Control Sensitivity

Control

LED Indicator
