Acer AT2635 Bedienungsanleitung

Acer AT2635 LCD TV

ServiceGuide

PRINTED IN CHINA

Service guide files and updates are available on

the ACER/CSD web. For more information,

please refer to http://csd.acer.com.tw

Revision History

Please refer to the table below for the updates of LCD TV AT2635 service guide.

Date Chapter Updates

2007/10/5 Chapter 1 ~ 3 1st edition

2007/10/8 Chapter3 2nd edition

transmitted, transcribed, stored in a retrieval system, or translated into any language or computer

language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or

otherwise, without the prior written permission of Acer Incorporated.

III

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the

contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular

purpose. Any Acer Incorporated software described in this manual is sold or licensed “as is”. Should the

programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or

its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential

damages resulting from any defect in the software.

Acer is a registered trademark of Acer Incorporated.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

Conventions

The following conventions are used in this manual.

SCREEN MESSAGES Denotes actual messages that appear on screen.

NOTE Gives bits and pieces of additional information related to

the current topic.

WARNING Alerts you to any damage that might result from doing

or not doing specific actions.

CAUTION Gives precautionary measures to avoid possible

hardware or software problems.

IMPORTANT Reminds you to do specific actions relevant to the

accomplishment of procedures.

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION

decided for Acer's “global” product offering. To better fit local market requirements and enhance

product competitiveness, your regional office MAY have decided to extend the functionality of a machine

(e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be

covered in this generic service guide. In such cases, please contact your regional offices or the

responsible personnel/channel to provide you with further technical details.

2. Please note WHEN ORDERING FRU PARTS, you should check the most up-to-date information available

on your regional web or channel. For whatever reason, if a part number change is made, it will not be

noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may

have a DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You

MUST use the list provided by your regional Acer office to order FRU parts for repair and service of

customer machines.

Chapter 1

System Specification

Specification

LCD Panel

Max. resolution: 1366 x 768

12 CCFTs Backlight system

Display area: 26 inches

Display color: 16.7 M colors

Input Signal: 1-ch LVDS

Contrast ratio: 800:1 ( Typical )

Brightness: 500 Cd/m² ( Typical )

Response Time: 6.5 ms ( Typical )

Viewing angle: 88° ( L ) / 88° ( R ), 88° ( U ) / 88° ( D )

I/O functions

21 pin Euro-SCART ( RGB ) for Video, S-Video, R.G.B. and Audio

21 pin Euro-SCART ( RGB ) for Video, S-Video, R G B and Audio

RCA jack ( YUV and CVBS ) for YPbPr, YCbCr, Video and Audio

15 pin D-Sub for VGA

19 pin D-Sub for HDMI

DIN45325 ( IEC169-2 ) Terminal for TV / CATV input

3.5 mm∮Earphone jack for Audio Line input (option )

Video Functions

Support PAL / NTSC / SECAM video format

Support 480i/576i, 480p/576p, 1080i and 720p format

Build in Teletext functions

Build in Dynamic adaptive smoothing filter

Build in Dynamic temporal frame-filtering Noise Reduction

Build in Dynamic motion and edge adaptive De-interlacing

Film mode 3:2 & 2:2 pull down

Screen display model Auto/4:3/16:9/Panorama/Letterbox1,2,3

1Chapter1

Mechanical

VESA mounting holes

Compatibility

Multi-Sound system

NICAM

FM Stereo ( A2 )

Power Source

Input voltage: 90 ~ 264 V, 47 ~ 63 Hz

Input current: 220Vac/0.87A

Power consumption: 190 Watts

Stand-by: 1 Watts Max.

Remote controllers

Multi-function remote controller

Speaker

Internal speaker: 5 W x 2 stereo, volume adjustable

Others

On screen display adjustment function

ISP ( In System Programming ) function available for revising driver easily

Chapter12

System Block & Wiring Diagram

PC-RGB

SIF SIF

Y/C1

Y/C2

YPbPr-AV3

1366x768

PANEL

RGB

YUV

PC Audio

FQD1216 MK5

PHILIPS

SCART-YUV Audio

SCART-RGB Audio

HDMI

System Power

BUFR

TMDS341A

3:1 MUX

+12V

5VSB

VCC

INPUT

OUTPUT

DAC Audio R/L

Bidirectional

AudioOUT

ARDx2

FBx2

ARD

Video OUT

IO_SW2

IO_SW1

MT5371

YPbPr-SCART

AV3 Audio

Audio IIS

SCART1-RGBSCART2-RGB

TMDS

ADC & DAC

Scale

CVBS1

CVBS2

CVBS3

MT8291

TV_CVBS

Amplifier

TPA3100D2

MT5131

DEMON

Single LVDS

3Chapter1

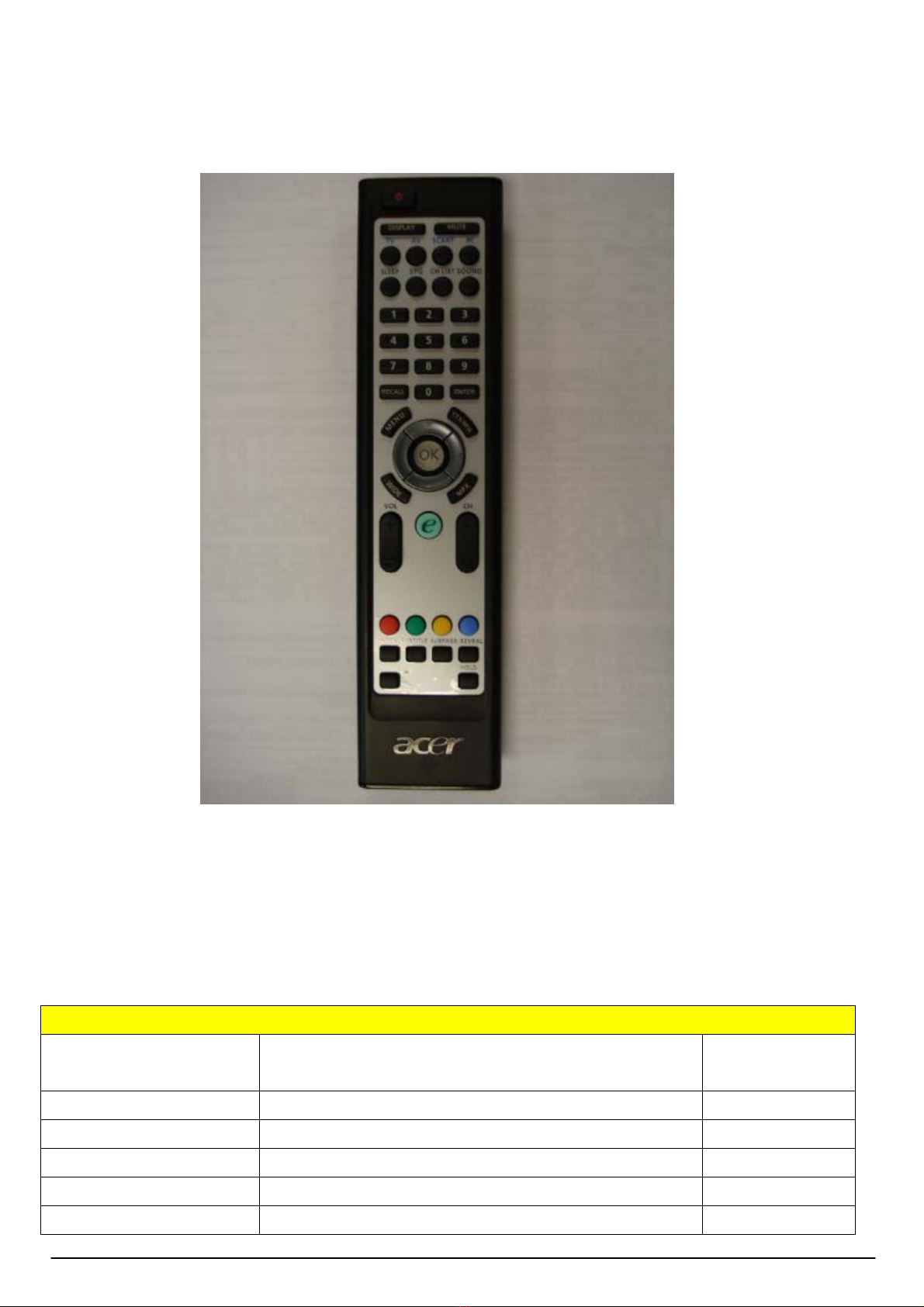

Remote Control

Key Functions

Remote Function description

R/C for Europe Key Functions

Remark (for

cardreader)

Power Power On/Off

Display Display Channel and Input Source

Mute Mute On/Off

TV TV Turner

SCART SCART1/SCART2

Chapter14
