ACLAS PP9MX Bedienungsanleitung

PP9MX PRINTER

USER’S MANUAL

Safety Precautions

Before using the present appliance, please keep the following safety regulations in order to prevent

any hazard or material damage.

1. WARNING

（1）Connect the printer with a reliable grounded power receptacle. Do not plug with large

electronic machines in one multi-outlet, which can provoke power fluctuation or

over-heating, even a fire.

（2）Only can use the supplied adapter.

（3）Do not keep the machine in a hot, wet or polluted place.

（4）Do not plug in or unplug with wet hands.

（5）Do not pull the cable to unplug. This can damage the cable, which is the origin of a fire or a

breakdown of the printer.

2. CAUTIONS

（1）Install the printer on the stable surface. If the printer falls down, it may be broken and hurt

you.

（2）If you find a strange smoke, odor or noise from the printer, unplug it at once and call your

dealer.

（3）Do not try to disassemble, repair or remodel it for yourself. Call your dealer if you need

these services.

（4）Do not let water or other foreign objects in the printer. If this happened, switch off and

unplug the printer before calling your dealer.

（5）Switch off the printer if you will not use it in a long time.

（6）Make sure the switch is off when plug or unplug the power.

（7）Do not use the printer when it is out of order. Switch off and unplug the printer before

calling your dealer.

（8）Keep this manual for future use.

Important Note

For driver, user manual, software and other information, please visit the website:

https://www.aclas.tw/products/pp9x/ to download or consult.

CONTENTS

1INTRODUCTION............................................................................................................................................. 1

1.1 Specifications..................................................................................................................................... 1

1.2 Appearance........................................................................................................................................ 2

1.3 Accessories........................................................................................................................................ 2

2Paper Installation............................................................................................................................................... 3

3SETTING THE PRINTER ................................................................................................................................ 4

3.1 Using the Printer................................................................................................................................ 4

3.2 Connecting the Computer.................................................................................................................. 4

3.3 Connecting the Power Supply............................................................................................................ 5

4SELF TEST ....................................................................................................................................................... 6

5MAINTENANCE.............................................................................................................................................. 6

6TROUBLESHOOTING .................................................................................................................................... 7

7Printer Tool Instruction...................................................................................................................................... 8

7.1 Communication Setting ..................................................................................................................... 8

7.1.1 Serial Printer.............................................................................................................................. 8

7.1.2 USB Printer.............................................................................................................................. 10

7.2 Parameter Setting..............................................................................................................................11

7.3 Logo Setting..................................................................................................................................... 13

7.4 Other Setting.................................................................................................................................... 14

7.5 Printing test...................................................................................................................................... 15

8Printer Driver Installation Instruction.............................................................................................................. 18

8.1 Printer Driver Installation................................................................................................................ 18

8.2 How to Know the Connect Port....................................................................................................... 22

8.3 How to Config Connect Port ........................................................................................................... 24

9Contact Us ....................................................................................................................................................... 30

1INTRODUCTION

1.1 Specifications

Optional type

PP9M8MX

Speed

150mm/s

Power supply

DC13.8 V/2.5A

Printing method

Thermal print

Resolution

203dpi

Paper

Paper type

Thermal paper

Paper width

79.5±0.5mm

External

diameter

φ90mm

Paper installation type

Easy loading

Character

set

ANK character set, Chinese GB2312, Traditional Chinese BIG5, 12×24 dot, 24×24 dot

Number of

columns

48 columns

Barcode type

UPC-A, UPC-E, Code39, Code128, Jan13(EAN), Interleaved 2 of 45, Codabar

Data receiving buffer

4KB

Flash memory

8Mbit

Interface

RS232, USB

Cash drawer driver

1 port (compatible with EPSON)

Printer head life

50km (recommend to use Aclas standard thermal paper.)

Cash drawer impulse

DC13.8 V

Work Temperature

0℃~ 40℃

Work Humidity

5%R.H. ~ 90%R.H.

Driver

OPOS、Java POS 、Win2000、WinXP、Win7、Vista

Printing command

Support command ESC/POS

Size

138*224*137mm

Weight

1300g

1.2 Appearance

1.3 Accessories

Control panel

Printer cover

User manual

AC adapter

AC power cord

Paper roll

USB cable

2Paper Installation

Note: Bad quality thermal paper with rough surface and low sensetivity may reduce the life time of

the printer head, please use high quality thermal paper, such as OJI, PD-160R orAclas paper.

(1) Make sure that the printer is not receiving data; otherwise, data may be lost.

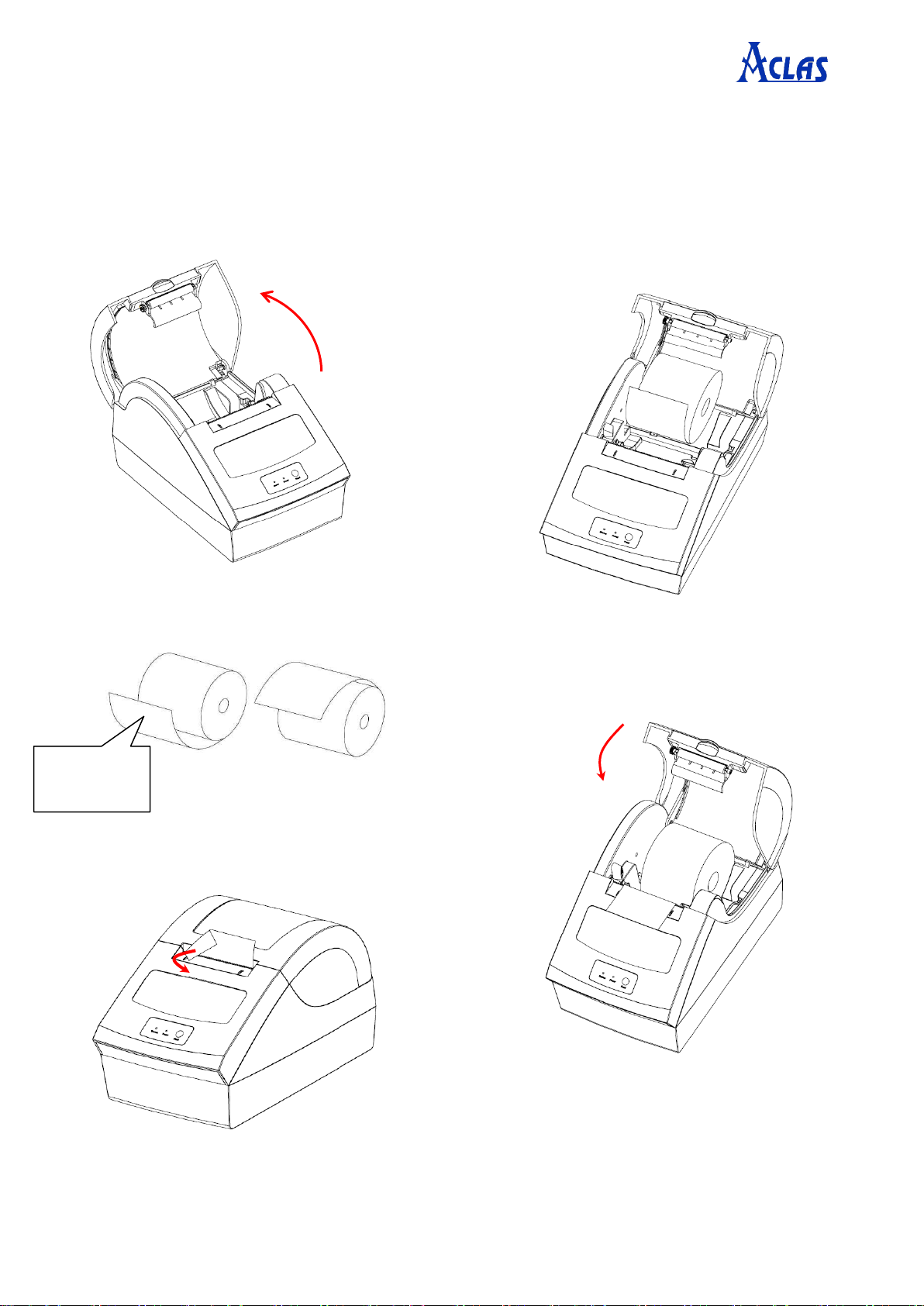

(2) Open the printer upper cover as picture 1.

(3)Insert the paper roll to the printer as picture 2.

Picture 2

(5)Pull out a small amount of paper to make it parallel

with the alignment line as picture 4, and then close the

upper cover.

Picture 4

Picture 1

(4) As the picture 3 shows, be sure to place the paper

roll into the printer correctly.

Thermal

sensitive side

Right

Wrong

Picture 3

(6)After closing the upper cover，tear off the paper as picture 5.

Picture 5

3SETTING THE PRINTER

3.1 Using the Printer

Power Status Feed

3.2 Connecting the Computer

(1) Power off the printer.

(2) Plug the communication cable securely into the printer, then attach the other end of the cable to the

computer.

(3) If the cable connector is shown as picture 6, tighten the two screws on both sides of the cable

connector after connecting.

Picture 6

Power

Power indicator light

Status

The light of power and status will be on simultaneously while updating program. If the printer is out of paper

or the printer cover is open, the light of status will be on and the printer will be beeping.

Feed

Press the button once to advance paper once line. You can also hold down the Feed button to feed paper

continuously.

3.3 Connecting the Power Supply

※CAUTIONS

When connect the power supply to the printer, make sure first connect the power supply cable to

the printer, then connect the power supply cable to the power supply. When disconnecting, the

order is reverse. Otherwise you may damage the power supply or the printer.

If the power supply’s rated voltage and your outlet’s voltage do not match, contact your dealer for

assistance. Do not plug in the power cord. Otherwise, you may damage the power supply or the

printer.

(1) When not using the printer, make sure that the printer’s power switch is turned off, and the power

supply’s power cord is unplugged from the electrical outlet.

(2) Make sure the switch is off when plug or unplug the power.

(3) Check the label on the power supply to make sure that the voltage required by the power supply

matches that of your electrical outlet.

(4) Plug in the power supply’s cable as picture 7.

Picture 7

1. Power adapter connects to the

power port of the printer.

2. Power adapter connects to the power supply cable.

3. Power supply cable connects to the power supply.

4SELF TEST

Press key ‘Feed’and hold it and then power on the machine at the same time, it will print a piece of Test

Page. The information of this Test Page includes the printer’s model, version, IP address (Ethernet port),

ID etc.

5MAINTENANCE

Paper dust inside the printer may lower the printer quality. The thermal printer head is probably dirty, if

part of letters is not printed distinctly. Please follow steps below to clean the printer head.

Note: If the dust is not cleaned in time, it will lead to defective cooling. High-quality thermal paper

is able to reduce the possibility of polluting the printer head, and almost no need to clean it.

(1) Open the printer cover and remove the paper if exists.

(2) Clean the printer head with a cotton swab moistened with alcohol solvent.

(3) Clean the platen roller and paper end sensor with cotton swab moistened with water.

(4) Insert a paper roll and close the printer cover.

Attention: Do not touch the thermal printer head.

Thermal printer head
