All rights reserved. Product description and product specifications aresubject to changewithout notice.

For lastest product information, please visit Acnodes’ website at www.acnodes.com

14628 Central Ave. Chino, CA 91710 Tel: 909.597. 7588 Fax: 909. 597.1939

© C opyright 2015 Acnodes C orp.

Structure Diagram

1. Carry handle to release the 2-pt lock

2. LCD interchangeable module kit

3. “One Man” Installation Slides

4. LCD membrane

5. Membrane switch (KVM option)

6. Micro switch for screen auto power off

7. Keyboard interchangeable module kit

8. Mouse interchangeable module kit

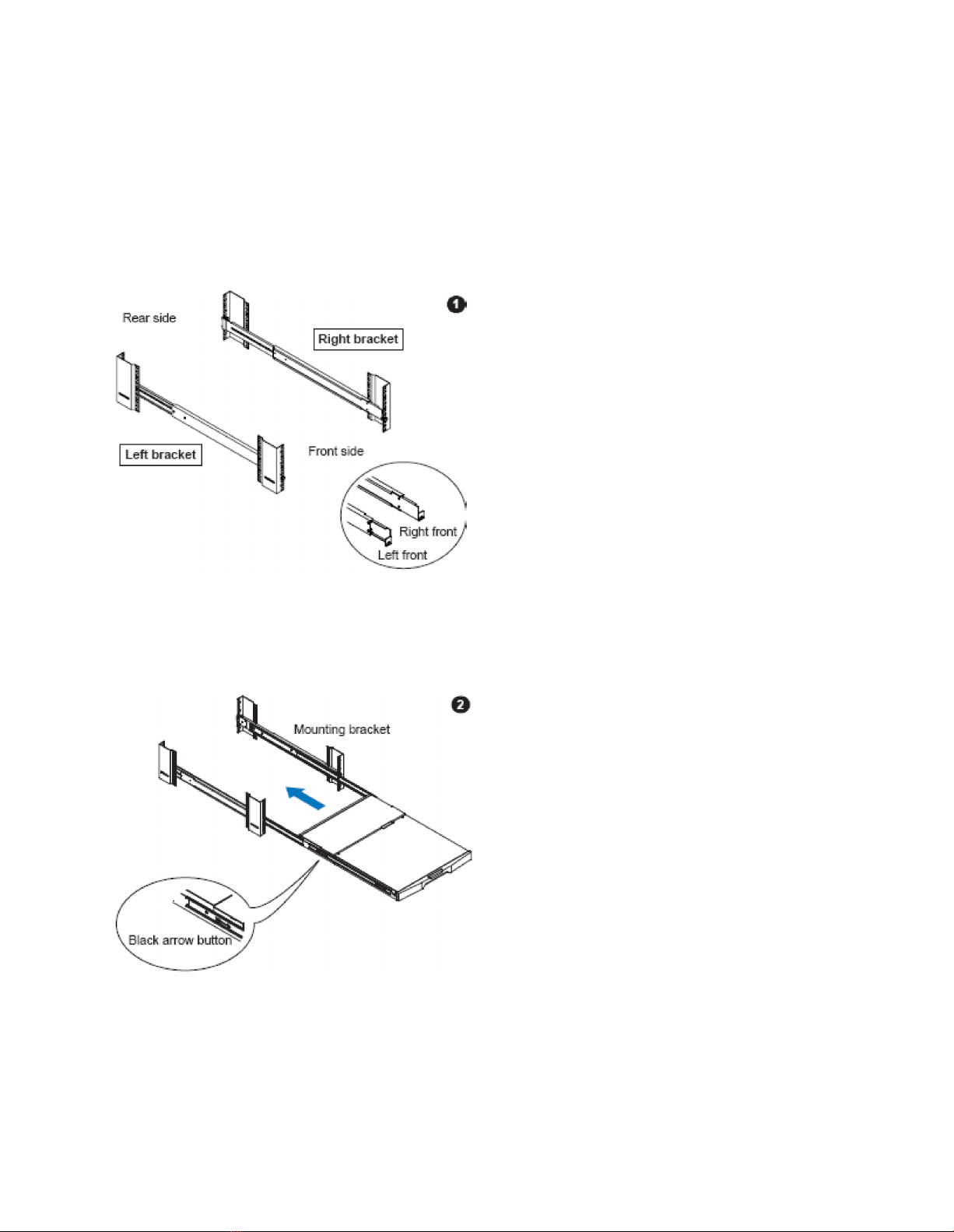

How to Install “One Man” Installation Slides into rack

»Attach the left and right mounting bracket to rack

19"mounting rails.

» Adjust the rear mounting bracket to fit your rack.

» M6 screw and cup washer x 6 piece included.

Caution :

Leaving the screws slightly loose, until you complete the

installation in step 4

»Pick up the LCD keyboard drawer.

» Insert the LCD keyboard drawer into the mounting

bracket.

» Pull and hold the left & right black arrow buttons on

the rails.

» Return the LCD keyboard drawer to park position

How to Install “One Man” Installation Slides

»Attach front left and right mounting ears of the LCD

keyboard drawer to vertical mounting rails.

»M6 screw and cup washer x 2 pcs included.

Complete the installation

»Tighten all 8 piece of M6 screw to complete the installation

How to Use the Slides

» A black arrow release button is located on the outside of

e a c h s l i d e . (s h o w n i n Figure 1)

» Pull and hold the black arrow button on either side of the

LCD keyboard drawer to unlock. (shown in Figure 2)

Figure 2

Figure 1

Figure 3

» Push the LCD keyboard drawer into the rack.

(shown in Figure 3).

Caution: Keep your fingers away from the slide stop

Connect to server via USB interface

Connect to server via PS/2 interface
