Introduction

System Overview

This manual was written to help you start using this product

as quickly and smoothly as possbile. Inside you will find

the necessary explanations to solve most problems. In

order for this reference material to be of greatest use, refer

to the “expanded table of contents” to find relevant topics.

This board incorporates the system , I/O , and PCI IDE

into one board that provides a total PC solution. The

mainboard, Intel Celeron/Coppermine PII/PIII processor base

PC ATX system, support single processors with ISA Bus,

PCI Local Bus, and AGP Bus to support upgrades to your

system performance. It is ideal for multi-tasking and fully

supports MS-DOS, Windows, Windows NT , Windows ME,

Windows 2000 , Novell, OS/2, Windows95/98 , UNIX ,

SCO UNIX etc.

This manual also explains how to install the mainboard for

operation, and how to setup your CMOS configuration with

the BIOS setup program.

2 / Chapter 1 Motherboard Description2 / Chapter 1 Motherboard Description

2 / Chapter 1 Motherboard Description

1.Motherboard Description

1.1 Features

1.1.1 Hardware

CPU

-Socket 370 for Intel Celeron/PIII Processor.

-Intel FC-PGA/PPGA Celeron Processors

300MHz~800MHz or higher processor with 66/100MHz

FSB.

-Intel FC-PGA Pentium III Processors 500MHz~1GHz

or higher processor with 100/133MHz FSB.

-VIA Cyrix III Processor with 100/133MHz FSB.

Chipset

-North Bridge System Chipset : VIA VT82C694X support

a 66/100/133 FSB.

-South Bridge System Chipset : VIA VT82C686B.

Biggest memory capacity

694XAis equipped with three DIMM socket to support

(8MB to 512MB) 168 pin 3.3v SDRAM SPD(Special

Presence Detect).

Maximum memory up to 1.536MB.

AGP for fast VGA solution

-AGP specification compliant.

-AGP 66 MHz 3.3v for 4X device support.

Bus Slot

-Provides five 32 bit PCI slots.

-Provide one AGP slot.

Chapter 1 Motherboard Description /3Chapter 1 Motherboard Description /3

Chapter 1 Motherboard Description /3

On-Board IDE

-An IDE controller on the VT82C686B chipset provides

IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA

33/66/100 operation modes.

-Can connect up to four IDE devices.

On-Board Peripherals

-1 floppy port supports 2 FDC with 360K, 720K, 1.2M,

1.44M and 2.88M byte.

-2 serial ports (COM1+COM2 ).

-4 USB ports.

-1 parallel port supports EPP/ECP mode (LPT1).

Audio

-AC’97 2.1 compliant CODEC.

BIOS

- The mainboard BIOS provides “Plug & Play” BIOS which

detects the peripheral devices and expansion cards of the

board automatically.

- The mainboard provides a Desktop Management Interface

(DMI) function which records your mainboard

specifications.

- BIOS support CD-ROM, SCSI, LAN BOOT, Temperature

sensor, Wake on modem, LAN, Alarm Bus CLK setup with

BIOS.

Power Management

Support multiple system suspend types-suspend to DRAM,

suspend to disk, and all with hardware automatic wake-up.

WOL (Wake On LAN) & WOM (Wake On MODEM)

Supports system power up from LAN ring up and Modem

ring up.

4 / Chapter 1 Motherboard Description4 / Chapter 1 Motherboard Description

4 / Chapter 1 Motherboard Description

1.1.2 Software

BIOS

-AWARD legal BIOS.

-Supports APM 1.2.

-Supports USB Function.

-Supports ACPI.

Operation System

-Offers the highest performance for MS-DOS, Windows,

Windows NT, Windows ME, Windows 2000, Novell, OS/2,

Windows95/98, UNIX, SCO UNIX etc.

1.1.3 Attachments

-HDD UDMA 66/100 Cable.

-FDC Cable.

-Flash Memory Written for BIOS Update.

-Fully Setup CD Driver built in Utility(Ghost, Anitivirus,

Adobe Acrobat...).

Chapter 1 Motherboard Description /5Chapter 1 Motherboard Description /5

Chapter 1 Motherboard Description /5

1.2 Motherboard Installation

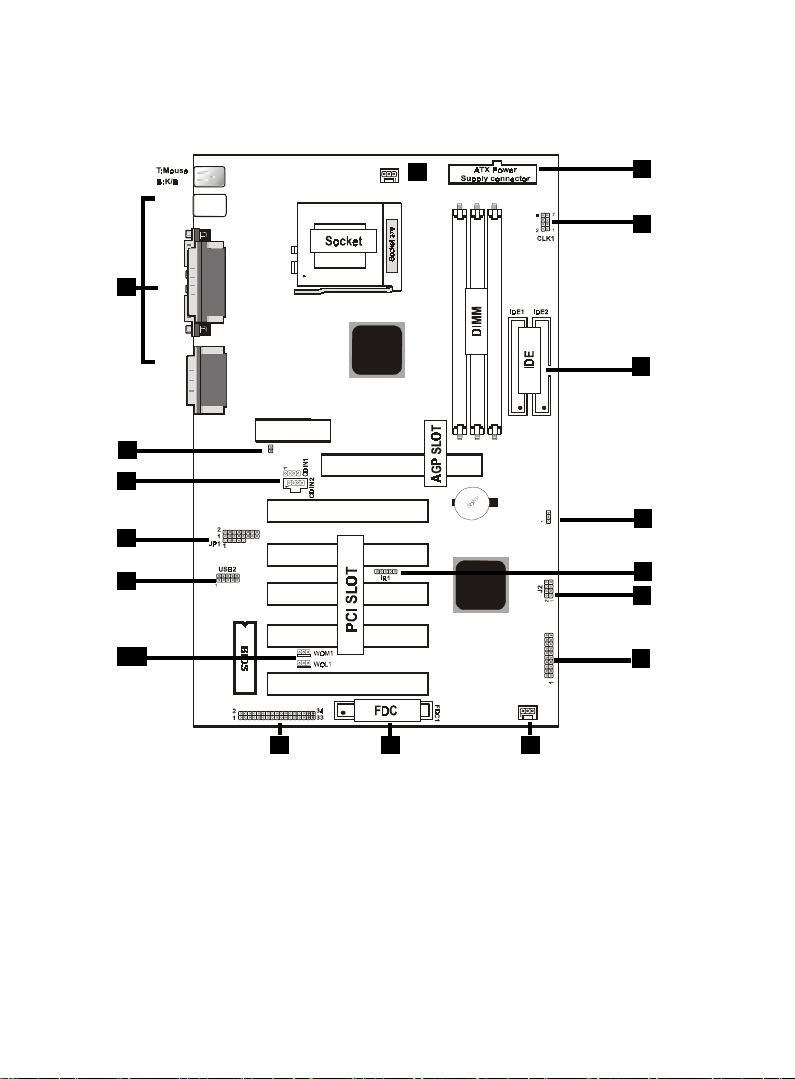

1.2.1 Layout of Motherboard

USB1

COM1

COM2

Printer

FAN2

FAN1

SPEAK OUT

Line in

MIC in

GAME1

VIA

PA N E L 1

AMR SLOT

AGP SLOT

CMOS1

DIMM2

DIMM1

DIMM3

PCI5

PCI1

PCI2

PCI3

PCI4

ERR1

BIOS 1

6 / Chapter 1 Motherboard Description6 / Chapter 1 Motherboard Description

6 / Chapter 1 Motherboard Description

USB1

COM1

COM2

Printer

FAN2

FAN1

SPEAK OUT

Line in

MIC in

GAME1

VIA

PA NE L 1

AMR SLOT

AGP SLOT

CMOS1

DIMM2

DIMM1

DIMM3

PCI5

PCI1

PCI2

PCI3

PCI4

ERR1

BIOS1

1.3 Motherboard Connectors

3,4

1.Back Pannel I/O Connectors1.Back Pannel I/O Connectors

1.Back Pannel I/O Connectors 2.CD Audio-In Connector2.CD Audio-In Connector

2.CD Audio-In Connector2.CD Audio-In Connector

2.CD Audio-In Connector

3.Wake-On MODEM Connector3.Wake-On MODEM Connector

3.Wake-On MODEM Connector 4.Wake-On-LAN Connector4.Wake-On-LAN Connector

4.Wake-On-LAN Connector4.Wake-On-LAN Connector

4.Wake-On-LAN Connector

5.Front Panel Connector5.Front Panel Connector

5.Front Panel Connector 6.Fan Connectors(Fan1/2)6.Fan Connectors(Fan1/2)

6.Fan Connectors(Fan1/2)6.Fan Connectors(Fan1/2)

6.Fan Connectors(Fan1/2)

7.Floppy Connector7.Floppy Connector

7.Floppy Connector 8.IDE Connectors8.IDE Connectors

8.IDE Connectors8.IDE Connectors

8.IDE Connectors

9.IR Connector9.IR Connector

9.IR Connector 10.Front USB2 Connector10.Front USB2 Connector

10.Front USB2 Connector10.Front USB2 Connector

10.Front USB2 Connector

11.ATX Power Connector11.ATX Power Connector

11.ATX Power Connector 12.AMR Set Function(J1)12.AMR Set Function(J1)

12.AMR Set Function(J1)12.AMR Set Function(J1)

12.AMR Set Function(J1)

13.CPU Freq. Selection(CLK1)13.CPU Freq. Selection(CLK1)

13.CPU Freq. Selection(CLK1)

14.CMOS Function Selection(CMOS1)14.CMOS Function Selection(CMOS1)

14.CMOS Function Selection(CMOS1)

15.For Smart Panel Connector(J2, ERR1+JP1, BIOS1) (option)15.For Smart Panel Connector(J2, ERR1+JP1, BIOS1) (option)

15.For Smart Panel Connector(J2, ERR1+JP1, BIOS1) (option)

715

Chapter 1 Motherboard Description /7Chapter 1 Motherboard Description /7

Chapter 1 Motherboard Description /7

1.3.1 Front Panel Connector(PANEL1)

PANEL1 Connector

Speaker Connector (SPEAKR)

An offboard speaker can be installed onto the motherboard as a

manufacturing option. An offboard speaker can be connected to

the motherboard at the front pannel connector. The speaker

(onboard or offboard) provides error beep code information dur-

ing the Power Self-Test when the computer cannot use the video

interface. The speaker is not connected to the audio subsystem

and does not receive output from the audio subsystem.

Hard Drive LED Connector (HD_LED)

This connector supplies power to the cabinet IDE activity LED.

Read and write activity by devices connected to the Primary or

Secondary IDE connectors will cause the LED to light up.

SMI Suspend Switch Lead (EXTSMI)

This allows the user to manually place the system into a suspend

mode or Green mode where systematic activity will be instantly

decreased to save electricity and expand the life of certain com-

ponents when the system is not in use. This 2-pin connector

(see the figure below) connects to the case-mounted suspend

switch. If you do not have a switch for the connector, you may

use the “Turbo Switch” instead since it does not have a function.

SMI is activated when it detects a short to open moment. It may

require one or two pushes depending on the position of the

switch. Wake-up can be controlled by settings in the BIOS but

the keyboard will always allow wake-up (the SMI lead cannot

wake-up the system). If you want to use this connector, the

"Suspend Switch" in the Power Management Setup of the BIOS

SOFTWARE section should be on the default setting of Enable.

SPEAKER

PW_BN

RESET

EXTSMI

HD_LED PW_LED

SMI_LED

S5LED

8 / Chapter 1 Motherboard Description8 / Chapter 1 Motherboard Description

8 / Chapter 1 Motherboard Description

ATX Power Switch (PW_BN)

The system power is controlled by a momentary switch

connected to this lead. Pushing the button once will switch

the system ON. The system power LED lights when the

system's power is on .

Power LED Lead (PW_LED)

The system Power LED lights when the system power is on.

S5 LED (S5LED)

The system S5 LED flash when the system in S5 mode state.

SMI LED Lead (SMI_LED)

The system SMI LED lights when the system suspend is on.

Reset Switch Lead (RESET)

The connector can be connected to a momentary SPST type

switch that is normally open. When the switch is closed, the

motherboard resets and runs the POST.

1.3.2 Floppy Disk Connector(FDC1)

This connector supports the provided floppy drive ribbon

cable. After connecting the single end to the board, connect

the two plugs on the other end to the floppy drives.

1.3.3 Hard Disk Connectors(IDE1/IDE2)

These connectors support the provided IDE hard disk ribbon

cable. After connecting the single end to the board, connect

the two plugs at the other end to your hard disk.

If you install two hard disks, you must configure the second

drive to Slave mode by setting its jumper settings. BIOS now

supports SCSI device or IDE CD-ROM boot up (see "HDD

Sequence SCSI/IDE First" & "Boot Sequence" in the BIOS

Features Setup of the BIOS SOFTWARE) (Pin 20 is removed

to prevent inserting in the wrong orientation when using

ribbon cables with pin 20 plugged) .

Chapter 1 Motherboard Description /9Chapter 1 Motherboard Description /9

Chapter 1 Motherboard Description /9

1.3.4 ATX 20-pin Power Connector(PW1)

This connector supports the power button on-board. Using

the ATX power supply, functions such as Modem Ring Wake-

Up and Soft Power Off are supported on this motherboard .

This power connector supports instant power-on

functionality, which means that the system will boot up

instantly when the power connector is inserted on the board.

1.3.5 Infrared Connector(IR1)

After the IrDA interface is configured, files can be

transferred from or to portable devices such as laptops,

PDAS, and printers using application software.

Pin Signal Pin Signal

1 3.3V 11 3.3V

2 3.3V 12 -12V

3 GND 13 GND

4 5V 14 PS-ON

5 GND 15 GND

6 5V 16 GND

7 GND 17 GND

8 PW-OK 18 -5V

9 5V_SB 19 5V

10 12V 20 5V

10 / Chapter 1 Motherboard Description10 / Chapter 1 Motherboard Description

10 / Chapter 1 Motherboard Description

1.4 Back Pannel Connectors

1.4.1 PS/2 Mouse /Keyboard CONN.

The motherboard provides a standard PS/2 mouse / Keyboard

mini DIN connector for attaching a PS/2 mouse. You can

plug a PS/2 mouse / Keyboard directly into this connector.

1.4.2 USB Connectors: USB1/2

The motherboard provides a OHCI(Open Host Controller

Interface)Universal Serial Bus Roots for attaching USB

devices such as a keyboard, mouse and other USB devices.

You can plug the USB devices directly into this connector.

Pin Signal

1 +5v

2 USBP0-(USBP1-)

3 USBP0+(USBP1+)

4 GND

PS/2 Keyboard

PS/2 KeyboardPS/2 Keyboard

PS/2 Keyboard

(6-pin Female)

(6-pin Female)(6-pin Female)

(6-pin Female)

Serial

Port(9-pin

Male)

Serial

Port(9-pin

Male)Serial

Port(9-pin

Male)

Serial

Port(9-pin

Male)

COM1

COM1COM1

COM1 COM2

COM2COM2

COM2 SPEAKER

SPEAKERSPEAKER

SPEAKER MIC

MICMIC

MIC

LINE

INLINE

LINE

PS/2 Mouse

PS/2 MousePS/2 Mouse

PS/2 Mouse

USB1

USB1USB1

USB1

Parallel

(Printer)

Port

Parallel

(Printer)

PortParallel

(Printer)

Port

Parallel

(Printer)

Port

(25-pin Female)

(25-pin Female)(25-pin Female)

(25-pin Female)

MIDI/(GAME)

Port

MIDI/(GAME)

PortMIDI/(GAME)

Port

MIDI/(GAME)

Port

(15-pin Female)

(15-pin Female)(15-pin Female)

(15-pin Female)

Inhaltsverzeichnis

Andere Acorp Hauptplatine Handbücher

Acorp

Acorp 7NFU400 Bedienungsanleitung

Acorp

Acorp VIA KT400A Bedienungsanleitung

Acorp

Acorp 4845PE Bedienungsanleitung

Acorp

Acorp 7KTA1 Bedienungsanleitung

Acorp

Acorp 7KTA3 Bedienungsanleitung

Acorp

Acorp 4845GLQ Bedienungsanleitung

Acorp

Acorp 7KT266A Bedienungsanleitung

Acorp

Acorp 4845GE Bedienungsanleitung

Acorp

Acorp 6A815EP Bedienungsanleitung

Acorp

Acorp 6M810E Bedienungsanleitung

Acorp

Acorp 6A815E1 Bedienungsanleitung

Acorp

Acorp 4D533 Bedienungsanleitung

Acorp

Acorp 7KM400MN Bedienungsanleitung

Acorp

Acorp N2PA-400 Bedienungsanleitung

Acorp

Acorp 6BX86 Bedienungsanleitung

Acorp

Acorp 7KT400 Bedienungsanleitung

Acorp

Acorp 4S651M Bedienungsanleitung

Acorp

Acorp 4PX266A Bedienungsanleitung

Acorp

Acorp 6ZX85 Bedienungsanleitung

Acorp

Acorp 4S845A Bedienungsanleitung

Acorp

Acorp 7KMM Bedienungsanleitung

Acorp

Acorp 4845GLM Bedienungsanleitung

Acorp

Acorp 7KTA2 Bedienungsanleitung

Acorp

Acorp 6PLEF Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
