Acorp 694XT1 Bedienungsanleitung

The information presented in this publication has been

carefully prepared to ensure reliability ; however, no

responsibility is assumed for inaccuracies.

Specifications are subject to change without notice.

IBM, PC/AT, and PC/XT are trademarks of Interna-

tional Business Machines Corporation.

Pentium is a trademark of Intel Corporation

AWARD is a registered trademark of Phoenix

Software Inc.

MS-DOS and WINDOWS NT are registered trade-

marks of Microsoft Corporation.

Trademarks and/or registered trademarks are the

properties of their respective owners.

User's Manual Version 1.0

694XT1

Table of Contents

IntrnctctinnIntrnctctinn

Intrnctctinn

1. Mnthdranarc Ddrcriotinn1. Mnthdranarc Ddrcriotinn

1. Mnthdranarc Ddrcriotinn

1.1 Fdattrdr

1.1.1 Harcward 1-1

1.1.1Snetward 1-4

1.1.3 Attachmdntr1-4

1.1Mnthdranarc Inrtallatinn

1.1.1 Mnthdranarc Mao1-5

1.1.1Mnthdranarc Layntt1-6

1.3 Mnthdranarc Cnnndctnrr

1.3.1 Frnnt Pandl Cnnndctnr(PANEL1(1-8

1.3.1Flnooy Dirk Cnnndctnr(FDD1(1-9

1.3.3 Harc Dirk Cnnndctnrr(IDE1.IDE1( 1-9

1.3.4 ATW 1/-oin Pnwdr Cnnndctnrr(PW1.PW1( 1-1/

1.3.5 Inerardc Cnnndctnr(IR(1-1/

1.4 Back Pandl Cnnndctnrr

1.4.1 PS.1 Mntrd.Kdyanarc CNNN. 1-11

1.4.1USB Cnnndctnrr(USB1.USB1( 1-11

1.5 Sdrial anc Paralldl Intdreacd onrtr1-11

1.6 CPU Inrtallatinn

1.6.1 CPU Inrtallatinn Prnctct(Snckdt 36/(1-14

1.6.1CPU Clnck Sdldctinn(JCK1~JCK4,JC1,JC3(1-15

1.6Jtmodr Sdtting

1.6.1 CPU Fan Cnnndctnrr(FAN1.1( 1-16

1.6.1Wakd-Nn-LAN Hdacdr(WNL1(1-16

1.6.3 AMR Sdt Ftnctinn(J1(1-16

1.6.4 CMNS Ftnctinn Sdldctinn(JBAT1(1-16

1.6.5 CPU Tyod Sdldct(JC1~JC1,JC4~JC5(1-18

1.8 DRAM Inrtallatinn

1.8.1 DIMM 1-19

1.8.1Hnw tninrtall aDIMM Mnctld 1-19

Table of Contents

1.9 AtcinStaryrtdm

1.9.1 CD-Atcin-IN Cnnndctnrr(CDIN1.CDIN1( 1-1/

1.9.1Atcin& Gamd Pnrt Cnnndctnr(Atcin( 1-1/

1. BINS Sdtto1. BINS Sdtto

1. BINS Sdtto

1.1 Main Mdnt1-4

1.1Stancarc CMNS Fdattrdr1-6

1.3 Acuancdc BINS Fdattrdr1-1/

1.4 Acuancdc Chiordt Fdattrdr1-14

1.5 Intdgratdc Pdriohdralr1-19

1.6 Pnwdr Managdmdnt Sdtto1-13

1.6PnP.PCI Cnneigtratinnr1-19

1.8 PC Hdalth Stattr 1-33

1.9 Frdqtdncy.Vnltagd Cnntrnl1-34

1.1/ Lnac Fail-Saed Ddeatltr1-35

1.11 Lnac Notimizdc Ddeatltr1-36

1.11Sdt Stodruirnr.trdr Parrwnrc 1-36

1.13 Saud & Exit Sdtto1-39

1.14 Exit Withntt Sauing 1-4/

3. Driudr Inrtallatinn3. Driudr Inrtallatinn

3. Driudr Inrtallatinn

3.1 Main Mdnt3-1

3.1Inrtalling VIA 4 in 1 Driudr 3-1

3.3 Inrtalling AtcinDriudr 3-3

iii

1-11-1

1-1

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

Introduction

System Overview

This manual was written to help you start using this product

as quickly and smoothly as possbile. Inside, you will find

the answers to solve most problems. In order for this

reference material to be of greatest use, refer to the

“expanded table of contents” to find relevant topics.

This board provides a total PC solution by incorporating the

System , I/O , and PCI IDE. The mainboard is designed for

Intel PIII/Celeron/Coppermine processors base PC ATX

system, support single processors with ISA Bus, AMR Bus,

PCI Local Bus, and AGP Bus to support upgrades to your

system performance. It is ideal for multi-tasking and fully

supports MS-DOS, Windows, Windows NT , Windows ME,

Windows 2000 , Novell, OS/2, Windows95/98 , UNIX ,

Windows98SE, SCO UNIX etc.

This manual also explains how to install the mainboard for

operation, and how to setup your CMOS configuration with

the BIOS setup program.

1-11-1

1-1

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

1.Motherboard Description

1.1 Features

1.1.1 Hardware

CPU

-Socket 370 for Intel PPGA/FC-PGA PII/PIII processor.

-Intel FC-PGA/PPGA Celeron Processors

300MHz~800MHz or higher processor with 66MHz FSB.

-Intel FC-PGA Pentium III Processors 500MHz~1GHz

or higher processor with 100/133MHz FSB.

-VIA Cyrix III Processors.

Chipset

-North Bridge System Chipset : VT82C694X

-Sourth Bridge System Chipset: VT82C686A/B

Biggest memory capacity

694XT is equipped with three DIMM socket to support

(16MB, 32MB, 64MB, 128MB, 256MB) 168 pin 3.3v

SDRAM SPD(Special Presence Detect). Maximum

memory up to 768MB.

AGP for fast VGA solution

-AGP specification compliant.

-AGP 66 MHz 3.3v/1.5v for 2X/4X device support.

Note:

If an unstable issue occurs, after installing " VIA 4 in 1 driver

". We suggest you to re-install " VIA 4 in 1 driver ", and then

select " install VIA AGP VxD in Standard mode " at

" VIA_GART AGP Driver " item.

PCI Expansion Slot

Provide one 16 bit ISA, and three 32 bit PCI slots .

1-31-3

1-3

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

On-Board IDE

-An IDE controller on the VIA VT82C686A Chipset

provides IDE HDD/CD-ROM with PIO, Bus Master and

Ultra DMA 33/66 operation modes.

-Can connect up to four IDE devices.

On-Board Peripherals:

-1 floppy port supports 2 FDD with 360K, 720K, 1.2M,

1.44M and 2.88M byte.

-2 serial ports (COM1+COM2).

-1 parallel port supports SPP/EPP/ECP mode.

-1 IrDA/HP connector for SIR.

Audio

-AC’97 CODEC on board, support 3D sound.

BIOS

-The mainboard BIOS provides “Plug & Play” BIOS which

detects the peripheral devices and expansion cards of the

board automatically.

-The mainboard provides a Desktop Management Interface

(DMI) function which records your mainboard

specifications.

-BIOS support CD-ROM, SCSI, LAN BOOT, Temperature

sensor, Wake on modem, LAN, Alarm Bus CLK setup with

BIOS.

WOL (Wake On LAN)

Supports system power up from LAN ring up .

IrDA Port

Support this serial fast communication up to 115.2Kbps.

Support Ring on by modem/Alarm on (ATX only)

Support System power up from Modem ring up or timer

of System. Required enabled in Ring on by modem and

Alarm on in BIOS.

1-41-4

1-4

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

Supports ACPI function for ATX Power.

Support AT/ATX Power supply (20pin) connector.

1.1.2 Software

BIOS

-AWARD legal BIOS.

-Supports APM 1.2.

-Supports USB Function.

-Supports ACPI

Operation System

-Offers the highest performance for MS-DOS, Windows,

Windows NT, Windows ME, Windows 2000, Novell, OS/2,

Windows95/98, Windows98SE, UNIX, SCO UNIX etc.

1.1.3 Attachments

-HDD UDMA66 Cable.

-FDD Cable.

-Flash Memory Written for BIOS Update.

-USB Cable. (option)

-Audio Cable.

-PS2/Print Port Cable.

-COM1/COM2 Cable.

-Fully Setup CD Driver built in Utility (Ghost, Anitivirus,

Adobe Acrobat...).

-This manual.

1-51-5

1-5

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

1.2 Motherboard Installation

1.2.1 Motherboard Map

1-61-6

1-6

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

1.2 Motherboard Installation

1.2.1 Motherboard Layout

K/B

PW1

ISA SLOT

WOL1

MS1

JBAT1

FAN1

FAN2

PCI1

PCI2

PCI3

JC1

JC3

JC4

JC5

COM2

COM1

USB1

LPT

AMR

AGP SLOT

USB2

ISA SOLT

DIMM

PW2

Socket 370

SOCKET

AGP SOLT

IDE FDD

AMR SOLT

AUDIO

JCK4

JCK3

JCK2

JCK1

1-71-7

1-7

Chaosdr 1 Mnshdranarc CdrbrhoshnnChaosdr 1 Mnshdranarc Cdrbrhoshnn

Chaosdr 1 Mnshdranarc Cdrbrhoshnn

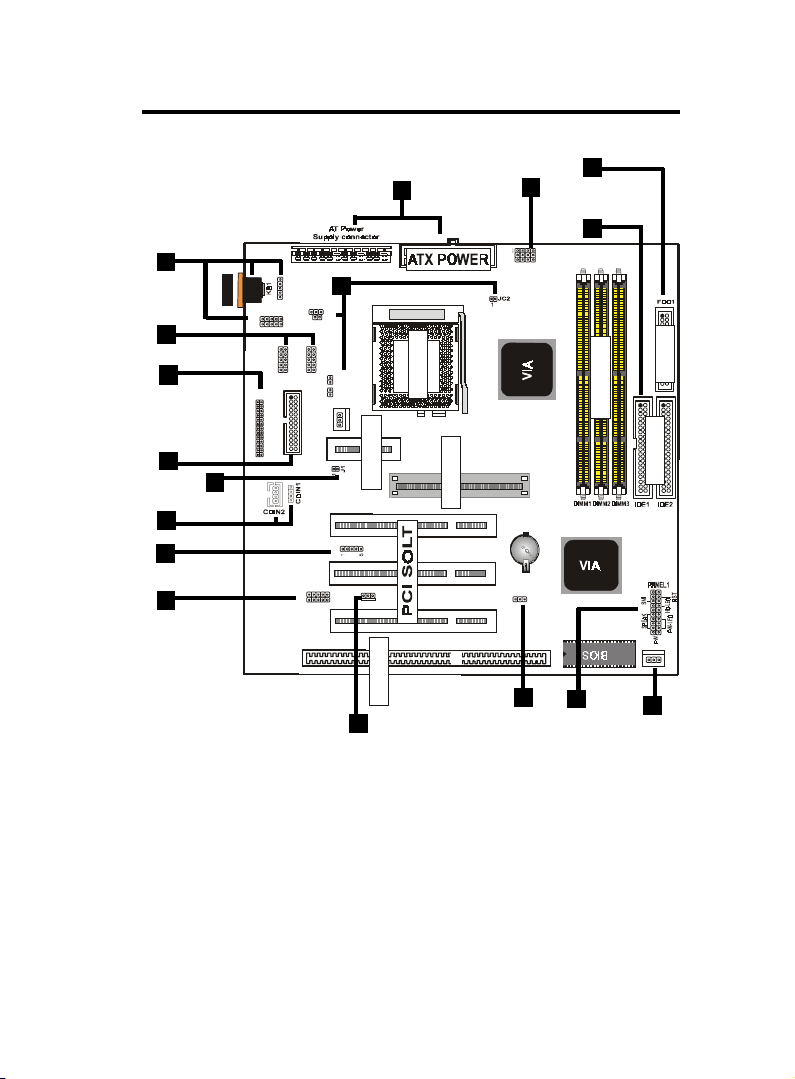

1.3 Motherboard Connectors

1.Babk OandkI.OCnnndbsnrr1.Babk OandkI.OCnnndbsnrr

1.Babk OandkI.OCnnndbsnrr1.CCAtchn-InCnnndbsnr1.CCAtchn-InCnnndbsnr

1.CCAtchn-InCnnndbsnr1.CCAtchn-InCnnndbsnr

1.CCAtchn-InCnnndbsnr

3.AMRCOCDC Etnbshnn(J1(3.AMRCOCDC Etnbshnn(J1(

3.AMRCOCDC Etnbshnn(J1(4.Wakd-On-LAN Cnnndbsnr4.Wakd-On-LAN Cnnndbsnr

4.Wakd-On-LAN Cnnndbsnr4.Wakd-On-LAN Cnnndbsnr

4.Wakd-On-LAN Cnnndbsnr

5.Ernns Twn COM Cnnndbsnrr5.Ernns Twn COM Cnnndbsnrr

5.Ernns Twn COM Cnnndbsnrr6.Ernns OandkCnnndbsnr6.Ernns OandkCnnndbsnr

6.Ernns OandkCnnndbsnr6.Ernns OandkCnnndbsnr

6.Ernns OandkCnnndbsnr

7.EanCnnndbsnrr(Ean1.1(7.EanCnnndbsnrr(Ean1.1(

7.EanCnnndbsnrr(Ean1.1( 8.ICD Cnnndbsnrr8.ICD Cnnndbsnrr

8.ICD Cnnndbsnrr8.ICD Cnnndbsnrr

8.ICD Cnnndbsnrr

9.Atchn Cnnndbsnr9.Atchn Cnnndbsnr

9.Atchn Cnnndbsnr 10.Eknooy Cnnndbsnr10.Eknooy Cnnndbsnr

10.Eknooy Cnnndbsnr10.Eknooy Cnnndbsnr

10.Eknooy Cnnndbsnr

11.IRCnnndbsnr11.IRCnnndbsnr

11.IRCnnndbsnr

11.COU Cknbk Sdkdbshnn(JCJ1~JCJ4,JC1,JC3(11.COU Cknbk Sdkdbshnn(JCJ1~JCJ4,JC1,JC3(

11.COU Cknbk Sdkdbshnn(JCJ1~JCJ4,JC1,JC3(

13.AT.ATX Onwdr Cnnndbsnr13.AT.ATX Onwdr Cnnndbsnr

13.AT.ATX Onwdr Cnnndbsnr

14.COU Tyod Sdkdbs(JC1~JC1,JC4~JC5(14.COU Tyod Sdkdbs(JC1~JC1,JC4~JC5(

14.COU Tyod Sdkdbs(JC1~JC1,JC4~JC5(

15.CMOSEtnbshnnSdkdbshnn(JBAT1(15.CMOSEtnbshnnSdkdbshnn(JBAT1(

15.CMOSEtnbshnnSdkdbshnn(JBAT1(

K/B

PW1

ISA SLOT

WOL1

MS1

JBAT1

FAN1

FAN2

PCI1

PCI2

PCI3

JC1

JC3

JC4

JC5

COM2

COM1

USB1

LPT

AMR

AGP SLOT

USB2

ISA SOLT

DIMM

PW2

Socket 370

SOCKET

AGP SOLT

IDE FDD

AMR SOLT

AUDIO

JCK4

JCK3

JCK2

JCK1
