AC Pro Multi-Zone 30-42K

Outdoor Installation Manual

AWHD(30)ND3G/O

AWHD(36)ND3G/O

AWHD(42)ND3E/O

(Refrigerant R410A)

We reserve the right to correct any clerical errors.

Technical Information

PART I :TECHNICAL INFORMATION

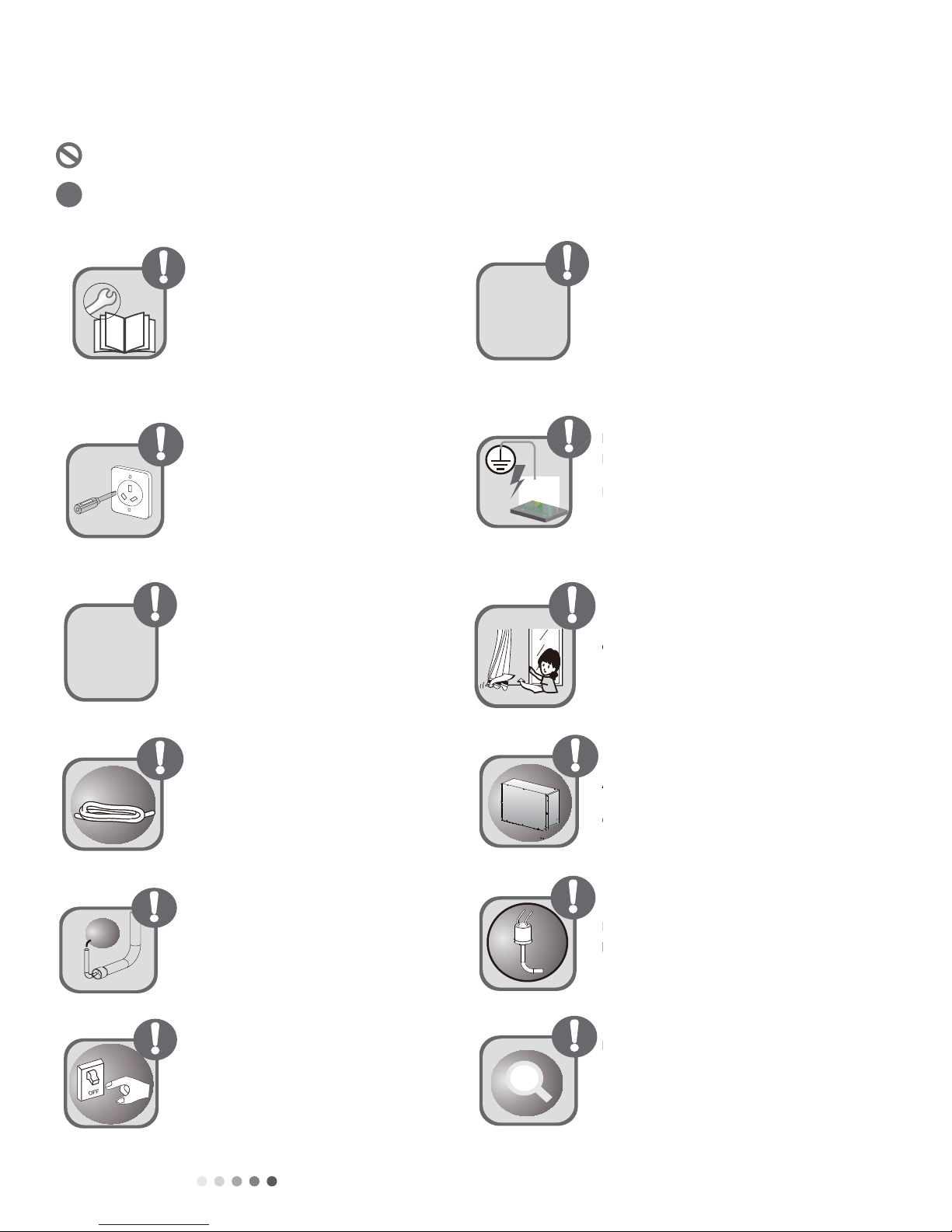

1.SAFETY PRECAUTIONS

Prohibited items! Indicates improper operation might lead to human causality or severe injury.

Instructions MUST be followed. Indicates improper operation might lead to personal injury or property damage.

Follow these instructions to

complete installation. Carefully

read this manual before unit service

or start-up.

Prior to installation, ensure power

supply is connected according to

local regulatory agencies, according

to current standards and to the

affix nameplate. Use personal

protection equipment to avoid

injury.

Be certain to use equipment

manufacturer’s parts and

accessories to prevent water

leakage, electric shock and fire

related accidents.

Inspect power cord. The diameter

should be recommended size.

If there is any damage to the

power cord, or should it need

to be replaced for any reason,

please consult manufacturer for

instructions.

Never fail to comply with nitrogen

charge requirements. Charge

nitrogen when welding pipes.

Before powering up the unit,

connect the wired controller,

otherwise it cannot be used.

Installation of equipment should be

completed by dealer or qualified personnel

only. Please DO NOT attempt to install

this unit by yourself. Improper handling

may result in water leakage, electric shock

or fire.

Make sure the unit can be grounded

properly after plugging in to the socket

in order to avoid electric shock. DO NOT

connect the ground wire to the gas pipe,

water pipe, lightning rod or telephone line.

If refrigerant leak occurs during installation,

immediately ventilate. Poisonous gas will

emerge if refrigerant gas comes in contact

with fire.

Fix the electric box cover properly when

installing the power cord in order to avoid

cordage contact.

Prevent damage to the unit by NEVER

short-circuiting or canceling the pressure

switch.

Once installation is complete, check the

piping and wiring prior to power up. Double

checking workmanship will help avoid

water leakage, refrigerant leakage, electric

shock and fire.

18 Installation and Maintenance

Service Manual

Part Ⅱ: Installation and Maintenance

Follow this instruction to complete the

installation work.

Please carefully read this manual

before unit startup and service.

Installation should be conducted by

dealer or qualified personnel. Please

do not attempt to install the unit by

yourself. Improper handling may result

in water leakage, electric shock or fire

disaster etc.

Make sure the unit can be earthed

properly and soundly after plugging into

the socket so as to avoid electric shock.

Please do not connect the groundwire

to gas pipe, water pipe, lightning rod or

telephone line.

Before installation,please check if the

power supply is in accordance with

the requirements specified on the

nameplate.And also take care of the

power safety.

Be sure to use the excluxive

accessory and part to prevent the

water leakage,electric shock and fire

accidents.

Wire size of power cord should be large

enough The damaged power cord and

connection wire should be replaced by

exclusive cable.

Never fail to comply with the nitrigen

charge requirements. Charge nitrogen

when welding pipes.

Please firstly connect the wired

controller before energization,otherwise

wired controller can not be used.

If refrigerant leakage happens

during installation, please ventilate

immediately.Poisonous gas will emerge

if the refrigerant gas meets re.

After connecting the power cord, please

fix the electric box cover properly in

order to avoid accident.

Never short-circuit or cancel the

pressure switch to prevent unit damage.

Before using the unit, please. check

if the piping and wiring are correct

to avoid water leakage, refrigerant

leakage,electric shock, or re etc.

exclusive

Forbidden Items! It indicates that improper operation might lead to human casualty or sever injury.

Items need to be followed. It indicates that improper operation might lead to personal injury or property damage.

7. Safety Precautions

18 Installation and Maintenance

Service Manual

Part Ⅱ: Installation and Maintenance

Follow this instruction to complete the

installation work.

Please carefully read this manual

before unit startup and service.

Installation should be conducted by

dealer or qualified personnel. Please

do not attempt to install the unit by

yourself. Improper handling may result

in water leakage, electric shock or fire

disaster etc.

Make sure the unit can be earthed

properly and soundly after plugging into

the socket so as to avoid electric shock.

Please do not connect the groundwire

to gas pipe, water pipe, lightning rod or

telephone line.

Before installation,please check if the

power supply is in accordance with

the requirements specified on the

nameplate.And also take care of the

power safety.

Be sure to use the excluxive

accessory and part to prevent the

water leakage,electric shock and fire

accidents.

Wire size of power cord should be large

enough The damaged power cord and

connection wire should be replaced by

exclusive cable.

Never fail to comply with the nitrigen

charge requirements. Charge nitrogen

when welding pipes.

Please firstly connect the wired

controller before energization,otherwise

wired controller can not be used.

If refrigerant leakage happens

during installation, please ventilate

immediately.Poisonous gas will emerge

if the refrigerant gas meets re.

After connecting the power cord, please

fix the electric box cover properly in

order to avoid accident.

Never short-circuit or cancel the

pressure switch to prevent unit damage.

Before using the unit, please. check

if the piping and wiring are correct

to avoid water leakage, refrigerant

leakage,electric shock, or re etc.

exclusive

Forbidden Items! It indicates that improper operation might lead to human casualty or sever injury.

Items need to be followed. It indicates that improper operation might lead to personal injury or property damage.

7. Safety Precautions

2Technical Information

1. Level meter, measuring

tape

2. Screwdrivers 3. Impact drill, drill head, electric drill

4. Electroprobe 5. Universal meter 6.Torque wrench, open-end wrench, inner

hexagon spanner

7. Electronic leakage detector 8. Vacuum pump 9. Pressure meter

10. Pipe pliers, pipe cutter 11. Pipe expander, pipe bender 12. Soldering appliance, refrigerant container

MAIN TOOLS FOR INSTALLATION AND MAINTENANCE

2. INSTALLATION

Technical Information

Start installation

Preparation before installation

Read the requirements for

electric connection Select installation location Prepare tools

Select indoor unit

installation location

Select outdoor unit

installation location

Install wall-mounting frame,

drill wall holes

Connect pipes of indoor unit

and drainage pipe

Connect wires of

indoor unit

Bind up pipes and hang

the indoor unit

Install the support of

outdoor unit

(select it according to the

actual situation)

Fix outdoor unit

Make the bound pipes pass

through the wall hole and then

connect outdoor unit

Install drainage joint of

outdoor unit (only for cooling

and heating unit)

Connect pipes of outdoor unit

Connect wires of outdoor unit

Neaten the pipes

Vacuum pumping and leakage detection

Check after installation and test operation

Finish installation

Note: this flow is only for reference; please find the more detailed installation steps in this section.

4Technical Information

2.1PREPARATION BEFORE INSTALLATION

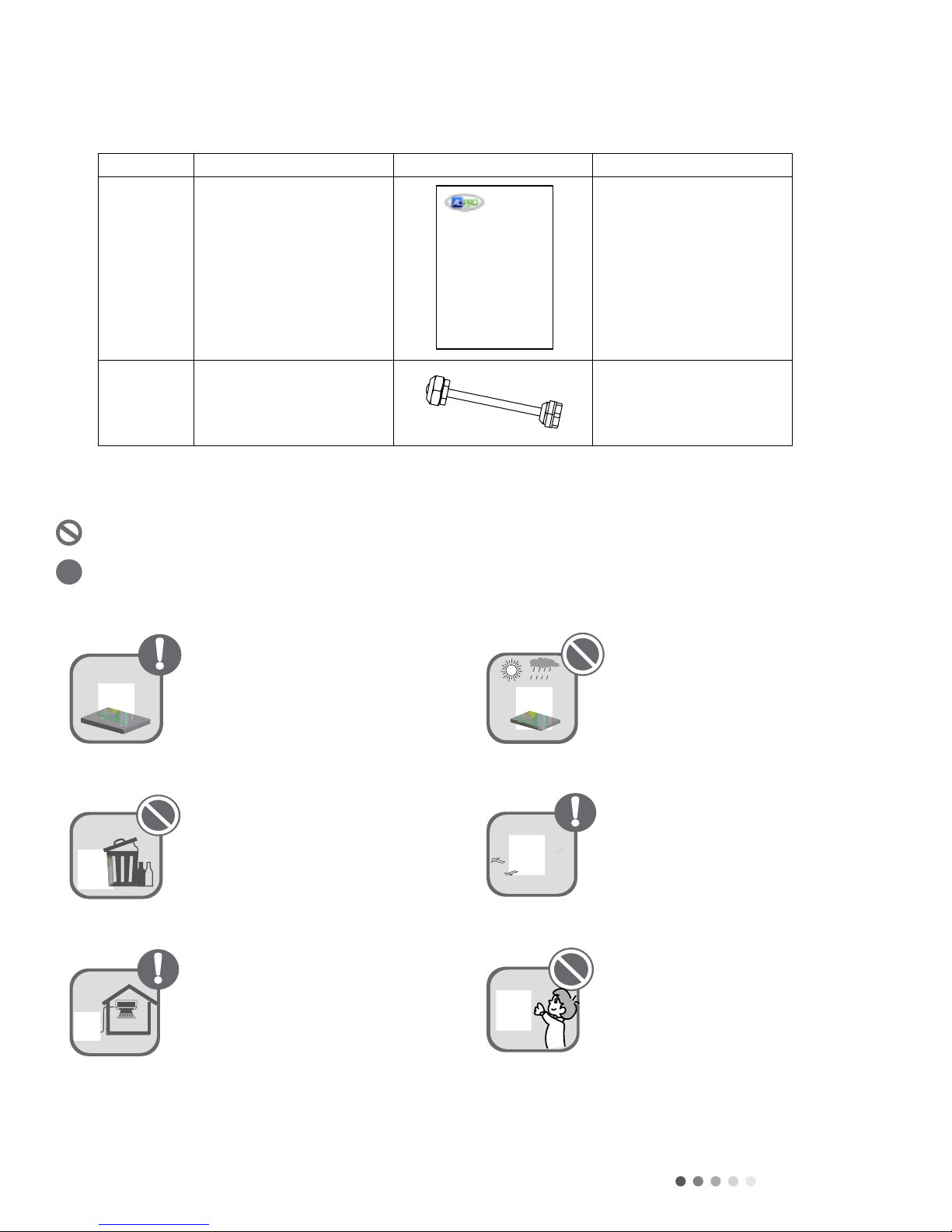

2.1.1 Standard parts

• Please use the following standard parts supplied by AC Pro.

PARTS OF OUTDOOR UNIT

Number Name Picture Quantity

1 Owner’s Manual 1

2Tube Connector Subassy 30K:8; 36K:8; 42K:9

2.1.2 Selecting installation site

Prohibited items! Indicates improper operation might lead to human causality or severe injury.

Instructions MUST be followed. Indicates improper operation might lead to personal injury or property damage.

Installation and Maintenance

Service Manual

8.1.1 Standard parts

Please use the following standard parts supplied by GREE.

Namber name

Owner’s manual

Tube connector

subassy 30K:8;36K:8;42K:9

Pars of Outdoor Unit

picture Quantity Remark

8.1.2 Selecting installation site

Forbidden Items! It indicates that improper operation might lead to human casualty or sever injury.

Items need to be followed. It indicates that improper operation might lead to personal injury or property damage.

Install the unit at a place where is

adequa to withstand the weight

of the unit and make sure the

unit would not shake or fall off.

Try to keep the unit away from

combustible, inammable and

corrosive gas or exhaust gas.

Leave some space for heat

exchanging and servicing so

as to guarantee unit normal

operation.

Never allow children to approach

to the unit and take measures

to prevent children touching the

unit.

Keep the indoor and outdoor

units close to each other as much

the pipe length and bends.

Never expose the unit under

direct sunshine and rainful.

install the unit at a place where

is against dust, typhoon and

earthquake.

8.1 Preparation before Installation

Installation and Maintenance

Service Manual

8.1.1 Standard parts

Please use the following standard parts supplied by GREE.

Namber name

Owner’s manual

Tube connector

subassy 30K:8;36K:8;42K:9

Pars of Outdoor Unit

picture Quantity Remark

8.1.2 Selecting installation site

Forbidden Items! It indicates that improper operation might lead to human casualty or sever injury.

Items need to be followed. It indicates that improper operation might lead to personal injury or property damage.

Install the unit at a place where is

adequa to withstand the weight

of the unit and make sure the

unit would not shake or fall off.

Try to keep the unit away from

combustible, inammable and

corrosive gas or exhaust gas.

Leave some space for heat

exchanging and servicing so

as to guarantee unit normal

operation.

Never allow children to approach

to the unit and take measures

to prevent children touching the

unit.

Keep the indoor and outdoor

units close to each other as much

the pipe length and bends.

Never expose the unit under

direct sunshine and rainful.

install the unit at a place where

is against dust, typhoon and

earthquake.

8.1 Preparation before Installation

Install the unit in a safe place that is

able to withstand the weight of the

system.

Keep unit away from combustibles

– exhaust, corrosive and flammable

gases.

Keep the indoor and outdoor units

as close as possible to minimize

pipe bends and pipe length.

Install unit in a place that is

out of direct sunlight, shielded

from rainfall and excessive dust,

and braced for severe weather

conditions such as strong winds

and natural disasters such as

earthquakes.

Leave some space between barriers

for heat exchanging and servicing.

Take measures to avoid children

from touching or playing in the

area.

Installation and Maintenance

Service Manual

8.1.1 Standard parts

Please use the following standard parts supplied by GREE.

Namber name

Owner’s manual

Tube connector

subassy 30K:8;36K:8;42K:9

Pars of Outdoor Unit

picture Quantity Remark

8.1.2 Selecting installation site

Forbidden Items! It indicates that improper operation might lead to human casualty or sever injury.

Items need to be followed. It indicates that improper operation might lead to personal injury or property damage.

Install the unit at a place where is

adequa to withstand the weight

of the unit and make sure the

unit would not shake or fall off.

Try to keep the unit away from

combustible, inammable and

corrosive gas or exhaust gas.

Leave some space for heat

exchanging and servicing so

as to guarantee unit normal

operation.

Never allow children to approach

to the unit and take measures

to prevent children touching the

unit.

Keep the indoor and outdoor

units close to each other as much

the pipe length and bends.

Never expose the unit under

direct sunshine and rainful.

install the unit at a place where

is against dust, typhoon and

earthquake.

8.1 Preparation before Installation

Installation and Maintenance

Service Manual

8.1.1 Standard parts

Please use the following standard parts supplied by GREE.

Namber name

Owner’s manual

Tube connector

subassy 30K:8;36K:8;42K:9

Pars of Outdoor Unit

picture Quantity Remark

8.1.2 Selecting installation site

Forbidden Items! It indicates that improper operation might lead to human casualty or sever injury.

Items need to be followed. It indicates that improper operation might lead to personal injury or property damage.

Install the unit at a place where is

adequa to withstand the weight

of the unit and make sure the

unit would not shake or fall off.

Try to keep the unit away from

combustible, inammable and

corrosive gas or exhaust gas.

Leave some space for heat

exchanging and servicing so

as to guarantee unit normal

operation.

Never allow children to approach

to the unit and take measures

to prevent children touching the

unit.

Keep the indoor and outdoor

units close to each other as much

the pipe length and bends.

Never expose the unit under

direct sunshine and rainful.

install the unit at a place where

is against dust, typhoon and

earthquake.

8.1 Preparation before Installation

Technical Information

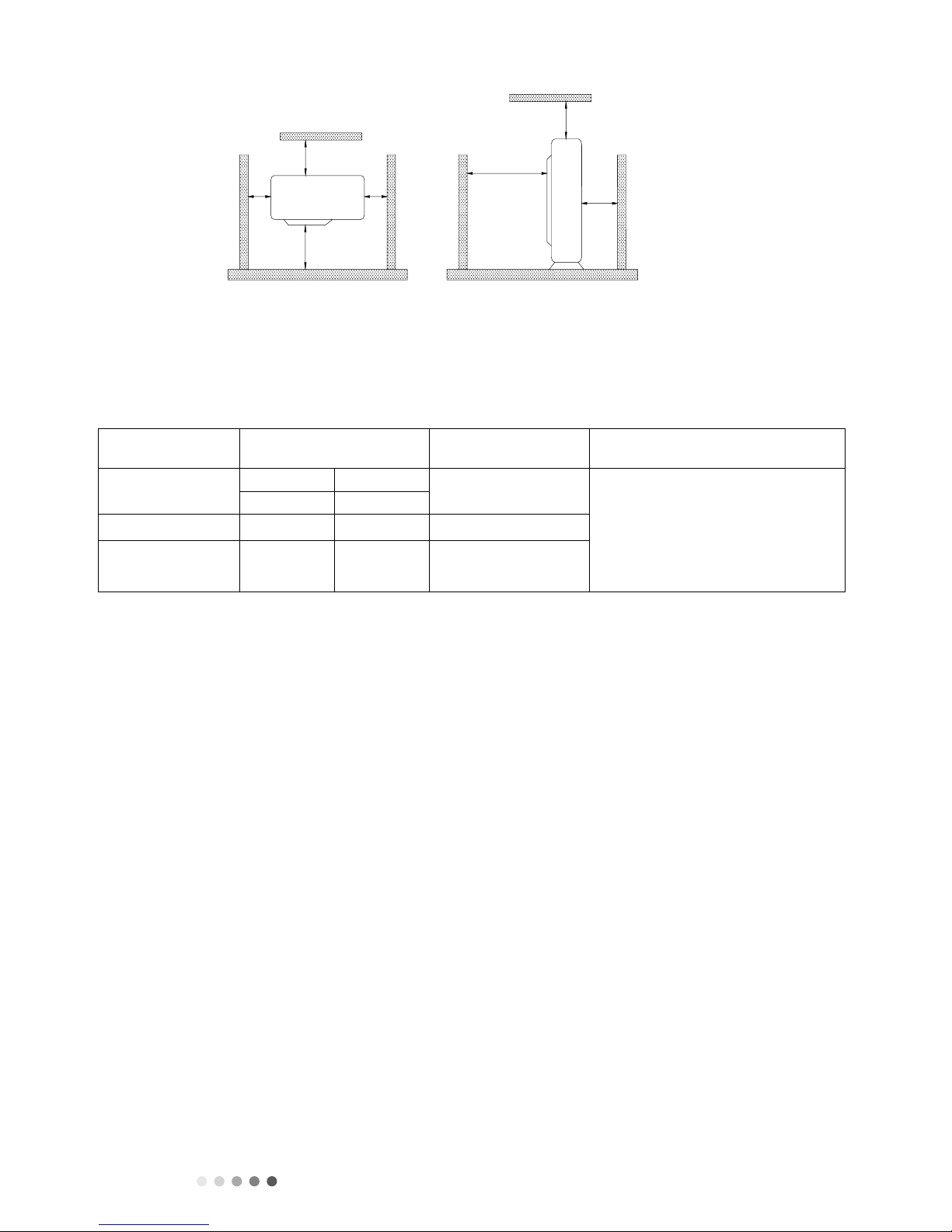

When the outdoor unit is totally surrounded by walls, the installation space of the unit should be as required in Fig.1.

Fig.1

2.1.3 Piping Connection

The maximum pipe length is shown in the following table. When the distance between units (piping length) is out of the

range listed below, normal run of the unit can not be guaranteed.

Model Connecting Pipe(inch) Max. Pipe length(ft ) Max. Height Diff erence betw een

Indoor Unit andOutdoor Unit ( ft )

AWHD(30)ND3EO Liquid Gas 229.62 When the outdoor unit is above

maximum height difference between

indoor and outdoor units is up to

49.2ft; When the indoor unit is

above,maximum height difference

between indoor and outdoor units is up

to 49.2ft.

Ф1/4 Ф3/8

AWHD(36)ND3EO Ф1/4 Ф3/8 246.1

AWHD(42)ND3EO Ф1/4 Ф3/8 246.1

Note:

1. Use water-proof insulating pipe.

2. Wall thickness of pipe: 0.5-1.0 mm; bearing pressure: 3.0MPa

3. The longer the connection pipe is, the more cooling and heating capacity will decrease.

22 Installation and Maintenance

Service Manual

When the outdoor unit is totally surrounded by walls, the installation space of the unit should be as required in

Fig.1.

8.1.3 Piping Connection

The maximum pipe length is shown in the following table. When the distance between units (piping length) is out of the range listed below,

normal run of the unit can not be guaranteed.

Note:

①Use water-proof insulating pipe.

②Wall thickness of pipe: 0.5-1.0 mm;bearing pressure: 3.0MPa

③The longer the connection pipe is, the more cooling and heating capacity will decrease.

＞

19 2/3

＞39 3/8

＞78 3/4 ＞

19 2/3

＞19 2/3

＞78 3/4

unit:inch

Model ConnectingPipe(inch)Max. Pipe length(ft

)

Max. Height Difference between

Indoor Unit andOutdoor Unit (ft)Liquid Gas

GWHD(30)ND3EO Ф1/4 3/8

3/8

1/4

Φ229.6

GWHD(36)ND3EOФ Ф246.1

246.1

GWHD(42)ND3EOФ Ф

When the outdoor unit is above maximum

height difference between indoor and

outdoor units is up to 49.2ft; When the indoor

unit is above,maximum height difference

between indoor and outdoor units is up to

49.2ft.

Fig.1

6Technical Information

2.2 Installation Instruction

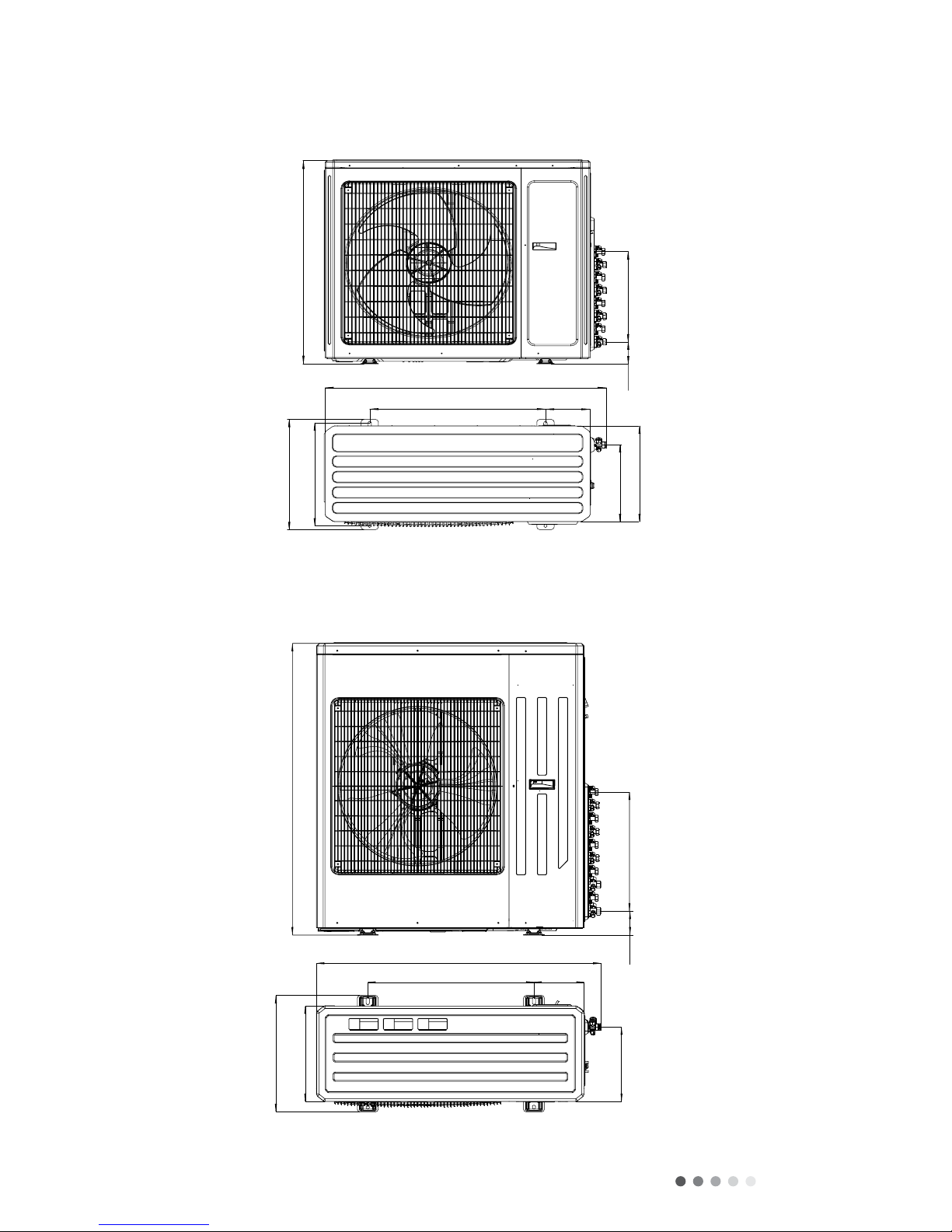

2.2.1 Outline and dimension of the outdoor unit

30K

Outline dimension and mounting holes

Installation and Maintenance

Service Manual

8.2.1 Outline and dimension of the outdoor unit

30K

Outline dimension andMounting holes

36/42K

Outline dimension andMounting holes

13 25/32

3 21/64

14 39/64

15 23/32

16 51/64

11 3/4

38 27/64 6 7/64

43 27/64

17 23/32

3 37/64

11 7/64

17 21/64

14 13/64

42 1/2

24 5/6 7 1/2

Fig.2

Fig.3

8.2 Installation Instruction

36K/42k

Outline dimension and mounting holes

Technical Information

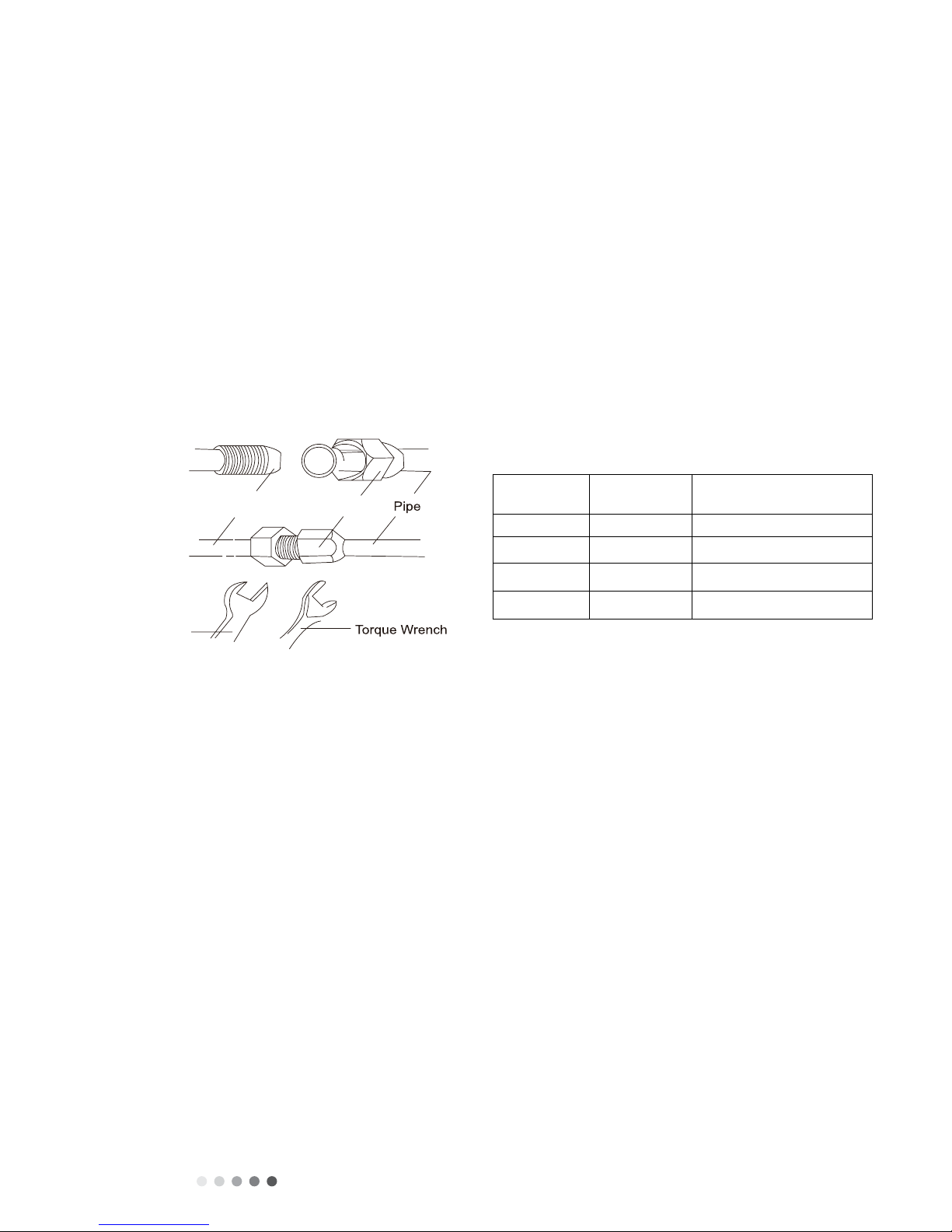

2.2.2 Installation of the Connection Pipe

Connecting piping for indoor unit and outdoor unit are in manifold mode. (As shown below).

1) Piping between the Indoor and Outdoor Units

• If the liquid and gas stop valves which have the sign of A , B, C, D or E have not been connected to the indoor units, please turn

off the screw cap with the spanner airproof.

• Refer to Fig.7 for the moments of torque for tightening screws.

• Let the flare end of the copper pipe point at the screw and then tighten the screw by hand.

• After that, tighten the screw by the torque wrench unit it clatters (as shown in Fig.5).

• The bending degree of the pipe can not be too small; otherwise it will crack. And please use a pipe tube bender to bend the pipe.

• Wrap the exposed refrigerant pipe and the joints by sponge and then tighten them with the plastic tape.

CAUTION!

• During the connection of the indoor unit and the refrigerant pipe, never pull any joints of the indoor unit by force; otherwise the

capillary pipe or other pipe may crack, which then would result in leakage.

• The refrigerant pipe should be supported by brackets, that is, don’t let the unit withstand the weight of it.

• If the piping connection size of outdoor unit does not match the piping connection size of indoor unit, use the piping connection

dimension of indoor unit. And use different-diameter joints which is installing on the place of the piping connection to connect

the indoor unit.

CAUTION!

For the Free Match system, each pipe should be labeled to tell which system it belongs to avoid mistaken inaccurate piping.

24 Installation and Maintenance

Service Manual

8.2.2 Installation of the Connection Pipe

Connecting piping for indoor unit and outdoor unit are in manifold mode. (As shown below).

1) Piping between the Indoor and Outdoor Units

● If the liquid and gas stop valves which have the sign of A , B, C, D or E have not been connected to the indoor units, please turn off the

screw cap with the spanner airproof.

● Refer to Fig.7 for the moments of torque for tightening screws.

● Let the are end of the copper pipe point at the screw and then tighten the screw by hand.

● After that, tighten the screw by the torque wrench unit it clatters (as shown in Fig.5).

● The bending degree of the pipe can not be too small; otherwise it will crack. And please use a pipe tube bender to bend the pipe.

● Wrap the exposed refrigerant pipe and the joints by sponge and then tighten them with the plastic tape.

CAUTION!

①. During the connection of the indoor unit and the refrigerant pipe, never pull any joints of the indoor unit by force;

otherwise the capillary pipe or other pipe may crack, which then would result in leakage.

②. The refrigerant pipe should be supported by brackets, that is, don’t let the unit withstand the weight of it.

③. If the piping connection size of outdoor unit does not match the piping connection size of indoor unit, use the piping

connection dimension of indoor unit. And use different-diameter joints which is installing on the

place of the piping connection to connect the indoor unit.

CAUTION!

● For the Free Match system, each pipe should be labeled to tell which system it belongs to avoid mistaken inaccurate piping.

Φ6.35 mm ≥0.8 mm 1530 N·m

Φ9.52 mm ≥0.8mm 3540 N·m

Φ12.7 mm ≥ mm 4550 N·m

Φ15.9 mm ≥1.0 mm 6065 N·m

0.8

Pipe Flare Nut

Spanne

Pipe

diameter Thickness of

copper tube Tightening

torque

Fig.4

Fig.5

Pipe

diameter(inch)

Thickness of

copper tube Tightening

torque(ft·Ibf)

Φ1/4 ≥0.0315 11.10~4.75

Φ3/8 ≥0.0315 20.12~29.50

Φ1/2 ≥0.0315 33.19~40.56

Φ5/8 ≥0.0394 44.24~47.94

Pipe diameter

(inch)

Thickness of

copper tube Tightening torque (ft-lbf)

Φ1/4 ≥0.0315 11.10~4.75

Φ3/8 ≥0.0315 20.12~29.50

Φ1/2 ≥0.0315 33.19~40.56

Φ5/8 ≥0.0394 44.24~47.94

8Technical Information

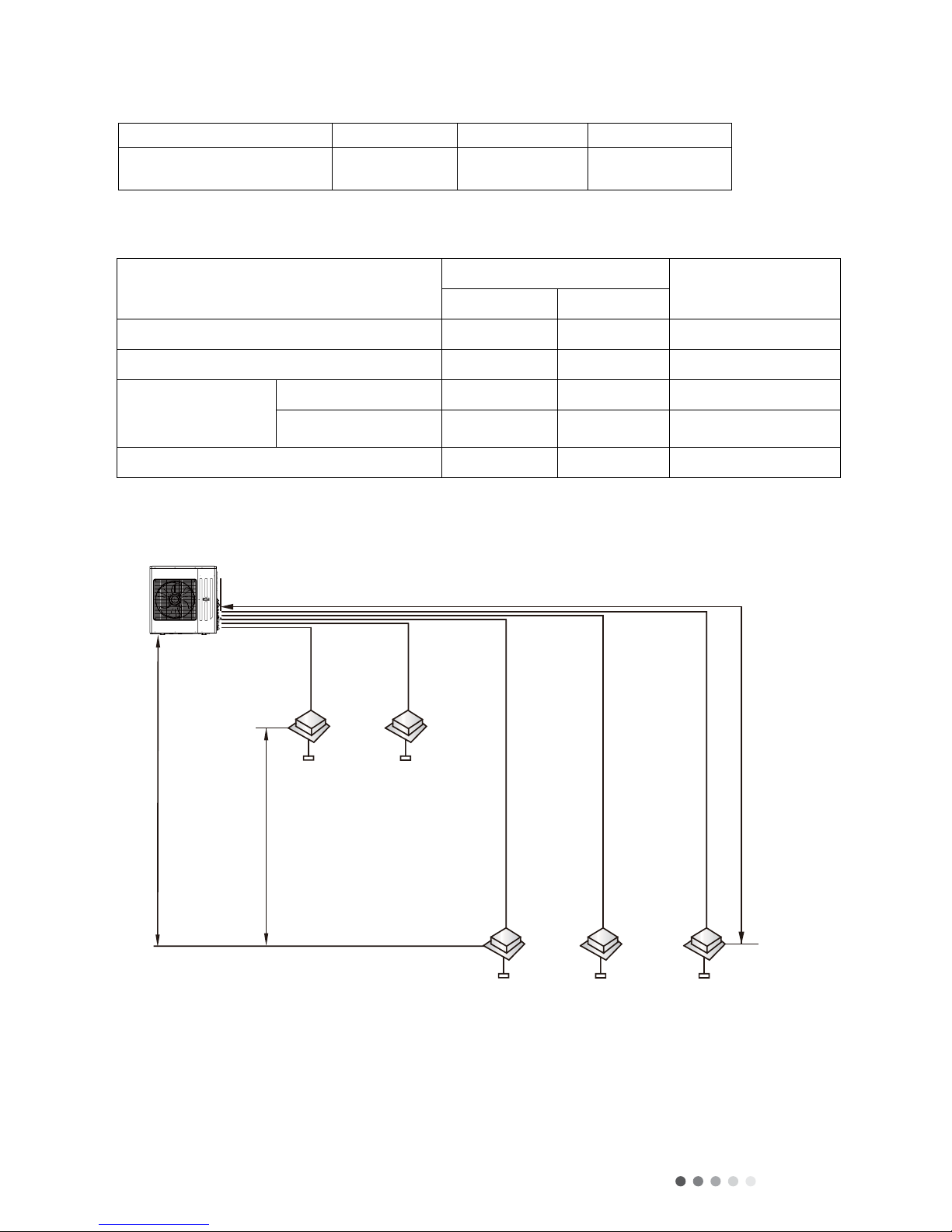

2) Allowable pipe length and drop height among indoor and outdoor units

If the total refrigerant pipe length (liquid pipe) is smaller than that listed in the table below, no additional refrigerant will be

charged.

Model 30k 36k 42k

Total Liquid Pipe Length

(a+b+c+d+e) 131.2ft 131.2ft 131.2ft

Allowable Length and Height Fall of the Refrigerant Pipe

Allowable Value Fitting pipe

30K 36/42K

Total length(actual length) of fitting pipe 229.6 ft 246.1 ft L1+L2+...+LM(M ≤ 5)

length of farthest fitting pipe(ft) 82 ft 82 ft LX(X=1, 2, 3, 4, 5)

Height difference

between outdoor

unit and indoor unit

Outdoor unit at upper 49.2 ft 49.2 ft H1

Outdoor unit at lower 49.2 ft 49.2 ft H3

Height difference between indoor units(ft) 24.6 ft 24.6 ft H2

Installation and Maintenance

Service Manual

2) Allowable pipe length and drop height among indoor and outdoor units

If the total refrigerant pipe length (liquid pipe) is smaller than that listed in the table below, no additional refrigerant will be charged.

Allowable Length and Height Fall of the Refrigerant Pipe

Model

Total

Liquid Pipe

Lenght(a+b+c+d+e)131.2ft

30K36K 42K

131.2ft 131.2ft

Allowable Value Fitting pipe

Total length(actual length) of

fitting pipe

length of farthest fitting pipe(ft)

30K 36/42K

Outdoor unit

at upper

Outdoor unit

at lower

Height difference between

indoor units(ft)

Height difference

between outdoor

unit and indoor

unit

L4L3L2 L5L1

Outdoor unit

Height difference between indoor unit and outdoor unit H1

Height difference between

indoor units H2

Indoor unit

Equivalent length of the farthest fitting pipe L

Fig.6
