AR-B5891

Intel® Core™ 2 Duo Mobile Processor

GM45 Micro ATX Motherboard

User’s Manual

Rev. 1.2

2009/09/16

2/29

reviewed f or accuracy. No patent liability is assumed with respect to the use of the

information contained herein. While every prec aution has been taken in the preparation of

this guide, the Manufacturer assumes no responsibility for errors or omissions.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in

any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,

without the prior written permission of Manufacturer.

Trademark

All products and company na mes are trademarks or registered trademarks of their

respective holders.

These specifications are subject to change without notice.

Technical Support

We hope you to get the maximum performance fr om your products and be willing to help if

running into technical difficulties. For the mo st frequently asked questions, it’s easily foun d

answers from the product documentation and usua lly a lot more detailed, so please t ake

reference to this manual first. If the answer st ill can not be found, gather all the information

or questions applying to the problem, and with the product on hand, contact your distributor,

sales representative, or customer service center for technical support. Most problems

reported are minor and able to be easily solv ed over the phone. In addition, free technic al

support is available and always ready to give advices on application requirements or

specific information on the installation and operation of any of our products.

Please have the following information ready before you call:

1. Product name and serial number

2. Description of your peripheral attachments

3. Description of your software (operating system, version, application software, etc.)

4. A complete description of the problem

5. The exact wording of any error messages

3/29

How to Use This Manual

This manual is written for the system integr ator, PC technician and knowledgeable PC end

user. It describes how to configure your AR-B5891 to meet various operating requirements.

The user ’s manual is divided int o three c hapters, with each chapter addressing a b asic

concept and operation of the motherboard.

Chapter 1: Introduction - gives you an overview of the product specifications and basic

system architecture for the AR-B5891 motherboard.

Chapter 2: Hardw are Configuration Setting - shows the definitio ns and locations of

Jumpers and Connectors so that you can easily configure your system.

Chapter 3: System Installation - describes how to properly mount the CPU, main memory

for a safe installation.

4/29

Table of Content

1. Introduction.................................................................................................................7

1.1 Description...........................................................................................................7

1.2 Specifications ......................................................................................................8

1.3 System Architecture..........................................................................................10

1.4 Dimensions ........................................................................................................11

2. Hardware Configuration Setting..............................................................................13

2.1 Board Layout .....................................................................................................14

2.2 Jumpers & Connectors .....................................................................................15

2.2.1 Clear CMOS: JP1...........................................................................................16

2.2.2 TPM setting: JP2............................................................................................16

2.2.3 RS232/422/485 Setting: JP3 (COM1) ............................................................16

2.2.4 RS232 PIN9 Setting: JP4,JP5 (COM2&3)......................................................16

2.2.5 Front Audio Header: AUDIO1 .........................................................................16

2.2.6 CD_IN Header: CN4 ......................................................................................16

2.2.7 Parallel Header: CN11....................................................................................16

2.2.8 USB Header: CN13,CN14..............................................................................16

2.2.9 Floppy header: CN16 .....................................................................................16

2.2.10 RS232 Header: CN20 ……...……..……….……………………………………. 17

2.2.11 Main Power connector:CN27 ……...……………………………………………. 17

2.2.12 Fan Connector : CN28 ~ 30 ….…...……..……..………………………………..17

2.2.13 Front Panel Header: CN31 ..…...………………………….……………………..17

2.2.14 Digital Header: CN32 ..…...…..…………………………………………………..17

2.2.15 IDE Connector: IDE1 ..………..…..………………………………..…………….17

3. System Installation...................................................................................................19

3.1 Processor Installation .......................................................................................19

3.1.1 Installing Intel® Core™ 2 Duo Mobile CPU ...................................................19

3.1.2 Removing CPU.............................................................................................20

3.2 Main Memory......................................................................................................21

3.3 Installing the Motherboard................................................................................21

Appendix A: Watchdog Timer Programming ................................................................23

Appendix B: GPIO Programming……………………………………………………………..25

Appendix C: Resource MAP ...........................................................................................27

5/29

Revision History

Revision Date Comment

Rev.1.2 Sep. 2009 Initial released

’s Manual

6/29

CHAPTER 1

7/29

1. Introduction

1.1 Description

Taking adv antages of Intel ® energy-ef ficient dual-core processing, AR-B5891 Micro-ATX

motherboard adopts Intel® CoreTM 2 Duo Mobile processors up to 1066 MHz FSB and Intel

GM45 Ex press chip set with Intel ® ICH9ME to fit the high performance computer system

applications for meeti ng today’ s demanding p ace and keep complete comp atibility wit h

hardware and software designed. The onboard devices support one PCI Express x16 for an

alternative graphics add-on card, one PCI Express x4, two PCI slot s, integrated graphics,

and built Intel ® 82567 Gigabit Ethernet PHY for iAMT 4.0 function & Intel ® 82574L Gigabit

Ethernet controller offering stable high-speed networking.

AR-B5891 comes with the Intel® GMA 4500MHD graphics supporting DVMT 5.0. The board

also features two DIMMs up to 2 GB SDRAM ( Max 1 GB per DIMM ) with dual channel

DDR3 1066/800, four Serial A TA high-speed dat a transferring at up to 3 GB/s, optional

Intel® Trusted Platform Module 1.2, and audio th rough Realtek ALC883 audio codec. The

onboard Winbond W83627UHG I/O Controller supports four serial ports. Hardware Monitor

function, eight hi-speed USB 2. 0 ports, two 6-pin Mini-Din connectors for PS/2 mouse a nd

keyboard, and one 24-pin st andard connec tor des igned to support A TX power function.

Besides, a feature of CPU overheat protection will provide user more security and stability.

Built with these impressed functions, AR-B5891 Micro-ATX Motherboard is an ideal solution

for Automation, multi-media, gaming, DVR, KIOSK, medical equipment, industrial

automation, financial automatio n, process control, semico nductor equipment, and network

security markets.

8/29

1.2 S pecifications

AR-B5891

Title Advanced Intel® Core™ 2 Duo Mobile Processor based on Micro ATX motherboard

with Dual Displays, Dual Gigabit Ethernet, 4 SATA, 4 COM, Audio, 8 USB

Intel® Core™ 2 Duo Mobile Series Processors

Intel® GM45 Express Chipset, 1066/800/667 MHz FSB

Dual-channel DDR3 800/1066 Memory Architecture

Integrated Intel® Gen 5.0 GMA 4500MHD Graphics

Dual Displays by VGA&DVI

Dual Gigabit Ethernet, iAMT 4.0 supported

iTPM 1.2 supported

Four SATA 300 Ports, One IDE Interface

Four COM Ports, Eight USB 2.0 Ports

Core Specification

1 x PCI Express x16 and PCI Express x4, 2 x PCI Slots for Expansion

Specifications

System

CPU Intel® Core™ 2 Duo Mobile Processors (Socket-P)

FSB 1066/800/667 MHz

BIOS AMI BIOS with 32Mb SPI Flash ROM

System Chipset Intel® GM45 + ICH9ME

I/O Control Winbond W83627UHG I/O Controller

2 x 240-pin DIMM sockets

Dual channel DDR3 800/1066 SDRAM

System Memory

Max. up to 2GB memory

Storage 4 x Series ATA 300 ports supports RAID 0,1,5,10; 1 x IDE 40-pin connector with 5V for DOM

Security Intel® integrated Trusted Platform Module 1.2

Watchdog Timer Reset; 1 sec.~255 min. (1 sec. or 1 min./step)

H/W Status Monitor Monitoring CPU and system temperature, voltage and cooling fan status

External I/O

VGA & DVI-D 1 x D-SUB 15-pin & 1 x D-SUB 24-pin

USB 4 x USB 2.0 Ports

Gigabit-LAN 2 x RJ-45 LAN Ports (with two LEDs indicators)

Audio 3-hole audio jacks for Line In, Line Out, Microphone

COM 2 x RS-232 D-SUB 9-Pin Ports with 5/12V

KB & MUS 2 x Mini DIN 6-pin for Keyboard & Mouse

9/29

Internal I/O

GPIO Onboard programmable 8-bit Digital I/O interface

Floppy 1 x Floppy port box header

Parallel 1 x Printer port box header

COM 1 x RS-232 box header, 1 x RS-232/422/485 selectable box header

USB 2 header, supports four USB 2.0 interface

Front Panel 1 header, supports Power & HDD LED, Power on/off, reset buttons

Display

Graphics Controller Intel® GM45 Integrated Intel® Gen 5.0 GMA 4500MHD Graphics

Display Memory Intel® Dynamic Video Memory Technology (Intel® DVMT 5.0)

Resolution Up to 2048 x1536 @ 75 Hz (QXGA)

Display Interface Dual Displays by VGA & DVI

DVI Pericom PI3VDP411LST

Ethernet

Controller LAN 1: Intel® 82567 Gigabit Ethernet PHY for iAMT 4.0 support

LAN 2: Intel® 82574L Gigabit Ethernet Controller

IEEE 802.3 10BASE-T / 100BASE-TX / 1000BASE-T compliant

Interface/connector

Dual RJ-45 rear panel connector with two LEDs indicators

Audio

HDAC Realtek® ALC883 High Definition audio codec

Rear Connector 3 audio jacks for Line In, Line Out, Microphone

On-board Header Line Out, MIC, CD In (one buzzer for boot)

Power Supply

Power Type 24-pin ATX power connector

FAN Power

Connector 1 x CPU Fan 3-pin, 2 x System Fan 3-pin wafer with DC 12V

Battery Lithium coin cell - CR2032

Environments

Compliance ROHS , WEEE

Operating

Temperature 0°C~60°C (32°F~140°F)

Storage Temperature -20°C~80°C (-68°F~176°F)

Operating Humidity 10%~90% relative humidity, non-condensing

Size (L x W) 9.6'' x 9.6'' (243.84mm x 243.84mm)

10/29

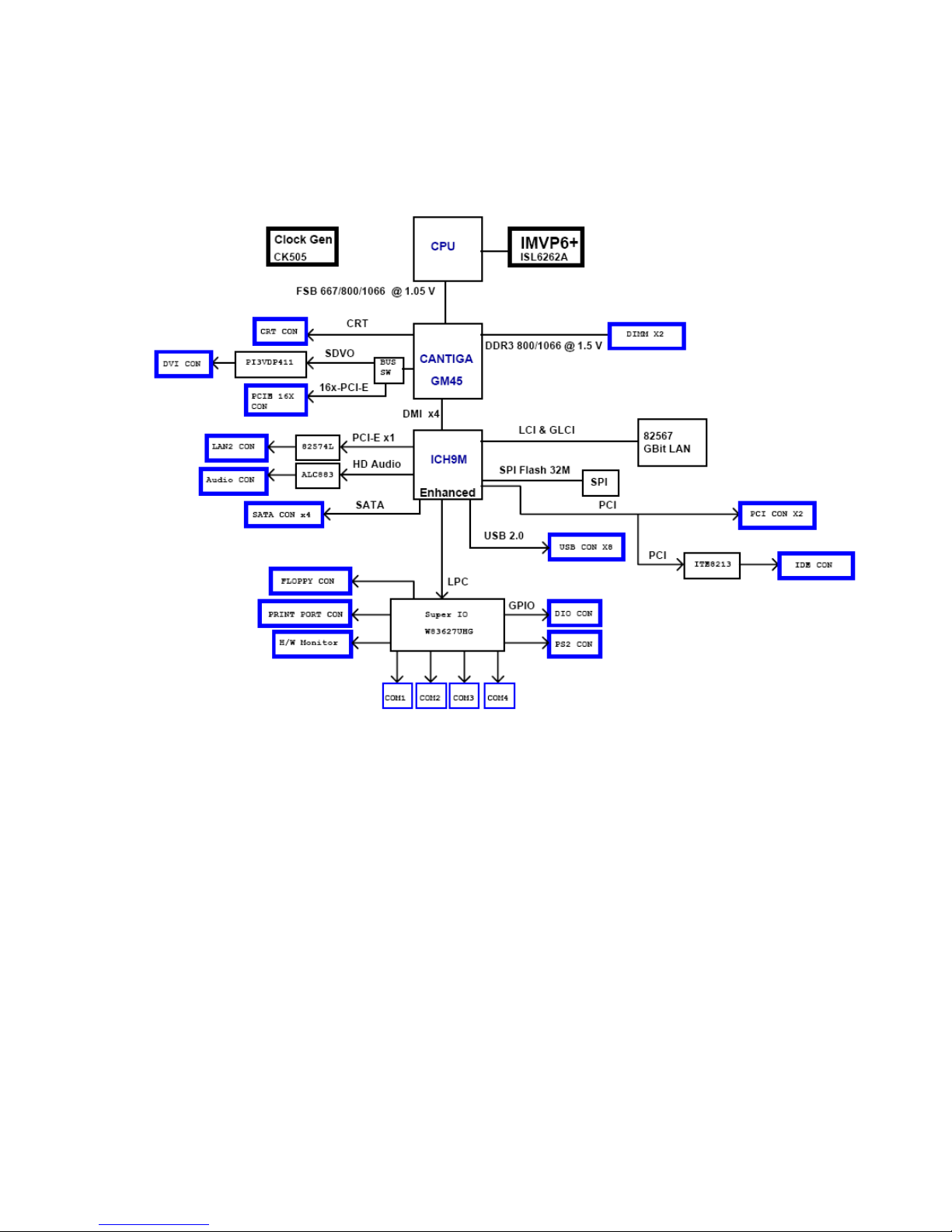

1.3 System Architecture

All details are shown in AR-B5891 system block diagram.
