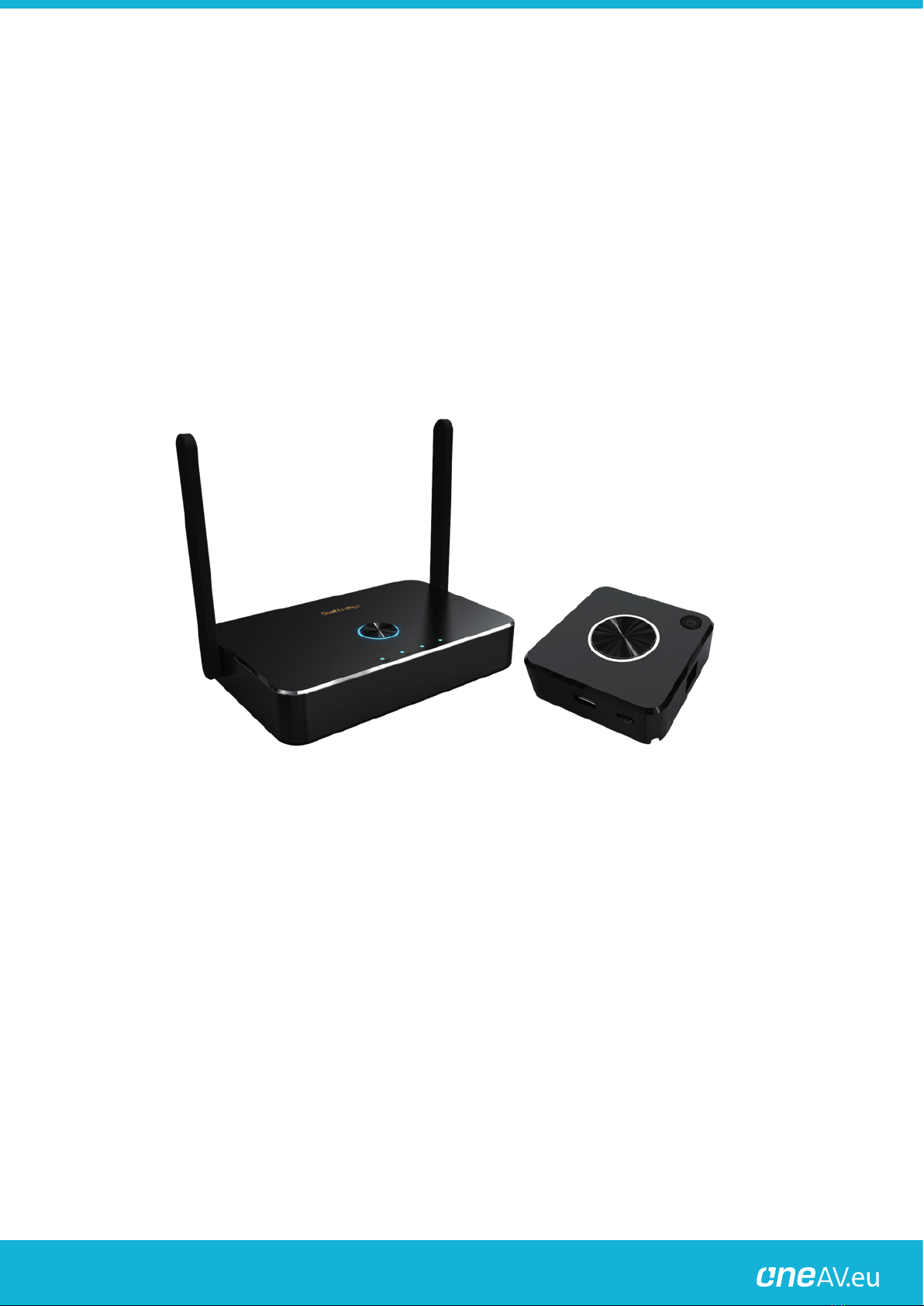

QuattroPod Spec



Rev. 1.01

QuattroPod Spec



Rev. 1.01

Distribution:

PureLink GmbH Available from B2B Online Portal

Revision

History

Date

V1.00

Initial Release

2018/Sep.

V1.01

Correct I/O description

2019/Apr.



Distribution:

PureLink GmbH Available from B2B Online Portal

Introduction

Firstly, thanks for choosing QuattroPod as wireless presentation facility. It integrates

powerful dual core SoC and advanced 802.11ac 5G WiFi to provide you the a smooth

wireless display experience, and it supports almost all devices. Our features not only

support ‘’Split Screens Display”, “ Host Control System” but also let cross platform devices

throw the contents in APP-independence. It provides a more friendly and efficient

environment for BYOD (Bring Your Own Devices) with wireless projection in legacy/ existing

projectors or monitors you have! Enjoy them and help you to achieve more collaboration!

System Requirement:

-PC: Any PC or laptops with HDMI output or DP with Dual mode (DP++) support

-Tablet/SmartPhone: iOS 9 above and Android 5.0 above

*Important: Android device must turn ADB mode in advance

Receiver (R01) Spec:

CPU

ARM based RISC

DRAM

DDR3 1GB

Flash

NAND Flash 512MB

Output Resolution

l 4096x2160@24hz

l 3840x2160@30hz

l 3840x2160@25hz

l 3840x2160@24hz

l 1920x1080@60Hz

l 1280x720@60hz

l 1920x1080@50Hz

l 1920x1080@24Hz

l 1280x720@50hz

I/O

l HDMI out (HDMI1.4)

l USB type A (USB 2.0)

l DC 5V

l Ethernet

WiFi

802.11ac 2T2R, max. bandwidth 866Mbps (5Ghz)

WiFi Frequency

5Ghz: 5.150Ghz~5.825Ghz

Power

DC 5V, 2A

HDCP

HDCP1.4

Ethernet

10/100/1000M, support POE

LED Indication

Power, Ethernet, WiFi status, USB

Key

Reset button and Sync button

Power Consumption

l Standby: 5W approx.

l Casting: 10W approx.

Working Temp.

0~40°C

Storage Temp.

-20~70°C



Distribution:

PureLink GmbH Available from B2B Online Portal

Transmitter (T01) Spec:

CPU

ARM based RISC

DRAM

DDR3 256MB

Flash

NAND Flash 256MB

Input Resolution

l 3840x2160@60hz (HDMI only)

l 3840x2160@30hz

l 4096x2160@60hz (HDMI only)

l 4096x2160@30hz

l 1920x1080@60Hz

l 1920x1080i@60Hz

l 1280x720@60hz

l 1280x720@50hz

l 1920x1080@30Hz

l 1920x1080@50Hz

l 1920x1080i@50Hz

I/O

l HDMI in

l DP in

l USB type A male

l USB type A female

l Ethernet

Ethernet

10/100/1000M, support POE

WiFi

802.11ac 1T1R, max. bandwidth 433Mbps (5Ghz)

WiFi Frequency

5Ghz: 5.150Ghz~5.825Ghz

Power

DC 5V, 1A

HDCP

HDCP1.4

LED Indication

Power, WiFi status, Connection

Key

Mirror and Control button

Switch

USB host and slave mode switch

Power Consumption

l Standby: 2W approx.

l Casting: 5W approx.

Working Temp.

0~40°C

Storage Temp.

-20~70°C

Distribution:

PureLink GmbH Available from B2B Online Portal

Dimension:



Installation Guide:

QuattroPod RX:

1. Connect Power with the adaptor

2. Connect HDMI with HDMI port with the projectors or displays.

Distribution:

PureLink GmbH Available from B2B Online Portal

*Notice: Rx is compatible with VESA mounting screw holes. Please use the 5x5 bracket and M4

screws.

*Due to WiFi signal requires enough space, please DO NOT block the antenna or mount it behind

of TV/Panel.

QuattroPod TX:

1. Plug USB 5V(required 1A above), through adaptors or USB ports of laptops (recommend

USB3.0)

2. Connect HDMI port with PC

*Notice: If the HDMI cable is not long enough, please use extension cable to ensure the

connection

I/O Descriptions:

QuattroPod

Receiver



QuattroPod Tx



Distribution:

PureLink GmbH Available from B2B Online Portal

LED Indication:

QuattroPod

Receiver



QuattroPod

Transmitter



WiFi Channel Table (5Ghz, 20Mhz):



Distribution:

PureLink GmbH Available from B2B Online Portal

Rx’s WiFi RF Parameters (5Ghz):





4 .2 5GHz RF Specification

Feature

Description

WLAN Standard

Frequency Range

Number of Channels

IEEE 802.11ac 2x2, WiFi compliant

4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band)

5.0GHzPlease see the table

802.11a /54Mbps : 13 dBm ± 1.5 dB @ EVM ≤ -25dB

802.11n /MCS7 : 12 dBm ± 1.5 dB @ EVM ≤ -28dB

802.11ac /MCS9 : 10 dBm ± 1.5 dB @ EVM ≤ -32dB

Output Power

6Mbps

PER @ -88 dBm, typical

PER @ -87 dBm, typical

PER @ -86 dBm, typical

PER @ -83 dBm, typical

PER @ -80 dBm, typical

PER @ -77 dBm, typical

PER @ -72 dBm, typical

PER @ -70 dBm, typical

PER @ -90 dBm, typical

PER @ -89 dBm, typical

PER @ -88 dBm, typical

PER @ -86 dBm, typical

PER @ -83 dBm, typical

PER @ -80 dBm, typical

PER @ -75 dBm, typical

PER @ -71 dBm, typical

PER @ -88 dBm, typical

PER @ -85 dBm, typical

PER @ -83 dBm, typical

PER @ -80 dBm, typical

PER @ -76 dBm, typical

PER @ -71 dBm, typical

PER @ -70 dBm, typical

PER @ -68 dBm, typical

PER @ -89 dBm, typical

PER @ -88 dBm, typical

PER @ -86 dBm, typical

PER @ -83 dBm, typical

9Mbps

- 12Mbps

- 18Mbps

- 24Mbps

- 36Mbps

- 48Mbps

- 54Mbps

SISO Receive Sensitivity

(11a,20MHz) @10% PER

6Mbps

9Mbps

- 12Mbps

- 18Mbps

- 24Mbps

- 36Mbps

- 48Mbps

- 54Mbps

- MCS=0

- MCS=1

- MCS=2

- MCS=3

- MCS=4

- MCS=5

- MCS=6

- MCS=7

- MCS=0

- MCS=1

- MCS=2

- MCS=3

MIMO Receive Sensitivity

(11a,20MHz) @10% PER

SISO Receive Sensitivity

(11n,20MHz) @10% PER

MIMO Receive Sensitivity

(11n,20MHz) @10% PER

Distribution:

PureLink GmbH Available from B2B Online Portal



- MCS=4

- MCS=5

- MCS=6

- MCS=7

- MCS=8

- MCS=15

- MCS=0

- MCS=1

- MCS=2

- MCS=3

- MCS=4

- MCS=5

- MCS=6

- MCS=7

- MCS=0

- MCS=1

- MCS=2

- MCS=3

- MCS=4

- MCS=5

- MCS=6

- MCS=7

- MCS=8

- MCS=15

PER @ -79 dBm, typical

PER @ -74 dBm, typical

PER @ -73 dBm, typical

PER @ -71 dBm, typical

PER @ -88 dBm, typical

PER @ -68 dBm, typical

PER @ -85 dBm, typical

PER @ -82 dBm, typical

PER @ -80 dBm, typical

PER @ -77 dBm, typical

PER @ -73 dBm, typical

PER @ -69 dBm, typical

PER @ -67 dBm, typical

PER @ -66 dBm, typical

PER @ -87 dBm, typical

PER @ -85 dBm, typical

PER @ -83 dBm, typical

PER @ -80 dBm, typical

PER @ -76 dBm, typical

PER @ -72 dBm, typical

PER @ -70 dBm, typical

PER @ -69 dBm, typical

PER @ -85 dBm, typical

PER @ -66 dBm, typical

SISO Receive Sensitivity

(11n,40MHz) @10% PER

MIMO Receive Sensitivity

(11n,40MHz) @10% PER

- MCS=0, NSS1 PER @ -86 dBm, typical

- MCS=1, NSS1 PER @ -84 dBm, typical

- MCS=2, NSS1 PER @ -82 dBm, typical

- MCS=3, NSS1 PER @ -79 dBm, typical

- MCS=4, NSS1 PER @ -75 dBm, typical

- MCS=5, NSS1 PER @ -70 dBm, typical

- MCS=6, NSS1 PER @ -69 dBm, typical

- MCS=7, NSS1 PER @ -68 dBm, typical

- MCS=8, NSS1 PER @ -64 dBm, typical

- MCS=0, NSS1 PER @ -88 dBm, typical

- MCS=1, NSS1 PER @ -87 dBm, typical

- MCS=2, NSS1 PER @ -85 dBm, typical

- MCS=3, NSS1 PER @ -82 dBm, typical

- MCS=4, NSS1 PER @ -78 dBm, typical

SISO Receive Sensitivity

(11ac,20MHz) @10% PER

MIMO Receive Sensitivity

(11ac,20MHz) @10% PER

Distribution:

PureLink GmbH Available from B2B Online Portal



- MCS=5, NSS1 PER @ -73 dBm, typical

- MCS=6, NSS1 PER @ -72 dBm, typical

- MCS=7, NSS1 PER @ -71 dBm, typical

- MCS=8, NSS1 PER @ -67 dBm, typical

- MCS=0, NSS2 PER @ -87 dBm, typical

- MCS=8, NSS2 PER @ -63 dBm, typical

- MCS=0, NSS1 PER @ -84 dBm, typical

- MCS=1, NSS1 PER @ -81 dBm, typical

- MCS=2, NSS1 PER @ -79 dBm, typical

- MCS=3, NSS1 PER @ -76 dBm, typical

- MCS=4, NSS1 PER @ -73 dBm, typical

- MCS=5, NSS1 PER @ -68 dBm, typical

- MCS=6, NSS1 PER @ -67 dBm, typical

- MCS=7, NSS1 PER @ -66 dBm, typical

- MCS=8, NSS1 PER @ -61 dBm, typical

- MCS=9, NSS1 PER @ -60 dBm, typical

- MCS=0, NSS1 PER @ -86 dBm, typical

- MCS=1, NSS1 PER @ -84 dBm, typical

- MCS=2, NSS1 PER @ -82 dBm, typical

- MCS=3, NSS1 PER @ -79 dBm, typical

- MCS=4, NSS1 PER @ -76 dBm, typical

- MCS=5, NSS1 PER @ -71 dBm, typical

- MCS=6, NSS1 PER @ -70 dBm, typical

- MCS=7, NSS1 PER @ -69 dBm, typical

- MCS=8, NSS1 PER @ -64 dBm, typical

- MCS=9, NSS1 PER @ -63 dBm, typical

- MCS=0, NSS2 PER @ -84 dBm, typical

- MCS=9, NSS2 PER @ -60 dBm, typical

- MCS=0, NSS1 PER @ -81 dBm, typical

- MCS=1, NSS1 PER @ -78 dBm, typical

- MCS=2, NSS1 PER @ -76 dBm, typical

- MCS=3, NSS1 PER @ -72 dBm, typical

- MCS=4, NSS1 PER @ -69 dBm, typical

- MCS=5, NSS1 PER @ -66 dBm, typical

- MCS=6, NSS1 PER @ -64 dBm, typical

- MCS=7, NSS1 PER @ -62 dBm, typical

- MCS=8, NSS1 PER @ -58 dBm, typical

- MCS=9, NSS1 PER @ -56 dBm, typical

SISO Receive Sensitivity

(11ac,40MHz) @10% PER

MIMO Receive Sensitivity

(11ac,40MHz) @10% PER

SISO Receive Sensitivity

(11ac,80MHz) @10% PER
