ActionTec HPAP108T Bedienungsanleitung

MegaPlug

Wireless

Network

Extender

Model #: HPAP108T

User Manual

Ver 1.0

Solutions for the Digital Life™

Table of Contents

1 Introduction 1

Features 1

System Requirements 2

Getting to Know the Network Extender 2

What is HomePlug? 3

Technical Support 4

2 Installing the Wireless Network Extender 5

Plugging in the Extender 5

Installing the Configuration Utility 5

Connecting a Wireless Computer

to the Homeline Network 7

3 Using the Configuration Utility 9

Locate Device 9

Setup Wizard 10

IP Setting 10

Wireless Setting 11

Factory Default 14

Device Info 14

Management 14

4 Using the Web Configuration Interface 15

System Summary 16

Wireless Station List 16

System Properties 17

Administration 17

IP Settings 18

Wireless Network 18

Wireless Security 19

Wireless Advanced Settings 21

MAC Filtering 23

Backup/Restore Settings 24

Firmware Upgrade 25

Reboot 25

5 Troubleshooting 27

Troubleshooting 27

Frequently Asked Questions 28

Actiontec MegaPlug Wireless Network Extender User Manual

6 Setting Up Static IP Address 31

Windows 98 SE 31

Windows Me 34

Windows 2000 37

Windows XP 41

7 Setting Up File and Printer Sharing 45

File Sharing 45

Printer Sharing 53

A Specifications 55

General 55

Wireless 55

LED Indicators 56

Environmental 56

B Glossary 57

Notices 61

Regulatory Compliance Notices 61

Modifications 61

Miscellaneous Legal Notices 62

Limited Warranty 63

Introduction

Congratulations for purchasing the Actiontec MegaPlug Wireless Network

Extender. The Extender is one of the easiest ways to augment your existing

MegaPlug network by introducing wireless networking. Simply plug the Extender

into a standard electrical outlet, and your AC-wire-based network is now wireless-

capable. Using any wireless-equipped computer, you can surf the Web, exchange

files, even print documents, all without the hassle of installing more cables. If you

want to take your computer networking to the next level, the Actiontec MegaPlug

Wireless Network Extender is sure to be one of the keys to your success.

Features

s Supports HomePlug Powerline Specification 1.0

s 85 Mbps data rate (maximum) over standard home power lines

s 56-bit DES encryption

s Supports IEEE 802.11b, IEEE 802.11g, IEEE 802.3, and IEEE 802.3u wireless

standards

s Supports WEP 64/128/152-bit encryption, WPA, WPA-PSK, 56-bit DES

encryption

s Two-pronged US power plug (fits ungrounded power outlets)

s Power and Wireless indicators

Actiontec MegaPlug Wireless Network Extender User Manual

Chapter 1 Introduction

System Requirements

s Router or gateway with HomePlug capability

s Standard home power wiring

s Computer with the following:

· CD-ROM drive

· Windows 98SE, Me, 2000, or XP installed

· Wireless capability

· TCP/IP network protocol installed

Getting to Know the Network Extender

This section contains a quick description of the Network Extender’s external features.

Front Panel

The Network Extender’s front panel features 2 lights (LEDs):

Wireless

Power

Wireless Light

The Wireless light flickers green when the Extender is active.

Actiontec MegaPlug Wireless Network Extender User Manual

Chapter 1 Introduction

Power Light

The Power light glows green when sychronized with another device, and flickers

when data is being transferred across the Network Extender. If the Power light is

off, it can still be powered up.

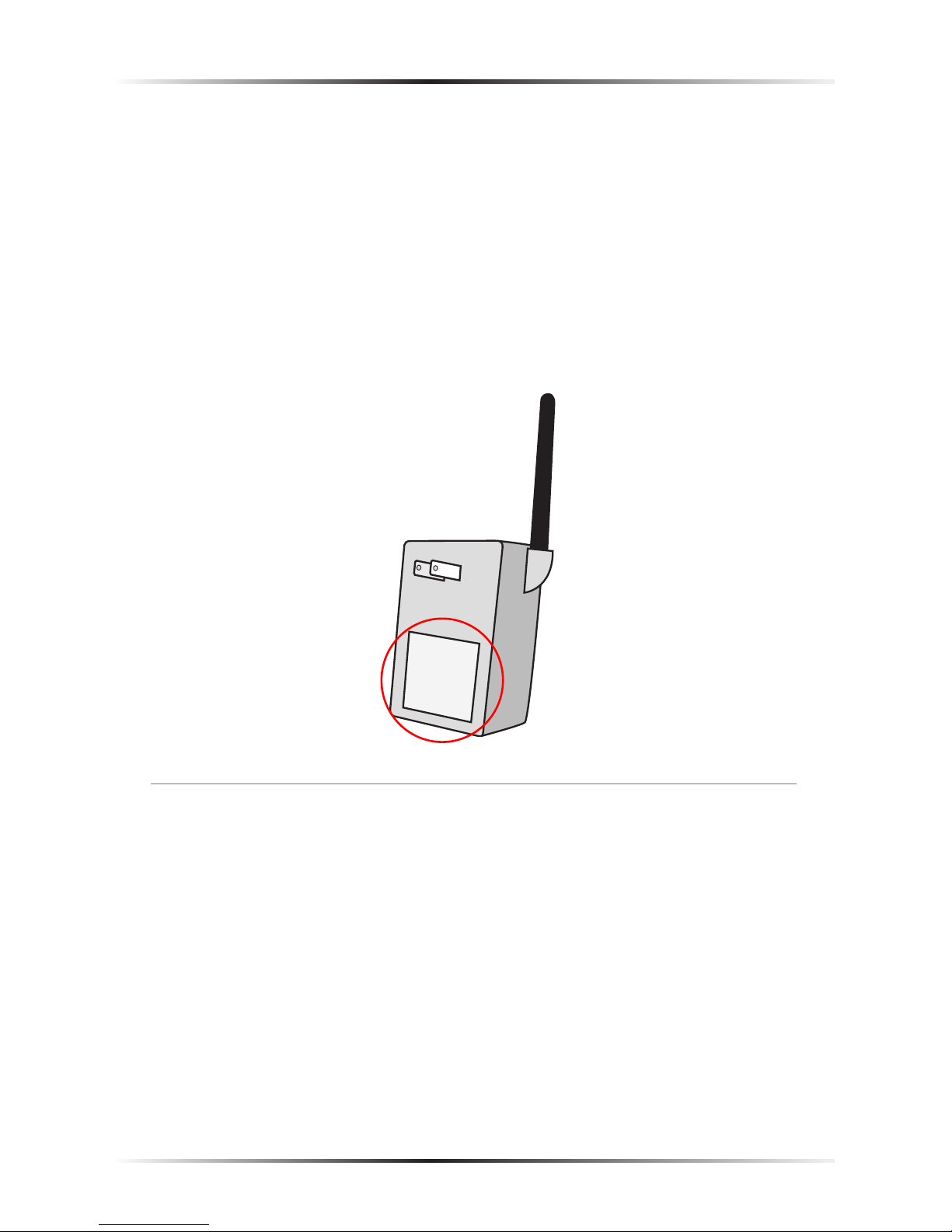

Information Sticker

The information sticker (located beneath the electrical prongs) displays the MAC

(Media Access Control) address, device ID, serial number and other information

about the Extender.

sdfsdfsadfasdfasdfasdf

asdfasdfasdfasdfasdf

asdfasdfasdfasdfasdfas

asdfasdfasdfasdfasdfa

adsfasdfasdfasdfasdfasdfasdfasdf

asdfasdfasdfasdfasdfasdfadsfasdf

asdfasdfasdfasdfa

asdfasdfasdfasdf

asdfasdfasdfasdfasdasdf

asdfasdfasdfasdf

asdad

What is HomePlug?

HomePlug is a new networking technology that uses the existing power lines in

a home to connect devices such as computers, print servers, etc., eliminating the

need for installing new wiring when a device is added to the network. Today’s

HomePlug products are mainly adapter-type devices which plug into existing

Ethernet networks, but more and more devices are being designed with HomePlug

technology built-in. This means, in the near future, plugging in a device into an

electrical outlet will not only power it, but also allow it to communicate with other

HomePlug devices.

Actiontec MegaPlug Wireless Network Extender User Manual

Technical Support

Actiontec Electronics prides itself on making durable, high-quality, high-perfor-

mance products. If you need assistance, the Actiontec Technical Support Department

is available all day every day to provide professional support.

Actiontec Electronics, Inc.

760 N. Mary Avenue

Sunnyvale, CA 94085

Technical Support

Phone: (USA) 1-888-436-0657

E-mail: http://support.actiontec.com/email_support/support_form.php

Internet: www.actiontec.com/support

Installing the Wireless

Network Extender

This chapter explains how to plug in the Wireless Network Extender, how to load

the Extender’s Configuration Utility on a computer connected to the Homeline

network, and how to access the Homeline network (via the Extender) with a wire-

lessly-equipped computer.

☞

Note: The following procedures assume that the user has already

set up a Homeline network with a computer connected to

the network.,

Plugging in the Extender

To use the Extender properly, it should be plugged into an electrical outlet already

part of a Homeline network, with other devices (computers, printer servers, etc.)

connected to the network. The Power light will glow steadily green when the

Extender detects a HomeLine network.

Installing the Configuration Utility

To install the Extender’s Configuration Utility:

1. Insert the Installation CD in the CD-ROM drive of the computer connected to

the Homeline network.

2. When the “Welcome” screen appears, click Next.

Actiontec MegaPlug Wireless Network Extender User Manual

Chapter 2 Installing the Wireless Network Extender

3. When the “Choose Destination Screen” appears, click Next.

4. When this window appears, click Finish.

The Extender’s Configuration Utility is now installed on the computer. See

chapter 3, “Using the Configuration Utility,” for more information

Actiontec MegaPlug Wireless Network Extender User Manual

Chapter 2 Installing the Wireless Network Extender

Connecting a Wireless Computer to the Homeline Network

To connect a wirelessly-equipped computer to the Homeline network via the

Extender:

1. On the wirelessly-equipped computer, access to the wireless network interface.

2. Enter “Actiontec” in the interface’s “SSID” or “Network Name” text box. This is

the Extender’s default ESSID (Extended Service Set Identification) name.

☞

Note: The network name is case-sensitive, so make sure to enter

it exactly as shown.

3. Enter “A374936DCA” in the interface’s “WEP Key” text box. This is the

Extender’s default WEP key.

3. Close the wireless network interface on the computer. The Homeline network

should be accessible on the wirelessly-equipped computer.
