Adam Equipment

AZextra SERIES

(with EC type Approval)

(P.N. 6315, Rev.D, August 2017)

Software rev.: 2.29A & above

CONTENTS

1.0 INTRODUCTION.......................................................................................................2

1.1 FEATURES ...........................................................................................................2

1.2 SPECIFICATIONS.................................................................................................3

2.0 INSTALLATION.........................................................................................................3

2.1 LOCATING

THE

SCALES .....................................................................................3

2.2 SETTING

THE

SCALES ..................................................................................4

2.3 DISPLAY

WINDOWS ............................................................................................4

2.4 BATTERY

CHARGING..........................................................................................5

2.5 KEY

DESCRIPTIONS............................................................................................6

3.0 OPERATION.............................................................................................................7

3.1 ZEROING

THE

DISPLAY......................................................................................7

3.2 TARING.................................................................................................................7

3.3 DETERMINING

VALUE

PRODUCT

WEIGHT.........................................8

3.4 USING

STORED

PLU

VALUE

FOR

UNIT

PRICE...............................................8

3.5 ENTERING

VALUES

FOR

THE

PLU

..............................................................100

3.6 AUTO

CLEAR

KEY............................................................................................111

3.7 PRICE

PER

KILOGRAM

AND

PER

100

GRAM-

100

]

KEY........................111

3.8 AUTO

SLEEP

FUNCTION.................................................................................122

3.9 BACKLIGHT

OPERATION ................................................................................122

3.10 RS-232

INTERFACE.........................................................................................133

3.10.1 Input commands format..............................................................................133

3.10.2 RS-232 Setup.............................................................................................133

3.11 REAL

TIME

CLOCK

SETUP..............................................................................155

4.0 ERROR CODES ...................................................................................................166

5.0 CALIBRATION......................................................................................................177

5.1 CALIBRATION

PROCEDURE...........................................................................177

6.0 REPLACEMENT PARTS AND ACCESSORIES...................................................177

7.0 SERVICE INFORMATION ....................................................................................188

1.0 INTRODUCTION

The AZextra series of digital price-computing scales are EC Type approved.

These scales provide an accurate, fast and versatile method of computing

price by weight.

1.1 FEATURES

•Stainless steel weighing platform

•Level indicator with adjustable levelling feet

•Colour coded, sealed keypad

•Large 3 x 6 digits backlit liquid crystal displays (LCD)

•Displays for Weight, Unit Price and Total Price (or Price to Pay)

•Displays on both front and back panels (Optional user display on

pillar)

•Price per 100g and per kilogram (Not applicable for South Africa

and Far East)

•Auto-sleep function

•Auto clear function

•Real Time Clock (RTC) and date

•RS-232 bi-directional interface

•Battery operated for portability

•90 hours battery life when fully charged

•Up to 103 Prices (PLU) stored for easy access

1.2 SPECIFICATIONS

AZextra

15 AZextra

30 AZextra

3P*

AZextra

6P*

AZextra

15P* AZextra

30P*

Maximum Capacity 3 kg 6 kg 15 kg 30 kg 3 kg 6 kg 15 kg 30 kg

Readability 1 g 2 g 5 g 10 g 1 g 2 g 5 g 10 g

Tare -3 kg -6 kg -15 kg -30 kg -3 kg -6 kg -15 kg -30 kg

Pan size 225 x 275 mm

Operating

Temperature -10ºC to 40ºC

Battery life 90 hours typical

Battery Life is less when the backlight is used.

Power Mains power supply to an internal transformer

Interface RS-232 bi-directional interface

English, German, French, Spanish selectable text

Date/Time Real Time Clock (RTC), To print date and time information

(Dates in year/month/day, day/month/year or

month/day/year formats- Battery backed)

Display 3 x 6 digits backlit LCD displays

Housing ABS Plastic with Stainless Steel Pan

Overall Dimensions 315 x 355 x 110 mm 315 x 355 x 535 mm

Net Weight 4.3 kg 4.7 kg

*NOTE: AZextra-P models have the Pillar Display.

2.0 INSTALLATION

2.1 LOCATING THE SCALES

•

The scales should not be placed in a location that will reduce

the accuracy.

•Avoid extremes of temperature. Do not place in direct sunlight

or near air conditioning vents.

•Avoid unsuitable tables. The table or floor must be rigid and

not vibrate.

•Avoid unstable power sources. Do not use near large users of

electricity such as welding equipment or large motors.

•Do not place near vibrating machinery.

•Avoid high humidity that might cause condensation. Avoid

direct contact with water. Do not spray or immerse the scales

in water.

•Avoid air movement such as from fans or opening doors. Do

not place near open windows or air-conditioning vents.

•Keep the scales clean. Do not stack material on the scales

when they are not in use.

2.2 SETTING UP THE SCALES

•The scales come with a stainless steel platform, packed

separately.

•Place the platform in the receptacles on the top cover.

•Do not press with excessive force as that could damage the load

cell inside.

•If an optional scoop has been supplied, place it on top of the

platform.

•If an optional display on Pillar is supplied, install the pillar in the

upright position into the socket at the rear of the scale by carefully

pushing the cable inside the pillar rod. Secure the pillar rod to the

socket by using two M4 screws. A black plastic cap is provided to

seal the socket from the bottom to avoid damaging the cable.

•Level the scale by adjusting the four feet. The scale should be

adjusted such that the bubble in the spirit level is in the centre of

the level and the scale is supported by all four feet.

•Turn the power ON using the switch located on the right side of

the base.

•The unit will display the software revision number in the Weight

window and count down to zero while performing a self-test.

•When ready all three displays will show zero.

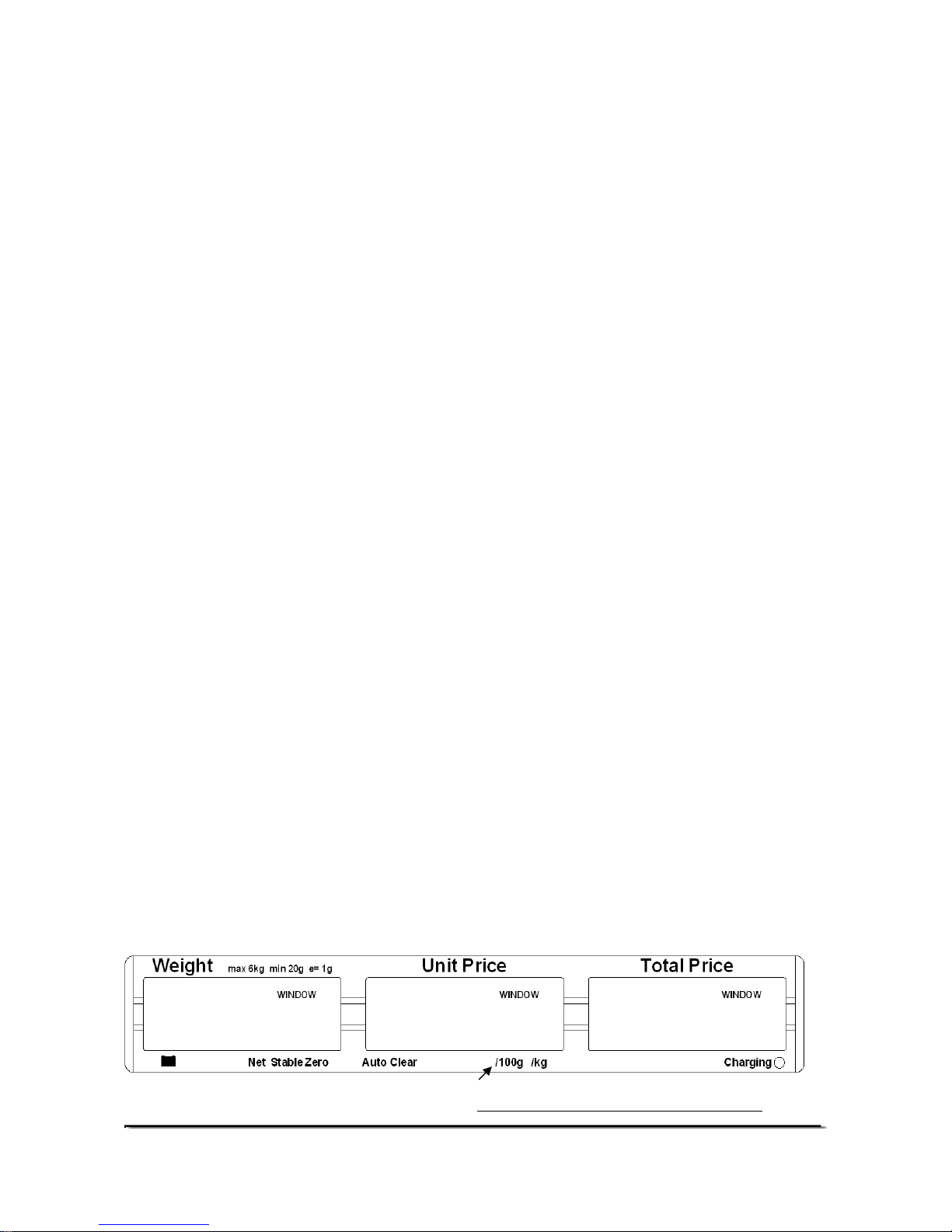

2.3 DISPLAY WINDOWS

Not applicable for South Africa and Far East

The window for the Weight has arrows to indicate when the scale is at zero

or if the scale is displaying a net weight (if a tare value has been entered). It

also indicates when the scale is stable.

The window for the Unit Price has arrows to show when the Auto Clear

function is active and if the unit price is per 100g or per kilogram.

NOTE: For South Africa and Far East, unit price per 100g or per kg is not

available.

The window for the Total Price displays the price of the items on the scale.

Below this window is a LED to show the status of the battery charging.

2.4 BATTERY CHARGING

•The scale has an internal rechargeable lead acid battery. This

battery will make the scale operate for 90 hours when fully

charged or less if the backlight is on.

•When the battery needs charging the arrow above the low battery

symbol under the Weight window will be on and the display

will show “LO bAt” for a few seconds and every 2 minutes as a

reminder. The battery should be charged immediately. The scale

will still operate for about 15 minutes after which it will

automatically switch off to protect the battery from getting

damaged.

•To charge the battery, simply switch the main power ON. The

scale need not be turned on.

•The battery should be charged for 12 hours for full capacity.

•Just under the Total Price window is an LED to indicate the

status of battery charging. When the scale is plugged into the

main power, the internal battery will be charged. If the LED is

green the battery is fully charged. If it is red the battery is nearly

discharged and yellow indicates the battery should be charged

longer, preferably overnight.

•If the battery has not been used properly or it is used for a number

of years it may eventually fail to hold a full charge. If the battery

life becomes unacceptable then contact your distributor or Adam

Equipment.

The above display panel is also available with French, German, Spanish, Dutch

and Italian text or with symbols for Weight, Unit Price and Total Price.

2.5 KEY DESCRIPTIONS

Not applicable for South Africa and Far East

[0-9] keys

Numeric entry keys to set the unit price.

[00] key

Numeric entry keys to enter double zero values.

For example, to enter 2 pounds or Euros, press [2] and [00]. The display will

show “2.00”.

[CE] key

Clears an erroneous entry or return to normal operation.

[PLU1] to [PLU+] keys

Stores or recalls one of the PLU values. [PLU1] and [PLU2] are to

immediately recall the most used PLU values. [PLU+] is used to select any of

the 99 additional values.

[Tare] or key

It tares the scale to display zero weight when an empty container is placed on

the platform or removed again.

[Zero] or key

It sets the zero when the platform is empty and no tare value is entered.

[Auto Clear] key

It enables the user to automatically reset the unit price to zero, when the

weight is removed.

[Kg 100g] key

It selects the unit price per kilogram or per 100g.

NOTE: For South Africa and Far East, unit price per 100g or per kg is not

available.

[Print] key

It sends the results of the current displays to the RS-232 interface.

3.0 OPERATION

3.1 ZEROING THE DISPLAY

•You can press the [Zero] key when no tare is entered to set the

zero point from which all other weighing is measured. This will

usually be necessary when the platform is empty.

•When the zero point is obtained the Weight window will show an

arrow next to the Zero legend marked under the Weight window.

•The scale has an automatic re-zeroing function to account for

minor drifting or accumulation of material on the platform.

However you may need to press [Zero] to re-zero the scale if

small amounts of weight are shown when the platform is empty.

3.2 TARING

•Taring is used to eliminate the weight of a container so that only

the net weight is displayed.

•Zero the scale by pressing [Zero] if necessary. The zero indicator

will be on.

•Place an empty container on the platform. The weight of the

container will be displayed.

•Press [Tare] to zero the scale. The weight that was displayed is

stored as the tare value and that value is subtracted from the

display, leaving zero on the display. The Net indicator will be on.

As product is added only the weight of the product will be shown.

•When the product and container are removed the weight window

will show a negative value. If a different container is to be used,

remove this negative tare value by pressing the [Tare] once more.

3.3 DETERMINING VALUE OF A PRODUCT BY WEIGHT

•To determine the cost of a product sold by weight, it is necessary

to enter the cost per kilogram or per 100g using the numeric keys

or one of the preset PLU values.

•The Weight window will show the net weight, the Unit Price

window will show the price per kilogram or per 100g as selected

by the [kg 100g] key. The Total Price window will show the

computed value for the total price.

Example:

Display will show

Weight

(in kg)

Unit Price

Total Price

Place a container on the

scale and Press [Tare]

0.000

0.00

Place the items on the

platform

1.300

0.00

Key in the unit price

1.300

5.00

6.50

•Press the [kg 100g] key to change the calculation to a price

based on the cost per 100g or the cost per kilogram.

•If a different unit price is required either press [CE] to reset the

unit price to 0.00 or simply enter a new unit price.

NOTE: For South Africa and Far East, unit weight per 100g or per kg is not available.

3.4 USING A STORED PLU VALUE FOR UNIT PRICE

Product Look-Up (PLU) numbers are used to store information about the

most commonly used items. Using AZextra, the PLU values can be stored as

either cost per kilogram or cost per 100g. During the weighing operation, the

user can recall the cost per kilogram or per 100g of a particular item very

easily using the PLU values.

NOTE: For South Africa and Far East, unit price per 100g or per kg is not

available.

Andere Handbücher für AZextra 3

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Adam Equipment Skala Handbücher

Adam Equipment

Adam Equipment NETS ME Price Bedienungsanleitung

Adam Equipment

Adam Equipment CQT1751GR Bedienungsanleitung

Adam Equipment

Adam Equipment ACBplus Series Bedienungsanleitung

Adam Equipment

Adam Equipment CBK-M Series Bedienungsanleitung

Adam Equipment

Adam Equipment PTS plus Series Bedienungsanleitung

Adam Equipment

Adam Equipment CFC SERIES Bedienungsanleitung

Adam Equipment

Adam Equipment CRW Series Bedienungsanleitung

Adam Equipment

Adam Equipment MUW 300L Bedienungsanleitung

Adam Equipment

Adam Equipment CBC 3 Bedienungsanleitung

Adam Equipment

Adam Equipment CB 501 Bedienungsanleitung

Adam Equipment

Adam Equipment CBD 100a Bedienungsanleitung

Adam Equipment

Adam Equipment RAV Series Bedienungsanleitung

Adam Equipment

Adam Equipment GBC Series Bedienungsanleitung

Adam Equipment

Adam Equipment AZextra 3 Bedienungsanleitung

Adam Equipment

Adam Equipment AZextra Series Bedienungsanleitung

Adam Equipment

Adam Equipment Cruiser CKT Series Bedienungsanleitung

Adam Equipment

Adam Equipment AGB Series Bedienungsanleitung

Adam Equipment

Adam Equipment Cruiser Count Series Bedienungsanleitung

Adam Equipment

Adam Equipment HCB-J Jewellery Series Bedienungsanleitung

Adam Equipment

Adam Equipment WSK 8 Bedienungsanleitung

Adam Equipment

Adam Equipment CQT1752GR Bedienungsanleitung

Adam Equipment

Adam Equipment MCW-250 L Bedienungsanleitung

Adam Equipment

Adam Equipment CPW 25 Bedienungsanleitung

Adam Equipment

Adam Equipment CBC SERIES Bedienungsanleitung

Beliebte Skala Handbücher anderer Marken

AWS

AWS ZEO-50 Bedienungsanleitung

Gima

Gima Glass Body Fat Analyzer Stücklistenhandbuch

Seca

Seca 374 Bedienungsanleitung

TEC

TEC TEC SL59 SERIES Bedienungsanleitung

Axis

Axis B/E Series Bedienungsanleitung

Alecto

Alecto ACW-40 Bedienungsanleitung

Rice Lake

Rice Lake MSI-4260 IS Bedienungsanleitung

IKA

IKA RCT basic safety control Bedienungsanleitung

ADE

ADE M20011 Bedienungsanleitung

Duronic

Duronic KS3000 Bedienungsanleitung

Digi

Digi SM-720 Bedienungsanleitung

Cardinal

Cardinal CS Series Bedienungsanleitung

Korona

Korona Kastella Bedienungsanleitung

A&D

A&D FC-50Ki Bedienungsanleitung

BDA

BDA CAMARGUE Bedienungsanleitung

Tanita

Tanita HD-357 Bedienungsanleitung

Leifheit

Leifheit 03173 Bedienungsanleitung

Lumme

Lumme LU-1340 Bedienungsanleitung
