ADC ML-145 Administratorhandbuch

ADC Part No. 112247

For replacement parts, contact the distributor from which the dryer

was purchased or

American Dryer Corporation

88 Currant Road

Fall River MA 02720-4781

Telephone: (508) 678-9000 / Fax: (508) 678-9447

E-mail: techsupport@amdry.com

012097MM/tf

WARNING: For your safety the

information in this manual must be

followed to minimize the risk of fire or

explosion or to prevent property damage,

personal injury or death.

Do not store or use gasoline or other flammable

vapor and liquids in the vicinity of this or any

other appliance.

WHAT DO YOU DO IF YOU SMELL GAS

* Do not try to light any appliance.

* Do not touch any electrical switch; do not use

any phone in your building.

* Clear the room, building or area of all

occupants.

* Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions.

* If you cannot reach your gas supplier, call the

fire department.

Installation and service must be performed by a

qualified installer, service agency or the gas

supplier.

AVERTISSEMENT: Assurez-vous de bien

suivre les instructions données dans cette

notice pour réduire au minimum le risque

dincendie ou dexplosion ou pour éviter tout

dommage matériel, toute blessure ou la mort.

Ne pas entreposer ni utiliser dessence ni

dautres vapeurs ou liquides inflammables dans

le voisinage de cet appareil ou de tout autre

appareil.

QUE FAIRE SI VOUS SENTEZ UNE ODEUR

DE GAZ:

* Ne pas tenter dallumer dappareil.

* Ne touchez à aucun interrupteur. Ne pas

vous servir des téléphones se trouvant dans

le bâtiment où vous vous trouvez..

* Évacuez la pièce, le bâtiment ou la zone.

* Appelez immédiatement votre fournisseur de

gaz depuis un voisin. Suivez les instructions

du fournisseur.

* Si vous ne pouvez rejoindre le fournisseur

de gaz, appelez le service des incendies.

Linstallation et lentretien doivent être assurés

par un installateur ou un service dentretien

qualifié ou par le fournisseur de gaz.

ML-145

Installation/Operator's Manual

All manuals and user guides at all-guides.com

all-guides.com

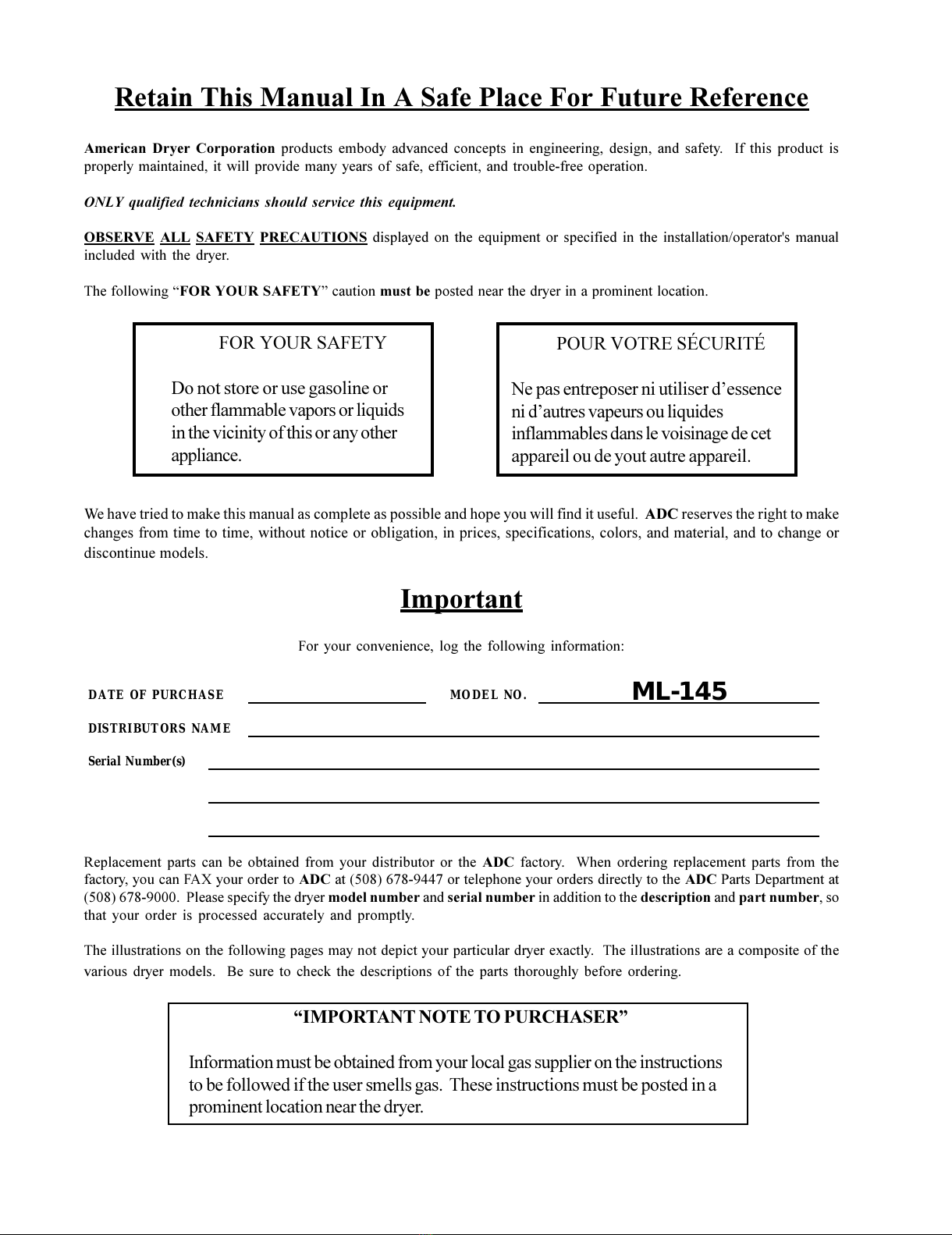

Retain This Manual In A Safe Place For Future Reference

Replacement parts can be obtained from your distributor or the ADC factory. When ordering replacement parts from the

factory, you can FAX your order to ADC at (508) 678-9447 or telephone your orders directly to the ADC Parts Department at

(508) 678-9000. Please specify the dryer model number and serial number in addition to the description and part number, so

that your order is processed accurately and promptly.

The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite of the

various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.

DATE OF PURCHASE MODEL NO.

DISTRIBUTORS NAME

Serial Number(s)

ML-145

IMPORTANT NOTE TO PURCHASER

Information must be obtained from your local gas supplier on the instructions

to be followed if the user smells gas. These instructions must be posted in a

prominent location near the dryer.

American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is

properly maintained, it will provide many years of safe, efficient, and trouble-free operation.

ONLY qualified technicians should service this equipment.

OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation/operator's manual

included with the dryer.

The following FOR YOUR SAFETY caution must be posted near the dryer in a prominent location.

FOR YOUR SAFETY

Do not store or use gasoline or

other flammable vapors or liquids

in the vicinity of this or any other

appliance.

POUR VOTRE SÉCURITÉ

Ne pas entreposer ni utiliser dessence

ni dautres vapeurs ou liquides

inflammables dans le voisinage de cet

appareil ou de yout autre appareil.

We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make

changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or

discontinue models.

Important

For your convenience, log the following information:

All manuals and user guides at all-guides.com

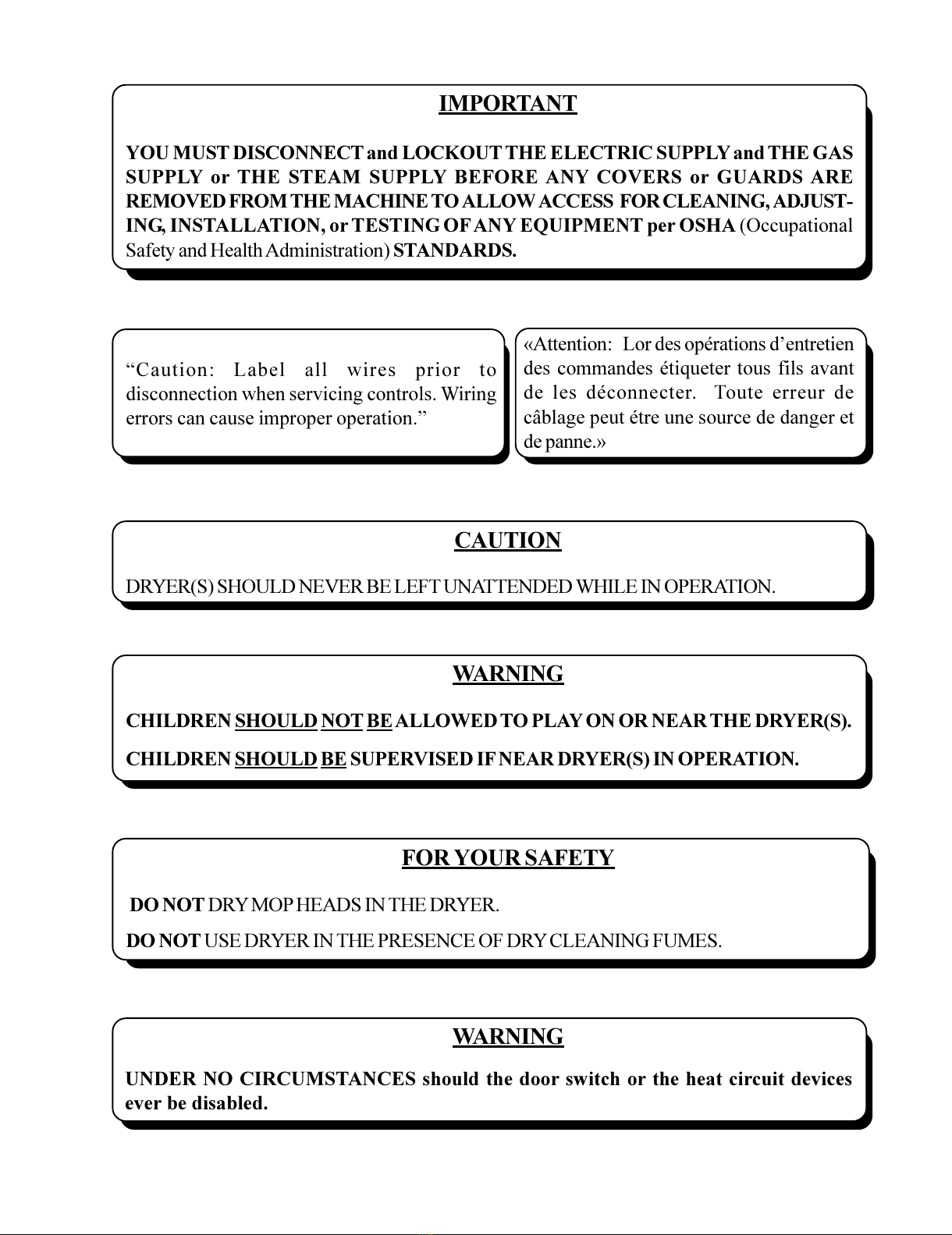

IMPORTANT

YOU MUST DISCONNECT and LOCKOUTTHE ELECTRIC SUPPLYand THE GAS

SUPPLY or THE STEAM SUPPLY BEFORE ANY COVERS or GUARDS ARE

REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING, ADJUST-

ING, INSTALLATION, or TESTING OFANY EQUIPMENT per OSHA (Occupational

Safety and HealthAdministration) STANDARDS.

CHILDREN SHOULD NOT BEALLOWED TO PLAYON OR NEAR THE DRYER(S).

WARNING

CHILDREN SHOULD BE SUPERVISED IF NEAR DRYER(S) IN OPERATION.

DRYER(S) SHOULD NEVER BE LEFT UNATTENDED WHILE IN OPERATION.

CAUTION

FOR YOUR SAFETY

DO NOT DRYMOPHEADS IN THE DRYER.

DO NOT USE DRYER IN THE PRESENCE OF DRYCLEANING FUMES.

WARNING

UNDER NO CIRCUMSTANCES should the door switch or the heat circuit devices

ever be disabled.

Caution: Label all wires prior to

disconnection when servicing controls. Wiring

errors can cause improper operation.

«Attention: Lor des opérations dentretien

des commandes étiqueter tous fils avant

de les déconnecter. Toute erreur de

câblage peut étre une source de danger et

de panne.»

All manuals and user guides at all-guides.com

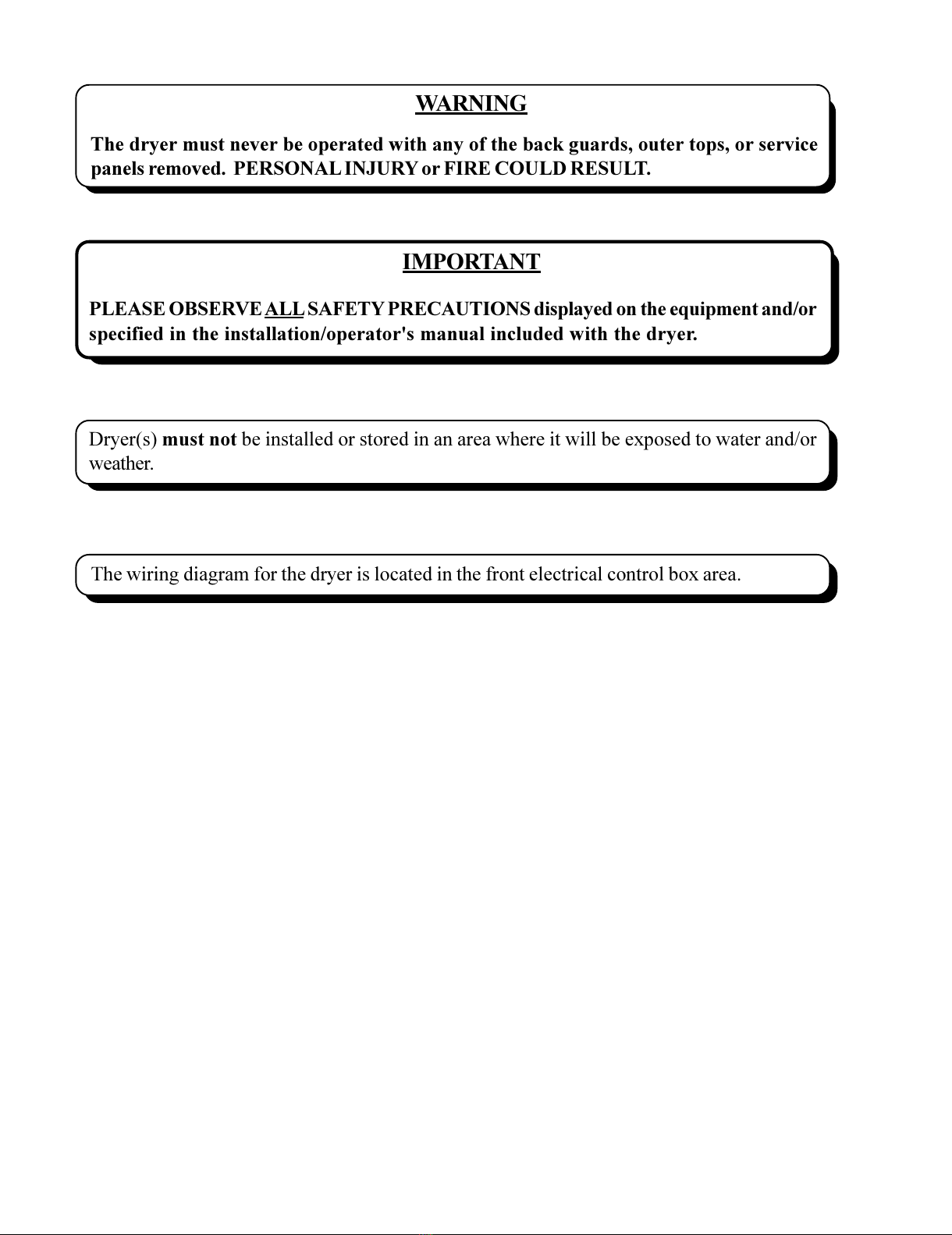

WARNING

The dryer must never be operated with any of the back guards, outer tops, or service

panels removed. PERSONALINJURY or FIRE COULD RESULT.

IMPORTANT

PLEASE OBSERVEALLSAFETY PRECAUTIONS displayed on the equipment and/or

specified in the installation/operator's manual included with the dryer.

Dryer(s) must not be installed or stored in an area where it will be exposed to water and/or

weather.

The wiring diagram for the dryer is located in the front electrical control box area.

All manuals and user guides at all-guides.com

Table of Contents

SECTION I

IMPORTANT INFORMATION ............................................................................... 3

A. Receiving and Handling ............................................................................................................... 3

B. Safety Precautions ....................................................................................................................... 4

SECTION II

SPECIFICATIONS/COMPONENT IDENTIFICATION .................................... 6

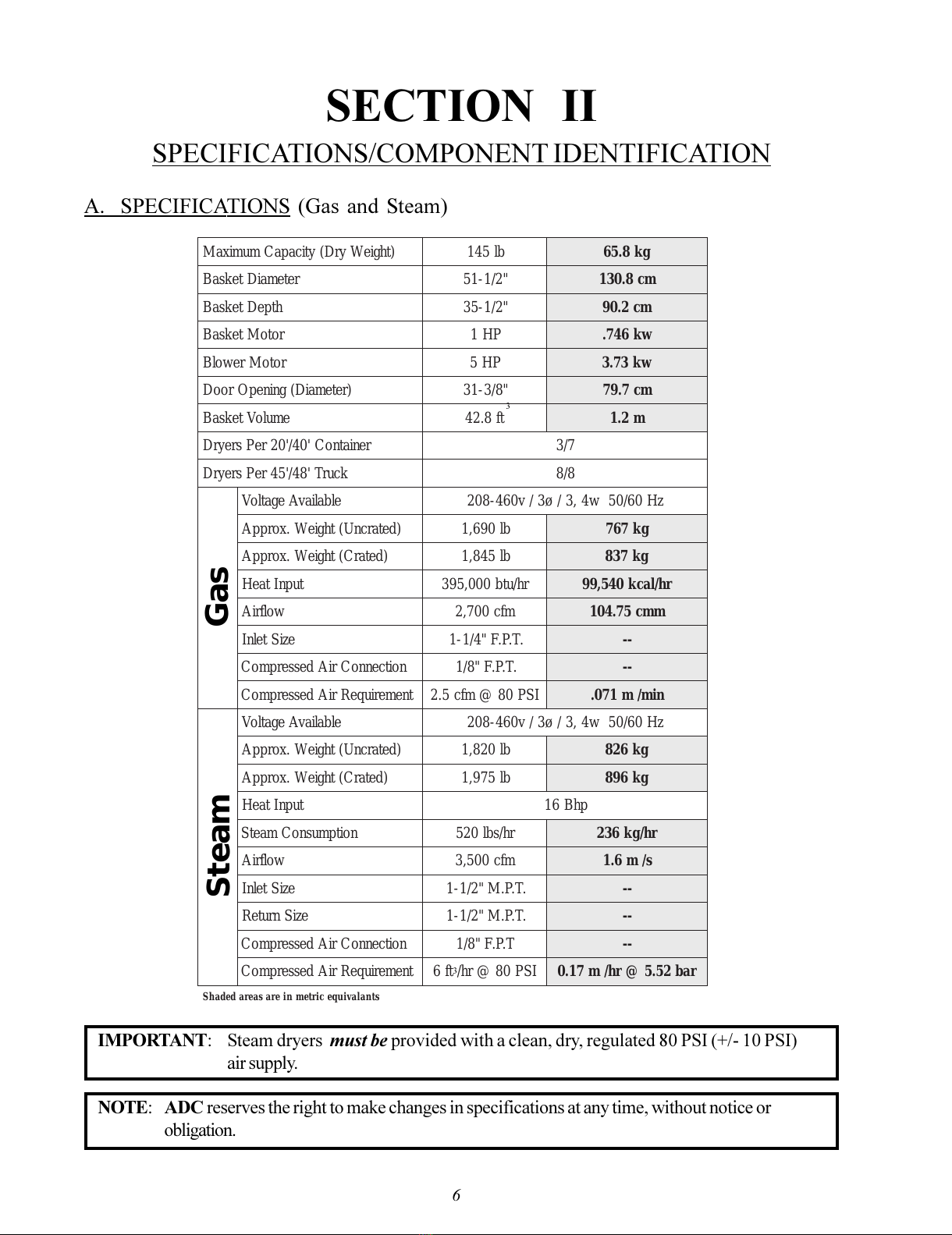

A. Specifications (Gas and Steam) ................................................................................................... 6

B. Component Identification ............................................................................................................. 8

SECTION III

INSTALLATION PROCEDURES ......................................................................... 10

A. Location Requirements .............................................................................................................. 10

B. Unpacking/Setting Up ............................................................................................................... 11

C. Dryer Enclosure Requirements .................................................................................................. 13

D. Fresh Air Supply Requirements ................................................................................................. 14

E. Exhaust Requirements ............................................................................................................... 15

F. Electrical Information ................................................................................................................ 21

G. Gas Information ........................................................................................................................ 25

H. Steam Information ..................................................................................................................... 29

I. Preparation For Operation/Start-Up .......................................................................................... 33

J. Preoperational Tests .................................................................................................................. 34

K. Shut Down Instructions ............................................................................................................. 36

L. Compressed Air Requirements .................................................................................................. 37

SECTION IV

SERVICE/PARTS INFORMATION ...................................................................... 38

A. Service ..................................................................................................................................... 38

B. Parts ......................................................................................................................................... 38

SECTION V

WARRANTY INFORMATION .............................................................................. 39

A. Returning Warranty Card(s) ...................................................................................................... 39

B. Parts ......................................................................................................................................... 39

C. Returning Warranty Part(s) ........................................................................................................ 39

All manuals and user guides at all-guides.com

SECTION VI

ROUTINE MAINTENANCE .................................................................................. 41

A. Cleaning ................................................................................................................................... 41

B. Adjustments .............................................................................................................................. 43

C. Lubrication ............................................................................................................................... 43

SECTION VII

DATA LABEL LOCATION/INFORMATION ..................................................... 44

SECTION VIII

PROCEDURE FOR FUNCTIONAL CHECK OF REPLACEMENT

COMPONENTS ........................................................................................................46

All manuals and user guides at all-guides.com

all-guides.com

SECTION I

IMPORTANT INFORMATION

A. RECEIVING and HANDLING

The dryer is shipped in a protective stretch wrap cover with protective cardboard corners and top cover (or

optional box) as a means of preventing damage in transit. Upon delivery, the dryer and/or packaging, and wooden

skid should be visually inspected for shipping damage. If any damage whatsoever is noticed, inspect further

before delivering carrier leaves.

Dryers damaged in shipment:

1. ALL dryers should be inspected upon receipt and before they are signed for.

2. If there is suspected damage or actual damage, the trucker's receipt should be so noted.

3. If the dryer is damaged beyond repair, it should be refused. Those dryers which were not damaged in a

damaged shipment should be accepted, but the number received and the number refused must be noted on

the receipt.

4. If you determine that the dryer was damaged after the trucker has left your location, you should call the

delivering carrier's freight terminal immediately and file a claim. The freight company considers this concealed

damage. This type of freight claim is very difficult to get paid and becomes extremely difficult when more

than a day or two passes after the freight was delivered. It is your responsibility to file freight claims. Dryer/

parts damaged in transit cannot be claimed under warranty.

5. Freight claims are the responsibility of the consignee, and ALL claims must be filed at the receiving end.

ADC assumes no responsibility for freight claims or damages.

6. If you need assistance in handling the situation, please contact the ADC Traffic Manager at (508) 678-9000.

IMPORTANT: The dryer must be transported and handled in an upright position at all times.

All manuals and user guides at all-guides.com

B. SAFETY PRECAUTIONS

WARNING: For your safety, the information in this manual must be followed to minimize the risk of

fire or explosion or to prevent property damage, personal injury, or loss of life.

WARNING: The dryer must never be operated with any of the back guards, outer tops, or

service panels removed.

PERSONALINJURY or FIRE COULD RESULT.

1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other

appliance.

2. Purchaser/user should consult the local gas supplier for proper instructions to be followed in the event the

user smells gas. The instructions should be posted in a prominent location.

3. WHAT TO DO IF YOU SMELL GAS...

a. DO NOT try to light any appliance.

b. DO NOT touch any electrical switch.

c. DO NOT use any phone in your building.

d. Clear the room, building, or area of ALL occupants.

e. IMMEDIATELY call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

f. If you cannot reach your gas supplier, call the fire department.

4. Installation and service must be performed by a qualified installer, service agency, or gas supplier.

5. Dryer(s) must be exhausted to the outdoors.

6. Although ADC produces a very versatile machine, there are some articles that, due to fabric composition or

cleaning method, should not be dried in it.

WARNING: Dry only water-washed fabrics. DO NOT dry articles spotted or washed in dry cleaning

solvents, a combustible detergent, or "all purpose" cleaner.

EXPLOSION COULD RESULT.

WARNING:DO NOT dry rags or articles coated or contaminated with gasoline, kerosene, oil, paint,

or wax.

EXPLOSION COULD RESULT.

All manuals and user guides at all-guides.com

WARNING:DO NOT dry mop heads. Contamination by wax or flammable solvent will create a

fire hazard.

WARNING:DO NOT use heat for drying articles that contain plastic, foam, sponge rubber, or

similarly textured rubberlike materials. Drying in a heated basket (tumbler) may damage

plastics or rubber and also may be a fire hazard.

7. A program should be established for the inspection and cleaning of lint in the burner area, exhaust duct

work, and area around the back of the dryer. The frequency of inspection and cleaning can best be

determined from experience at each location.

WARNING: The collection of lint in the burner area and exhaust duct work can create a potential fire

hazard.

8. For personal safety, the dryer must be electrically grounded in accordance with local codes and/or the

NATIONAL ELECTRIC CODE ANSI/NFPA NO. 70-LATEST EDITION, or in Canada, the CANADIAN

ELECTRICAL CODES PARTS 1 & 2 CSA C22.1-1990 or LATEST EDITION.

NOTE: Failure to do so will VOID THE WARRANTY.

9. UNDER NO CIRCUMSTANCES should the dryer door switches, lint drawer switch, or heat safety

circuit, ever be disabled.

WARNING: PERSONAL INJURY or FIRE COULD RESULT.

10. This dryer is not to be used in the presence of dry cleaning solvents or fumes.

11. Remove articles from the dryer as soon as the drying cycle has been completed.

WARNING: Articles left in the dryer after the drying and cooling cycles have been complete can create

a fire hazard.

12. READ and FOLLOW ALL CAUTION and DIRECTION LABELS ATTACHED TO THE DRYER.

WARNING: YOU MUST DISCONNECT and LOCKOUTTHE ELECTRIC SUPPLYand

THE GAS SUPPLY or THE STEAM SUPPLY BEFOREANYCOVERS or

GUARDS ARE REMOVED FROM THE MACHINE TO ALLOW ACCESS

FOR CLEANING, ADJUSTING, INSTALLATION, or TESTING OFANY

EQUIPMENT per OSHA (Occupational Safety and Health Administration)

STANDARDS.

All manuals and user guides at all-guides.com

IMPORTANT: Steam dryers must be provided with a clean, dry, regulated 80 PSI (+/- 10 PSI)

air supply.

NOTE:ADC reserves the right to make changes in specifications at any time, without notice or

obligation.

Gas

Steam

SECTION II

SPECIFICATIONS/COMPONENT IDENTIFICATION

A. SPECIFICATIONS (Gas and Steam)

)thgieWyrD(yticapaCmumixaMbl541 gk8.56

retemaiDteksaB"2/1-15 mc8.031

htpeDteksaB"2/1-53 mc2.09

rotoMteksaBPH1 wk647.

rotoMrewolBPH5 wk37.3

)retemaiD(gninepOrooD"8/3-13 mc7.97

emuloVteksaBtf8.24 m2.1

reniatnoC'04/'02rePsreyrD7/3

kcurT'84/'54rePsreyrD8/8

elbaliavAegatloVzH06/05w4,3/ø3/v064-802

)detarcnU(thgieW.xorppAbl096,1 gk767

)detarC(thgieW.xorppAbl548,1 gk738

tupnItaeHrh/utb000,593 rh/lack045,99

wolfriAmfc007,2 mmc57.401

eziStelnI.T.P.F"4/1-1 --

noitcennoCriAdesserpmoC.T.P.F"8/1 --

tnemeriuqeRriAdesserpmoCISP08@mfc5.2 nim/m170.

elbaliavAegatloVzH06/05w4,3/ø3/v064-802

)detarcnU(thgieW.xorppAbl028,1 gk628

)detarC(thgieW.xorppAbl579,1 gk698

tupnItaeHphB61

noitpmusnoCmaetSrh/sbl025 rh/gk632

wolfriAmfc005,3 s/m6.1

eziStelnI.T.P.M"2/1-1 --

eziSnruteR.T.P.M"2/1-1 --

noitcennoCriAdesserpmoCT.P.F"8/1 --

tnemeriuqeRriAdesserpmoCISP08@rh/tf6 rab25.5@rh/m71.0

stnalaviuqecirtemnierasaeradedahS

All manuals and user guides at all-guides.com

Andere Handbücher für ML-145

Inhaltsverzeichnis

Andere ADC Klimaanlage Handbücher

ADC

ADC PG-PLUS PCU-796 Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
