ADDER EPowerSwitch 8XS Bedienungsanleitung

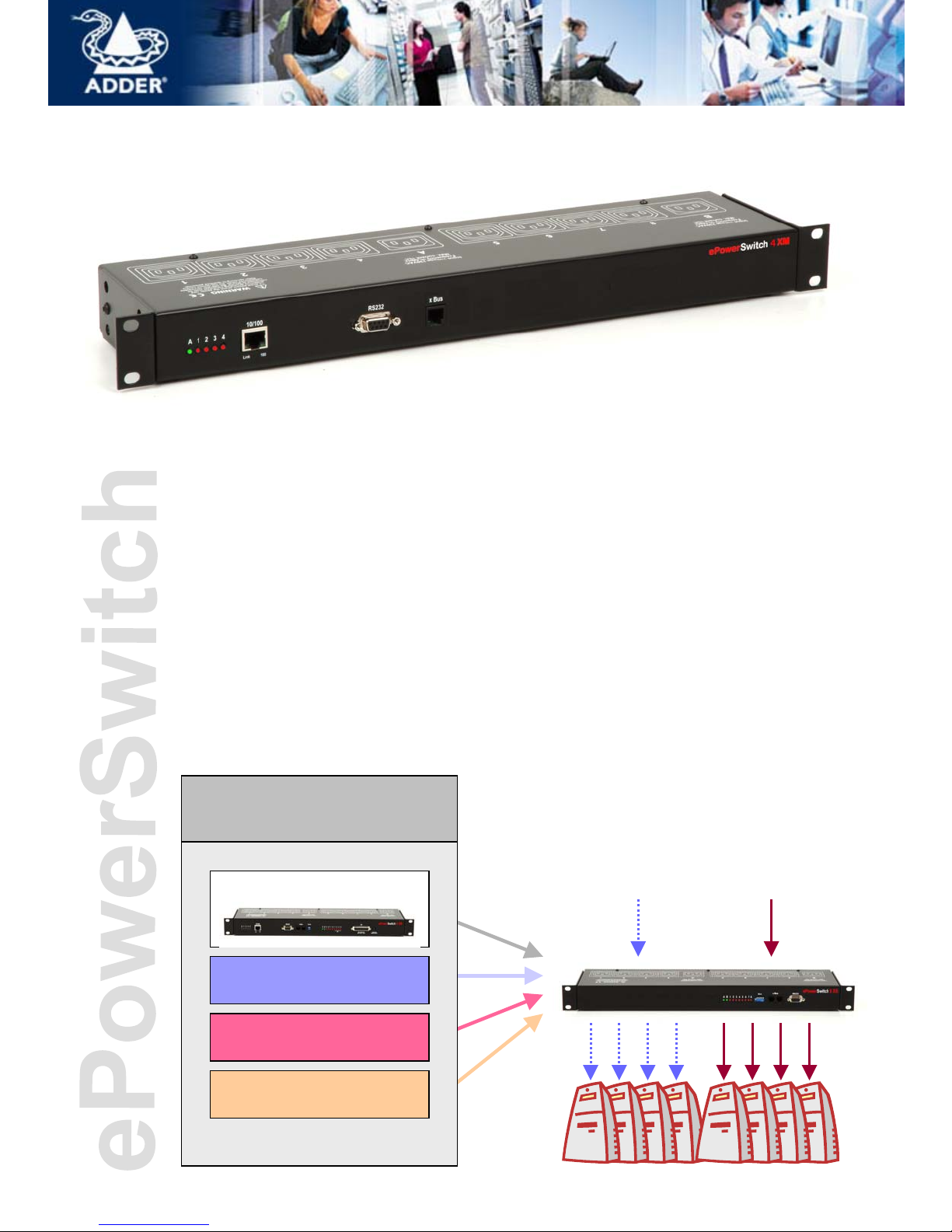

ePowerSwitch 8XS Satellite

Features

On, Off, Toggle and Restart functions

Each power outlet can be turned On/Off, toggled

or restarted through an RS-232 Terminal

connection of a PC, a KVM switch or a Console

Server. The number of controlled outlets can be

extended up to 32 by cascading 4 Satellite

models.

Two separate AC Power Inputs

To improve the security and increase the total current

load the ePowerSwitch 8XS Satellite has two

separate power inputs. The first one provides power

for plugs 1 to 4 and the second one for plugs 5 to 8.

This feature is ideal for power management of servers

with redundant power supplies.

Sequential power up/down

Avoids the risk of a power inrush to blow a fuse

or circuit breaker in the data centre.

Integrated RS232 / RS485 Converter

This ePowerSwitch can be controlled either using an

RS232 or a long distance RS485 network.

230 VAC 230 VAC

Power control over

Terminal connection

RS 232

KVM Switch

Console Server

ePowerSwitch 8XM

ePowerSwitch 8XS Satellite is a Power Distribution and Control Unit that enables power

management of 8 devices through an RS232 or RS485 Terminal connection. The controlled

power outlets can be extended up to 128 by cascading up to 16 Satellite models. This

ePowerSwitch is ideal to control power outlets through the serial connection of a PC, a KVM

switch or a Console Server. It can also be connected to a ePowerSwitch Master to extend the

number of controlled Power Outlets over IP.

Technology House - Trafalgar Way Bar Hill - Cambridge - UK CB3 8SQ

Tel:+44 (0)1954 780044 - Fax:+44 (0)1954 780081

http://www.adder.com

ePowerSwitch 8XS Satellite

What’s included

1 EPS 8XS-XX (XX= specifies delivered power cables, see below)

2 power cables IEC-320-C13 to XX (EU = Schuko/Europe standard,

CH =Swiss standard or UK = British standard) 1.80 Meters

1 RJ11 link up cable

1 SUB-D 9 M/F cable, 1,80 Meters

Benefits

Cascadable with ePowerSwitch 8XM

Power Control of up to 128 Power Outlets through a PC, KVM

Switch or Console Server

Integrated RS232 / RS485 Converter.

Dual Power Inputs allows increasing the total load and control

devices with redundant power supplies

Power-up sequencing avoids in-rushes currents at start-up

Occupies only 1U of rack space.

LEDs indicates the status of the AC sources and the Power Outlets.

Front side / Back side

A series of front-panel LEDs provide quick status checks.

2 separate AC inputs allow power managing of devices

with redundant power supply and a total load of 20 A.

Accessories

Power Cable 230 V / 10 A

Swiss standard

Swiss to IEC-320 C13

1.80 Meters, Black, Part-Nr.: 19.08.1220

Power Cable 230 V / 10 A

Schuko/Europe standard

Schuko CEE 7/EU1-16P to IEC-320 C13

1.80 Meters, Black, Part-Nr. 19.99.1018 Technical Features

Serial connection RS232, SUB-D 9 female

Nominal input voltage 230 V/50Hz

Input power socket IEC-320

Output voltage 230 V/50Hz

Output power socket IEC-320

Maximum total current 2 x 10 A

Maximum current / outlet 10 A

LEDs 1 for Power and Network Traffic

1 for socket status

Operating temperature 0°C to +40°C

Operating humidity 10% to 80%

Dimensions 437 x 107 x 42 mm

Weight 2 Kg

Approvals CE, EN55022 & EN55024

Guarantee 2 years repair or replace

Power Cable 230 V / 10 A

United Kingdom standard

British BS1363A to IEC-320 C13

1.80 Meters, Black, Part-Nr.: 80.90.10

Power Cable 230 V / 10 A

IEC-320 C14 male to IEC-320 C13 female

1.80 Meters, Black, Part-Nr.: 19.99.1515

Horizontal Rack mounting kit

with cable fastening

Part-Nr.: EPS-CABMAN

Vertical rack mounting kit

Part-Nr.: EPS-RACKMOUNT

All modifications reserved

Technology House

Trafalgar Way Bar Hill

Cambridge

UK CB3 8SQ

Tel:+44 (0)1954 780044

Fax:+44 (0)1954 780081
