ADDER SmartView MultiScreen Bedienungsanleitung

SmartView Multiscreen Serial

Four-port KVM and serial switch



SMARTVIEW MULTISCREEN

 







SECT 1

Contents

Welcome

Introduction.................................................................................2

Serial line switching ..........................................................2

Standard items.............................................................................3

Additional and optional items....................................................4

Installation

Locations ......................................................................................5

Mounting .....................................................................................5

Making connections ....................................................................6

System connections ...............................................................6

Peripheral connections ...........................................................8

Optional power supply connection .......................................8

Remote control connections ..................................................9

Channel switching via RS232 control.....................................9

Cascading SmartView Multiscreen Serial units ...................10

Cascade connections ........................................................10

Cascade system selection .................................................10

Synchronising SmartView Multiscreen Serial units.............11

Hot plugging and mouse restoration .............................12

Operation

The SYSTEM readout.................................................................13

Selecting systems .......................................................................13

Conﬁguration options...............................................................14

Setting (or changing) a password........................................14

Changing hotkeys .................................................................14

Mouse button switching modes...........................................15

All channel/active channel cycling .......................................15

Automatic screen saver ........................................................15

Autoscanning computer selection .......................................16

Autoscanning dwell timing..................................................16

Miscellaneous functions .......................................................16

Resetting and restoring default settings.............................16

Upgrading .............................................................................17

Further information

Troubleshooting ........................................................................18

Getting assistance......................................................................18

Upgrade cable pin out ..............................................................18

Synchronisation cable pin out ..................................................18

Safety information ....................................................................19

Warranty ....................................................................................19

Emissions and Immunity............................................................20

 







PC4PC3PC3PC1 PC2

SMARTVIEW MULTISCREEN

SECT 2

Remote control

allows the main

unit to be neatly

concealed away

from view.

Welcome

Introduction

The Adder SmartView Multiscreen Serial is a four-way KVM switch

designed for systems using multiple touch screens. The unit allows a

single keyboard, mouse and (up to) two video monitors to control four

separate dual screen host systems.

Switching between the systems connected to the Adder SmartView

Multiscreen Serial can be achieved in ﬁve different ways:

• The front panel button,

• The optional Remote control selector,

• Keyboard hotkey combinations,

• Mouse button combinations,

• By external serial device control using the OPTIONS/FLASH port.

The Adder SmartView Multiscreen Serial is available in two models:

• SVMS4-S supports a single video monitor and serial device per

switched port,

• SVMS4-DS supports dual video monitors and serial devices per

switched port.

Serial line switching

In common with all other Adder switches, the SmartView Multiscreen

Serial provides completely transparent switching for the serial lines (in

unison with the keyboard, video and mouse channels). Apart from the

ground connections of each serial port (which remain permanently

connected), all RS232 signal lines are switched. No baud rates or serial

protocols need to be conﬁgured because no interpretation is made of

the signals as they are cleanly passed through the unit.

The video display(s) with touch screen(s),

keyboard and mouse are common to all of the

systems and are electronically connected to

the required one using any of four switching

methods. Switching can be initiated from either

the keyboard or mouse in addition to the unit or

optional remote control.

The display clearly

shows which system

is currently connected

to the display(s)

keyboard and mouse.

 







A 4A 3A 2A 1A

B 4B 3B 2B 1B

C 4C 3C 2C 1C

D 4D 3D 2D 1D

OPTIONS/ FLASH

OPTIONAL

POWER

INDOOR

USE ONL

Standard items

Adder SmartView Multiscreen Serial

model SVMS4-S

A 4A 3A 2A 1A

B 4B 3B 2B 1B

C 4C 3C 2C 1C

D 4D 3D 2D 1D

OPTIONS / FLASH

OPTIONAL

POWER

INDOOR

USE ONL

Adder SmartView Multiscreen Serial

model SVMS4-DS

One video input and one

serial channel per port

Two video inputs and two

serial channels per port

 







Optional power supply (required only

when long cables are used or for a

slave unit in synchronised mode) plus

country-speciﬁc mains cable

Adder P/N: PSU-IEC-5VDC

PS/2-style keyboard/mouse cable, 2 metres

(two required per system)

Adder P/N: VSC3

Additional and optional items

CCP2U converter (required when

connecting to a system that uses

a USB keyboard and mouse - two

VSC3 cables are also required)

Adder P/N: CCP2U

RC4 remote control plus link cable

Flash upgrade

link cable

Converter for connecting a SUN

computer to the Adder unit

(not pictured)

Adder P/N: CCSUN

RC1 remote control plus link cable

 







Installation

Locations

Please consider the following important points when planning the position of

the Adder SmartView Multiscreen Serial unit:

• Situate the Adder unit close to the systems to which it will be connected.

The Adder unit does not require a power supply providing that its

connection cables are no longer than 2 metres.

• Thanks to the remote control, the Adder unit can be situated out of sight

behind a desk or adjacent to the systems.

• Consult the precautions listed within the Safety information section.

SECT 3

Mounting

Before you begin connecting to the keyboard, mouse and source systems, it is

advisable to mount the unit in place, either:

• On a horizontal surface using the supplied self adhesive feet, or

• Amongst the cabling at the rear of the desk.

 







Making connections

Connections to the Adder unit do not need to follow the precise order given in

this user guide, although if one or more systems must be hot-plugged, connect

these after all other connections have been made.

System connections

To make keyboard and mouse links (PS/2-style connections)

Note: Two Adder VSC3 link cables are required per connected system.

1 Ensure that the computer systems to be connected are switched off and that

no power is applied to the Adder unit.

(Note: If it is not possible to switch off systems prior to connection, then

a ‘Hot plug’ procedure is available – see the Hot plugging and mouse

restoration section for more details).

2 At the rear panel of the Adder unit, attach a VSC3 link cable to the (purple)

keyboard socket of port 1.

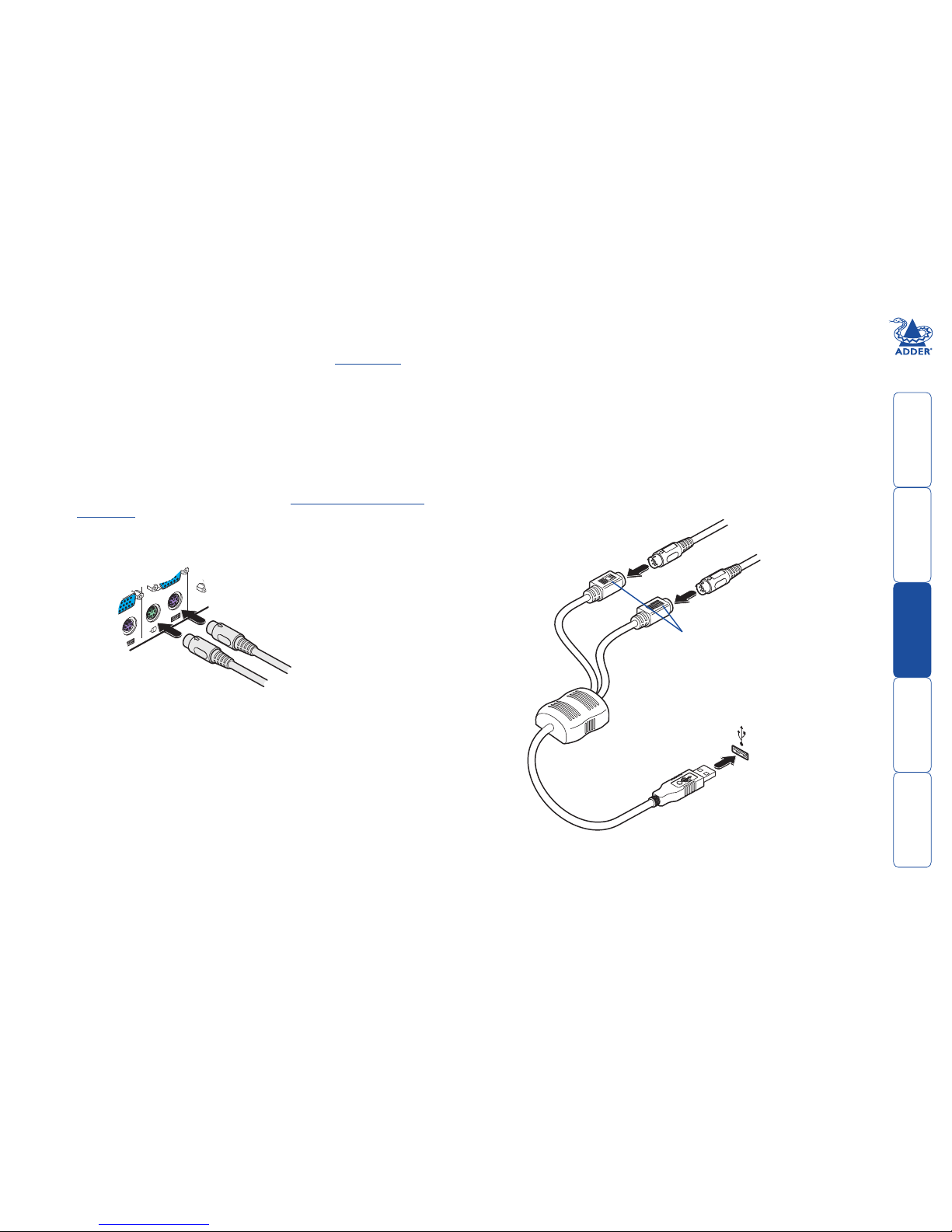

To make keyboard and mouse links (USB-style connections)

Note: Two Adder VSC3 link cables plus one CCP2U converter are required per

connected system.

1 At the rear panel of the Adder unit, attach a VSC3 link cable to the (purple)

keyboard socket of the required port.

2 Attach the other end of the VSC3 link cable to the inline keyboard socket of

the CCP2U converter.

3 Repeat steps 1 and 2 for the mouse connection (green) between the Adder

unit port and the CCP2U converter.

3 Attach the other end of the VSC3 link cable to the keyboard socket (usually

coloured purple) on the ﬁrst system.

4 Repeat steps 1 and 2 for the mouse connection (green) between the Adder

unit port 1 and the ﬁrst system.

Note: For neatness and accessibility it is advisable to join the keyboard and

mouse link cables, that lead to each system, using several cable ties.

5 Repeat the above steps for systems 2, 3 and 4 to the corresponding ports of

the Adder unit. If any systems do not have PS/2-style keyboard and mouse

connectors, please use an Adder CCP2U converter, as discussed opposite.

Note: For neatness and accessibility it is advisable to join the keyboard and

mouse link cables, that lead to each system, using several cable ties.

4 Attach the USB connector of the CCP2U converter to a vacant USB socket of

the computer system.

5 Repeat the above steps for any other system that requires USB connections.

USB port on system

Adder CCP2U

converter

Keyboard and

mouse link cables

from Adder unit

Symbols indicate the

keyboard and mouse

sockets

2A 1A

2B 1B

OPT

 







To make video links

1 Ensure that the computer systems to be connected are switched off and that

no power is applied to the Adder unit.

(Note: If it is not possible to switch off systems prior to connection, then

a ‘Hot plug’ procedure is available – see the Hot plugging and mouse

restoration section for more details).

2 At the rear panel of the Adder unit, connect a video link cable to socket A of

port 1. Ensure that the securing screws are used to maintain a reliable link.

3 Connect the plug at the other end of the video link cable to the corresponding

video output socket of the host computer.

4 If a second video channel from the same system is to be used, repeat steps 2

and 3 for the socket C of port 1 (SVMS4-DS models only).

5 Repeat all of the above steps for each port to be used.

To make serial links

1 Ensure that the computer systems to be connected are switched off and that

no power is applied to the Adder unit.

(Note: If it is not possible to switch off systems prior to connection, then

a ‘Hot plug’ procedure is available – see the Hot plugging and mouse

restoration section for more details).

2 At the rear panel of the Adder unit, connect a serial link cable to socket B

of port 1 (D-type, male, 9 way socket). Ensure that the securing screws are

used to maintain a reliable link.

3 Connect the plug at the other end of the serial link cable to the corresponding

serial socket of the host computer.

4 If a second serial link from the same system is to be used, repeat steps 2 and 3

for the socket D of port 1 (SVMS4-DS models only).

5 Repeat all of the above steps for each port to be used.

OPTIONS/ FLASH

OPTIONS / FLASH

 







Peripheral connections

To connect a keyboard and mouse

1 At the rear panel of the Adder

unit, attach the connector from

the keyboard to the purple socket

within the common section on

the left side (closest to the power

input socket).

2 Attach the connector from the

mouse to the green socket within

the common section on the left

side (closest to the power input

socket).

To connect serial (touch screen) devices

1 At the rear panel of the Adder

unit, attach the connector

from the primary serial (touch

screen) device to socket B

within the common section on

the left side.

2 If a second serial device is to

be used, repeat step 1 for the

socket D within the common

section on the left side

(SVMS4-DS models only).

Optional power supply connection

Note: The Adder unit can obtain its power from the keyboard connections

of any of the four connected systems. Thus, an external power supply is not

required unless the connection cables used exceed 2 metres.

Important: Please read and adhere to

the electrical safety information given

within the Safety information section

of this guide. In particular, do not use

an unearthed power socket or extension

cable.

To connect the optional power supply

1 Attach the output connector of the

power supply (country speciﬁc power

supplies are available) to the socket

on the far left of the rear panel of the

Adder unit.

2 When all other connections have been

made, connect the main body of the

power supply to a nearby earthed

mains socket.

To connect video monitors

1 At the rear panel of the Adder

unit, attach the connector

from the primary video monitor

to blue socket A within the

common section on the left

side (closest to the power input

socket).

2 If a second video monitor is to

be used, repeat step 1 for the

socket C within the common

section on the left side (closest

to the power input socket)

(SVMS4-DS models only).

A 4A 3A 2A

B 3B 2B

C 3C 2C

D 3D

OPTIONAL

POWER

INDOOR

USE ONL

A 4A 3A

B 4B 3B

C 4C 3C

D 4D 3D

OPTIONAL

POWER

INDOOR

USE ONL

A 4A 3A

B 4B 3B

C 4C 3C

D 4D 3D

OPTIONAL

POWER

INDOOR

USE ONL

A 4A

B 4

OPTIONAL

POWER

 







Remote control connections

The remote control unit can be used to provide manual switching between

systems.

To connect the remote control

1 Locate the remote control unit and the remote control cable. Attach the

smaller of the two cable connectors to the socket at the rear of the remote

control.

OPTIONS / FLASH

2 At the other end of the cable, attach the larger connector to the OPTIONS/

FLASH socket on the right side of the Adder unit rear panel.

Channel switching via RS232 control

The Adder SmartView Multiscreen Serial can be controlled by a remote RS232

serial device. To do this, the serial device must be connected to the OPTIONS/

FLASH port on the rear panel of the unit using an appropriate link cable.

OPTIONS / FLASH

The serial device must use the following speed/protocol settings:

1200 baud, 8 bits, no parity and 1 stop bit.

No handshaking is used by the SmartView Multiscreen Serial.

To perform the switching operation, simply send the character for the required

channel, for example ASCII ‘1’ (hex code 31) will select channel 1, ASCII ‘2’ (hex

code 32) will select channel 2 and so on. The SmartView Multiscreen Serial will

echo the ASCII character back to the sending device when the channel has been

changed.

Pin assignments for the OPTIONS/

FLASH port on the rear panel are

as follows:

Pin 9 = GND

Pin 10 = TXD

Pin 11 = RXD

Other pins to be left unconnected.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere ADDER Schalten Handbücher

ADDER

ADDER AV4PRO-VGA Bedienungsanleitung

ADDER

ADDER ADDERView Secure AVS-1124 Bedienungsanleitung

ADDER

ADDER ADDERView Secure Bedienungsanleitung

ADDER

ADDER Infinity Bedienungsanleitung

ADDER

ADDER ADDERView Secure AVS-4224 Bedienungsanleitung

ADDER

ADDER AdderView Matrix AVM208MP Kurzanleitung

ADDER

ADDER AdderLink ALIF1000T Bedienungsanleitung

ADDER

ADDER ADDERView Secure AVS-1124 Bedienungsanleitung

ADDER

ADDER ADDERLINK AV200 Series Bedienungsanleitung

ADDER

ADDER View DVI AV4DVI Kurzanleitung

ADDER

ADDER View Matrix AVM208 Leitfaden

ADDER

ADDER ADDERView Secure AVS 2114 Bedienungsanleitung

ADDER

ADDER ePowerSwitch 8XS Bedienungsanleitung

ADDER

ADDER ePowerSwitch 8XS Bedienungsanleitung

ADDER

ADDER AVSD 1002 (2port) Bedienungsanleitung

ADDER

ADDER SV2 Kurzanleitung

ADDER

ADDER View Secure Bedienungsanleitung

ADDER

ADDER AdderView Pro 8 DVI Bedienungsanleitung

ADDER

ADDER AdderView CATxIP 1000 Bedienungsanleitung

ADDER

ADDER AVMP4-SP Kurzanleitung

ADDER

ADDER SmartView Multiscreen SVMS2-QUAD Kurzanleitung

ADDER

ADDER CCS-PRO8 Bedienungsanleitung

ADDER

ADDER GEMAV2GEM Kurzanleitung

ADDER

ADDER AdderView IP Installationsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
