ADTRAN SR905acv Bedienungsanleitung

/ Gateway User Manual

Model: SR905acv

Release: 2.0 January 2020

Software Version: 10.8.3.1

501 SE Columbia Shores Boulevard, Suite 500

Vancouver, Washington 98661 USA

+1 360 859 1780 / smartrg.com

Table of Contents

Welcome! 4

Purpose & Scope 4

Intended Audience 4

Getting Assistance 4

Disclaimer 4

Getting Familiar with your Gateway 5

LED Indicators 5

Connections 6

LAN 6

WAN 6

USB 1 & 2 6

PHONE 1 & 2 6

POWER 7

External Buttons 7

WPS Button (5 GHz Band) 7

WiFi Button (2.4 GHz Band) 7

On/Off Button 7

Reset Button 7

Installing your SR905acv Gateway 8

Logging in to the SR905acv Interface 9

User Preferences 10

Saving Your Changes 11

Dashboard 12

Network 14

Status 14

Ethernet WAN 14

Internet 15

DHCP for IPv4 WANs 16

Static Address for IPv4 WANs 17

PPPoE for IPv4 WANs 17

DHCPv6 for IPv6 WANs 18

Static Address for IPv6 WANs 19

IPTV 21

Voice 22

Management 23

Cross-Connect 25

SFP 26

LAN Network 27

DHCP Server 28

Defining a Custom DNS Server 30

Defining a Static DHCP IP Address 30

DHCP Clients 32

Ethernet Ports 33

Guest 33

DHCP Server 35

Defining a Static DHCP IP Address 37

DHCP Clients 38

Video Network 39

Static 39

DHCP 40

DHCP Server 41

Defining a Static DHCP IP Address 43

DHCP Clients 45

Multicast 45

Video Analyzer 46

Routing 47

Static Routes 48

DNS 50

Advanced 51

Downstream QoS 52

Firewall 53

Router Access 54

Rules 56

DMZ 59

Port Forwarding 59

WiFi 62

Status 62

Scan 62

Radios 63

Band Steering 65

Networks 65

Clients 67

MAC Filtering 67

Advanced 70

Devices 71

Intellifi Devices 71

Connected Devices 72

Device Groups 73

Access Schedule 77

Services 81

UPNP 81

DLNA 82

TR-069 Configuration 82

SNMP 84

Hosts 86

DDNS 87

Cloud Storage 89

File Sharing 90

Content Filter 93

VoIP 94

Advanced 96

Features 101

Statistics 103

Trace 104

History 105

Admin 107

Update 107

Configuration 109

Router Management 110

Passwords 113

Net Tools 114

Event Log 116

Configuring Log Settings 117

Time 118

Operating Mode 119

Reboot 119

Logging out 121

Table of Contents

Appendix: Compliance Statements 122

FCC Interference Statement 122

FCC Radiation Exposure Statement 122

5GHz 122

Revision History 123

Welcome!

Thank you for purchasing this SmartRG product.

SmartRG offers solutions that simplify the complex Internet ecosystem. Our solutions include hardware, software, applications,

enhanced network insights, and security delivered via a future-proof operating system. Based in the USA, SmartRG provides local,

proactive software development and customer support. We proudly offer the best, most innovative broadband gateways available.

Learn more at www.SmartRG.com.

Purpose & Scope

This User Manual provides SmartRG customers with installation, configuration and monitoring information for their SR905acv

gateway.

Intended Audience

The information in this document is intended for Network Architects, NOC Administrators, Field Service Technicians and other

networking professionals responsible for deploying and managing broadband access networks. Readers of this manual are assumed to

have a basic understanding of computer operating systems, networking concepts and telecommunications.

Getting Assistance

Frequently asked questions are provided at the bottom of the Support page of the SmartRG Web site.

lSubscribers: If you require further help with this product, please contact your service provider.

lService providers: if you require further help with this product, please open a support request.

The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system,

translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical,

photocopying, manual, or otherwise, without the prior written permission of SmartRG, Inc.

Disclaimer

SmartRG does not assume any liability arising out of the application or use of any products, or software described herein. Neither

does it convey any license under its patent rights nor patent rights of others. SmartRG further reserves the right to make changes to

any products described herein without notice. This publication is subject to change without notice.

Any trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective

owners.

Getting Familiar with your Gateway

This section explains the SR905acv gateway's lights, ports, and buttons.

LED Indicators

Your SR905acv gateway has several status indicators (LEDs) on its top which are described below.

Legend: White White blinking Green Green blinking Red

LED Action Explanation

Power Device in CFE mode

Device powered on and ready for use

Internet DSL sync acquired and gateway on line

Data being transferred

Internet authentication / connection has failed

Lan 1-4 LAN Ethernet connected (at 1000 BASE-T)

Data being transferred (at 1000 BASE-T)

LAN Ethernet connected (at 10/100BASE-T)

Data being transferred (at 10/100BASE-T)

WAN Device online (at 1000 BASE-T)

Device online (at 10/100 BASE-T)

WAN Ethernet connected (at 1000 BASE-T)

Data being transferred (at 1000 BASE-T)

WAN Ethernet connected (at 10/100BASE-T)

Data being transferred (at 10/100BASE-T)

2.4 GHz

5 GHz

WiFi enabled

Data being transferred

(locked WiFi / WPS)

WPS enabled

Data being transferred

SS 1 & 2 USB 3.0 device connected

Data being transferred

Phone 1 & 2 Phone line connected

Phone line in use

LED Action Explanation

SFP SFP (fiber optic) connected

Data being transferred

Connections

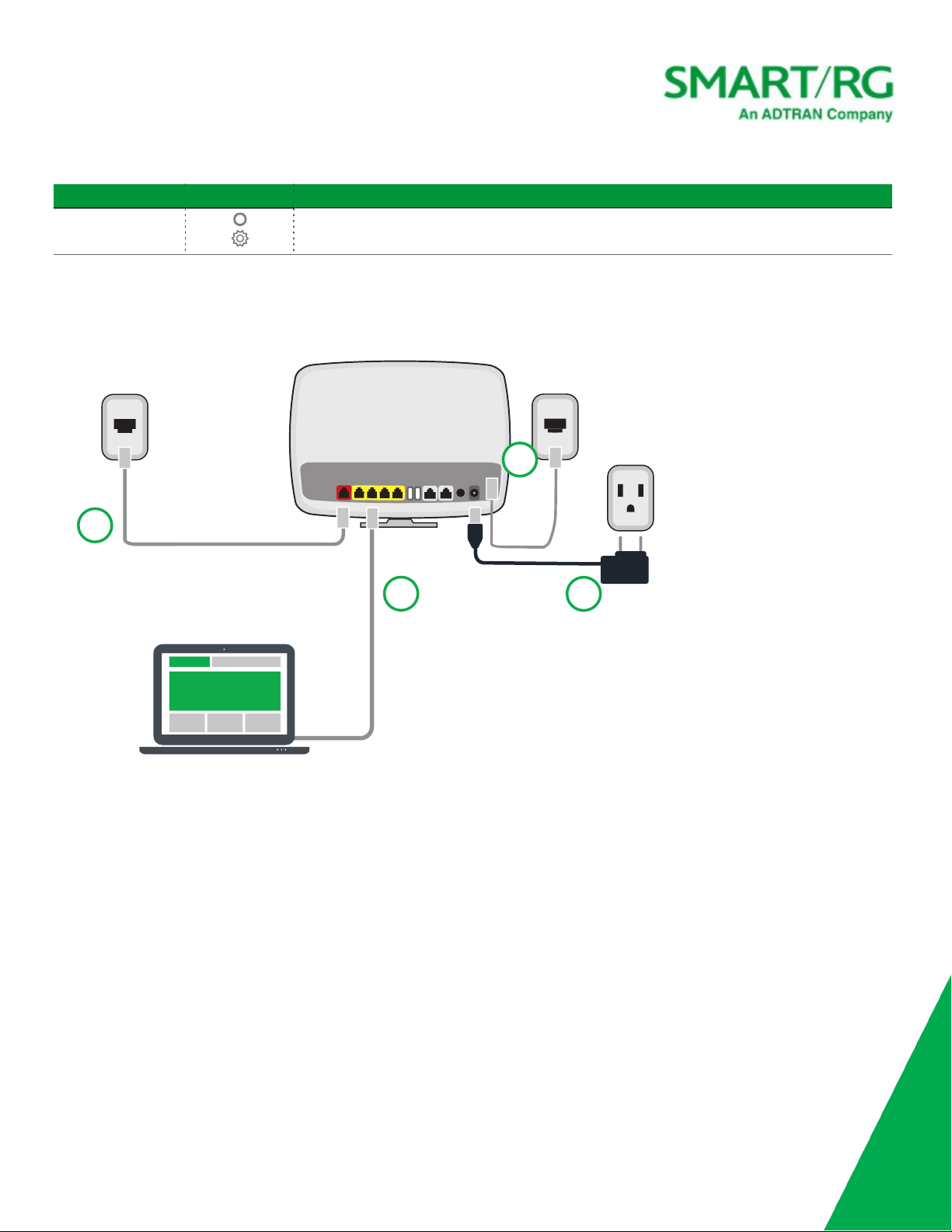

The SR905ac's exterior ports are shown in the following cabling diagram and explained below.

USB

LAN

WAN DC/

PHONE

POWER

SFP

LAN

The four yellow RJ45 Ethernet ports located on the back of the gateway (labeled LAN1, LAN2, LAN3, LAN4) are used to connect

client devices such as computers and printers.

WAN

The red RJ45 port labeled WAN is used to connect the SR905ac gateway to another network device using a RJ45/Ethernet cable.

USB 1 & 2

The two USB ports (2.0 port on the back and 3.0 on the left side) are used to connect USB storage devices to the gateway for

transferring data. They also provide +5 VDC for charging other devices.

PHONE 1 & 2

These grey RJ11 ports can be used to connect your gateway to an Internet provider via a telephone line.

POWER

lUse ONLY the dedicated power supply included with your gateway (3 amp 12 v). Intended for indoor use only.

lDo NOT open the device. Opening or removing covers can expose dangerous high voltage points or other risks. ONLY qualified

service personnel can service the device. Please contact your vendor for further information.

External Buttons

The SR905acv gateway provides push-button controls on its exterior for critical features. These buttons provide a convenient means

to trigger WPS mode, toggle the WiFi radios on and off, or reset the gateway. The button functions are described below.

WPS Button (5 GHz Band)

WiFi Protected Setup™ (WPS) is a standard means for creating secure connections between the gateway and various wireless client

devices. It is designed to simplify the pairing process between devices. Thisbutton is located on the left side of the gateway.

Press this button for 1-3 seconds, the 5 GHz LED starts to flash. If no client pairs with the gateway after 2 minutes, the 5 GHz LED

turns off. When the gateway pairs successfully with a client, the 5 GHz LED glows solid for 5 minutes and then turns off.

WiFi Button (2.4 GHz Band)

The WiFi button toggles the 2.4 GHz WiFi radio on and off. This button is located on the left side of the gateway. Look at the 2.4 GHz

LED indicator to determine the current state of the WiFi radio.

To activate the radio, press and hold the WiFi button for 3-5 seconds then release. Expect a 1-3 second delay before the 2.4 GHz

LED turns on. The WiFi radio is now on.

To deactivate the radio, press and hold the WiFi button for 3-5 seconds then release. Expect a 1-3 second delay before the 2.4 GHz

LED turns off. The WiFi radio is now off.

On/Off Button

The On/Off button turns the gateway on and off. This button is located on the left side of the gateway.

Reset Button

Warning: Do not press the Reset button unless you want to clear the current settings.

The Reset button returns the gateway to its default settings. This button is in a small circular hole in the back of the gateway with

the actual button mounted behind the surface. This style of push button prevents the gateway from being inadvertently reset

during handling.

To restore the current default settings, insert a thin wire (such as a paper clip) into the hole, press for 1 second, then release the

button. The gateway reboots and returns to the current defaults.

To return the gateway to factory default settings, press the Reset button until the LEDs flash red and orange. The gateway reboots

and returns to the default settings applied in the factory. This process may take a few minutes.

Installing your SR905acv Gateway

1. Connect the gateway to incoming services:

lFor Ethernet services, connect one end of an Ethernet cable to the WAN port on the gateway and connect the other

end of the cable to the wall jack installed by your provider.

lFor fiber services:

a. Slide open the small door at the right end of the gateway's back.

b. Insert the SFP transceiver (included with the gateway) into the port.

c. Connect one end of the fiber cable to the SFP transceiver and connect the other end of the cable to the wall

jack installed by your provider.

lFor phone (DSL) services, connect one end of a phone cable to one of the Phone ports on the gateway and connect the

other end of the cable to the wall jack installed by your provider.

2. Connect a LAN port on the gateway to your PC using an Ethernet cable.

3. Plug the power adapter to the wall outlet and then connect the other end of it to the Power port of the gateway.

4. Turn on the unit by pressing the Power button on the side of the gateway.

The gateway is now automatically being set up to connect to the Internet. This process may take a few minutes to complete before

you can begin using your Internet applications (browser, email, etc.).

If connection to the Internet is unsuccessful, verify that all cable connections are in place and the gateway’s power is turned on.

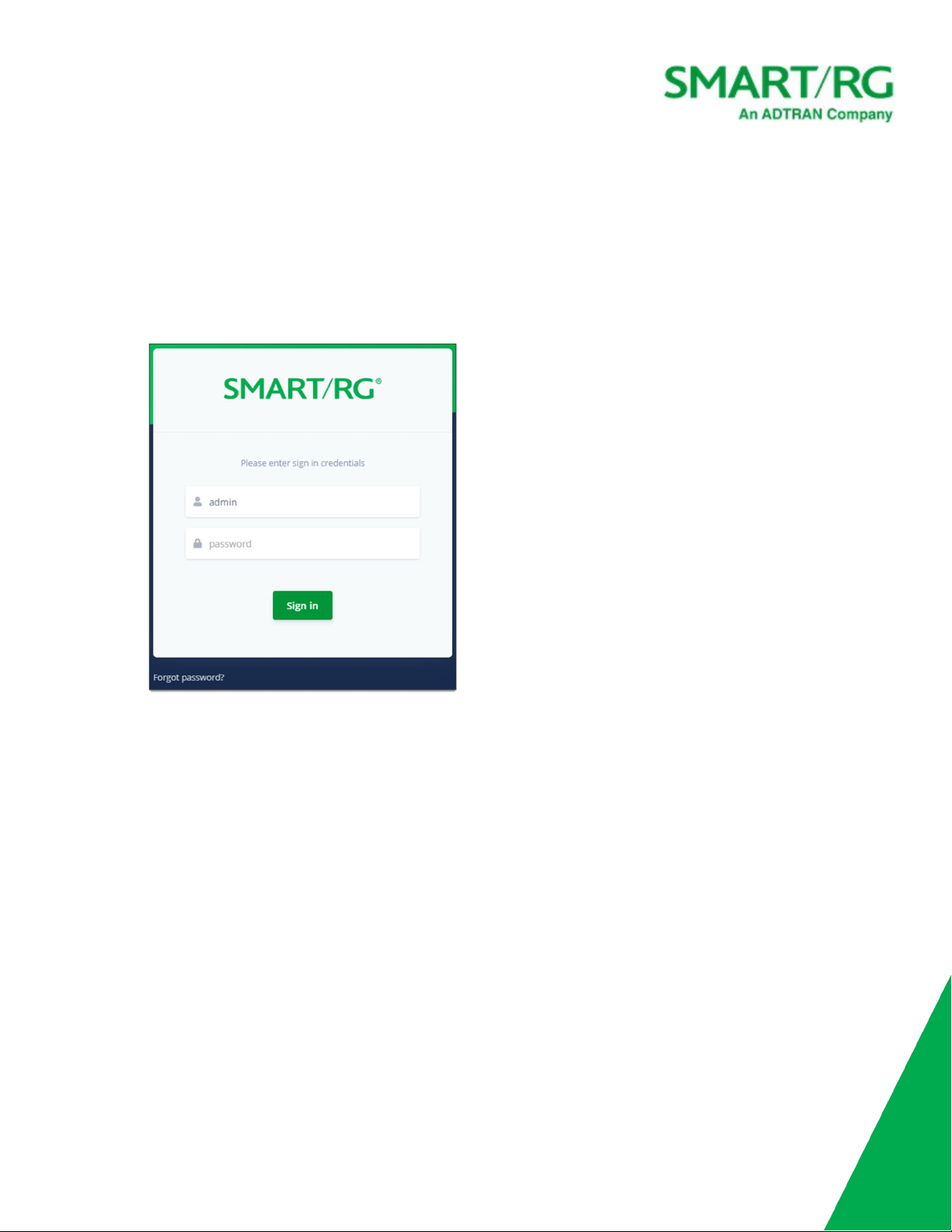

Logging in to the SR905acv Interface

To manually configure the SR905acv gateway, you must access the gateway's Web-based UI.

1. Configure your computer's IP interface to acquire an IP address automatically using DHCP.

2. Open a browser and enter the gateway's default address: http://192.168.1.1 in the address bar. The sign-in page

appears.

3. Enter the default username and password.

oFor the administrator user, these are "admin" and "admin".

oFor the support user, these are "support" and the last three octets of the MAC address. The MAC address is

located on a label on the back of the gateway. Make sure to enter the letters in all caps and include the

separating colons (e.g., AA:BB:CC).

To review the end user license agreement, click the License Agreement link at the bottom right corner of the

browser window. The agreement appears in a separate tab.

Note: If you have forgotten the password, click Forgot password? and follow the instructions to reset the gateway to

the factory defaults. Then, enter the credentials provided with the gateway when it first arrived.

4. Click Sign In. The Dashboard page appears, showing data about your system.

User Preferences

The top of the screen displays various options that are always present:

lNext to the logo in the upper-left is the Menu button ( ). Click to minimize or reveal the left navigation menu.

lTo the right is a Search box which returns a list of pages/gateway features that match the search terms entered.

lNext is the Dark Mode icon ( ). Click to engage an alternate color scheme for the UI. The icon changes to the Light Mode

icon ( ). Click it to return to the original color scheme.

lNext is the Language icon( ). Click to select the preferred interface language from the list.

lThe far right corner displays the username currently logged in (typically "Admin"). Click the name to reveal a list of additional

preferences.

The preferences under the User Profile link to options also found

under Admin in the left menu.

oSettings: Save or load a router configuration file. See

instructions here.

oPasswords: Change passwords for gateway access. See

instructions here.

oReboot: Initiate a reboot of the gateway. See instructions

here.

oLogout: Ends the current session with the gateway.

The page footers display the WAN IP address and firmware version. Mouse over the labels to view the details.

Inhaltsverzeichnis

Andere ADTRAN Tor Handbücher

ADTRAN

ADTRAN jobAid+ Total Access 311 Bedienungsanleitung

ADTRAN

ADTRAN SR700ac Bedienungsanleitung

ADTRAN

ADTRAN SMART/RG SR516ac Bedienungsanleitung

ADTRAN

ADTRAN BroadCloud Bedienungsanleitung

ADTRAN

ADTRAN jobAid+ Total Access 324 Bedienungsanleitung

ADTRAN

ADTRAN 825-v6 Betriebsanleitung

ADTRAN

ADTRAN 617600139-13A Bedienungsanleitung

ADTRAN

ADTRAN 434 RG Bedienungsanleitung

ADTRAN

ADTRAN 7310-8 Bedienungsanleitung

ADTRAN

ADTRAN NetVanta 6355 Betriebsanleitung

ADTRAN

ADTRAN NetVanta 644 Handbuch

ADTRAN

ADTRAN Pseudowire Gateway MX408e Bedienungsanleitung

ADTRAN

ADTRAN 834-v6 Bedienungsanleitung

ADTRAN

ADTRAN 7310-8 Bedienungsanleitung

ADTRAN

ADTRAN 831-t5 Bedienungsanleitung

ADTRAN

ADTRAN NetVanta 1355 Bedienungsanleitung

ADTRAN

ADTRAN 8612 Bedienungsanleitung

ADTRAN

ADTRAN Total Access 912 Bedienungsanleitung

ADTRAN

ADTRAN 424RG Bedienungsanleitung

ADTRAN

ADTRAN SmartRG SR400ac Bedienungsanleitung

ADTRAN

ADTRAN SDG-ST1 Bedienungsanleitung

ADTRAN

ADTRAN SmartRG SR400ac Bedienungsanleitung

ADTRAN

ADTRAN Quintum Tenor AS Bedienungsanleitung

ADTRAN

ADTRAN 7310-8 Bedienungsanleitung

Beliebte Tor Handbücher anderer Marken

LST

LST M500RFE-AS Bedienungsanleitung

Kinnex

Kinnex Media Gateway Bedienungsanleitung

2N Telekomunikace

2N Telekomunikace 2N StarGate Bedienungsanleitung

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Bedienungsanleitung

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Bedienungsanleitung

Telsey

Telsey CPVA 500 - SIP Bedienungsanleitung

RTA

RTA 460A-NNA4 Technisches Datenblatt

Shaw

Shaw Gateway HDPVR Bedienungsanleitung

ABB

ABB VSN900 Kurzanleitung

Commander

Commander Pulse Bedienungsanleitung

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Bedienungsanleitung

NETGEAR

NETGEAR C6300BD Bedienungsanleitung

Amit

Amit CDW531AM Bedienungsanleitung

HMS

HMS Netbiter EasyConnect EC150 Bedienungsanleitung

Huawei

Huawei EchoLife HG620 Bedienungsanleitung

AT&T

AT&T U-verse 3801 Gebrauchs- und Pflegehandbuch

Logic IO

Logic IO RTCU MX2 turbo Bedienungsanleitung

Suttle

Suttle MediaMAX MXM-521 Bedienungsanleitung
