PCE-5133/5033 Startup Manual 1
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
1. PCE-5133/5033 PICMG 1.3 single host board
2. PCE-5133/5033 startup manual P/N: 2041513300
3. Serial ATA HDD data cables P/N: 1700003194
4. COM cable with bracket P/N: 1701090401
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note 1: For detailed contents of PCE-5133/5033, please
refer to user manual on the Advantech Website.
Note 2: AcrobatReaderisrequiredtoviewanyPDFle.
Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
PCE-5133/5033 - LGA1700 Intel®CoreTM i9/i7/i5/i3/
Pentium®ECC/non-ECC PICMG 1.3 Single Host
Board with DDR5/M.2 (2280)/Dual 2.5GbE LAN
Startup Manual
General
• LGA1700 12th Intel®Core™ i9/i7/i5/i3/Pentium®
• BIOS: AMI 256 Mb SPI BIOS
• Chipset:
- PCE-5133: Intel R680E
- PCE-5033: Intel H610E
• System memory:
- PCE-5133: Supports dual channel DDR5 4800
32GB per DIMM with ECC/non-ECC; Max. capacity is
up to 64GB
- PCE-5033: Supports dual channel DDR5 4800 32GB
per DIMM without ECC; Max. capacity is up to 64GB
Note: Please select Intel ECC supported processor to
enable ECC function.
Warning:Powermustbeturnedobeforeplugging/un-
plugging memory stick to avoid system crash or
damage of memory stick.
• SATA Ports:
- PCE-5133: 6 x SATA3.0 ports with SW Raid 0,1,5,10.
- PCE-5033: 4 x SATA3.0 ports without Raid function.
• M.2 Ports:
- PCE-5133: M.2 2280 type M module and compatible to
PCI Express 4.0
• Serial ports: 2 x RS-232 with pin headers
• Watchdog timer: 255 level timer intervals
• USB 2.0:
- PCE-5133/5033: 6*USB2.0 (USB Type A*1+Rear*1, 4
on backplane)
• USB 3.2:
- PCE-5133: 6*USB3.2 (Gen1) (Pin-header*6), 2*USB3.2
(Gen2) (type A, Rear I/O)
- PCE-5033: 2*USB3.2 (Gen1) (Pin-header*2), 2*USB3.2
(Gen1) (type A, Rear I/O)
• GPIO: One programmable 8-bit GPIO pin-header
• DP1 & DP2: DVI/Displayport/HDMI via optional cable
VGA Interface
• Chipset: Intel®UHD Graphics
• Shared system memory is subject to OS
Ethernet Interface
• Chipset supports:
- LAN 1: I225LM(PCE-5133); I226V(PCE-5033)
- LAN 2: I225LM(PCE-5133); I226V(PCE-5033)
• Connection: 2 x on-board RJ-45 connectors with LED
indicators.
Note:Powermustbeturnedobeforeinstalling/unin-
stalling any expansion modules.
Specications
For more information on this and other Advantech prod-
ucts, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website at:
https://advt.ch/PCE-5133G2
https://advt.ch/PCE-5033G2
Register your products on our website and get 2 months
extra warranty for Free at:
http://www.register.advantech.com
This manual is for the PCE-5133/5033
Part No. 2041513300
Printed in China
1st Edition
January 2023
2 PCE-5133/5033 Startup Manual
Mechanical and Enviromental
• Dimensions: (L x W): 338 x 122 mm
• Power supply voltage: +12 V, +5 V, +3.3 V, +5 V
SB
• Power requirements(Idle):
Voltage + 3.3V +5V +12V
Current 8.34A 4.13A 6.86A
Note: Testing conditions:
CPU: Processor: Intel®i9-12900E
Memory: 2 DDR5 4800 32GB
Operating temperature: 0 ~ 60° C (depending on
CPU)
• Weight: 0.5 kg (weight of board)
The board has a number of jumpers that allow you to con-
gureyoursystemtosuityourapplication.Thetablebelow
lists the function of each of the jumpers and connectors.
Connectors
Label Function
COM1 RS-232 (9-pin Box Header)
COM2 RS-232 (9-pin Box Header)
CPU FAN1 4-pin fan power connector for supporting
PWM or DC CPU fan
DP1 & DP2 Display port/DVI/ HDMI via optional
cables
eSPI eSPI expansion pin header for COM
module
HDAUD1 Advantech HD audio module expansion
pin-header
JFP1 Power switch/reset connector
JFP2 External speaker/HDD LED connector/
SMBus connector
JFP3
Power LED
Suspend:fastash(ATX/AT)
Systemon:on(ATX/AT)
Systemo:o(ATX/AT)
JPCICLK
PCI clock selection
LAN1 Intel i225LM (PCE-5133)
Intel i226V (PCE-5033)
LAN2 Intel i225LM (PCE-5133)
Intel i226V (PCE-5033)
LANLED1 LAN LED
NVMe M.2 M.2 key 2280 with PCIe Gen. 4
SATA0 &1 Port 0 & 1 (PCE-5133)
SATA4~7 SATA port 4, 5, 6, 7 (PCE-5133/5033)
SPI_TPM1 SPI expansion pin header for TPM
module
Sysfan1 4 PIN fan power connector for support-
ing PWM or DC fan
USB2A1 USB2 port 2
USB2C1 USB2 port1
USB3C1 USB3 port1
USB3C2 USB3 port2
USB3H1 USB3 port 3,4
USB3H2 USB3 port 7, 8 (PCE-5133)
USB3H3 USB3 port 5, 6 (PCE-5133)
VGA1 VGA connector
Jumpers
Label Function
JCMOS1 CMOS clear
JME1 Clear ME data
JPCICLK1
PCI clock selection
JWDT1+
JOBS1 Watchdog timer output and OBS alarm
JPCICLK: PCI clock selection
Closed Pins
Result
1-2
66 MHZ
2-3
*33 MHZ
*Default
66 MHZ 33 MHZ
JESPI1+JESPI2: eSPI-interface COM module setting
Closed Pins Result
JFV1 VGA dummy load setting
JUSB1/
JUSB2 USB power source switch
VGA dummy load setting USB power source switch
JCMOS1/JME1: Clear CMOS/ME data
Closed Pins Result
1-2 Keep CMOS/Enable ME data (Default)
2-3 Clear CMOS/Disable ME data
1 2 3
1 2 3
1 2 3
1 2 3
Specications(Cont.)
Jumpers and Connectors (Cont.)
Jumpers and Connectors
PCE-5133/5033 Startup Manual 3
Jumpers and Connectors (Cont.)
JWDT1+JOBS1: Watchdog timer output and OBS alarm
Closed Pins
Result
2-4, 8-10 Watchdog timer disable (2-4)
OBS beep (8-10)
4-6, 8-10 *Watchdog timer reset (4-6)
OBS beep (8-10)
* Default
Watchdog timer disable (2-4) *Watchdog timer reset (4-6)
OBS beep (8-10) OBS beep (8-10)
JESPI1+JESPI2: eSPI-interface COM module setting
Closed Pins
Result
1-2 Watchdog timer disable (2-4)
OBS beep (8-10)
2-3 *Watchdog timer reset (4-6)
OBS beep (8-10)
* Default
*COM module disabled COM module enabled
Note!
1. Do not change default settings if an eSPI-interface
COM module is not installed; otherwise system will not
turn on.
2. If start to use the COM module, please follow the proce-
dures to prevent system from not to boot up: install the
moduleafterpower-o,setJESPI1+JESPI2to2-3pins
closed,poweronsystemtoBIOSPOSTscreen,turno
AC power, then power on.
JFV1: VGA dummy load setting
Closed Pins
Result
1-2 Enable VGA dummy load
2-3 *Disable VGA dummy load
* Default
Enable VGA dummy load *Disable VGA dummy load
Note! It is recommended to leave this function disabled
if you use DVI/DP as your main display.
1 2 3
1 2 3
1 2 3
1 2 3
JUSB_1 & JUSB_2 (onboard USB): USB Power
source switch between +5V and +5V_Dual
Closed Pins
Result
1-2 *USB +5V_DUAL power
2-3 USB +5V power
* Default
*USB +5 V_DUAL power USB +5 V power
The drivers for the PCE-5133/5033 are located on the
Advatechocialwebsites.Pleasevisittheocialwebsite
for downloading.
https://support.advantech.com/support/new_default.aspx
Caution! The computer is supplied with a battery-powered
real-time clock circuit. There is a danger of explo-
sion if battery is incorrectly replaced. Replace
only with same or equivalent type recommended
by the manufacturer. Discard used batteries ac-
cording to manufacturer’s instructions.
This device complies with the requirements in Part 15 of
the FCC rules. Operation is subject to the following two
conditons:
1. This device may not cause harmful interference;
2. This device must accept any interference received,
including interference that may cause undesired opera-
tion.
1 2 3
1 2 3
Jumpers and Connectors (Cont.)
Software Installation
Declaration of Conformity
4 PCE-5133/5033 Startup Manual

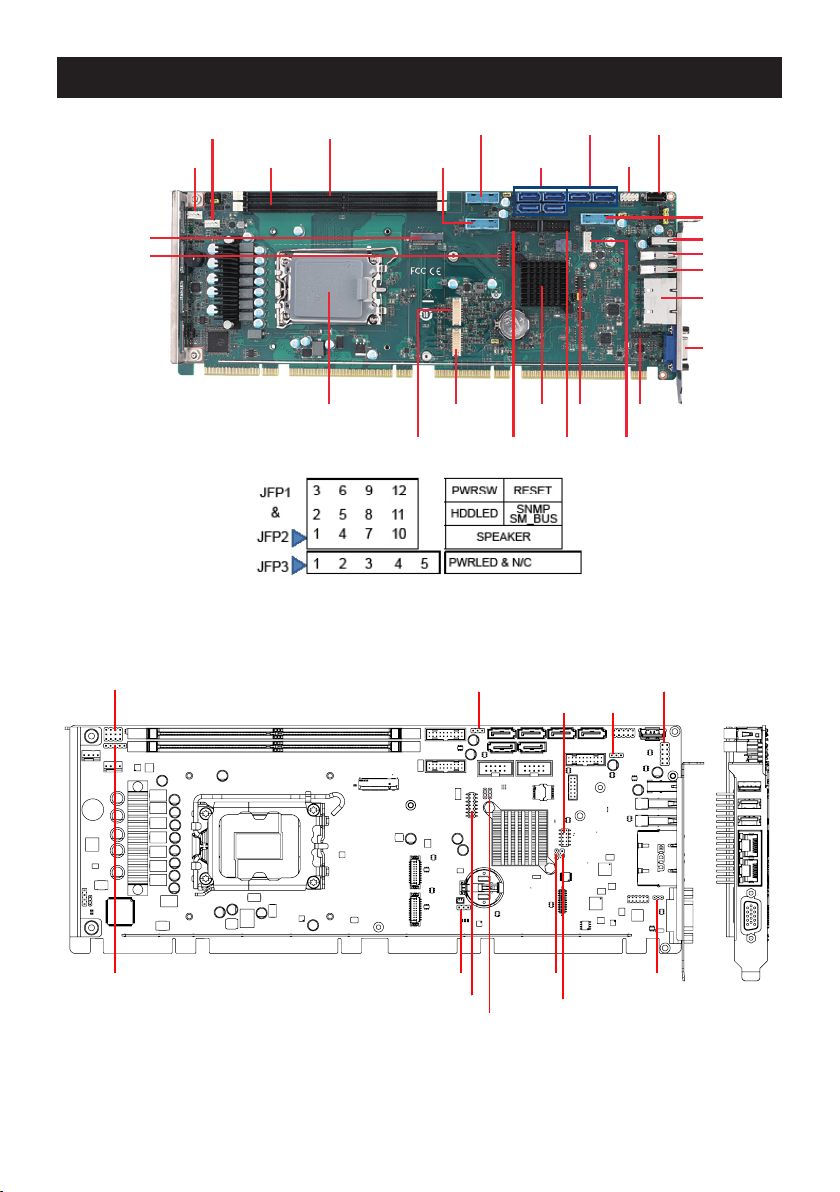

Figure 1: Board Layout: Jumper and Connector Locations
Note: *PCE-5033 supports 4 SATA ports (SATA4~7) and one internal USB3.2 pin-header.
*PCE-5033 does not feature NGFF(M.2).
Figure 2: Board Layout - Jumpers and Connector Locations
Preliminary
System FAN1 DIMMA1
CPU1 DP1 PCH GPIO1 HDAUD1
DP2 COM2 COM1 SPI_TPM1
eSPI
M.2 NVMe
USB3H2 SATA0-1
LANLED1
CPU FAN1 DIMMB1
SATA4-7USB3H3
USB2A1
USB2C1
USB3H1
USB3C2
USB3C1
VGA1
LAN12
JFP1 & JFP2
JFP3
JUSB2
JUSB1
JWDT1 & JOBS1
JCMOS1 JME1
JCASE1
GPIO1
JFV1
JESPI1 & 2
ESPI1
Board Layout
