1
UCAM
UCAM-120 with UShop+Store BI
Installation Guide
V1.6.5A
www.ushop-plus.com
2

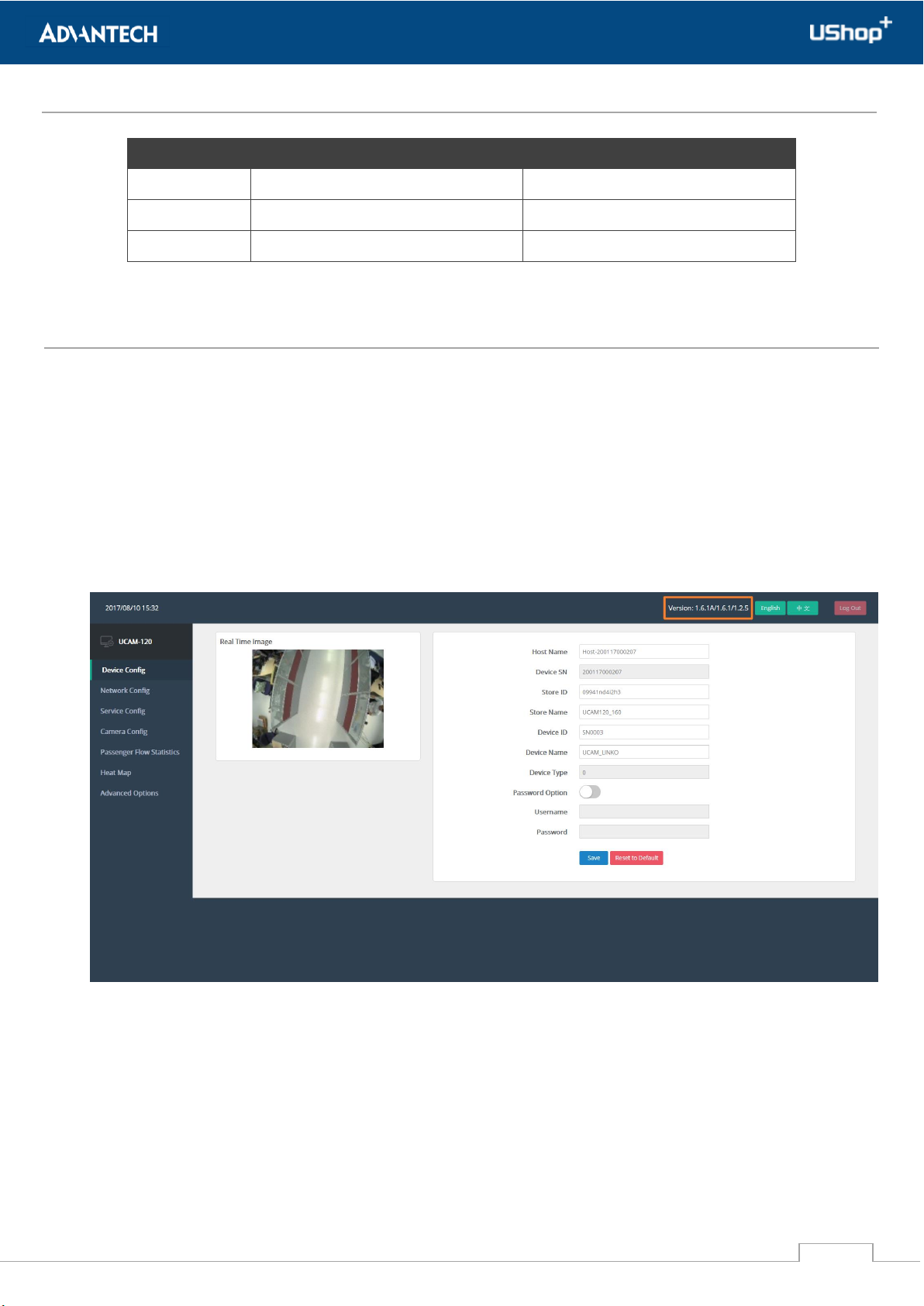

Version Information
Date
Firmware Version
Software Version
2018/01/08
1.65A
Camera Setup Process
1. Connect UCAM
Please connect 192.168.1.8 to setup the camera via Chrome browser.
2. Confirm Firmware Version
▪You may check the version number in the orange mark in Figure-1.
▪Please update the firmware to latest version if it less than 1.6.5A. The detail steps are listed in
Appendix I.
Figure-1
www.ushop-plus.com
3
▪Please make sure the network connection can access internet, and then you can change the Device
IP address, gateway and DNS server as Figure-2.
-Make sure the address is static IP. subnet mask, gateway and DNS are correctly.
Figure-2
3. Setup NTP Time Server:
EX: Taiwan National Time and Frequency Standard Laboratory
Time Server Selection
NTP Server
Timer Server Address
clock.stdtime.gov.tw
Time Server Port
123
Please select NTP Server of your country, press save button after setting, Figure-3 & Figure-4.
Figure-3
www.ushop-plus.com
4

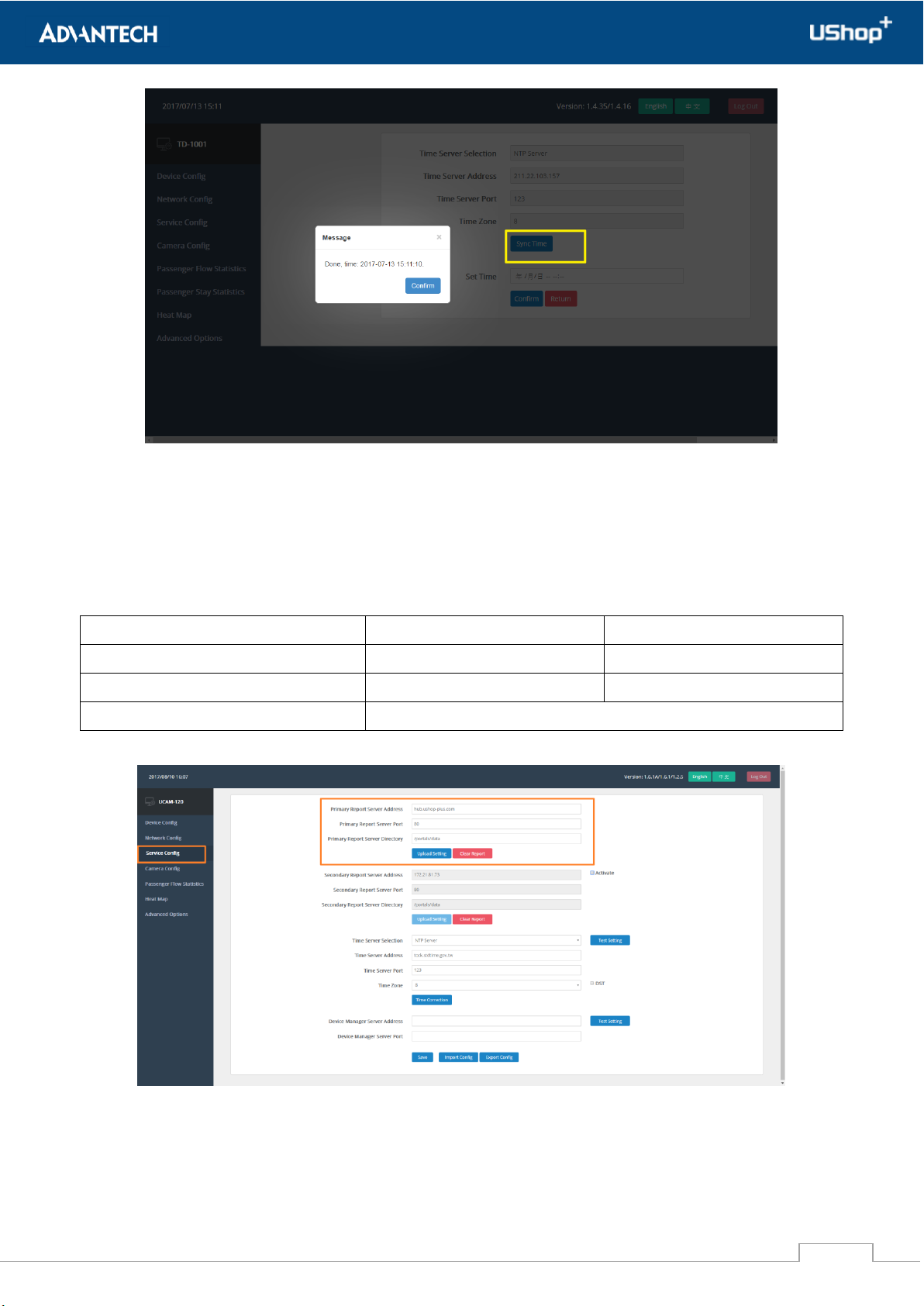

Figure-4
4. Connect UCAM to UShop+ Store BI Service
Advantech provide public cloud and private cloud for Ushop+ solution, please configure your
UCAM base on which type of cloud you use.
Public Cloud
Private Cloud
Primary Report Server Address
hub.ushop-plus.com
Your Server Address
Primary Report Server Port
80
1234
Primary Report Directory
/portals/data
Figure-5
Press Save button when setting ready, then press “Clear Report” button to clear temp data.
www.ushop-plus.com
5
5. Setup Store ID
▪Please make sure the store has been created on UShop+ Portals, find the Store ID of Store
Information and fill in the Store ID of Device Config tab on Camera, Figure-6 & Figure-7.
▪Please fill in UShop+ license found on Camera to the DeviceID. There are totally 19 digits
including “- “.
▪Please fill the device information in Device Name of Device Config tab, the name will show on
the UShop+ Portals, Ex: StoreA_Gate
▪
Figure-6
Figure-7
www.ushop-plus.com
6
6. Check Data Upload Status
▪Click “Reboot” button and double confirm timestamp, “Successful Upload” should be late than
time of “Failed Upload” Figure-8.
Figure-8
▪The device status should be “Registered” in UShop+ Store Management, Figure-9.
Figure-9
▪Please contact your cloud operator to enable cloud service after local setup is finished.
▪When service is activated, device status will change to “Online”after received first counting data
Figure-10.
Figure-10
www.ushop-plus.com
7
7. Setup people counting rule
▪Camera height from ground between 2.5M to 5M.
▪In this case, the height is 2.8M, Figure-11.
▪For the detail information of camera setting, please check Appendix II.
Figure-11
▪Please make sure the sample is clear when crop image to adjust parameters, Figure-12, Figure-
13.
Figure-12
www.ushop-plus.com
8
Figure-13
▪Drawing enter and exist area, make sure the areas are not overlapped, Figure-14.
▪The sensor counts traffic in when people move from the Exit area into the Enter area
and counts traffic out when they move from the Enter area into the Exit area.
Figure-14
www.ushop-plus.com
9
▪Turning active switch on, then save it, Figure-15.
Figure-15
▪You can review the enter and exit number when you save the screenshot tab, Figure-16
Figure-16
www.ushop-plus.com
10
Appendix I
Update UCAM Firmware
1. Select new firmware file
2. Fire “Update”button
New version would be shown after update on right of top
