Advantech IDS31-320W Bedienungsanleitung

Model :IDS31-320WP35DVA1E

Rev. No : Ver. 0.90

Date :15/APR/2015

Page 1of 20

Preliminary

USER MANUAL

TITLE

Industrial Monitor / Monitor

MODEL NAME

IDS31-320W

Signature Date Prepared by Date

Please return 1 copy for our

confirmation with your signature

and comments

SERIAL NAME IDS31-320WP35DVA1E

Model :IDS31-320WP35DVA1E

Rev. No : Ver. 0.90

Date :15/APR/2015

Page 2of 20

Preliminary

TABLE OF CONTENTS

ITEM

PAGE

Ⅰ

Overview

Ⅱ

General Description

Ⅲ

Electrical Specifications

5 -8

Electrical Characteristics

Interface Connections

Ⅳ

OSD Function

Ⅴ

Environment Specifications

Ⅵ

Reliability

Ⅶ

Visual Inspection Standard

11-13

Ⅷ

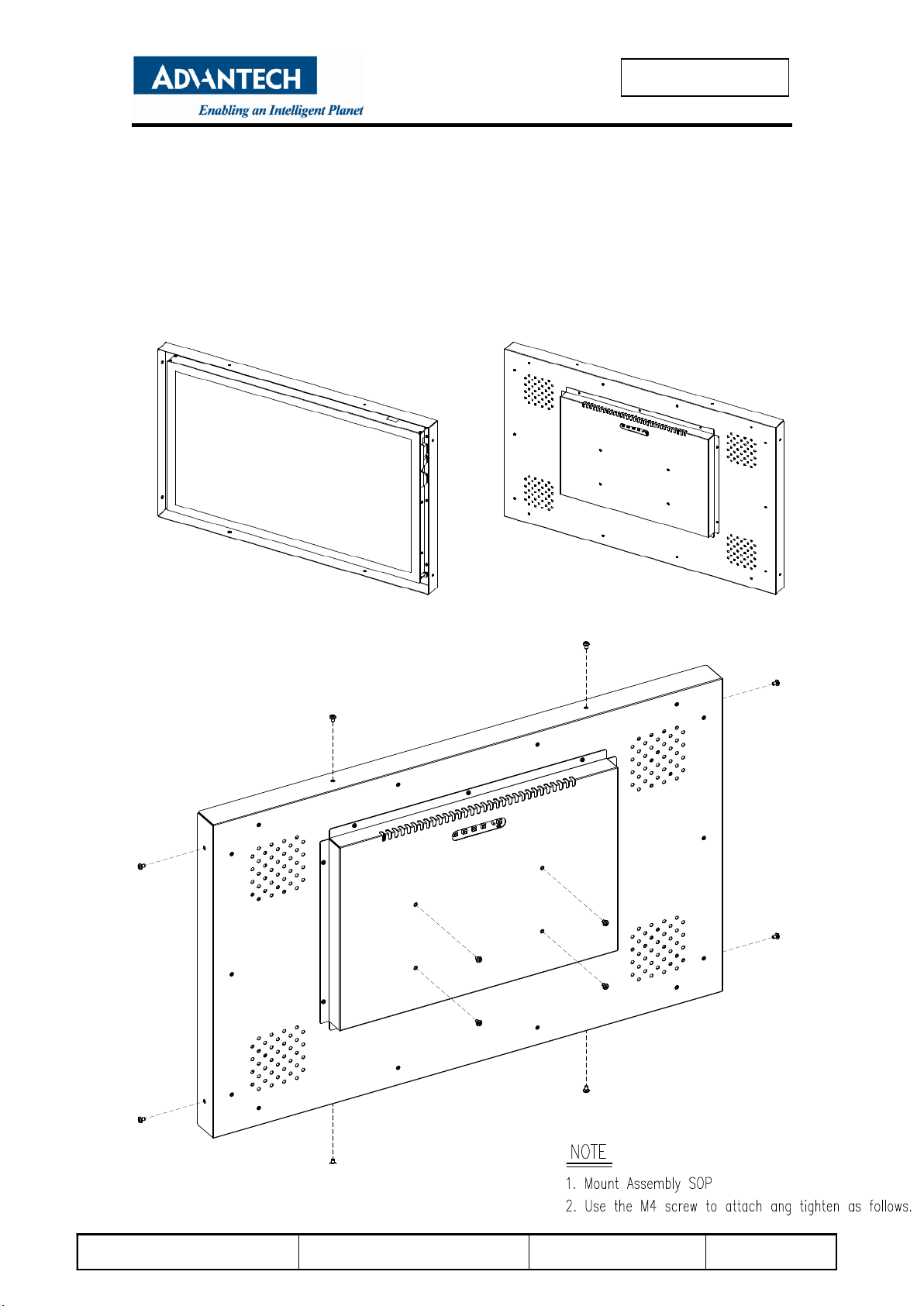

Accessory

14~18

Ⅸ

Mechanical Characteristics

Ⅹ

Packing

BSMI 甲類

警告使用者這是甲類資訊產品, 在居住的環境中使用時, 可能會造成射頻干擾,

在這種情況下, 使用者會被要求採取某些適當的對策.

警告 : 使用過度恐傷害視力

(1) 使用30分鐘請休息10分鐘。

(2) 2歲以下幼兒不看螢幕, 2歲以上每天看螢幕不要超過1小時。

Model :IDS31-320WP35DVA1E

Rev. No : Ver. 0.90

Date :15/APR/2015

Page 3of 20

Preliminary

Ⅰ. OVERVIEW

The IDS31-320WP35DVA1E is designed 32.0 inch monitor

- Support the monitor with 1920 × 1080 resolution.

- Brightness - 350 cd/㎡(without Touch)

- Contrast Ratio : 3000:1

Model :IDS31-320WP35DVA1E

Rev. No : Ver. 0.90

Date :15/APR/2015

Page 4of 20

Preliminary

Ⅱ. General Description

Display Type

TFT LCD Panel (32.0 inch) - P320HVN01.0_AUO

Pixel Pitch

0.3637(H)mm X 0.3637(V)mm

Pixel Format

1920 Hor. By 1080 Ver. Pixels RGB vertical stripe

Display Colors

16.7M colors

Brightness

350 cd/㎡(Typical)

Contrast Ratio

3000 : 1 (Typical)

Response Time

8 ms ( G to G )

Viewing

Angle

Horizontal

178˚

Vertical

178˚

Life Time

50,000 Hr (Typical)

Input Signal

Analog RGB, DVI-D

OSD Controls

Soft Power(On/Off), Menu, Select, Up, Down

Power Saving

(LED Display)

VESA DPMS,

On (Green), Stand-By (Green blinking),

Suspend (Green blinking), Off

Dimension

805.0(H) x 495.0(V) x 73.0(D)

Weight

14.5 kg

Operating Temp.

0℃~+50℃

Storage Temp.

-20℃~ +60℃

Model :IDS31-320WP35DVA1E

Rev. No : Ver. 0.90

Date :15/APR/2015

Page 5of 20

Preliminary

Ⅲ. Electrical Specifications

1-1. Electrical Characteristics

Power

DC Input Voltage

24VDC/5.0A±10%

Standby power

2.0 W

Power consumption

48 W

Analog

Video

Signal

Type

Analog RGB

Gain Level

0.714 ±5%

Input impedance

75ohm ±5%(terminated)

Pixel frequency

Max. 165MHz

Resolution

Max. 1920×1080 / 60Hz

Input

Sync

Signal

Type

H/V, Separate only

Gain Level

TTL level

(High ≥2.0V, Low ≤0.8V)

Polarity

Positive or Negative

Maximum Duty

Max. 25%

Frequency Range

Horizontal

31.43 ~ 88.8KHz,

Vertical

56.25 ~ 75.03Hz

DVI

Differential output

150 ~ 1200 mVp-p

Input clock freq

20 ~ 135 MHz

1-2 Board Block Diagram

Model :IDS31-320WP35DVA1E

Rev. No : Ver. 0.90

Date :15/APR/2015

Page 6of 20

Preliminary

2. I/O Port (Interface Connections)

2-1. Analog RGB Pin Assignment

Connector

P/No.

Symbol

Description

VGA Input

connector For 15P D-sub

Red

Red, analog input

Green

Green, analog input

Blue

Blue, analog input

N.C

Not connected

DGND

Digital ground

Red GND

Ground for Red return

Green GND

Ground for Green return

Blue GND

Ground for Blue return

N.C

Not connected

DGND

Detect connector

N.C

Not connected

DDC Data

H-sync

Horizontal sync, input

V-sync

Vertical sync, input

DDC Clk

2-2. DVI Jack Pin Assignment

Connector

P/No.

Symbol

Description

DVI

RX2N

TMDS Data 2-

RX2P

TMDS Data 2+

GND

TMDS Data 2/4 Shield

TMDS Data 4-

TMDS Data 4+

SCL-DVI-1

DDC Clock

SDA-DVI-1

DDC Data

VSYNC

Analog Vertical Sync

RX1N

TMDS Data 1-

RX1P

TMDS Data 1+

GND

TMDS Data 1/3 Shield

TMDS Data 3-

TMDS Data 3+

+5V Power

DVI+5V

GND

Ground

HPD

Hot Plug Detect

RX0N

TMDS Data 0-

RX0P

TMDS Data 0+

Model :IDS31-320WP35DVA1E

Rev. No : Ver. 0.90

Date :15/APR/2015

Page 7of 20

Preliminary

GND

TMDS Data 0/5 Shield

TMDS Data 5-

TMDS Data 5+

GND

TMDS Clock Shield

RXCP

TMDS Clock +

RXCN

TMDS Clock -

Analog Red

Analog Green

Analog Blue

HSYNC

Analog Horizontal Sync

2-3. Input Signal format

Character

Mode

Pixel

Freq.

Horizontal

Timing

Vertical

Timing

Sync

Polar

Freq.

Total

Activ

Sync

Polar

Freq.

Total

Active

MHz

KHz

Pixel

Line

640x480

@60Hz

25.175

31.47

800

640

59.94

525

480

800x600

@60Hz

40.000

37.88

1056

800

60.32

628

600

1024x768

@60Hz

65.000

48.36

1344

1024

60.00

806

768

1680x1050@60Hz

119.000

64.72

1840

1680

60.02

1080

1050

1920x1080@60Hz

148.500

66.60

2160

1920

60.00

1235

1080

Sync : H/V Separated LVDS

2-4. Touch Glass / Touch Controller

Projected Capacitive Touch

Input Method

Finger, Limited gloves

Light Transmittance

More than 82% (Typical)

Operating Temperature

‐25℃~ 70℃Humidity 90% RH at max 35℃

Storage Temperature

-30℃~ 80℃Humidity 90% RH at max 35℃

Note

1. Total Thickness : 2.52 ± 10%

2. Cover Glass Thickness : 2.0T ( Tempered glass )

3. Film Thickness : Top 0.21mm, Bottom 0.21mm(PET + Printed layer)

4. Transparency : 82% or More

5. Tail : FPC style ( Copper trace )

Model :IDS31-320WP35DVA1E

Rev. No : Ver. 0.90

Date :15/APR/2015

Page 8of 20

Preliminary

Controller Board (LR0G956)

Circuit Board Dimension

80 mm x 60 mm

Channels of Panel

Max. Y:141 X:78 channels

Input Voltage

Typical 3.3v

Operating Temperature

-10 to 60 ℃

Storage Temperature

-20 to 70 ℃

Interface

USB: 1.1 Full Speed

Power consumption

Idle mode : 900mW 240Hz (typ)

Report rate

Max 240Hz

Model :IDS31-320WP35DVA1E

Rev. No : Ver. 0.90

Date :15/APR/2015

Page 9of 20

Preliminary

Ⅳ. OSD Function

1) Button

Button

Function

Notes

POWER

Power on/off button

- Turn power on or off

Main menu on/off

- Show OSD menu on the screen

- Exit the main menu or sub menu

RIGHT

Adjust button

- Moves the bar right to increase the adjustment

- Moves the main menu or sub menu

LEFT

Adjust button

- Moves the bar left to decrease the adjustment

- Moves the main menu or sub menu

SELECT

Menu select/Mode select

- Moves the highlighted area to select one of the function

- Analog or DVI select

2) Menu

BRIGHTNESS

/CONTRAST

Sub Menu : Brightness, Contrast)

Use the ‘Adjust –‘ or ‘Adjust +’button to decrease or increase the setting

COLOR

Sub Menu : Color Temp. (Red, Green, Blue),Auto color

Use the ‘Adjust –‘ or ‘Adjust +’button to decrease or increase the setting

POSITION

Sub Menu : Horizontal, Vertical, Clock, Phase, Auto Adjust

Use the ‘Adjust –‘ or ‘Adjust +’button to decrease or increase the setting

SETUP

Sub Menu : OSD Position, OSD Time, OSD Language, Input Source,

Scale Ratio, Recall, XGA/WXGA Sel.

Use the ‘Adjust –‘ or ‘Adjust +’button to decrease or increase the setting

EXIT

Select one of the seven language

Model :IDS31-320WP35DVA1E

Rev. No : Ver. 0.90

Date :15/APR/2015

Page 10 of 20

Preliminary

Ⅴ. Environment Specifications

Parameter

Values

Units

Notes

Min.

Max.

Operating Temperature

+50

℃

Storage Temperature

-20

+60

℃

Operating Humidity

%RH

Storage Humidity

%RH

Ⅵ. Reliability

No.

Test Item

Conditions

High temperature operating test

Ta : 50℃, 120Hr

Low temperature operating test

Ta : 0℃, 120Hr

High temperature storage test

Ta : 60℃, 120Hr

Low temperature storage test

Ta : -20℃, 120Hr

High humidity operating test

Ta : 50℃, 80%RH, 120Hr

High humidity storage test

Ta : 50℃, 90%RH, 120Hr

Thermal shock operation test

Ta : 0℃, 60min 0℃~50℃, 30min

50℃, 60min, 50Cycle

Thermal shock storage test

Ta : -20℃, 60min -20℃~60℃, 30min

60℃, 60min, 50Cycle

ESD

Contact

8KV,1sec/cycle

Air

15KV,1sec/cycle

Vibration

(Non-Operation)

Wave form: random

Vibration level : 1.0G RMS

Bandwidth : 10-300Hz

Duration : X,Y,Z 10min per axes X,Y,Z:

Horizontal, face up

Shock

(Non-Operation)

Shock level

50G ,20ms ±X,Y,Z axis

Waveform: half sine wave

Direction: One time each direction
