Advantech AIMB-707 Installations- und Betriebshandbuch

AIMB-707 Startup Manual 1

AIMB-707 LGA1200 Intel® Core™ i9/i7/i5/i3 ATX with

Dual Display, M.2, USB 3.2, and DDR4

Startup Manual

Specications (Cont.)

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our sup-

port website for AIMB-707 at:

http://advt.ch/aimb707spt

extra warranty for free at:

http://www.register.advantech.com

This manual is for the AIMB-707 series Rev. A1.

Part No. 2041070700

Printed in China

1st Edition

September 2020

• System memory: Up to 64 GB in two 288-pin DIMM

sockets supporting dual-channel DDR4 2400/2666/2933

SDRAM. AIMB-707 supports non-ECC unbu󰀨ered DIMMs

and does not support any memory conguration that

mixes non-ECC with ECC unbu󰀨ered DIMMs.

• M.2 socket: One M.2 socket supports up to PCIe x2 M-

key 2280 type storage devices.

• SATA interface: Four on-board Serial ATA 3.0 connectors

support data transmission rates up to 600 MB/s. All four

SATA 3.0 ports support Advanced Host Controller Inter-

face (AHCI) technology.

• PCIe and PCI slot: One PCIe x16 expansion slot, 2x

PCIe x4 expansion slots (x1 link), 4x PCI slots 32-bit/33

MHz PCI 2.2 compliant.

• USB 3.2/2.0: Six USB 3.2 Gen 1 ports (6 rear), 4x USB

2.0 ports (2x via header, 2x internal Type-A).

• LPC interface: Advantech-designed LPC connector sup-

ports TPM module and COM port extension modules.

• Serial port: Up to 6x serial ports: COMD1, COMD2 and

COM 4 ~ 6 are RS-232; COM3 is RS-232/422/485 with

jumper and BIOS menu options.

• Parallel port: One parallel port, which supports SPP/

EPP/ECP mode.

• Keyboard/mouse connector: The motherboard is not

equipped with rear PS/2 connector for keyboard/mouse.

A 6-pin onboard header is supported for an optional PS/2

keyboard/mouse cable.

• Watchdog timer: 255 sec timer level intervals.

Graphic Interface

• Chipset: CPU integrated graphics controller.

• Display memory: One GB maximum shared memory

with 2x GB and above system memory installed.

• DVI-D: Resolution up to 1920 x 1200 @ 60 Hz refresh

rate.

• VGA: Resolution up to 1920 x 1200 @ 60 Hz refresh rate.

Ethernet Interface

• Interface: 10/100/1000 Mbps.

• Controller: LAN1:

Intel®I219-V;

LAN2 (G2 sku only):

Intel®

I211-AT.

Mechanical and Environmental

• Dimensions (L x W): 304.8 x 244 mm (12 x 9.6 in).

• Power supply voltage: +3.3 V, +5 V, ±12 V, +5 Vsb.

• Power consumption:

Intel®Core™ i9-10900E; DDR4 32 GB x 2.

Maximum: +3.3 V at 0.72 A, +5 V at 1.29 A, +12 V at 6.5

A, +5 Vsb at 0.11 A, -12 V at 0.04 A.

• Operating temperature: 0 ~ 60 °C/32 ~ 140 °F (depend-

ing on the CPU).

• Weight of board: 0.7 kg (1.54 lb).

Before you begin installing your card, please make sure that

the following items have been shipped:

• 1x AIMB-707 Startup Manual

• 2x Serial ATA HDD data cables

• 1x I/O port bracket

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Standard Functions

• CPU: LGA1200 socket supporting 10th Gen. Intel®

Core™ i9/i7/i5/i3 and Pentium™/Celeron™ processor.

• BIOS: AMI 128 Mbit SPI BIOS.

• Chipset: Intel® H420E PCH.

Note: Legacy platforms are not supported.

Specications

2 AIMB-707 Startup Manual

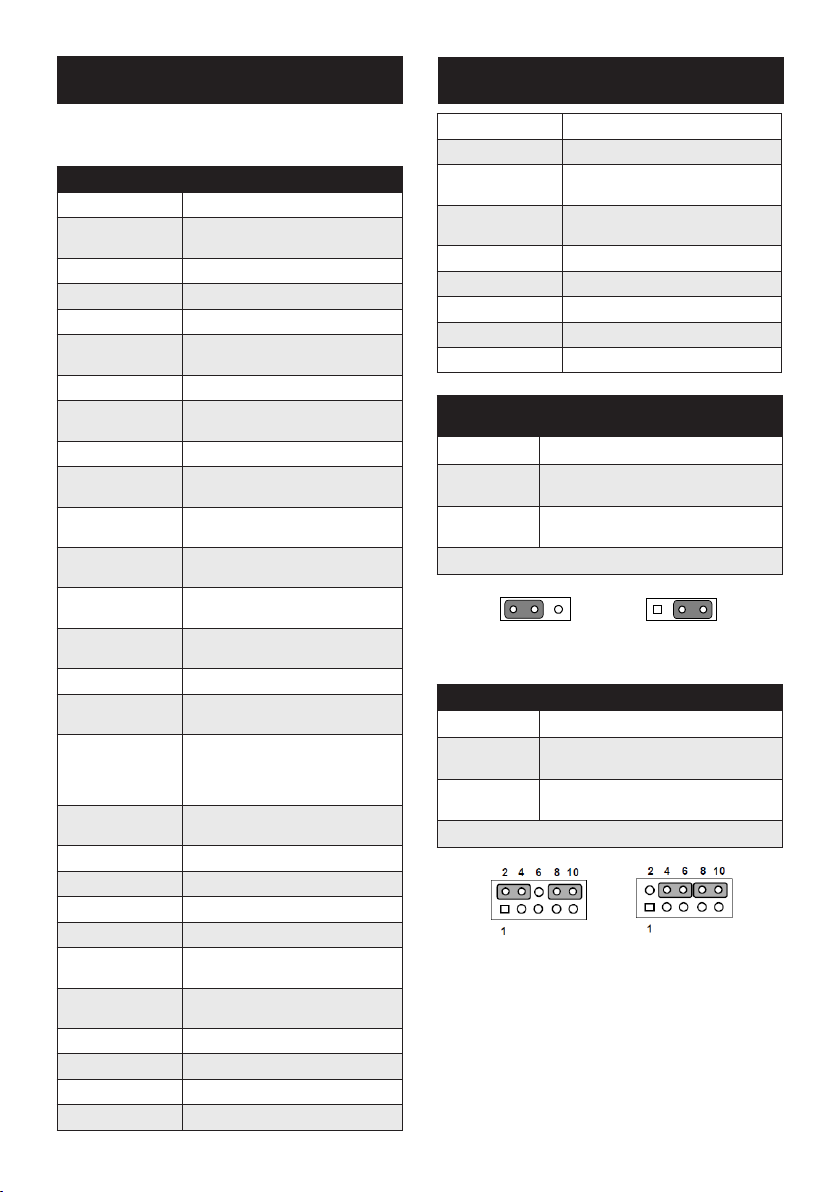

The board has a number of jumpers that allow you to con-

gure your system to suit your application. The table below

lists the function of each jumper and connector.

Connector / Jumper List

Label Function

LPT1 Parallel port, supporting SPP/EPP/

ECP mode

LAN1 LAN1

LAN2 LAN2 (G2 sku only)

USB3C1, USB3C3 4x USB 3.2 Gen 1 port

USB3C2 2x USB 3.2 Gen 1 port (G2 sku

only)

USB2A1 USB 2.0 internal Type-A port

USB2A2 USB 2.0 internal Type-A port (G2

sku only)

USB2H1 2x USB 2.0 port (10-pin header)

VGA1+DVI1 VGA connector / DVI-D connector

(DVI1 for G2 sku only)

COMD1+COMD2 Serial port: RS-232 (DB-9 con-

nector)

COM4 ~ COM6 Serial port: RS-232 (9-pin header,

G2 sku only)

COM3 Serial port: RS-232/422/485 (9-pin

header, G2 sku only)

KBMS1 External keyboard/mouse connec-

tor (6-pin header)

CPUFAN1 CPU fan connector (4-pin)

SYSFAN1 ~

SYSFAN3 System fan connector (4-pin)

JFP3

Keyboard lock and power LED

Suspend: fast ash (ATX/AT)

System on: on (ATX/AT)

System o󰀨: o󰀨 (ATX/AT)

JFP2 External speaker / HDD LED con-

nector / SMBus connector

JFP1 Power switch / reset connector

AUDIO1+AUDIO2 Audio connector (Line Out, Mic In)

VOLT1 Alarm board power connector

JCASE1 Case open connector

LANLED1 Front panel LAN indicator con-

nector

NVME1 M.2 2280 M-key socket (G2 sku

only)

SATA0 ~ SATA3 Serial ATA 3.0 port

PCI1 ~ PCI4 PCI slot

PCIE1 PCIe x16 slot

PCIE2 ~ PCIE3 PCIe x4 slot (x1 link)

DIMMA1 Channel A DIMM1

DIMMB1 Channel B DIMM1

ATX12V1 ATX 12 V auxiliary power connec-

tor (for CPU)

EATXPWR1 ATX 24-pin main power connector

(for system)

SPDIF_OUT1 SPDIF audio out pin header

GPIO1 8 bit GPIO from super I/O

SMBUS1 SMBus connector from PCH

FPAUD1 Front panel audio connector

LPC1 Low pin count connector

JCMOS1: CMOS clear

JME1: Intel ME update

Closed Pins Result

1-2 *Keep CMOS data

*ME normal mode

2-3

Clear CMOS data

ME recovery mode

* Default

*Keep CMOS data Clear CMOS data

*ME normal mode ME recovery mode

JWDT1+JOBS1: Watchdog timer output and OBS alarm

Closed Pins Result

2-4, 8-10 Watchdog timer disable (2-4)

OBS beep (8-10)

4-6, 8-10 *Watchdog timer reset (4-6)

OBS beep (8-10)

* Default

Watchdog timer disable (2-4) *Watchdog timer reset (4-6)

OBS beep (8-10) OBS beep (8-10)

1 2 3

Jumpers and Connectors Jumpers and Connectors (Cont.)

AIMB-707 Startup Manual 3

PSON1: ATX/AT mode selection

Closed Pins Result

1-2 AT mode

2-3 *ATX mode

* Default

AT mode *ATX mode

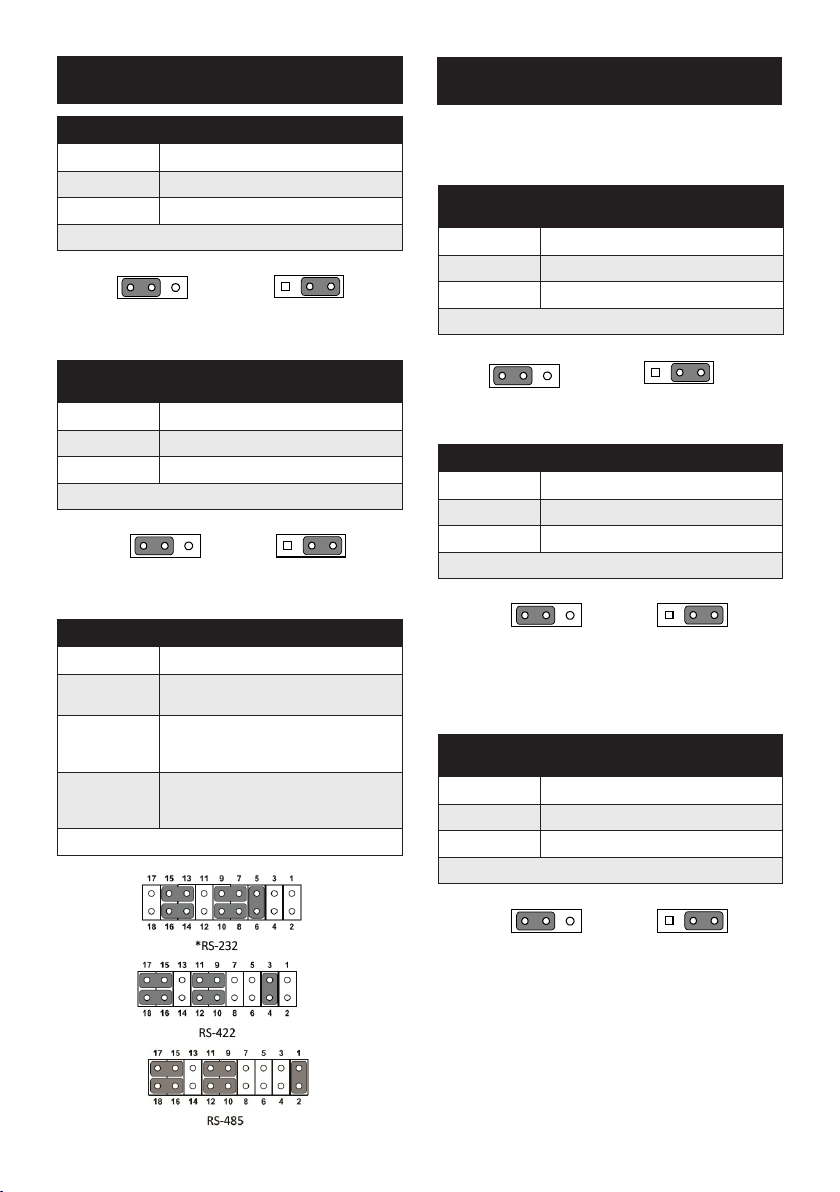

JUSB_1 (rear USB), JUSB_2 (onboard USB): USB power

source switch between +5V and +5V_DUAL

Closed Pins Result

1-2 *USB +5V_DUAL power

2-3 USB +5V power

* Default

*USB +5 V_DUAL power USB +5 V power

JSETCOM3: COM3 RS-232/422/485 jumper setting

Closed Pins Result

5-6, 7-9, 8-10,

13-15, 14-16 *RS-232

3-4, 9-11,

10-12, 15-17,

16-18

RS-422

1-2, 9-11,

10-12, 15-17,

16-18

RS-485

* Default

1 2 3

Note: BIOS setting changes are necessary if RS-422

or RS-485 is selected. Please refer to Chapter 3

of user manual for further settings.

JT1(TX signal), JR1(RX signal): COM3 RS-422/485

termination resistor

Closed Pins Result

1-2 Disable termination

2-3 *Enable termination

* Default

Disable termination *Enable termination

JFV1: VGA dummy load setting

Closed Pins Result

1-2 Enable VGA dummy load

2-3 *Disable VGA dummy load

* Default

Enable VGA dummy load *Disable VGA dummy load

Note: We reccomend leaving this function disabled if

you use DVI/DP as your main display.

SMB1 (clock), SMB2 (data): PCIe SMBus connection

setting

Closed Pins Result

1-2 *Enable PCIe SMBus connection

2-3

Disable PCIe SMBus connection

* Default

*Enable PCIe SMBus connection Disable PCIe SMBus connection

Note: Both SMB1 and SMB2 jumpers should be

switched to the same setting, either 1-2 closed

or 2-3 closed.

1 2 3

Jumpers and Connectors (Cont.) Jumpers and Connectors (Cont.)

4 AIMB-707 Startup Manual

Declaration of Conformity

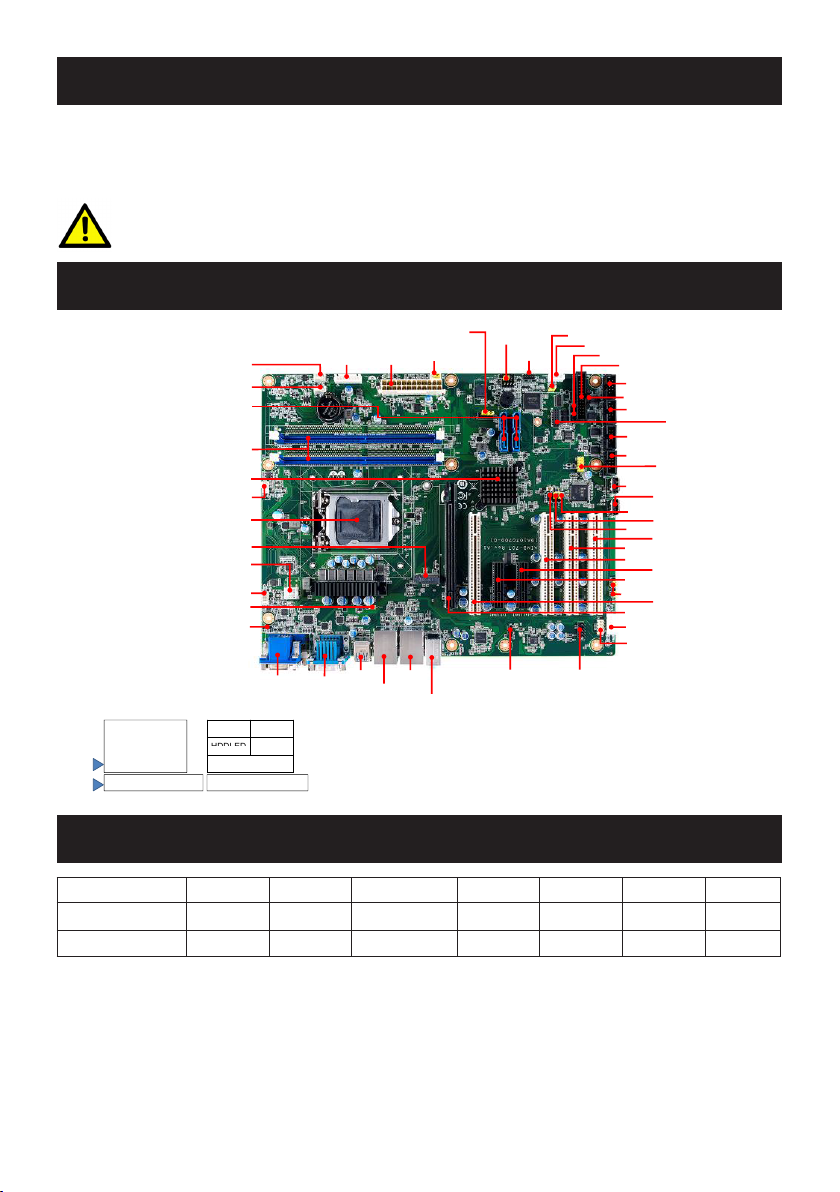

Board Layout

This device complies with the requirements in Part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Caution! The computer is supplied with a battery-powered realtime clock circuit. There is a danger of explosion if battery

is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer. Discard

used batteries according to manufacturer’s instructions.

Part Number Chipset Display USB 3.2 Gen 1 USB 2.0 COM GbE LAN M.2

AIMB-707G2-00A1 H420E VGA + DVI 6 4 6 2 1

AIMB-707VG-00A1 H420E VGA 4 3 2 1 0

SATA1 SATA3

SATA0 SATA2

DIMMB1

DIMMA1

PCI3

PCIE3

PCIE1

Intel H420E PCH

Intel LGA1200 Core i9/i7/i5/i3

USB2A1

COM3

USB2H1

AUDIO1+AUDIO2

LAN2

USB3C2

LAN1

USB3C1

VGA1

DVI1

COMD1

COMD2

SYSFAN1

SYSFAN3

VOLT1 EATXPWR1 PSON1 GPIO1

LPT1

SMBUS1

JCASE1

COM4

COM5

COM6

LPC1

JT1, JR1

JWDT1+JOBS1 JFP3

JFP1+JFP2

CPUFAN1

PCI1

PCIE2

PCI2

PCI4

SPDIF_OUT1 FPAUD1

KBMS1

SYSFAN2

ATX12V1

JUSB_1

JFV1

USB3C3

LANLED1

SMB1, SMB2

JUSB_2

JCMOS1

JME1

USB2A2

JSETCOM3

NVME1

3 6 9 12

25811

PWRSW RESET

HDDLED

SNMP

JFP1

2 5 8 11

1 4 7 10

HDDLED

SM_BUS

SPEAKER

JFP2

PWRLED & KEYLOCK

12345

JFP3

Figure 1: Board Layout: Jumper and

Connector Locations

Order Information
