Advantech AIMB-780 Installations- und Betriebshandbuch

AIMB-780 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1 AIMB-780 Startup Manual

1 Driver CD (user’s manual is included)

2 Serial ATA HDD data cables

2 Serial ATA HDD power cables

1 COM Port cables (2 to 2)

1 I/O port bracket

1 Warranty card

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF

ﬁle.Acrobat Reader can be downloaded at:

www.adobe.com/Products/acrobat/readstep2.

html (Acrobat is a trademark of Adobe)

•

AIMB-780 Intel®Core™ i7/i5/i3/Pentium®/Xeon®ATX

Motherboard with DVI/VGA, 4 COM, Dual LAN, DDR3

Startup Manual

Standard SBC Functions

CPU: LGA1156 Intel® Core™ i7/i5/i3/Pentium/Xeon

BIOS: AMI 64 Mb SPI BIOS

Chipset: Intel® Q57 (QG2 SKU) and 3450 (WG2 SKU)

Chipset

System memory: Up to 16 GB four 240-pin DIMM sock-

ets. Supports dual channel DDR3 800/1066/1333

SDRAM (Only WG2 SKU supports ECC memory)

Note: Due to the inherent limitations of PC architecture, the

system may not fully detect 16 GB RAM when 16

GB RAM is installed.

SATA2 Interface: Six on-board Serial ATA2 connectors

with a data transmission rate of up to 300 MB/s support-

ing Advanced Host Controller Interface (AHCI) technology

FDD interface: Supports one FDD

Serial ports: Four serial ports, COM1, COM2 and COM4

are RS-232; COM3 is RS-232/422/485 with auto ﬂow

control support

Parallel port: One parallel port, supports SPP/EPP/ECP

modes.

Keyboard/mouse connector: Supports standard PS/2

keyboard and mouse

Watchdog timer: 255 level timer intervals

USB 2.0: Supports up to fourteen USB 2.0 ports

VGA Interface

Chipset: Only Core i5 6xx; Core i3 and Pentium CPUs

with dual core are embedded with integrated graphics

Display Memory: 1 GB maximum shared memory with 2

GB and above system memory installed

Resolution: Supports DVI up to resolution 1920 x 1200

@ 60 Hz refresh rate

Supports RGB up to resolution 2048 x 1536 @ 75 Hz

refresh rate

Ethernet interface

Interface: 10/100/1000 Mbps

Controller: LAN1: Intel 82578DM; LAN2: Intel 82583V

Mechanical and Environmental

Dimensions (L x W): 304.8 x 244 mm (12” x 9.6”)

Power supply voltage: +3.3 V, +5 V, ±12 V, 5 Vsb

Power consumption: Maximum: +5 V at 4.23 A, +3.3 V

at 0.96 A, +12 V at 3.93 A, +5 Vsb at 1.18 A, -12 V at 0.01

A (Intel i5 660 3.3 GHz processor and disable C state , 4

x 2 GB DDR3 Memory)

Operating temperature: 0 ~ 60° C (depending on CPU)

Weight: 0.5 kg (weight of board)

•

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the AIMB-780 series Rev. A1

Part No. 2002078010

Print in China

1st Edition,

May 2010

2 AIMB-780 Startup Manual

The board has a number of jumpers that allow you to con-

ﬁgure your system to suit your application. The table below

lists the function of each jumper and connector.

Connector / Jumper List

Label Function

JWDT1 Watchdog Reset

FDD1 FDD connector

LPT1 Parallel port, Parallel port x 1, supports

SPP/ EPP/ECP mode

LAN1_USB12 LAN1 / USB port 1, 2

LAN2_USB34 LAN2 / USB port 3, 4

VGA1 VGA connector

DVI11 DVI Connector

COM1

COM2

COM4

Serial port: RS-232

COM3 Serial port: COM3; RS-232/422/485

(9-pin connector)

JSETCOM3 COM3 RS-232/422/485 Jumper Setting

KBMS1 PS/2 Keyboard and Mouse connector

KBMS2 External Keyboard connector (6-pin)

JIR1 Infrared connector

JFP3

Keyboard Lock and Power LED

Suspend: Fast ash (ATX/ AT)

System On: ON (ATX/ AT)

System Off: OFF (AT)

System Off: Slow ash (ATX)

JFP2 External speaker / SATA HDD LED con-

nector / SM Bus connector

JFP1 Power Switch / Reset connector

JCASE1 Case Open

PSON1 AT(1-2) / ATX(2-3)

VOLT1 Voltage Display

JOBS1 Close: Enable OBS Alarm

Open: Disable OBS Alarm

CPUFAN1 CPU FAN connector (4-pin)

SYSFAN1 System FAN connector (4-pin)

SYYFAN2 System FAN connector (4-pin)(4-pin)

LANLED1 LAN1/2 LED extension connector

AUDIO1 Audio connector

FPAUD1 HD Audio Front Panel Pin Header

USB56 USB port 5, 6

USB78 USB port 7, 8

USB910 USB port 9, 10

USB1112 USB port 11,12

USB1314 USB port 13,14

SATA1 Serial ATA1

SATA2 Serial ATA2

SATA3 Serial ATA3

SATA4 Serial ATA4

SATA5 Serial ATA5

SATA6 Serial ATA6

ATX12V1 ATX 12V Auxiliary power connector

(for CPU)

EATXPWR1

ATX 24 Pin Main power connector

(for System)

SPDIF_OUT1 SPDIF Audio out pin header

SPI_CN1 SPI ash card pin header

JCMOS1

CMOS and ME clear

JCMOS1: CMOS and ME clear function

Pins

Result

1-2 Keep CMOS and ME data*

2-3

Clear CMOS and ME data

*: Default

Jumpers and Connectors

Keep CMOS data Clear CMOS data

Jumpers and Connectors

1 2 3

RS232 RS422 RS485

1 2 3

AIMB-780 Startup Manual 3

The CD disc contains a driver installer program that will

lead you through the installation of various device drivers

needed to take full advantage of your motherboard.

The computer is supplied with a battery-powered realtime

clock circuit. There is a danger of explosion if battery is

incorrectly replaced. Replace only with same or equivalent

type recommended by the manufacturer. Discard used bat-

teries according to manufacturer’s instructions.

This device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions:

This device may not cause harmful interference.

This device must accept any interference received,

including interference that may cause undesired opera-

tion.

Jumpers and Connectors

AT Mode 1-2 closed ATX Mode 2-3 closed

Software Installation

Declaration of Conformity

JSETCOM3: COM3 RS-232/422/485 Mode Selector

Users can use JSETCOM3 to select RS-232, RS-422 or

RS-485 mode for COM3. The default setting is RS-232.

JWDT1: Watchdog timer output option

Closed Pins

Result

1-2 NC

2-3 System reset*

*: Default

PSON1: ATX, AT mode selector

Closed Pins

Result

1-2 AT Mode

2-3 ATX Mode*

*: Default

IRQ11 1-2 Closed System Reset 2-3 Closed

4 AIMB-780 Startup Manual

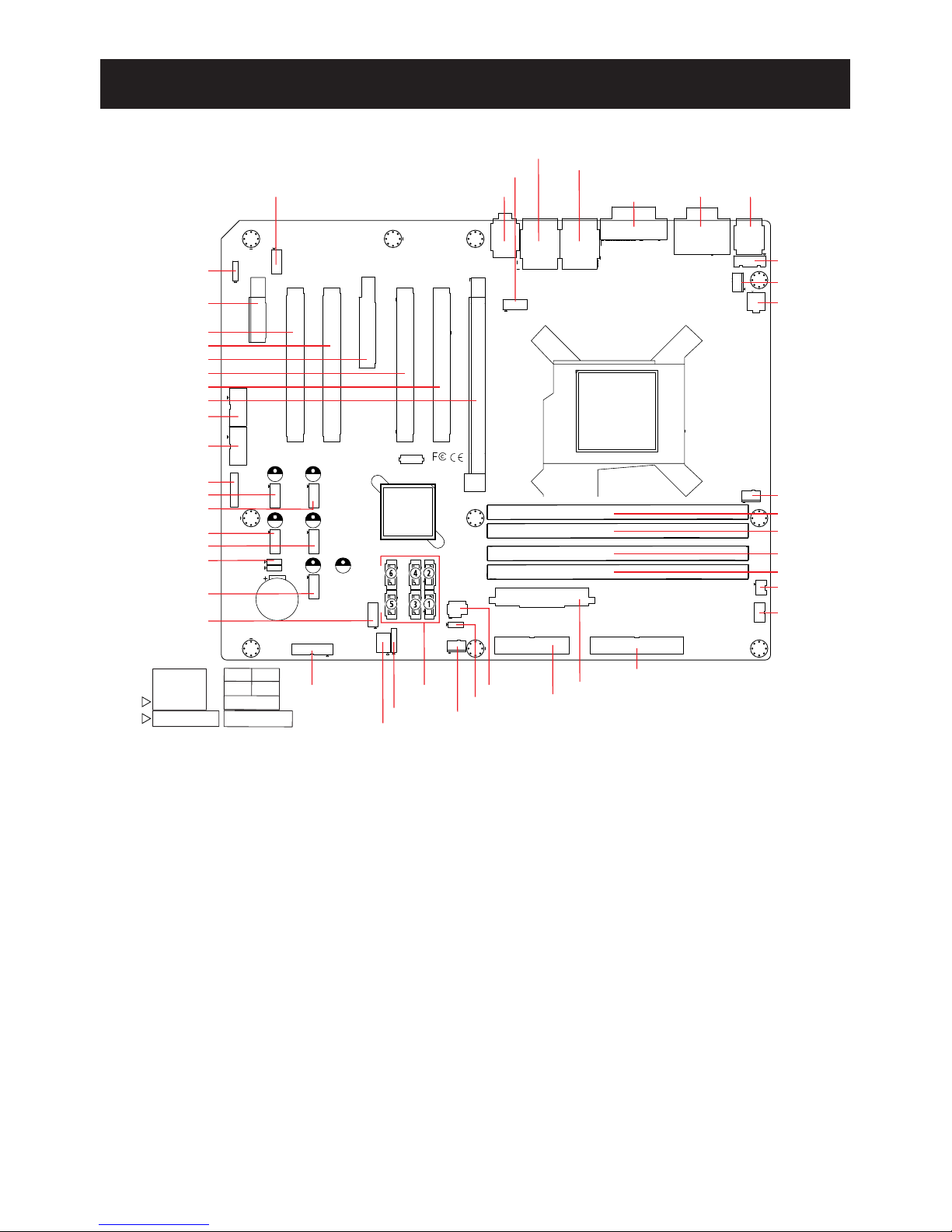

Board Layout

FPAUD1

LAN1_USB12

LAN2_USB34

AUDIO1

LANLED1

COM12

VGA1+

DVI1 KBMS1

ATX12V1

SYSFAN1

KBMS2

JCASE1

DIMMB1

DIMMB2

DIMMA1

DIMMA2

CPUFAN1

PSON1

SYSFAN2

SPI_CS_CN1

SPI_CN1

LPT1

EATXPWR1

FDD1

JIR1+JWDT1+

JOBS1

VOLT1

JFP1+JFP2

JFP3

SPDIF_OUT1

USB56

JSETCOM3

USB1314

USB1112

USB910

USB78

JCMOS1

COM3

PCIEX1_1

PCI4

PCI3

PCIEX4_1

PCI2

PCI1

PCIEX16_1

COM4

SATA

PWRSW RESET

PWRLED & KEYLOCK

SPEAKER

HDDLED SM_BUS

JFP1

JFP2

JFP3

3 6 9 12

12345

2 5 8 11

1 4 7 10

Board Layout: Jumper and Connector Locations
