Manual

ADVANTECH

ASMB-787

Industrial ATX Server Motherboard for 10th Gen. Core™& Xeon® Processors

with Intel® W480E Chipset

ASMB-787 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

• 1 Startup manual

• 2 Serial ATA HDD data cables

• 2 Serial ATA HDD power cables

• 1 COM cable (for connection to real panel)

• 1 I/O port bracket

• 1 Warranty card

• 1 JFP1 cable

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF

le.AcrobatReadercanbedownloadedat:

http://www.adobe.com/downloads/ (Acrobat is a

trademark of Adobe)

ASMB-787 LGA 1200 Intel®Xeon®W & 10th Gen. Core™

ATX Server Board with 4 x DDR4, 5 x PCIe, 2 x PCI,

6 x USB 3.2, 5 x SATA 3, Quad/Dual LANs, and IPMI

Startup Manual

Standard Functions

• CPU: LGA 1200 Intel®Xeon®W and 10th Gen. Core™ i9/

i7/i5/i3 processor

• BIOS: AMI 256 Mb SPI BIOS

• Chipset: Intel W480E

• System memory: Dual Channel DDR4 ECC/Non-ECC

2933/2666/2400MHzunbu󰀨eredDIMM,Max.128GB

Note: Due to the inherent limitations of PC architecture,

the system may not fully detect 128 GB RAM

when 128 GB RAM is installed.

• SATA3 interface: 5xSATA36Gb/sportstosupportIntel

Rapid Storage Technology with software RAID 0, 1, 10 &

5 (for Windows only)

• Serial ports: Two serial ports onboard, only support RS-

232 (one can be in rear IO via COM cable connection)

• Keyboard/mouse connector: Supports standard PS/2

keyboard and mouse via KMBS1 pin header

• Watchdog timer: 255 level timer intervals (sec/min)

• USB 3.2: SupportsuptosixUSB3.2ports,fourGen2

ports in rear I/O and two Gen1 ports from on-board pin

header

• USB 2.0: SupportsuptosevenUSB2.0ports(1*Type-A)

Display Interface

• Chipset: CPUintegratedIntelHDgraphicscontroller

• Display memory: 1GBmaximumsharedmemorywith

2 GB and above system memory installed (BIOS default

is 256 MB)

• Resolution:

-SupportsVGAupto1920x1200resolution@60Hz

refresh rate

-SupportsDVIupto1920x1200resolution@60Hz

refresh rate

-SupportsHDMI2.0upto2K/4Kresolution@60Hz

Ethernet Interface

• Interface: 10/100/1000 Mbps

• Controller: LAN1: Intel

I219LM; LAN2 ~ LAN4: Intel

I210AT

(LAN2isBMCsharedNIC;LAN3/4isforG4SKUonly)

Mechanical and Environmental

• Dimensions (L x W): 244x304mm(9.6”x12”)

• Power supply voltage: +3.3 V, +5 V, ±12 V, 5 Vsb

• Power consumption: Max.load:+3.3V@1.69A,+5V@

1.68A,+12V@0.31A,+12V(8P)@9.25A,+5Vsb@

0.01 A

• Operating temperature: 0~60°C(dependsonCPUspeed

and cooler solution)

• Weight: 0.5 kg (weight of board)

For more information on this and other Advantech prod-

ucts, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our sup-

port website for ASMB-787 at:

https://advt.ch/asmb787

extrawarrantyforFREEat:

http://www.register.advantech.com

This manual is for the ASMB-787 series Rev. A1.

Part No. 2041B78700

Printed in China

1st Edition

October 2020

Packing List Specications

2 ASMB-787 Startup Manual

Connector list

PCI_SLOT1,

PCI_SLOT2 PCI slot

PCIEX1_SLOT5 PCIex1slot(Gen3x1link)

PCIEX4_SLOT3,

PCIEX4_SLOT7 PCIex4slot(Gen3x4link)

PCIEX8_SLOT4,

PCIEX16_SLOT6

PCIEx8&x16slots(oneGen3

x16linkforslot6ortwoGen3

x8linkforslot4and6)

PMBUS1 PMBUSconnectortocommuni-

cate with power supply

SATA0~4 SATA III (6 Gb/s)

SMBUS1 SMBus from PCH

SYS_LED1 System information LED con-

nector

SYSFAN0, SYSFAN1,

SYSFAN2, SYSFAN3 System FAN connector

SPI_CN1 SPIashcardpinheader

SPDIF_OUT1 SPDIF audio output pin header

USB5_6 USB3.2Gen1port(Header)

USB7_8,USB9_10,

USB11_12 USB2.0port(Header)

USB13 USB2.0port(USBTypeA)

Jumper list

Label Function

HDMI_I2C1 For RD debugging

JCMOS1 CMOS clear

JME1 Intel ME Disable jumper for ME/

BIOS update

JWDT1 Watchdog reset

JUSB_1

RearwindowUSB3.2Gen2

port power source switch

between +5 VSB and +5 V

JUSB_2

OnboardUSB2.0/3.2Gen1port

power source switch between

+5 VSB and +5 V

JCASE1 Case open

JPEG1, JPEG2 x16orx8x8orx8x4x4forslot-6

JPEG3 Default (1-2)/reserve for RD

debug (2-3)

JPRSNT1

PCIe card present pin support

for PCIEX8_SLOT4

Auto detect (1-2)/Manual detect

(2-3)

The board has a number of jumpers that allow you to con-

gureyoursystemtosuityourapplication.Thetablebelow

lists the function of each jumper and connector.

Connector list

Label Function

ATXPWR1 ATX 24-pin main power connec-

tor (for System)

ATX12V1 8-pin power connector

(forCPU)

AUDIO1~2 Audio connector

BAT1 For RTC battery

BAT2 For optional battery kit

BIOS_SKT1 BIOS SPI ROM

BMC_DEBUG1 For RD debugging

BMC_UART1 BMC debug message

BMC_VGA1 BMC VGA connector

BMC_SPI1 BMC image ROM

COM1, COM2 Serial port: RS-232

CPUFAN0 CPUFANconnector

DIMMA0, DIMMA1,

DIMMB0, DIMMB1 DDR4 288-pin slot

DVI1 DVI connector

EX_THR1 Forexternalthermistorcablekit

FPAUD1 Front panel audio header

GPIO1 8-bit GPIO header

HDMI1_VGA1 HDMI + VGA connector

JFP1

Power Switch/ Power Reset/

LANLED1/LANLED2/

HDD LED/Power LED

Power LED Behavior:

• Suspend:Fastash(ATX/AT)

• System On: ON (ATX/AT)

• SystemO󰀨:OFF(ATX/AT)

KBMS1 Externalkeyboardandmouse

connector (6 pin)

LAN1_USB1_2,

LAN2_USB3_4

LAN1/USB3.2Gen2port1,2

stack connector

LAN2/USB3.2Gen2port3,4

stack connector

LAN3_LAN4 LAN3 & LAN4 connector

LPC1, LPC2

Low pin count connector

for Advantech TPM and

RS232/422/485 module

LPT1 Parallel port

M2_2280_1 M.2 2280/2242 (PCIe/SATA)

Jumpers and Connectors

Jumpers and Connectors (Cont.)

ASMB-787 Startup Manual 3

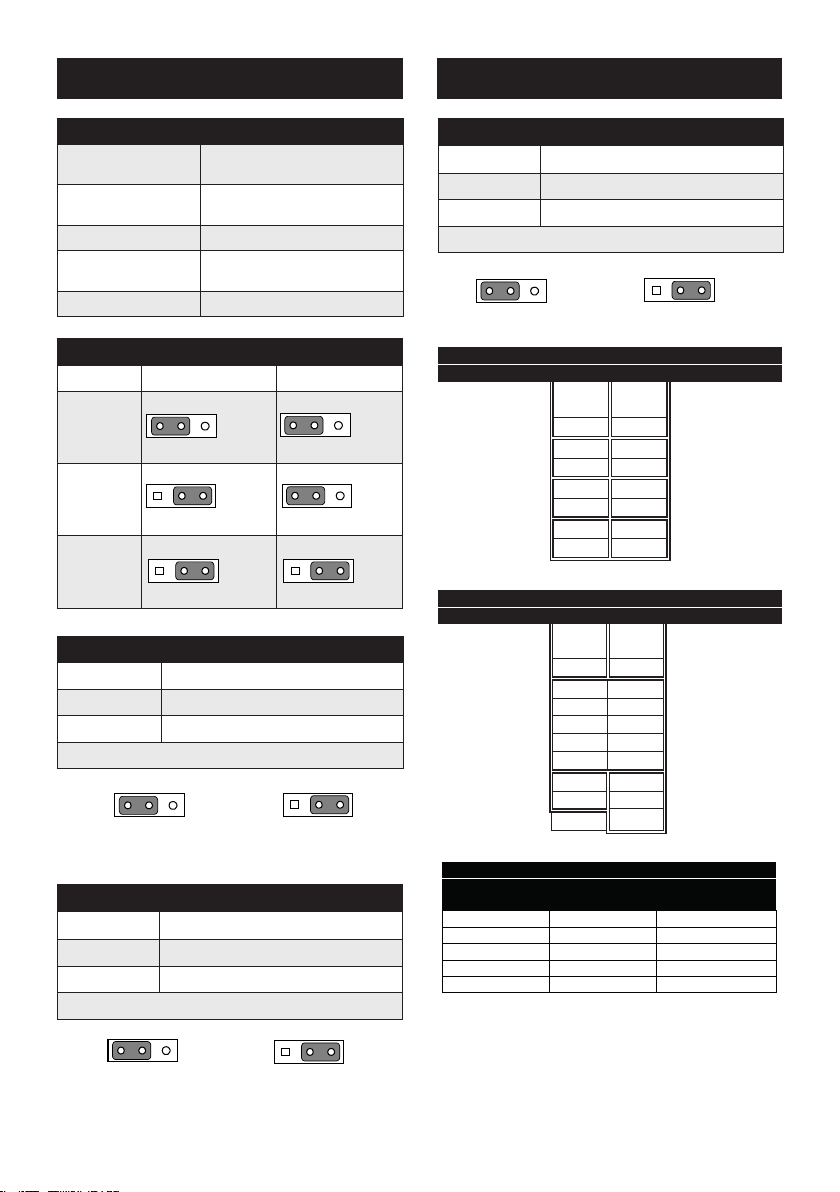

Jumper list

JPSMB1, JPSMB2 PCIESLOTSMBUSconnector:

to PCH (1-2)/to BMC (2-3)

JP_PCICLK1 PCI slot 66MHz clock:

Enable (1-2)/Disable (2-3)

JSMB1 For RD debugging

JTHR_SEL1 Toselectonboardorexternal

thermistor

PSON1 AT (1-2)/ATX (2-3)

PCIEX16_Slot6Conguration(JPEG1,JPEG2)

Function JPEG1 JPEG2

Slot6 PCIe

x16(Default)

1-2 closed 1-2 closed

Slot6 PCIe

x8+x8

2-3 closed 1-2 closed

Slot6 PCIe

x8+x4+x4

1 2 3

2-3 closed

1 2 3

2-3 closed

JCMOS1/JME1: CMOS clear/ME update function

Closed pins Result

1-2

KeepCMOSdata/DisableMEupdate*

2-3 Clear CMOS data/Enable ME update

*:Default

Keep CMOS data/ Clear CMOS data/

Disable ME update Enable ME update

JWDT1: Watchdog timer output option

Closed Pins

Result

1-2 Systemreset*

2-3 NC

*:Default

1 2 3

System Reset 1-2 Closed NC 2-3 Closed

1 2 3

PSON1:ATX,ATmodeselector

Closed Pins

Result

1-2 AT Mode

2-3 ATXMode*

*:Default

AT Mode 1-2 closed ATX Mode 2-3 closed

1 2 3

1PWD BTN

2.0 mm JFP connector on board

Description Pin Number Description

RST BTN

PWD GND

43PWD GND

LAN1_LED+

LAN2_LED+

LAN1_LED -

LAN2_LED -

CRPS_Detect

10 9SYS_LED+

GND

12 11 SYS_LED-

PWR_LED+

HDD_LED+

PWR_LED -

HDD_LED-

▼

2.0 mm JFP connector to 2.54 mm Pitch Header

Description

Pin Number

Description

(Red) PWD BTN

▼12RST BTN (White)

(Black) PWD GND

PWD GND (Black)

(Blue) LAN1_LED+

56LAN2_LED+ (Brown)

(Red) LAN1_LED -

78LAN2_LED - (Black)

Key

(Orang) HDD_LED+

PWR LED+ (Red)

(Black) HDD_LED -

Key 16 PWR LED - (Black)

SATA storage mapping table

Connector Label BIOS Menu Intel Rapid Storage

Technology

SATA0 SATA0 Internal empty port 3

SATA1 SATA1 Internal empty port 4

SATA2 SATA2 Internal empty port 5

SATA3 SATA3 Internal empty port 6

SATA4 SATA4 Internal empty port 7

Jumpers and Connectors (Cont.)

Installation Note

4 ASMB-787 Startup Manual

Caution! The computer is supplied with a battery-powered realtimeclockcircuit.Thereisadangerofexplosionifbatteryis

incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer. Discard used

batteries according to manufacturer’s instructions.

This device complies with the requirements in Part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Board Layout: Jumper and Connector Locations

HDMI1_VGA1

LAN3_LAN4

DVI1

LAN2_USB3_4

COM2

Intel LGA1200 Socket

USB7~12

KBMS1

Intel W480E PCH

PMBUS1

ASPEED 2600 BMC

DIMM A0

LAN1_USB1_2

AUDIO1~2

PCI_SLOT1~2

PCIEX16_SLOT6

PCIEX4_SLOT7

ATXPWR1

DIMM A1

DIMM B0

DIMM B1

ATX12V1

FDAUD1

COM1_

JPEG1~3

SYS_LED1

JFP1

LPC1_2

SATA0~5

SPI_CN1

BIOS_SKT1

SPDIF_OUT1

SYSFAN3

CPUFAN0

BAT1

M2_2280_1

JPSMB1~2

JWDT1

JME1

USB5_6

JCMOS1

SYSFAN0

GPIO1

PSON1

SMBUS1

JCASE1

EX_THR1

SYSFAN1~2 JTHR_SEL1

USB13

JUSB_1~2

BMC_DEBUG1

BMC_SPI1

BMC_UART1

LPT1

PCIEX1_SLOT5

PCIEX8_SLOT4

PCIEX4_SLOT3

BAT2

JP_PCICLK1

BMC_VGA1

JPRSNT1 JSMB1

HDMI_I2C1

Declaration of Conformity

Board Layout

Our company network supports you worldwide with offices in Germany, Austria, Switzerland, the UK and the

USA. For more information please contact:

Headquarters

Germany

FORTEC Elektronik AG

Augsburger Str. 2b

82110 Germering

Phone: +49 89 894450-0

E-Mail: [email protected]

Internet: www.fortecag.de

Fortec Group Members

Austria

Distec GmbH Office Vienna

Nuschinggasse 12

1230 Wien

Phone: +43 1 8673492-0

E-Mail: [email protected]

Internet: www.distec.de

Germany

Distec GmbH

Augsburger Str. 2b

82110 Germering

Phone: +49 89 894363-0

E-Mail: [email protected]

Internet: www.distec.de

Switzerland

ALTRAC AG

Bahnhofstraße 3

5436 Würenlos

Phone: +41 44 7446111

E-Mail: [email protected]

Internet: www.altrac.ch

United Kingdom

Display Technology Ltd.

Osprey House, 1 Osprey Court

Hichingbrooke Business Park

Huntingdon, Cambridgeshire, PE29 6FN

Phone: +44 1480 411600

E-Mail: [email protected]

Internet: www. displaytechnology.co.uk

USA

Apollo Display Technologies, Corp.

87 Raynor Avenue,

Unit 1Ronkonkoma,

NY 11779

Phone: +1 631 5804360

E-Mail: [email protected]

Internet: www.apollodisplays.com

Inhaltsverzeichnis

Andere Advantech Hauptplatine Handbücher

Advantech

Advantech SIMB-M01 Installations- und Betriebshandbuch

Advantech

Advantech PCE-3032 Bedienungsanleitung

Advantech

Advantech PCM-3341 Series Bedienungsanleitung

Advantech

Advantech PCM-9381 Installations- und Betriebshandbuch

Advantech

Advantech SIMB-M21 Bedienungsanleitung

Advantech

Advantech AIMB-203 Bedienungsanleitung

Advantech

Advantech PCM-9590 Bedienungsanleitung

Advantech

Advantech AIMB-223 Installations- und Betriebshandbuch

Advantech

Advantech AIMB-785 Bedienungsanleitung

Advantech

Advantech PCE-5129 Installations- und Betriebshandbuch

Advantech

Advantech PCA-6155 Bedienungsanleitung

Advantech

Advantech MIC-3369C Bedienungsanleitung

Advantech

Advantech MIO-2261 Installations- und Betriebshandbuch

Advantech

Advantech AIMB-227 AMD Installations- und Betriebshandbuch

Advantech

Advantech PCM-9576F Bedienungsanleitung

Advantech

Advantech MIO-5270 Installations- und Betriebshandbuch

Advantech

Advantech PCM-9365 Installations- und Betriebshandbuch

Advantech

Advantech MIC-3396 Bedienungsanleitung

Advantech

Advantech PCM-5820 Series Bedienungsanleitung

Advantech

Advantech PCM-9380 Installations- und Betriebshandbuch

Advantech

Advantech PCI-7020F PCI-7020VG PCI-7020LV PCI-7020 Bedienungsanleitung

Advantech

Advantech PCM-5825 Bedienungsanleitung

Advantech

Advantech SOM-ETX Series Leitfaden

Advantech

Advantech PCI-6771 series Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
