Advantech MATX i915GV2-IGM Series Bedienungsanleitung

User’s Manual

mATX

Ver. 1.00

i915GV2-IGM

Series

Intel®Pentium®4 / Celeron®mATX Main Board

Contents

Noticesiv

Safety information ..........................................................................................v

i915GV2-IGM specications summary..........................................................vi

Product introduction

1.1 Before you proceed ....................................................................... 1-2

1.2 Motherboard overview ................................................................... 1-3

1.2.1 Placement direction ........................................................ 1-3

1.2.2 Screw holes .................................................................... 1-3

1.2.3 Motherboard layout......................................................... 1-4

i915GV2-IGM ................................................................................. 1-4

1.2.4 Layout contents .............................................................. 1-5

1.3 Central Processing Unit (CPU)...................................................... 1-6

1.3.1 Installing the CPU ........................................................... 1-6

1.3.2 Installing the CPU heatsink and fan ............................... 1-9

1.3.3 Uninstalling the CPU heatsink and fan ..........................1-11

1.4 System memory............................................................................1-13

1.4.1 DIMM sockets location ..................................................1-13

1.4.2 Memory Congurations .................................................1-13

1.4.3 Installing a DIMM...........................................................1-15

1.4.4 Removing a DIMM .........................................................1-15

1.5 Expansion slots.............................................................................1-16

1.5.1 Installing an expansion card ..........................................1-16

1.5.2 Conguring an expansion card......................................1-16

1.5.3 Interrupt assignments ....................................................1-17

1.5.4 PCI slots.........................................................................1-18

1.5.5 PCI Express x16 slot .....................................................1-18

1.5.6 PCI Express x1 slot .......................................................1-18

1.6 Jumpers ........................................................................................1-19

1.7 Connectors .................................................................................. 1-21

1.7.1 Rear panel connectors ................................................. 1-21

1.7.2 Internal connectors ....................................................... 1-23

iii

Contents

BIOS setup

2.1 BIOS setup program ...................................................................... 2-2

2.2 BIOS menu screen ........................................................................ 2-3

2.3 Standard CMOS Features ............................................................. 2-5

2.4 Advanced BIOS Features .............................................................. 2-8

2.5 Integrated Peripherals ..................................................................2-10

2.6 Power Management Setup ...........................................................2-14

2.7 PC Health Status ..........................................................................2-16

2.8 Other items ...................................................................................2-17

2.8.1 Load Fail-Safe Defaults .................................................2-17

2.8.2 Load Optimized Defaults ...............................................2-17

2.8.3 Supervisor Password.....................................................2-17

2.8.4 User Password...............................................................2-17

2.8.5 Save & Exit Setup..........................................................2-17

2.8.6 Exit Without Saving .......................................................2-17

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance

with manufacturer’s instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Canadian Department of Communications

Statement

This digital apparatus does not exceed the Class B limits for radio

noise emissions from digital apparatus set out in the Radio Interference

Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

The use of shielded cables for connection of the monitor to the graphics

card is required to assure compliance with FCC regulations. Changes

or modifications to this unit not expressly approved by the party

responsible for compliance could void the user’s authority to operate

this equipment.

Safety information

Electrical safety

• To prevent electrical shock hazard, disconnect the power cable from

the electrical outlet before relocating the system.

• When adding or removing devices to or from the system, ensure that

the power cables for the devices are unplugged before the signal

cables are connected. If possible, disconnect all power cables from

the existing system before you add a device.

• Before connecting or removing signal cables from the motherboard,

ensure that all power cables are unplugged.

• Seek professional assistance before using an adapter or extension

cord. These devices could interrupt the grounding circuit.

• Make sure that your power supply is set to the correct voltage in your

area. If you are not sure about the voltage of the electrical outlet you

are using, contact your local power company.

• If the power supply is broken, do not try to ﬁx it by yourself. Contact a

qualiﬁed service technician or your retailer.

Operation safety

• Before installing the motherboard and adding devices on it, carefully

read all the manuals that came with the package.

• Before using the product, make sure all cables are correctly

connected and the power cables are not damaged. If you detect any

damage, contact your dealer immediately.

• To avoid short circuits, keep paper clips, screws, and staples away

from connectors, slots, sockets and circuitry.

• Avoid dust, humidity, and temperature extremes. Do not place the

product in any area where it may become wet.

• Place the product on a stable surface.

• If you encounter technical problems with the product, contact a

qualiﬁed service technician or your retailer.

i915GV2-IGM specications summary

(continued on the next page)

CPU LGA775 socket for Intel® Pentium® 4 / Celeron Processor

Compatible with Intel® Mainstream/Value FMB process

Supports Intel® Hyper-Threading Technology

Chipset Northbridge: Intel® 915GV Graphics and Controller Hub

(GMCH)

Southbridge: Intel® ICH6

Front Side Bus (FSB) 800/533 MHz

Memory 4 x 240-pin DIMM sockets support up to 4GB dual channel

DDR2 400/533/667 MHz SDRAMs

Expansion slots 1 x PCI-ExpressTM x16 slot for discrete graphics card

2 x PCI Slots

1 x PCI-ExpressTM x1

Storage Intel® ICH6 Southbridge supports:

- 2 x Ultra ATA 100/66/33 hard disk drives

- 4 x Serial ATA hard disk drives

Audio Realtek® ALC888GR 8CH high-deﬁnition Audio CODEC

LAN Realtek® RTL 8110SC PCI Gigabit LAN controller

VGA Intergrated Intel Graphics Media Accelerator 900

USB Supports up to 8 USB 2.0 ports

BIOS Features 4MB FWH, Phoenix Award , Green, PnP, DMI2.3.4, ACPI 1.0,

SM BIOS 2.3

Rear panel 1 x PS/2 mouse port

1 x Parallel port

1 x RJ-45 port

1 x Audio I/O

4 x USB 2.0 ports

1 x VGA port

1 x Serial port

1 x PS/2 keyboard port

vii

*Speciﬁcations are subject to change without notice.

Internal connectors 1 x Floppy disk drive connector

1 x Primary IDE connector

4 x Serial ATA connectors

1 x CPU fan connector

2 x USB 2.0 connectors

1 x 24-pin ATX power connector

1 x 4-pin ATX 12V power connector

1 x Front panel audio connector

1 x Serial port connector

1 x Internal audio connectors

1 x S/PDIF Out connector

1 x Power LED connector

1 x System panel connector

1 x Chassis fan connector

1 x CD Audio in

Power requirement ATX power supply (with 24-pin and 4-pin 12V plugs)

Form Factor Micro ATX form factor: 9.6 in x 9.6 in (24.5 cm x 24.5 cm)

Product

introduction

This chapter describes the motherboard

features and the new technologies

it supports.

1-2 Chapter 1: Product introduction

Onboard LED

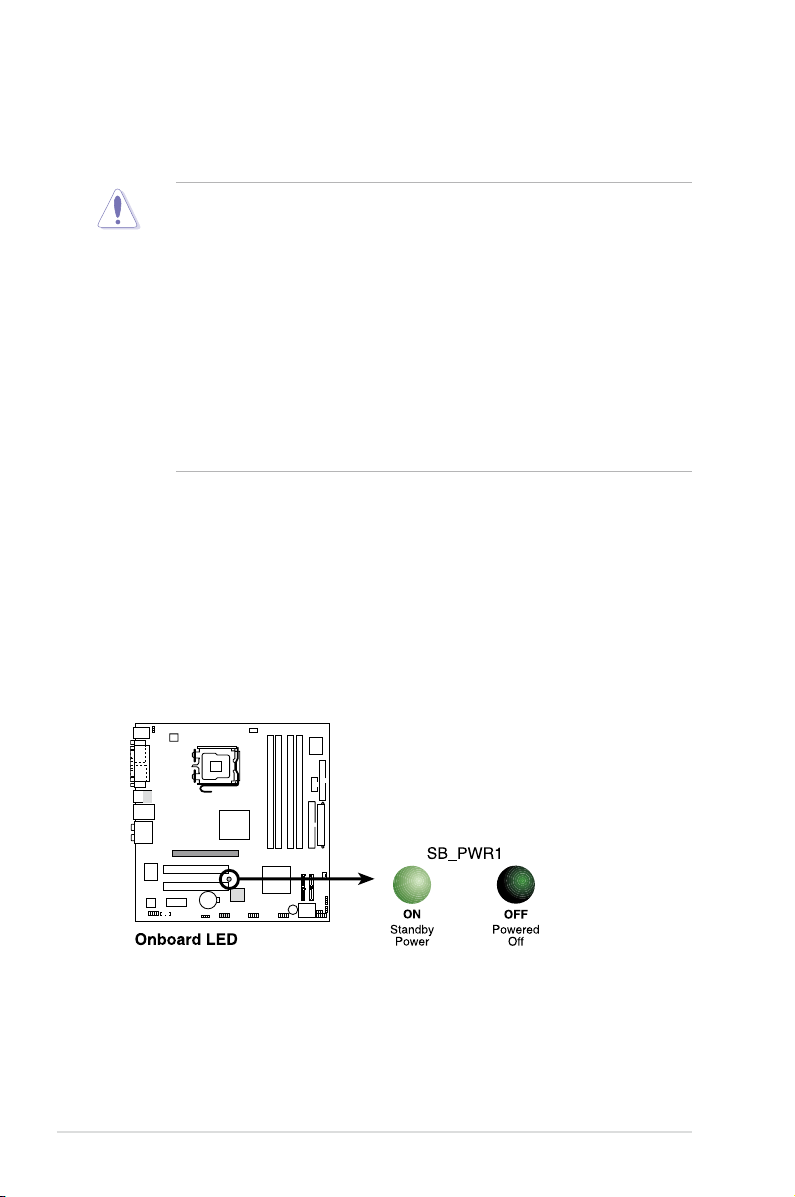

The motherboard comes with a standby power LED that lights up to indicate

that the system is ON, in sleep mode, or in soft-off mode. This is a reminder

that you should shut down the system and unplug the power cable before

removing or plugging in any motherboard component. The illustration below

shows the location of the onboard LED.

1.1 Before you proceed

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

• Unplug the p ower cord from the wall soc ket before touching any

component.

• Use a grounded wrist strap or touch a safely grounded object or a metal

object, such as the power supply case, before handling components to

avoid damaging them due to static electricity

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic

pad or in the bag that came with the component.

• Before you install or remove any component, ensure that the ATX

power supply is switched off or the power cord is detached from

the power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

i915GV2-IGM 1-3

Do not overtighten the screws! Doing so can damage the motherboard.

Place this side towards

the rear of the chassis

Make sure to unplug the power c ord before installing or removing the

motherboard. Failure to do so can cause you physical injury and damage

motherboard components.

1.2.1 Placement direction

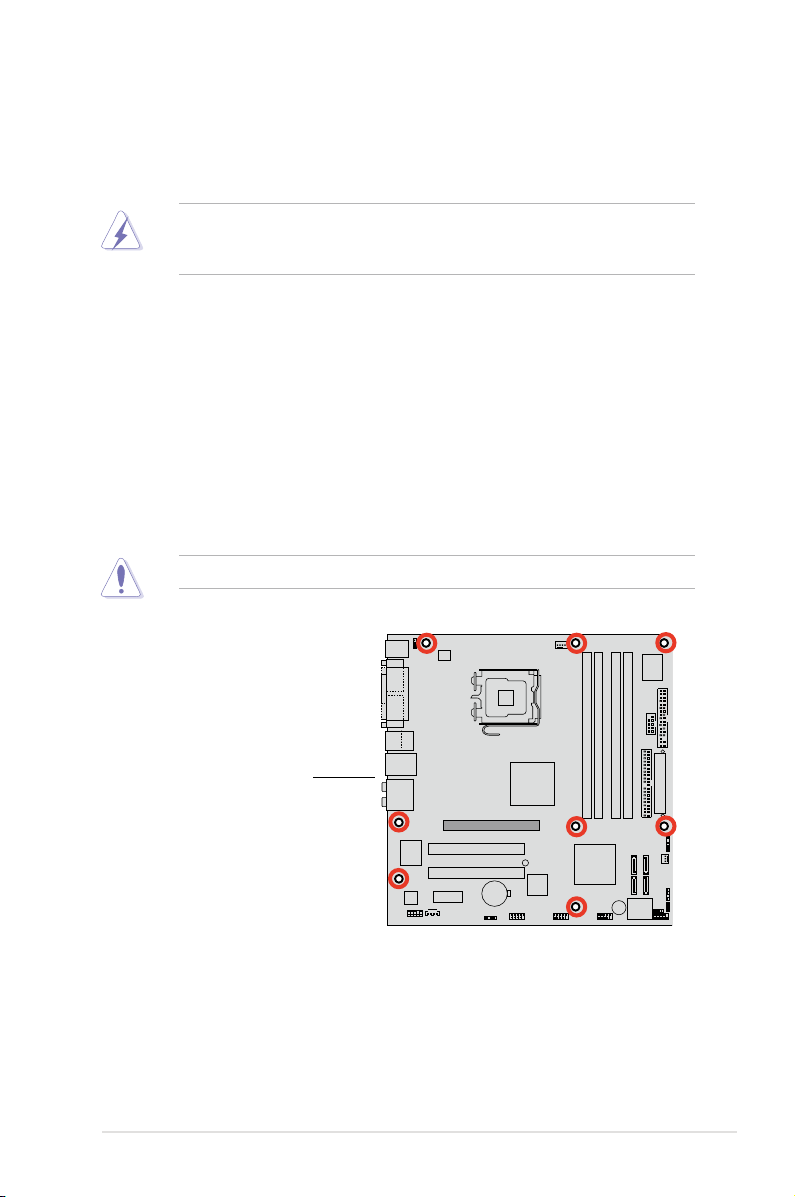

When installaing the motherboard, make sure that you place it into the chassis in

the correct orientation. The edge with external ports goes to the rear part of the

chassis as indicated in the image below.

1.2.2 Screw holes

Plac e eight (8) screws into the holes indicated by circ les to secure the

motherboard to the chassis.

1.2 Motherboard overview

Before you install the motherboard, study the configuration of your chassis to

ensure that the motherboard ts into it. Refer to the chassis documentation before

installing the mothebroard.

Inhaltsverzeichnis

Andere Advantech Hauptplatine Handbücher

Advantech

Advantech PCM-9372 Bedienungsanleitung

Advantech

Advantech PCM-3363 Bedienungsanleitung

Advantech

Advantech PCM-9576F Bedienungsanleitung

Advantech

Advantech SIMB-A01 Installations- und Betriebshandbuch

Advantech

Advantech RS-200-RPS-D Bedienungsanleitung

Advantech

Advantech PCM-9387 Installations- und Betriebshandbuch

Advantech

Advantech AIMB-705 Bedienungsanleitung

Advantech

Advantech AIMB-554 Bedienungsanleitung

Advantech

Advantech PCI-7020F PCI-7020VG PCI-7020LV PCI-7020 Bedienungsanleitung

Advantech

Advantech MIO-2361 Series Bedienungsanleitung

Advantech

Advantech AIMB-562 series Bedienungsanleitung

Advantech

Advantech GMB-945GC Installations- und Betriebshandbuch

Advantech

Advantech PPC-MB-610 Installations- und Betriebshandbuch

Advantech

Advantech AIMB-581 Bedienungsanleitung

Advantech

Advantech PCM-9381 Installations- und Betriebshandbuch

Advantech

Advantech PCE-5126 Bedienungsanleitung

Advantech

Advantech MIC-3396 Bedienungsanleitung

Advantech

Advantech AIMB-285 Bedienungsanleitung

Advantech

Advantech PCM-4372 Installations- und Betriebshandbuch

Advantech

Advantech PCE-3028 Bedienungsanleitung

Advantech

Advantech UNO-1140/F Bedienungsanleitung

Advantech

Advantech AIMB-786 Bedienungsanleitung

Advantech

Advantech MIO-2263 Bedienungsanleitung

Advantech

Advantech ASMB-913I Installations- und Betriebshandbuch

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Advantech mATX i915GV2-IGM Series Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken
