PCA-6752 StartupManual 1

PCA-6752 Super7™ SBC with CPU, VGA/LCD and Ethernet

PCA-6752 Super7™ with CPU, VGA/LCD and

Ethernet

Startup Manual

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/epc

For technical support and service, please visit our

support website at:

http://support.advantech.com

This manual is for the PCA-6752 series Rev.A1

Part No. 2006675210 1st Edition

Printed in Taiwan Nov. 1999

Packing List

Before you begin installing your card, please make surethat

the following materials have been shipped:

• 1 PCA-6752 all-in-one single board computer

• 1 Ultra ATA (HDD) cable (457 mm) p/n:1701400453

• 1 floppy disk drive interface cable (700 mm)

p/n:1701340700

• 1 COM port/Parallel port cable p/n:1701260303

• 1 Y cable for AT-keyboard, PS/2 mouse (190 mm)

p/n:1700060201

• 1 ATX/AT power cable p/n:1700040052

• 1 startup manual

• CD-ROM or disks for utility, drivers, and manual (in PDF

format)

• Warranty certificate

If any of these items are missing or damaged, contact

your distributor or sales representative immediately.

Note 1: For detailed contents of the PCA-6752, please

refer to the enclosed CD-ROM or disk (in PDF

format).

Note 2: Acrobat Reader is acquired to view any PDF

file. Acrobat Reader can be downloaded at:

www.adobe.com/Prodindex/acrobat/

readstep.html

(Acrobat is a trademark of Adobe.)

Standard SBC Functions

•CPU: Supports Super7™ for Intel™ P54/P55C, AMD K5/

K6/K6-2/K6-3, NS MI/MII and IDT Winchip CPU

•BIOS: Award 256 KB Flash memory

•System memory: SDRAM DIMM x 1 Max. 128 MB

•IDE interface: One enhanced IDE interface, Ultra DMA

mode up to 66 MB/sec

•FDD interface: Supports up to two FDDs (360 KB/1.2

MB/720 KB/1.44 MB/2.88 MB)

•Serial ports: COM1: RS-232 port, COM2: RS-232/422/

485

•Parallel port: One parallel port, supports EPP/ECP

•Infrared port: 115 Kbps SIR, IrDA 1.0 compliant

•Keyboard/mouse connector: Supports standard

PC/AT keyboard and a PS/2 mouse

•Power management: Supports power saving modes

including Normal/Standby/Suspend modes. APM 1.2

compliant

•Watchdog timer: 1-62 Sec. System reset or IRQ11

• USB: Two Universal Serial Bus ports, USB 1.1 compliant

Solid State Disk

• DiskOnChip™/ CompactFlash™ (optional)

AGP SVGA/Flat Panel Interface

PCA-6752F

•Controller: Trident Cyber i7 VGA/LCD controller, AGP

1.0 compliant, 2 x AGP

•LCD Interface: 18 bit

•Display Memory: 2 ~ 8 MB

•Display type: Simultaneously supports CRT and flat

panel (EL, LCD and gas plasma) displays

•Resolution:

LCD panel supports up to 1024 x 768 @ 24 bpp

Crt display supports up to 1024 x 768 @ 18 bpp

PCA-6752N

•Controller: VIA MVP4 Built-inVGA controller, AGP 1.0

compliant, 2 x AGP

•Display Memory: 2 ~ 8 MB

•Resolution: CRT display supports up to 1024 x 768 @

24 bpp

Specifications

2PCA-6752 StartupManual

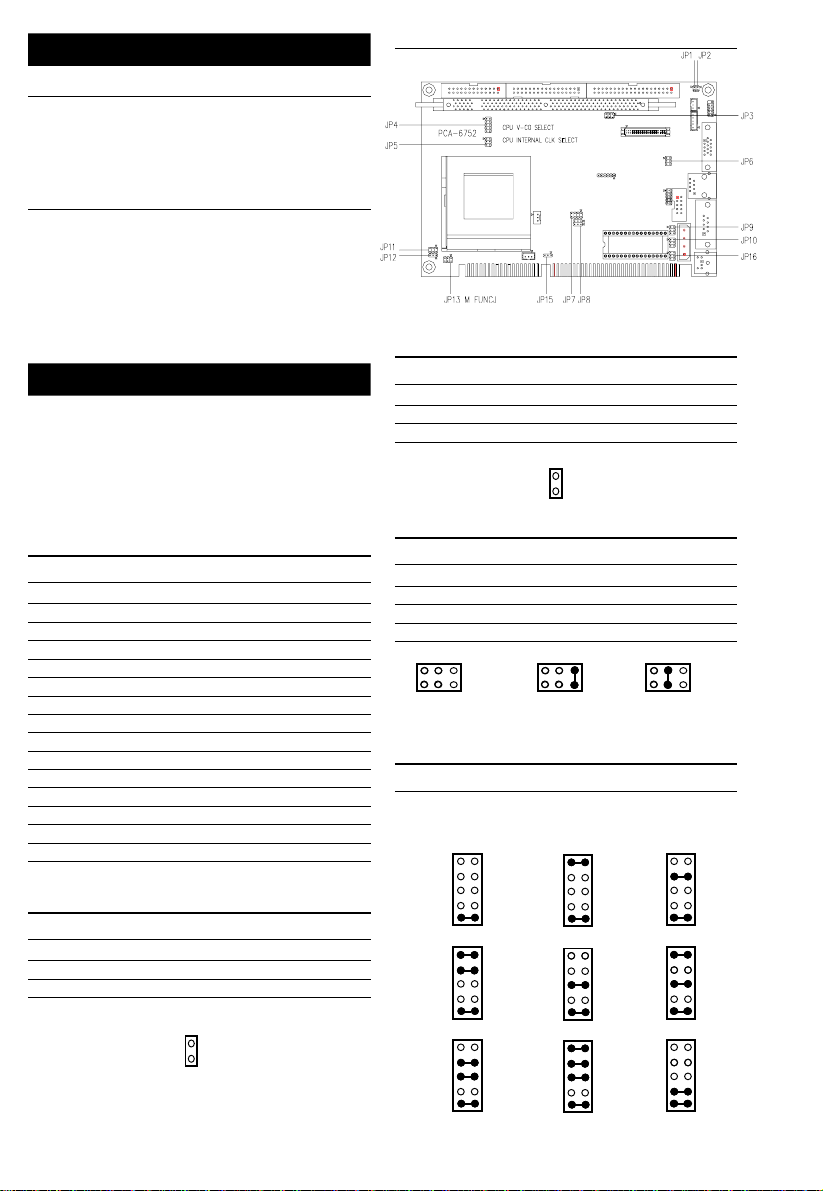

Locating Jumpers

Locating jumpers (component side)

JP1: HDD LED connector

Pin Result

1 LED +

2 LED -

Jumpers and Connectors

Specifications Cont.

Ethernet Interface

• Ethernet interface: Realtek 8139B PCI bus

10/100Base-T Ethernet (PCA-6752F/N only)

• Connection: On-board RJ-45 connector

Mechanical and Environmental

•Dimensions (L xW): 185 x 122 mm (7.3" x 4.8")

•Power requirements: 6.68 A @ +5 V w/ K6-3 450

MHz, 64 MB SDRAM (standard mode)

•Operating temperature: 0 ~ 60° C (32 ~ 140° F)

•Weight: 0.27 kg (.59 lb)

The board has a number of jumpers that allow you to

configure your system to suit your application.

The table below lists the function of each of the jumpers

and connectors.

Label Function

JP1 HDD LED connector

JP2 Power LED connector

JP3 LCD/Panel select

JP4 Vcore (CPU voltage) select

JP5 CPU internal clock select

JP6 Wake On Lan (WOL) select

JP7 Clock select

JP8 AT/ATX power select

JP9 RS-232/485 select (Part 2)

JP10 RS-232/422/485 select (Part 1)

JP11 DOC address select

JP12 Watch Dog function select

JP13 Multi/System functions Jumper

JP15 CMOS clear

JP16 COM2 for RS-232/485 setting (Part 3)

JP2: Power LED connector

Pin Result

1 LED +

2 LED -

JP3: LCD/Panel Select

Pin Result

None 640 x 480 TFT*

1-2 800 x 600 TFT

3-4 1024 x 768 TFT

JP4: Vcore (CPU voltage) select

640 x 480*

800 x 600

1024x768

1 2 1 2 1 2

1.60 V 1.65 V 1.70 V

1 2 1 2 1 2

1.45 V 1.50 V 1.55 V

1 2 1 2 1 2

1.30 V 1.35 V 1.40 V

*DefaultSetting

PCA-6752 StartupManual 3

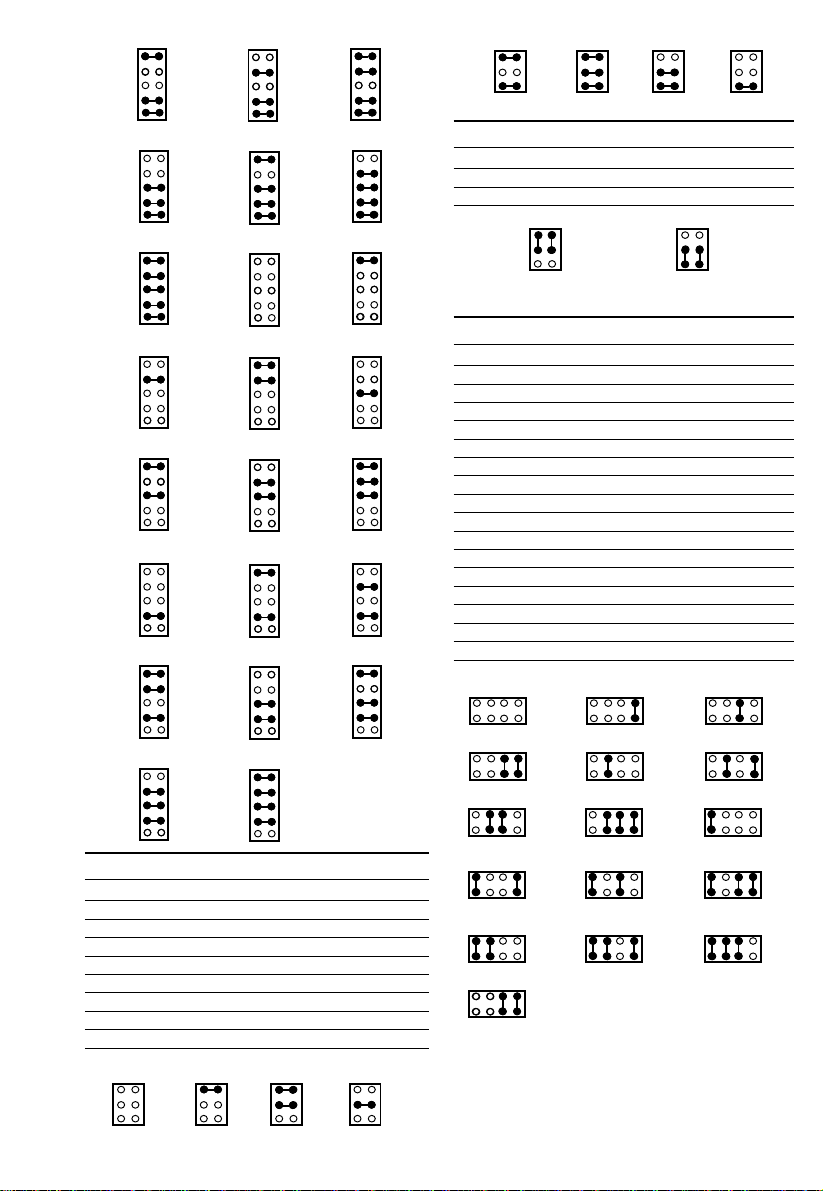

JP5: CPU Internal Clock Select

Pin Result

None 1.5X/3.5X

1-2 2.0X

1-2, 3-4 2.5X

3-4 3.0X

1-2, 5-6 4.0X

1-2, 3-4, 5-6 4.5X

3-4, 5-6 5.0X

5-6 5.5X

1 2 1 2 1 2

1.75 V 1.80 V 1.85 V

1 2 1 2 1 2

1.90 V 1.95 V 2.0 V

1 2 1 2 1 2

2.05 V 0.00 V 2.10 V

1 2 1 2 1 2

2.20 V 2.30 V 2.40 V

1 2 1 2 1 2

2.50 V 2.60 V 2.70 V

1 2 1 2 1 2

2.80 V 2.90 V 3.00 V

1 2 1 2 1 2

3.10 V 3.20 V 3.30 V

1 2 1 2

3.40 V 3.50 V

JP6: Wake On LAN Select

Pin Result

1-3, 2-4 Normal (AT, ATX)*

3-5, 4-6 WOL Enable (ATX Only)

4.0x 4.5x 5.0x 5.5x

1 2 1 2 1 2 1 2

AT,ATX* WOL(ATXonly)

1 2 1 2

JP7: Clock Select

Pin CPU PCI

None 60 MHz 30 MHZ

1-2 66.8 MHz 33.4 MHz

3-4 70 MHz 35 MHz

1-2, 3-4 75 MHz 25 MHz

5-6 80 MHz 26.67 MHz

1-2, 5-6 83.3 MHz 27.76 MHz

3-4, 5-6 95.25 MHz 31.75 MHz

1-2, 3-4, 5-6 100 MHz 33.33 MHz

7-8 75 MHz 37.5 MHz

1-2, 7-8 80 MHz 40 MHz

3-4, 7-8 83.3 MHz 41.66 MHz

1-2, 3-4, 7-8 105 MHz 35 MHz

5-6, 7-8 110 MHz 36.67 MHz

1-2, 5-6, 7-8 115 MHz 38.33 MHz

3-4, 5-6, 7-8 120 MHz 40 MHz

1-2, 3-4, 5-6, 7-8 124 MHz 41.33 MHz

60/30MHz 66.8/33.4MHz 70/35 MHz

75/25MHz 80/26.67MHz 83.3/27.76 MHz

95.25/31.75MHz 100/33.3MHz 75/37.5MHz

80/40MHz 83.3/41.66MHz 105/35 MHz

110/36.67MHz 115/38.33 MHz

120/40MHz

124/41.33MHz

1.5/3.5x 2.0x 2.5x 3.0x

1 2 1 2 1 2 1 2

*DefaultSetting

4PCA-6752 StartupManual

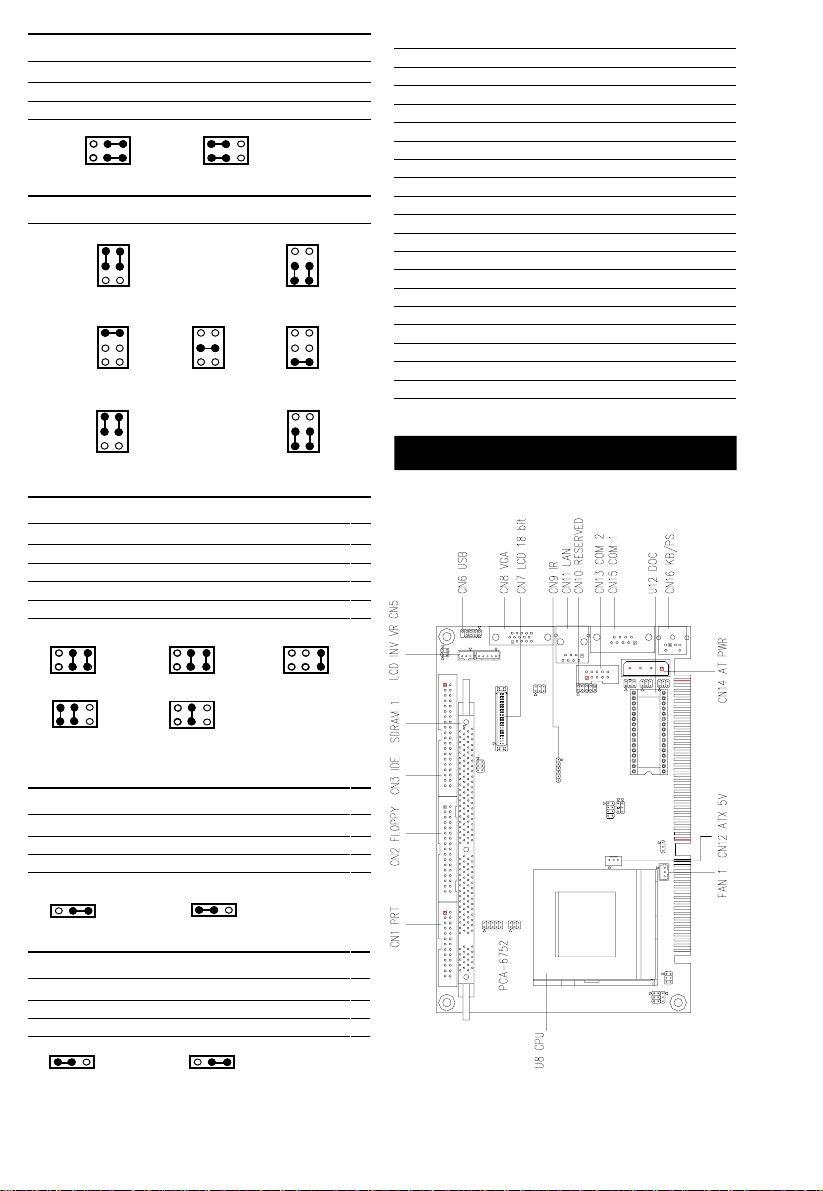

JP8: AT/ATX Power Select

Pin Result

1-3, 2-4 Use ATX power

3-5, 4-6 Use AT power*

JP9, JP10, JP16: RS-232/422/485 Select for COM2

JP11: DOC Address Select

1-2, 3-4 DOC address at CC000h

1-2, 5-6 DOC address at D0000h*

1-2 DOC address at D4000h

3-4, 5-6 DOC address at D8000h

3-4 DOC address at DC000h

ATXpower AT power*

JP12: Watch Dog Function Select

Pin Result

1-2 Select Reset System*

2-3 Select IRQ-11

IRQ-11Reset*

JP15: CMOS Clear

Pin Result

1-2 Normal*

3-4 Clear CMOS

1 2

RS-232*

Label Function

CN1 Parallel port connector

CN2 Floppy drive connector

CN3 IDE hard drive connector

CN4 LCD Inverter Power connector

CN5 Inverter VR connector

CN6 USB connector

CN7 LCD 18-24 bit connector

CN8 VGA connector

CN9 FIR/SIR connector

CN10 Audio Out/AC97 connector

CN11 10/100Base-T Ethernet connector

CN12 ATX SB5V connector

CN13 COM2 connector

CN14 AT (Big 4P) power connector

CN15 COM1 connector

CN16 Keyboard and PS/2 mouse connector

CN18 ISA Bus Gold Finger connector

CN19 CompactFlash™ connector

Locating connectors (component side)

Mechanical Drawings

1 2

RS-232*

1 2

RS-232*

1 2

RS-485

1 2

RS-422

1 2

RS-485

1 2

RS-485

JP9

JP10

JP16

CC000h

D0000h*

D4000h

D8000h

DC000h

1Normal* 1

ClearCMOS

*DefaultSetting

PCA-6752 StartupManual 5

Locating connectors (solder side)

Mechanical drawing (component side)

Mechanical drawing (dimensions)
