Advantech PPC-MB-620 Installations- und Betriebshandbuch

PPC-MB-620 Startup Manual 1

Before installation, check to ensure that the following items

are included in the shipment:

1. 1 x PPC-MB-620 mini-ITX motherboard

2. 1 x COM cable (1-to-4 DB9)

3. 1 x SATA cable

4. 1 x PPC-MB-620 startup manual

5. 1 x Warranty card

6. 1 x Thermal grease

7. 14 x COM port screws

8. 2 x M.2 packet screws

If any of these items are missing or damaged, contact your

distributor or sales representative immediately.

Note 1:  FordetailedPPC-MB-620specications,refer

to the latest product information provided on the

Advantech website (PPC-600 model).

Note 2:  AcrobatReaderisrequiredtoviewPDFles.

This software can be downloaded from www.

adobe.com/Products/acrobat/readstep2.html

(Acrobat is a trademark of Adobe).

PPC-MB-620 Mini-ITX Motherboard with Intel® Core™ i9/

i7/i5/i3/Celeron® Processor, DP/HDMI, 5 x COM, 6 x USB,

3 x LAN, PCIe x16, and M.2 (M Key, B key and E Key)

Startup Manual

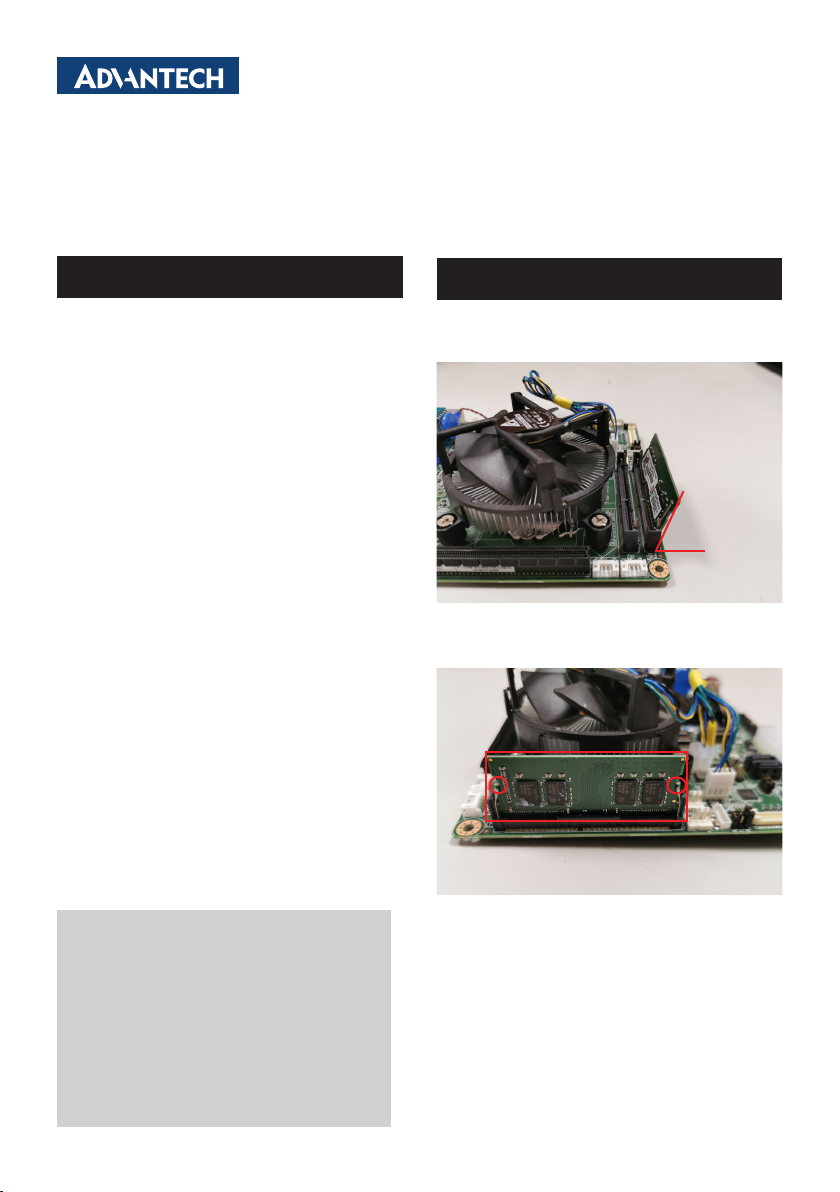

1. Insert the memory module into the memory slot at a 45

degree angle, as shown below. Ensure that the gold

ngersofthemodulearefullyinsertedintotheslot.

2. Once inserted, gently press the memory module into

the slot until the tabs snap into place, securing the

module in position.

45°

Installation Guide

Packing List

For more information about this or other Advantech

products, visit our website at

http://www.advantech.com

For technical support and service, visit our support

website at

http://support.advantech.com

This manual is for PPC-MB-620, Rev. A1.

Part No. 2044062000

Printed in China

Edition 1

March 2023

2 PPC-MB-620 Startup Manual

System

CPU

i9-12900E/

i9-12900TE

i7-12700E/

i7-12700TE

i5-12500E/

i5-12500TE

i3-12100E/

i3-12100TE

G7400E/

G7400TE

G6900E/

G6900TE

Core

Number 16/16 12/12 6/6 4/4 2/2 2/2

Max Speed

2.3GHz (Up to

5.0GHz)/

1.1GHz (Up to

4.8GHz)

2.1GHz (Up to

4.8GHz)/

1.4GHz (Up to

4.6GHz)

2.9GHz (Up to

4.5GHz)/

1.9GHz (Up to

4.3GHz)

3.2GHz (Up to

4.2GHz)/

2.1GHz (Up to

4.0GHz)

3.6GHz/

3.0GHz

3.0GHz/

2.4GHz

SmartCache 30/30MB 25/25MB 18/18MB 12/12MB 6/6MB 4/4MB

TDP 65W/35W 65W/35W 65W/35W 60W/35W 46W/35W 46W/35W

Memory

2 x 262-pin SODIMM DDR5, 4800 MHz , up to 32 GB (non-ECC )

Chipset

Q670E H610E

Ethernet

Controller

LAN1: 1Gb Intel i219LM (support AMT 16.0

only for i7 & i5);

LAN2: 2.5Gb Intel i226-LM

LAN1: 1Gb Intel i219LM (support AMT 16.0 only for i7

& i5);

LAN2: 2.5Gb Intel i226-LM

LAN3: 2.5Gb Intel i226-LM

Connector RJ45 x2 RJ45 x3

Rear I/O

USB 6 (USB 3.2 Gen 2) 6 (2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 2 x USB 2.0)

Ethernet 2 3

Display Port 1

HDMI 1

Audio 2 (Mic-in, Line-out)

Serial 2 (1 x RS-232/422/485, 1 x RS-232)

Internal

Connector

USB 3 x USB 2.0 1 x USB 2.0

SATA 2 x SATA 3.0 ( support RAID 0,1) 2 x SATA 3.0

Serial 3 x RS-232

TPM 1

GPIO 8-bit

Expansion

M.2

1 x slot (2280 M key) for storage (SATA & PCIe*4);

1 x slot (2230 E key) for wireless (PCIE & USB2.0)

1 x slot ( 3042 & 3052 B key) supports PCIE &

USB3.1 & USB2.0 1 x slot (3042 & 3052 B key) supports PCIE & USB2.0

PCIe x16

(Gen5) 1 x slot

Watchdog Timer 255timerintervals,congurableusingsoftware

Dimensions (W x H)

170 mm x 170 mm (6.69" x 6.69")

OS support

Microsoft® Win 10 IOT LTSC(64-bit)/Win 11, Linux

Specications

PPC-MB-620 Startup Manual 3

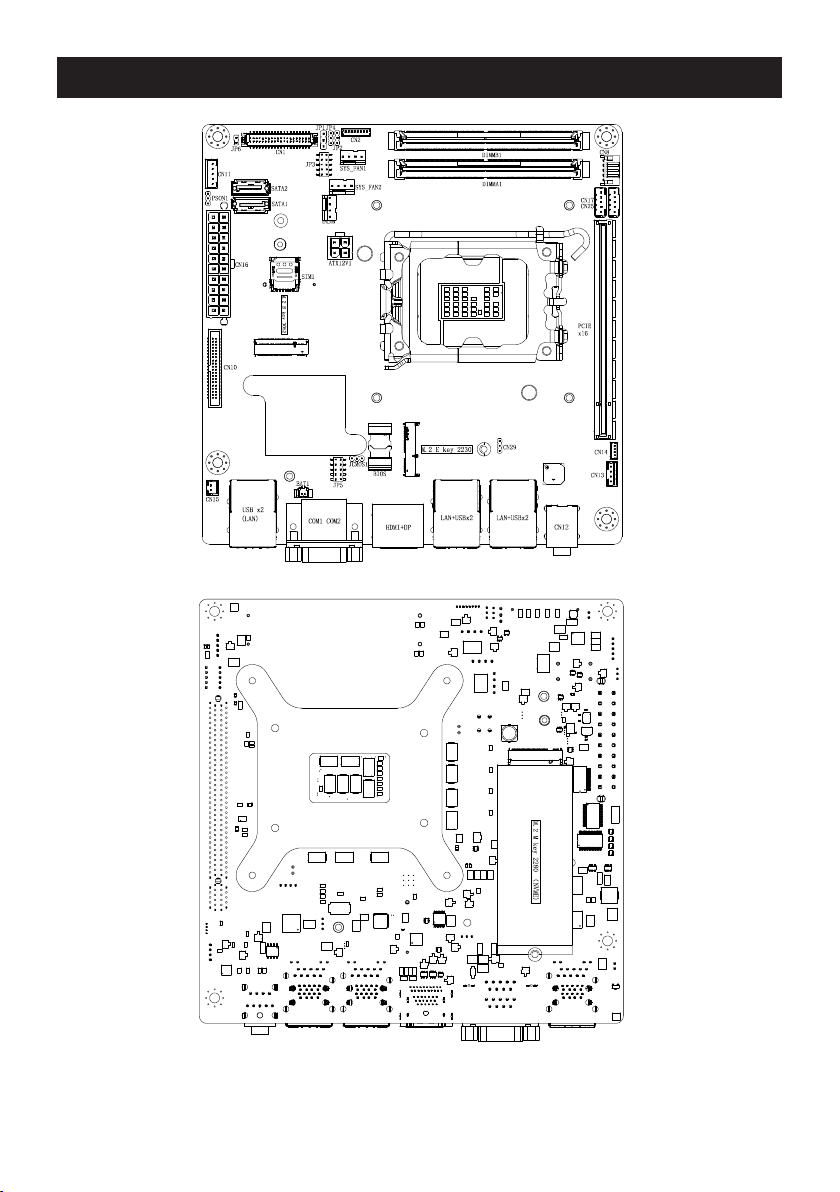

Board Layout: Jumper and Connector Locations

4 PPC-MB-620 Startup Manual

COM12: COM 2 Connector

Pin Denition

(RS-232)

Denition

(RS-422)

Denition

(RS-485)

1DCD TX- TX RX-

2RXD TX+ TX RX+

3TXD RX+

4DTR RX-

5 GND GND GND

6 DSR

7RTS

8 CTS

9 RI

CN6: COM 3/4/5 and GPIO Connector

1 COM3_DCD# 2 COM3_DSR#

3 COM3_RXD 4 COM3_RTS#

5 COM3_TXD 6 COM3_CTS#

7 COM3_DTR# 8 COM3_RI#

9 GND 10 GND

11 COM4_DCD# 12 COM4_DSR#

13 COM4_RXD 14 COM4_RTS#

15 COM4_TXD 16 COM4_CTS#

17 COM4_DTR# 18 COM4_RI#

19 GND 20 GND

21 COM5_DCD# 22 COM5_DSR#

23 COM5_RXD 24 COM5_RTS#

25 COM5_TXD 26 COM5_CTS#

27 COM5_DTR# 28 COM5_RI#

29 GND 30 GND

31 GND 32 SIO_GPIO6

33 SIO_GPIO4 34 SIO_GPIO2

35 SIO_GPIO0 36 SIO_GPIO7

37 SIO_GPIO5 38 SIO_GPIO3

39 SIO_GPIO1 40 +V5_DUAL

The PPC-MB-620 motherboard features a number of

jumpersthatallowuserstocongurethesystemaccording

tospecicapplications.Thefunctionsofeachjumperand

connector are listed in the table below.

Connector and Headers

Connectors and Headers List

Label Function

CN12 Mic-In/Line-Out connector

LAN+USBx2

(left) RJ45(i219) + USB 3.2 stack connector

LAN+USBx2

(right) RJ45(i226) + USB 3.2 stack connector

HDMI+DP HDMI+DisplayPort connector

COM1(UP)/

COM2(Down) COM 1/2 connector

USBx2(LAN) USB 3.2/RJ45(i226) stack connector

CN15 Power button connector

CN14 Power LED connector

CN13 Audioamplieroutputconnector

CN10 COM 3/4/5 and GPIO connector

CN16 ATX power supply connector

ATX12V1 ATX 12V power supply connector

PCIEX16 PCIe x16 slot connector

CN11 Touchscreen connector

SATA1/SATA2 SATA signal connector

CPU FAN CPU fan power connector

SYS FAN1/

SYS FAN2 System fan power connector

CN17/CN25 2 x USB 2.0 pin header

CN8 USB 2.0 pin header

DIMMA/

DIMMB DDR5 SODIMM socket

CN2 LVDS backlight inverter power con-

nector

CN1 LVDS panel connector

M.2 E Key

2230 M.2 E key

M.2 B Key

3052 M.2 B key

SIMI SIMI Card Connetor

M.2 M Key

2280(NVME) M.2 M key

BAT1 Battery connector

Jumpers and Connectors

Jumpers and Connectors (Cont.)

PPC-MB-620 Startup Manual 5

CN16: Touch Connector

Pin Denition

1 Y+

2 X+

3 SENSE

4Y-

5 X-

Sysfan 1 ~ 2: System Fan Power Connector

Pin Denition

1 GND

2 POWER

3 SPEED

4 PWM

CPUFAN1: CPU Fan Power Connector

Pin Denition

1 GND

2 POWER

3 SPEED

4 PWM

CN4: Power LED Connector

Pin Denition

1 +V5_DUAL

2 +V5

3 GND

4 GND

AMP1: Audio Amplier Output Connector

Pin Denition

1 SPK L-

2 SPK L+

3 SPK R+

4 SPK R-

Jumpers and Connectors (Cont.)

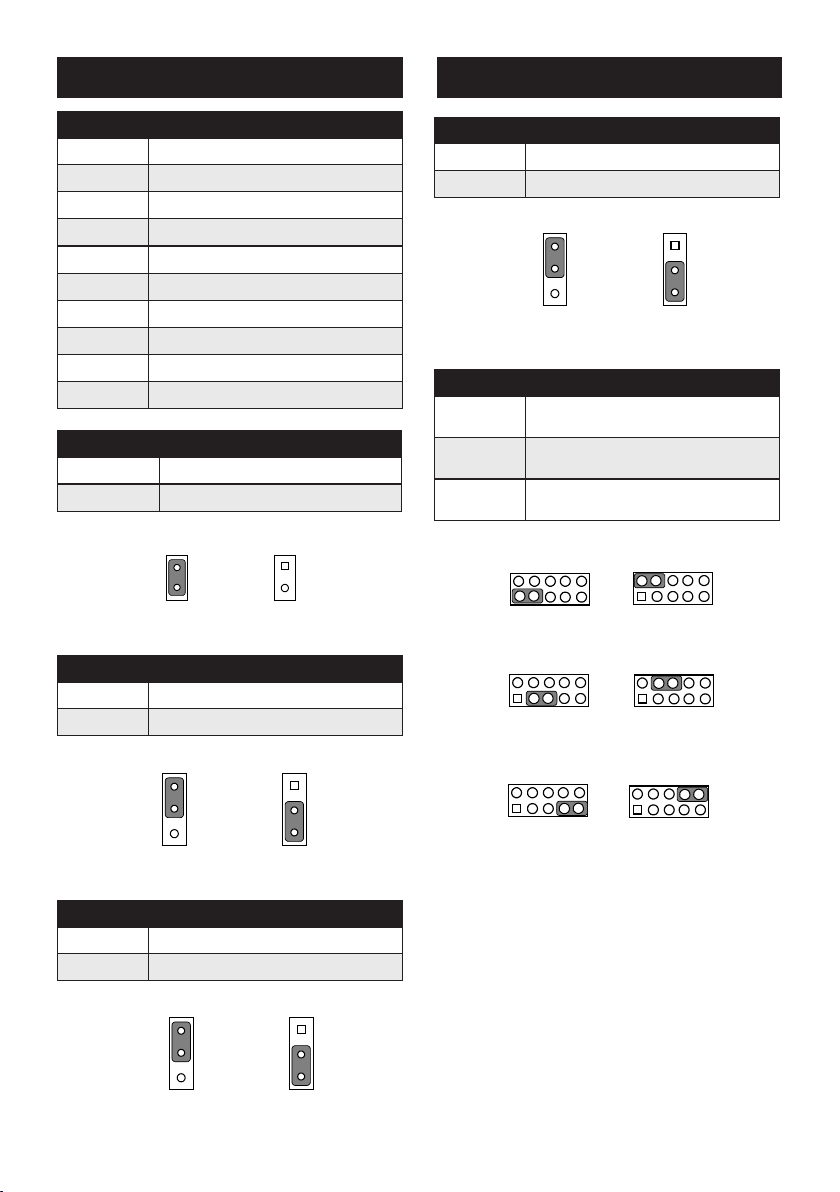

Jumper Settings

Jumper List

Jumper Function

JP1 LCD power select

JP2 Enable power select

JP3 LVDS resolution select

JP4 LVDS PWM power select

JP5 COM pin 9 power select (COM 1 and 2)

JP6 Touch power select

PSON1 ATX/AT select

JCMOS1 RTC select

ATX/AT Select (JP1)

(1-2) P1 AT

(2-3) P2 ATX (default)

P1 P2

RTC Select (Jcmos1)

(1-2) P3 Normal (default)

(2-3) P4 Clear CMOS

P3 P4

6 PPC-MB-620 Startup Manual

Jumpers and Connectors (Cont.)

DI/O Pin Denition (DB9)

Pin Denition

1 GND

2 GPIO4

3 GPIO0

4 GPIO5

5 GPIO1

6 GPIO6

7 GPIO2

8 GPIO7

9 GPIO3

Touch Power Select (JP2)

(1-2) P5 Connect resistive touchscreen (default)

NC P6 Disconnect resistive touchscreen

P5 P6

LCD Power Select (JP3)

(1-2) P7 +V5

(2-3) P8 +V3.3 (default)

P7 P8

Enable Power Select (JP4)

(1-2) P9 +V5

(2-3) P10 +V3.3 (default)

P9 P10

LVDS PWM Power Select (JP5)

(1-2) P11 +V5

(2-3) P12 +V3.3 (default)

P11 P12

COM Ring Select (JP6)

(1-3)/(2-4)

P13/P14 COM 2/1 ring (default)

(3-5)/(4-6)

P15/P16 COM 2/1 5V

(7-9)/(8-10)

P17/P18 COM 2/1 12V

P13 P14

P15 P16

P17 P18

Jumpers and Connectors (Cont.)
