Advantech SIMB-U01 Installations- und Betriebshandbuch

SIMB-U01 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

• 1 x Intel Q45 Micro ATX Main board

• 1 x CD ROM per carton, which contains the followings:

- User’s Manual in PDF ﬁle

- Drivers

• 1 x SATA cable kit (SATA/Power)

• 1 x I/O Shield

• 1 x Startup Manual per carton

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note1:

Acrobat Reader is required to view any PDF ﬁle. Acrobat

Reader can be downloaded at: www. adobe.com/Prodindex/

acrobat/readstep.html (Acrobat is a trademark of Adobe).

SIMB-U01

Intel® Q45 LGA775 socket for Intel® Core™ 2 Quad Micro ATX Motherboard

Startup Manual

System

• CPU:Intel® Q45 LGA775 socket for Intel® Core™2

Quad / Core™2 Duo processors compatible with Intel®

06 processors Supports Intel® next generation 45nm

multi-core CPU

• FSB:1333 / 1066 / 800 MHz

• BIOS:Award 32 Mb SPI BIOS

• SystemChipset:Intel Q45 GMCH/ICH10DO

• I/OChipset:Winbond W83627DHG-A

• Memory:Four 240-pin DIMM sockets support up to 8 GB

Dual Channel DDR2 800 / 667 MHz

• WatchdogTimerReset:1 sec.~255 min. and 1 sec. or 1

min./step

• H/WStatusMonitor:Monitoring temperatures, voltages,

and cooling fan status. Auto throttling control when CPU

overheats

• ExpansionSlots:1 x PCI Express 2.0 x16, 1 x PCIe_x1 ,

2 x PCI (PCI Rev. 2.3 compliant)

• DIO:16-bit (8 in 8 out)

• S3/S4:Ye s

• TPM: Intel Integrated TPM1.2

• WakeuponLANorRing: LAN (PXE / RPL)

• SmartFanControl:Ye s

Display

• Chipset:Intel® Graphics Media Accelerator 4500

integrated

• DisplayMemory:Intel DVMT 4.0 supports up to 352 MB

video memory

• Max.Resolution:2048 x 1536 bpp(@ 75Hz)

• VGA:Yes , on board GMA 4500

• LVDS/DVI/HDMI:Yes , through ADD2 card

• SecondaryVGA:Yes , through ADD2 card

Audio

• AudioCodec:Realtek® ALC888, 5.1 +2 with two inde-

pendent Streaming

• AudioInterface:Line-out, Line-in, Mic-in, SPDIF header

Ethernet

• LAN1:Intel® 82567-LM PCI-E Gigabit LAN

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the SIMB-U01 series Rev. A1.

Part No. 20060U0110

Printed in China

1st Edition

July 2011

2 SIMB-U01 Startup Manual

Connectors

Label Function Note

AAFP1 Front Panel Audio Connector

CHA_FAN1 Chassis Fan Connector

CPU_FAN1 CPU Fan Connector

F_PANEL1 System Panel Connector

JAMP1 Ampliﬁer Connector

JDIO1 Digital I/O Connector

PWR_FAN1 Power Fan Connector

Connectors and Jumpers

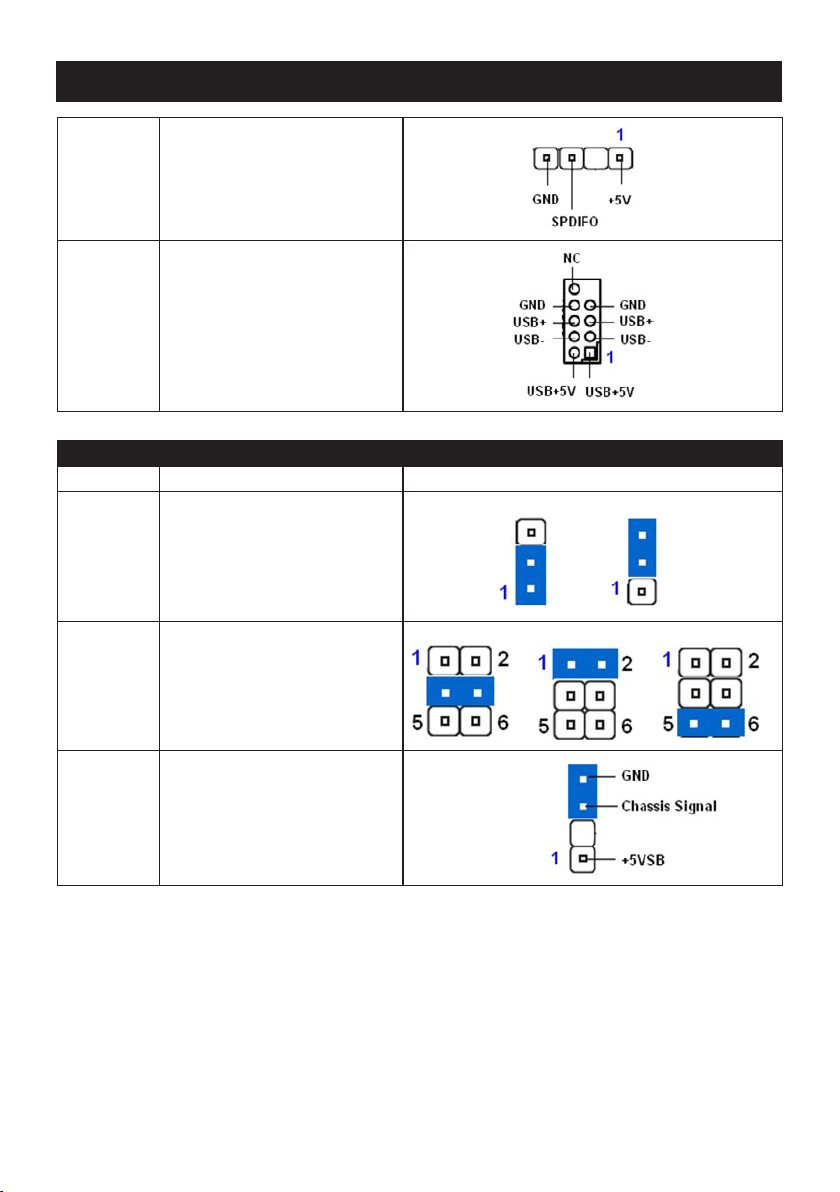

SIMB-U01 Startup Manual 3

SPDIF_01 Digital Audio connector

USB45,

USB67,

USB89,

USB1011

USB 2.0 Connector

Jumpers

Label Function Note

CLRTC1 Clear CMOS

Norrnal* Clear CMOS

JCOMPWR1,

JCOMPWR2 COM1,COM2 RI/+5V/+12V Select

RI* +5V +12V

CHASSIS1 Chassis Intrusion Connector

Connectors and Jumpers

4 SIMB-U01 Startup Manual

The manufacturer reserves the right to make changes, with-

out notice, to any product, including circuits and/or software

described or contained in this manual in order to improve

design and/or performance. The manufacturer assumes

no responsibility or liability for the use of the described

product(s), conveys no license or title under any patent,

makes no representations or warranties that these products

are free from patent, copyright, or mask work right infringe-

ment, unless otherwise speciﬁed. For the detail product

information, please refer to user’s manual.

Safety Declaration

This device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

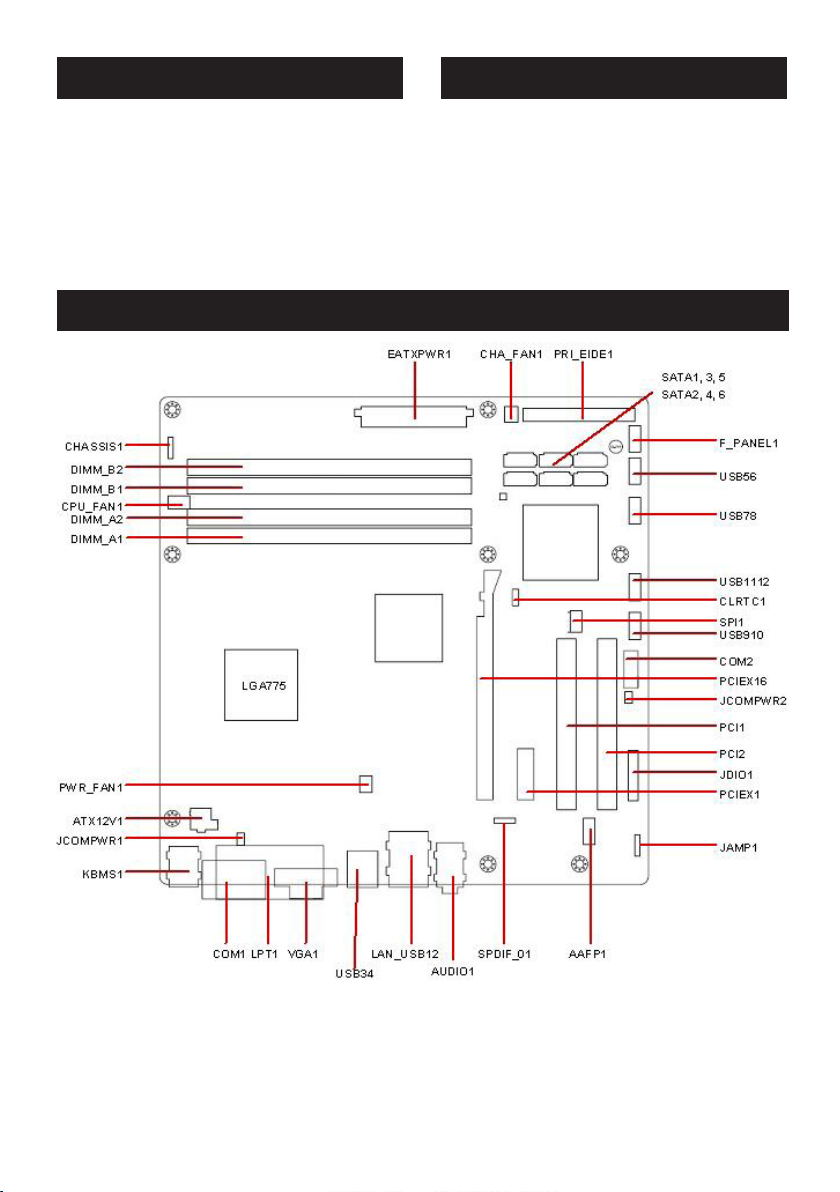

Board Diagram

Disclaimer and Notice
