ADVATEK LIGHTING PixLite E16-S Mk3 Bedienungsanleitung

www.advateklights.com PixLite E16-S Mk3 User Manual V20220819

PixLite E16-S Mk3 User Manual

- 2 -

www.advateklights.com PixLite E16-S Mk3 User Manual V20220819

1 - Table of Contents

1 - Table of Contents 2

2 - Introduction 4

2.1 - Management &Configuration 4

3 - Safety Notes 5

4 - Physical Installation 6

4.1 - Wall Mount 6

4.2 - DIN Rail Mount 7

5 - Electrical Connections 10

5.1 - Supplying Power 10

5.2 - Control Data 11

5.3 - Connecting Pixel LEDs 11

5.4 - Expanded Mode 12

5.5 - Aux Port 14

6 - Network Configuration 15

6.1 - Network Layout Options 15

6.2 - IGMPSnooping 16

6.3 - IPAddressing 16

6.3.1 - DHCP 16

6.3.2 - AutoIP 16

6.3.3 - Static IP 17

6.3.4 - Factory IPAddress 17

7 - Operation 19

7.1 - Start-up 19

7.2 - Sending Ethernet Data 19

7.3 - Pixel Outputs 19

7.4 - Button Actions 20

7.5 - Hardware Test Pattern 20

7.6 - Operating Refresh Rates 21

7.7 - sACNPriorities 21

7.8 - Advatek SHOWTime 22

- 3 -

www.advateklights.com PixLite E16-S Mk3 User Manual V20220819

8 - Firmware Updates 23

8.1 - Updating via the Management Interface 23

9 - Specifications 24

9.1 - Operating Specifications 24

9.1.1 - Power 24

9.1.2 - Thermal 24

9.2 - Physical Specifications 24

9.3 - Electrical Fault Protection 25

10 - Troubleshooting 26

10.1 - LEDCodes 26

10.2 - Statistical Monitoring 27

10.3 - Solutions for Common Issues 28

10.4 - Other Issues 28

10.5 - Reset to Factory Defaults 28

11 - Disclaimer 30

- 4 -

www.advateklights.com PixLite E16-S Mk3 User Manual V20220819

2 - Introduction

This is the user manual for the PixLite E16-S Mk3 pixel controller. The PixLite E16-S Mk3 is

a powerful pixel LED controller built upon Advatek’s 3rd generation PixLite Mk3

processor. At its core, the controller converts sACN, Art-Net and DMX512 protocols

from lighting consoles, media servers or computer lighting software into various pixel

LEDprotocols. With the PixLite Mk3 processor, the PixLite E16-S Mk3 brings powerful

operational functionality and advanced management platforms.

2.1 - Management &Configuration

This manual covers physical aspects of the PixLite E16- S Mk3 controller and its

essential setup steps only. Detailed information about its configuration options can

be found in the ‘PixLite Mk3 Management Guide’.

Configuration, management, and monitoring of this device can be performed via the

web-based Management Interface. To access the interface, either open any web

browser and navigate to the IP address of the device, or use Advatek Assistant 3,

which can be downloaded here:

https://www.advateklights.com/advatek-assistant-3

Figure 1: Management Interface Home Page

Other manuals and the PixLite Mk3 Management Guide may be downloaded from:

www.advateklights.com/downloads

- 5 -

www.advateklights.com PixLite E16-S Mk3 User Manual V20220819

3 - Safety Notes

This LEDpixel controller should be installed by someone with proper technical

knowledge only. Installation of the device should not be attempted without such

knowledge.

The pixel output connectors shall be used for pixel output connection only.

Completely disconnect the supply source during abnormal operation and before

making any other connections to the device.

Specification and certification markings are located on the side of the device.

- 6 -

www.advateklights.com PixLite E16-S Mk3 User Manual V20220819

4 - Physical Installation

4.1 - Wall Mount

Assemble the unit onto the wall / ceiling using four screws of a type suitable for the

mounting surface (not supplied). The screws should be a pan head type, 3mm in

thread diameter and at least 15mm long, as shown in Figure 2 below.

Figure 2: Controller Assembled to Wall

- 7 -

www.advateklights.com PixLite E16-S Mk3 User Manual V20220819

4.2 - DIN Rail Mount

The controller can be mounted to a DIN rail using the optional mounting kit (part

number MNT0101).

1. Align the controller's mounting holes with the outermost mounting holes on

each bracket. Using the four supplied M3, 12mm long screws, assemble the

controller to the mounting brackets, as shown in Figure 3 below.

Figure 3: Controller Assembled to Bracket

- 8 -

www.advateklights.com PixLite E16-S Mk3 User Manual V20220819

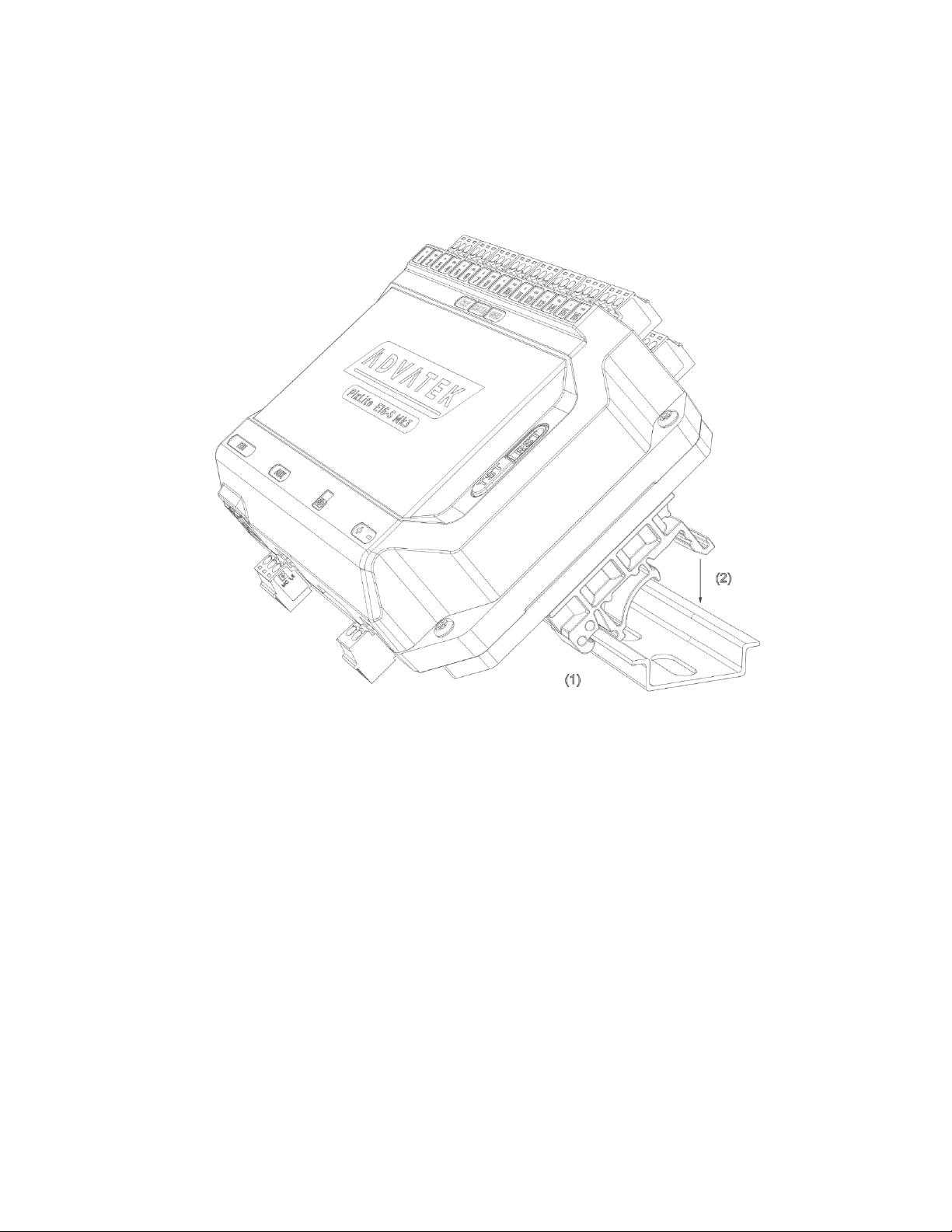

2. Align the lower edge of the bracket with the lower edge of the DIN rail (1), and

push the controller down so it clicks onto the DIN rail (2), as shown in Figure 4

below.

Figure 4: Controller Assembled to DIN Rail

- 9 -

www.advateklights.com PixLite E16-S Mk3 User Manual V20220819

3. To remove the controller from the DIN rail, pull the controller horizontally,

toward its power connector (1) and rotate the controller up and off the rail

(2), as shown in Figure 5 below.

Figure 5: Removal of Controller from DIN Rail

- 10 -

www.advateklights.com PixLite E16-S Mk3 User Manual V20220819

5 - Electrical Connections

5.1 - Supplying Power

Power is applied to the PixLite E16-S Mk3 via the small pluggable screw terminal

connector. The screws should be loosened for wire insertion and then tightened

again, providing a highly robust and secure connection. Polarity for the connector is

clearly marked on the lid (“+” & “-”), as shown in Figure 6 below. The type of wire

required for supply connection is 1.0mm2, 16AWG, VW-1.

Refer to Section 9.1 for operating specifications for powering this device.

Figure 6: Location of Power Input

Pixels that are connected to the PixLite E16-S Mk3 cannot be powered through the

device itself; any pixels connected must have their power sourced separately from a

power supply instead. If multiple power supplies are in use, then the DC ground (also

known as "negative") terminals of each power supply must be connected together, in

order to achieve a common DC ground.

Advatek recommends fusing each positive line that is used to power the pixels, using

an in-line fast blow fuse.
