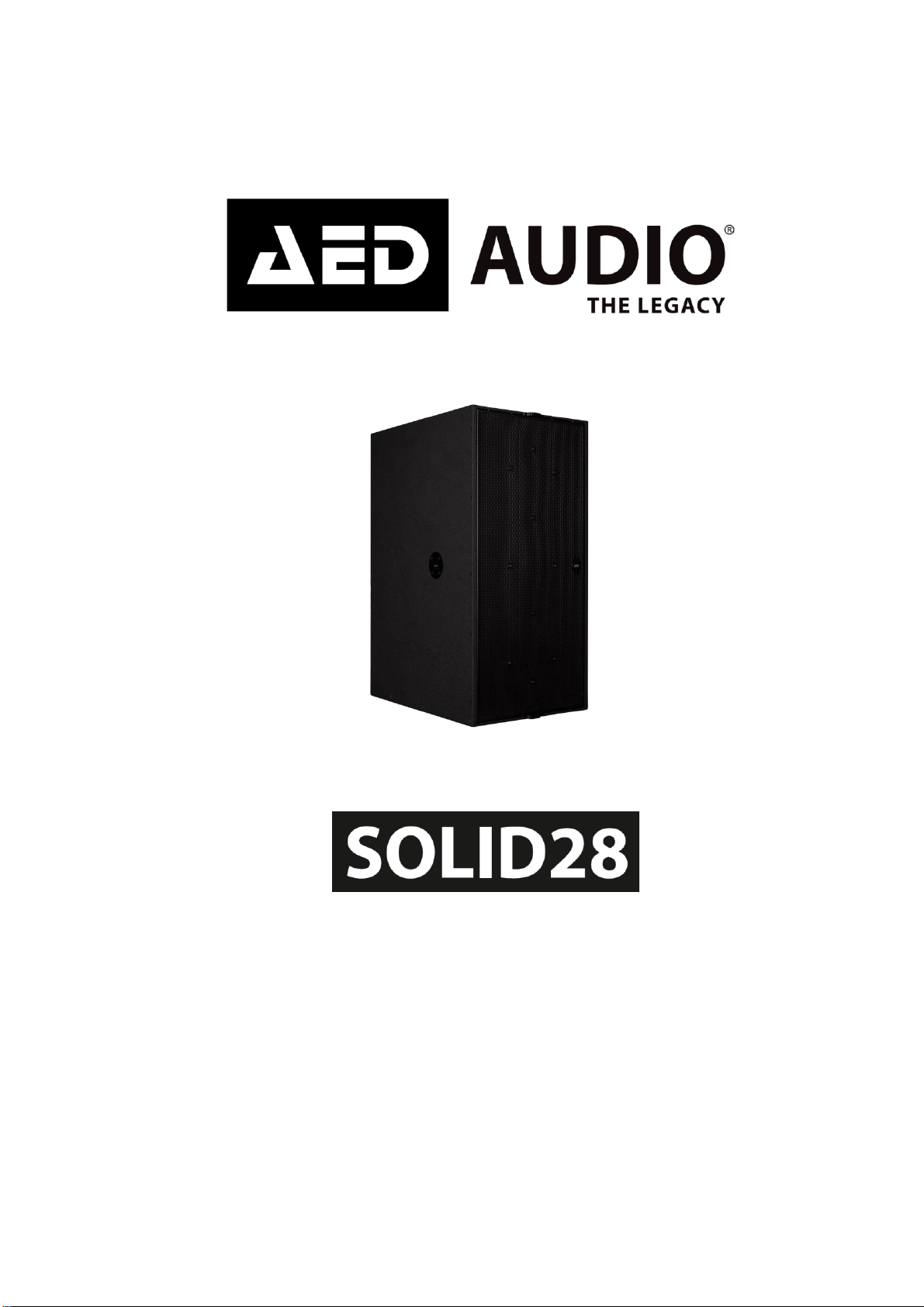

AED AUDIO SOLID28 Bedienungsanleitung

This manual is subject to change without further notice. No rights can be derived from this manual. No part

of this manual may be reproduced, in any form or by any means, without prior written consent from AED

Distribution NV, Belgium. AED Audio is a registered trademark of AED Distribution NV.

User manual

 Installation and
 User instructions
Version:
V1.1.4

Date:
09/01/2023




Table of contents

The AED Audio Solid28 Manual....................................................................................................4
Introduction................................................................................................................................ 4
Disclaimers ................................................................................................................................4
Intended use..............................................................................................................................4
Symbol description .................................................................................................................... 5
Symbols used......................................................................................................................... 5
Abbreviations used.................................................................................................................... 5
Revision history...................................................................................................................... 5
Contact details Manufacturer.....................................................................................................6
Manufacturer’s declarations ...................................................................................................... 6
EU declaration of conformity..................................................................................................6
Licenses and credits .............................................................................................................. 6
General Safety information and general safety instructions .........................................................7
Warnings.................................................................................................................................... 7
Safety features & devices of the Product ..................................................................................7
Other safety notes ..................................................................................................................... 8
System components...................................................................................................................... 9
General characteristics and technical specifications................................................................. 9
Technical data........................................................................................................................9
Dimensions drawing ................................................................................................................ 10
Transportation, handling and commissioning ............................................................................. 11
Transportation..........................................................................................................................11
Remove the shipping assembly............................................................................................... 11
Installation ...................................................................................................................................11
Loudspeaker configurations........................................................................................................12
Accessories .............................................................................................................................14
Operation.....................................................................................................................................16
Powering on/ off.......................................................................................................................16
Using the main menu...............................................................................................................17
Bluetooth specifications:..........................................................................................................18
Bluetooth menu specifications:................................................................................................ 18
Different Bluetooth linking methods (modes): .........................................................................18
Maintenance................................................................................................................................19
Troubleshooting and repair .........................................................................................................19

Installation and

User instructions

Version:

V1.1.4

Date:

09/01/2023

Fault list ...................................................................................................................................19

Repair ......................................................................................................................................20

Contact details certified repair center .................................................................................. 20

Notes...........................................................................................................................................21

Installation and

User instructions

Version:

V1.1.4

Date:

09/01/2023

The AED Audio Solid28 Manual

Introduction

Thank you for purchasing this AED Audio Solid28.

The SOLID28 combined with the SOLID15 in low and the FLEX6 gives you access to a large

scale of applications. This double 18 inch band pass powered subwoofer with a 3.000W RMS

robust amplifier module gives you a massive output of 137 max SPL! With a frequency

response of 25 Hz to 120 Hz, this subwoofer is able to go extremely deep and give you

extraordinarily low frequencies with the same connectivity as the complete AED Audio portfolio.

This manual (hereinafter referred to as the “Manual”) is intended to be used as work of

reference for professional, well trained and authorized users to be able to safely install, use,

maintain and repair the product mentioned on the cover of this document (hereinafter referred to

as the “Product”). The observation of the Manual does not dispense the user from the

observance of the local safety instructions and regulations other than provided by the Manual.

Such safety instructions and regulations must be observed at all time.

For information about specific adjustments, maintenance or repair jobs which are not dealt

within this manual, please contact your Product supplier or AED Audio. If you suspect that the

Product is damaged or detect a potential or actual danger when using the Product, immediately

discontinue use of the Product and contact your supplier. To ensure the safe use of the Product

this Manual must always be kept with the Product in legible condition.

Disclaimers

AED Audio, AED DISTRIBUTION SA, with registered office at Bedrijvenpark De Veert 13/4,

2830 Willebroek (Belgium), or any of its affiliates, does not accept any liability for material

damage, including damage to the Product, or personal injury caused by non-observance by the

user of the safety instructions in the Manual or the applicable laws. As such AED Audio shall

among others not be liable for any damage or injury if the Product is used contrary to or for

purposes other than its intended use, is installed, used, maintained or repaired negligently or

contrary to the instructions mentioned in the Manual or on the Product, when the Product is

modified and when the safety devices and features of the Product are disregarded or

overridden.

Intended use

This system is intended for use by trained personnel for professional applications. The Product

is not intended to be used by minors. Any use, regardless whether or not under the supervision

of an adult, is at own risk.

Installation and

User instructions

Version:

V1.1.4

Date:

09/01/2023

Symbol description

Symbols used

►

Information and tips to ease things for you as you use your AED Audio Solid28.

References to the online AED Audio website, where you can find interesting further

information: https://www.AEDAudio.com

Prompt to take action. This symbol means that you are being prompted to perform

some action.

Abbreviations used

Abbreviation

Definition

Revision history

Version number

date

update

1.0.0

Initial version

1.1.1

10/10/2023

Update Accessoires

1.1.2

02/11/2023

Adding Bluetooth operations

1.1.3

13/11/2023

Update Loudspeaker configuration

1.1.4

09/01/2024

Update Accessories

Installation and

User instructions

Version:

V1.1.4

Date:

09/01/2023

Contact details Manufacturer

AED Distribution

Bedrijvenpark De Veert 13,

2830 Willebroek –Belgium

Tel.: +32 3 860 76 66

Mail: [email protected]

http://www.aedaudio.com

Manufacturer’s declarations

EU declaration of conformity

Licenses and credits

Installation and

User instructions

Version:

V1.1.4

Date:

09/01/2023

General Safety information and general safety instructions

For your own safety, please read this instruction manual carefully before turning on the product

for the first time.

Warnings

Always take note of any information marked with the CAUTION or WARNING symbol.

CAUTION

The signal word WARNING points out the potential risk of serious injury.

WARNING

The signal word CAUTION points out the potential risk of slight injury. The

CAUTION symbol is used to draw attention to circumstances which could

cause the machine to become damaged.

Safety features & devices of the Product

The pictograms, warnings and instructions attached to the Product are part of its safety

features. They must not be covered or removed and must be present and legible during the

entire use of the Product. Immediately replace or repair missing, damaged or illegible

pictograms, warnings and instructions.

The products referred to in this manual conform to the European Community

Directives and are therefore marked with CE logo.

Before operate this unit, please carefully read this users guide and keep if

needed in future.

The device can only run with 240V voltage, 50/60 Hz power, don’t connect to

any other wrong power source.

Safety I class device, need to be earth connected.

Keep this device away from children and unauthorized users, the manufacturer

will not take responsibility for the damage due to any disregard of the

information provided in this manual and wrong operation.

Don’t put or install the device on a surface that subject to vibration or bumps.

Modification

Under no circumstances any modification of the Product may be done by any person other than

AED Audio.

Installation and

User instructions

Version:

V1.1.4

Date:

09/01/2023

Other safety notes

Errors caused by not following these instructions are not covered by the warranty. The

manufacturer will not accept liability for any resulting defects or problems.

•Keep the unit away from radiators or other heat sources!

•If the unit has been exposed to tremendous temperature changes (e.g. after

transportation), do not turn the device on immediately. The resulting condensation could

damage the unit. Don’t switch the unit on until the device reaches room temperature.

•This device belongs to protection class I. Therefore, it is imperative that the

green/yellow wire is connected to the earth contact or plug. The electrical connection

must be made by a qualified person.

•Make sure that the cable has never been squeezed or damaged by sharp objects.

Check the device and the cables regularly.

•If the cable is damaged, it must be replaced immediately by the manufacturer, its

service agent or a qualified person in order to avoid danger.

•Ensure that wires never come in contact with other wires! Handle the power cord and all

connections with caution!

•Make sure that the line voltage is not higher than the voltage specified in this manual.

•Disconnect the unit from the AC mains when it is not in use or when cleaning it.

•The plug on the power supply cord is used as disconnect device, the socket-outlet shall

be easily accessible.

Installation and

User instructions

Version:

V1.1.4

Date:

09/01/2023

System components

General characteristics and technical specifications

Technical data

Type

Solid28

Configuration

Powered subwoofer

LF transducer

2x 18” Neodymium

Frequency response -6 dB

27 –100 Hz

Frequency response -10dB

25 –150 Hz

Maximum SPL

140 dB

Amplifier

Class D | 3.000W RMS –6.000W peak

AC power input

100 VAC –7A | 120 VAC –6,6A | 240 VAC –3,3A

Controls

Power - Rotary encoder - Selection button - 2x Level

Indicators

LCD display - Rotatable multipurpose front LED indicator (power,

limiter, network, off) - 3x signal LED - Network LEDs

Connectors

2x XLR/F 1/4" combo - 2x XLR/M loopthrough - 1x XLR/M mixout

- 2x RJ45 4x4 Dante(AES67) & Control

Extra connectivity

Enclosure

Wood

Color

Black (RAL 9011)

Grill

Powder coated steel - Internal lining

Dimensions (WxHxD)

850 x 1210 x 610 mm | 33.46 x 47.64 x 24.01 in

Net Weight

87 kg –191.8 lb

Attachment

2x M20

Optional accessories

Cover28 –Solid protect –Wheel plate –Vertical coupler –Touring

dolly - Yoke –MultiStand

Power cable included

Not included

Installation and

User instructions

Version:

V1.1.4

Date:

09/01/2023

Dimensions drawing

Inhaltsverzeichnis

Andere AED Subwoofer Handbücher

AED

AED Multi Sub Bedienungsanleitung

Beliebte Subwoofer Handbücher anderer Marken

Sony

Sony XS-AW8 Bedienungsanleitung

Sony

Sony XS-L836 Bedienungsanleitung

B&C Speakers

B&C Speakers 15 HPL 76W Bedienungsanleitung

Velodyne

Velodyne DD-18+ Bedienungsanleitung

Sonance

Sonance Cinema Series SUB 10-150 Bedienungsanleitung

Hifonics

Hifonics HW-12 Kurzanleitung

Magnat Audio

Magnat Audio ADR 130 BP Bedienungsanleitung

Blitz

Blitz BZP106 Bedienungsanleitung

Technics

Technics SB-AS500 Bedienungsanleitung

Lyngdorf

Lyngdorf BW-2 Bedienungsanleitung

Lyngdorf

Lyngdorf BW-3 Bedienungsanleitung

Pyle Pro

Pyle Pro PYLE PRO PDW15125 Bedienungsanleitung

REL Acoustics

REL Acoustics Q Series Bedienungsanleitung

Pioneer

Pioneer Elite S-W1EX Bedienungsanleitung

L-Acoustics

L-Acoustics KIVA SB15M Kurzanleitung

B&C Speakers

B&C Speakers Woofer 12 HPL 76 Bedienungsanleitung

KEF

KEF KUBE 200 Bedienungsanleitung

Yamaha

Yamaha SW500 Bedienungsanleitung
