User manual Ceramic glass hob

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfectly

and most efficiently. To refer to this manual any time you need to, we recommend

you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

Contents

Operating Instructions 2

Safety instructions 2

Description of the appliance 4

Operating the appliance 6

Tips on cooking and frying 12

Cleaning and care 13

What to do if... 14

Disposal 15

Installation Instructions 15

Safety information 15

Service 17

Subject to change without notice

Operating Instructions

Safety instructions

WARNING!

Please comply with these instructions. If you do not, any damage resulting is not covered

by the warranty.

Correct use

• This appliance is not intended for use by children or other persons whose physical, sensory

or mental capabilities or lack of experience and knowledge prevents them from using

the appliance safely without supervision or instruction by a responsible person to ensure

that they can use the appliance safely.

• Do not leave the appliance unattended during operation.

• This appliance should be used only for normal domestic cooking and frying of food.

• The appliance must not be used as a work surface or as a storage surface

• Additions or modifications to the appliance are not permitted.

• Do not place or store flammable liquids, highly inflammable materials or fusible objects

(e.g. plastic film, plastic, aluminium) on or near the appliance.

Children’s safety

• Small children must be kept away from the appliance.

• Only let bigger children work on the appliance under supervision.

2Contents

• To avoid small children and pets unintentionally switching the appliance on, we recom-

mend activation of the child safety device.

General safety

• The appliance may only be installed and connected by trained, registered service engi-

neers.

• Built-in appliances may only be used after they have built in to suitable built-in units

and work surfaces that meet standards.

• In the event of faults with the appliance or damage to the glass ceramic (cracks, scratches

or splits), the appliance must be switched off and disconnected from the electrical supply,

to prevent the possibility of an electric shock.

• Repairs to the appliance must only be carried out by trained registered service engineers.

Safety during use

• Overheated fats and oils can ignite very quickly. Warning! Fire hazard!

• There is the risk of burns from the appliance if used carelessly.

• Remove stickers and film from the glass ceramic.

• Cables from electrical appliances must not touch the hot surface of the appliance or hot

cookware.

• Switch the cooking zones off after each use.

• Risk of burns! Do not place objects made of metal, such as knives, forks, spoons and

saucepan lids on the cooking surface, as they can get hot.

Safety when cleaning

• For cleaning, the appliance must be switched off and cooled down.

• For safety reasons, the cleaning of the appliance with steam jet or highpressure cleaning

equipment is not permitted.

How to avoid damage to the appliance

• The glass ceramic can be damaged by objects falling onto it.

• The edge of the glass ceramic can be damaged by being knocked by the cookware.

• Cookware made of cast iron, cast aluminium or with damaged bottoms can scratch the

glass ceramic if pushed across the surface.

• Objects that melt and things that boil over can burn onto the glass ceramic and should

be removed straightaway.

• To avoid damaging cookware and glass ceramics, do not allow saucepans or frying pans

to boil dry.

• Do not use the cooking zones with empty cookware or without cookware.

Safety instructions 3

Description of the appliance

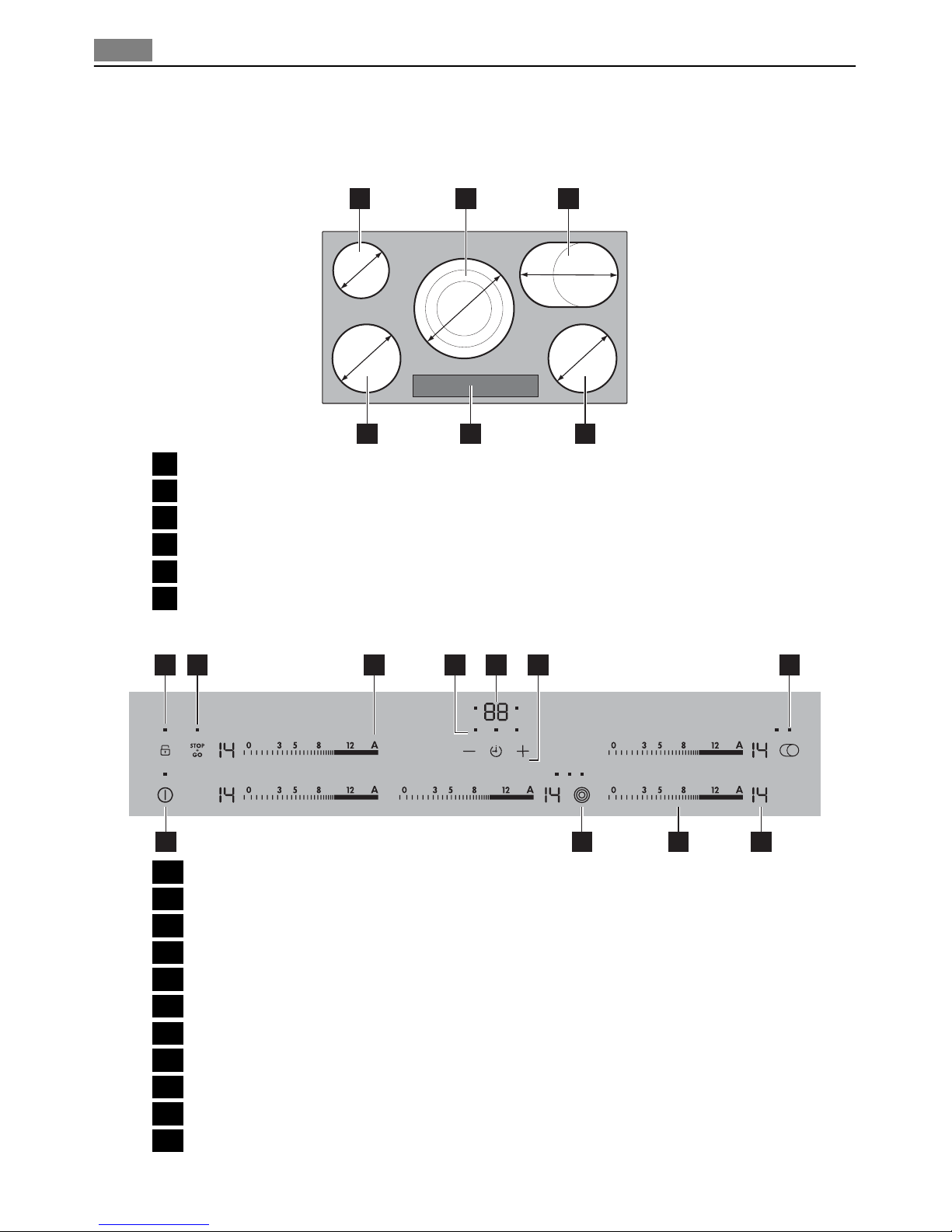

Cooking surface layout

145/210/270

180

145

170x265

1 2 3

46 5

1Single zone 1200W

2Triple ring zone 1050/1950/2700W

3Multi-purpose zone 1400/2200W

4Single cooking zone 1800W

5Control panel

6Single cooking zone 1800W

Control panel layout

1 2 3 4 5 6 7

1Child lock with a pilot light

2Stop+Go with a pilot light

3Automatic warm-up function

4Cooking zone indicators Timer function

5Timer display

6Timer

7Multi-purpose zone with pilot lights

8Heat setting indicator

9Heat setting selection

10 Triple ring zone with pilot lights

11 On/Off with indicator

4Description of the appliance

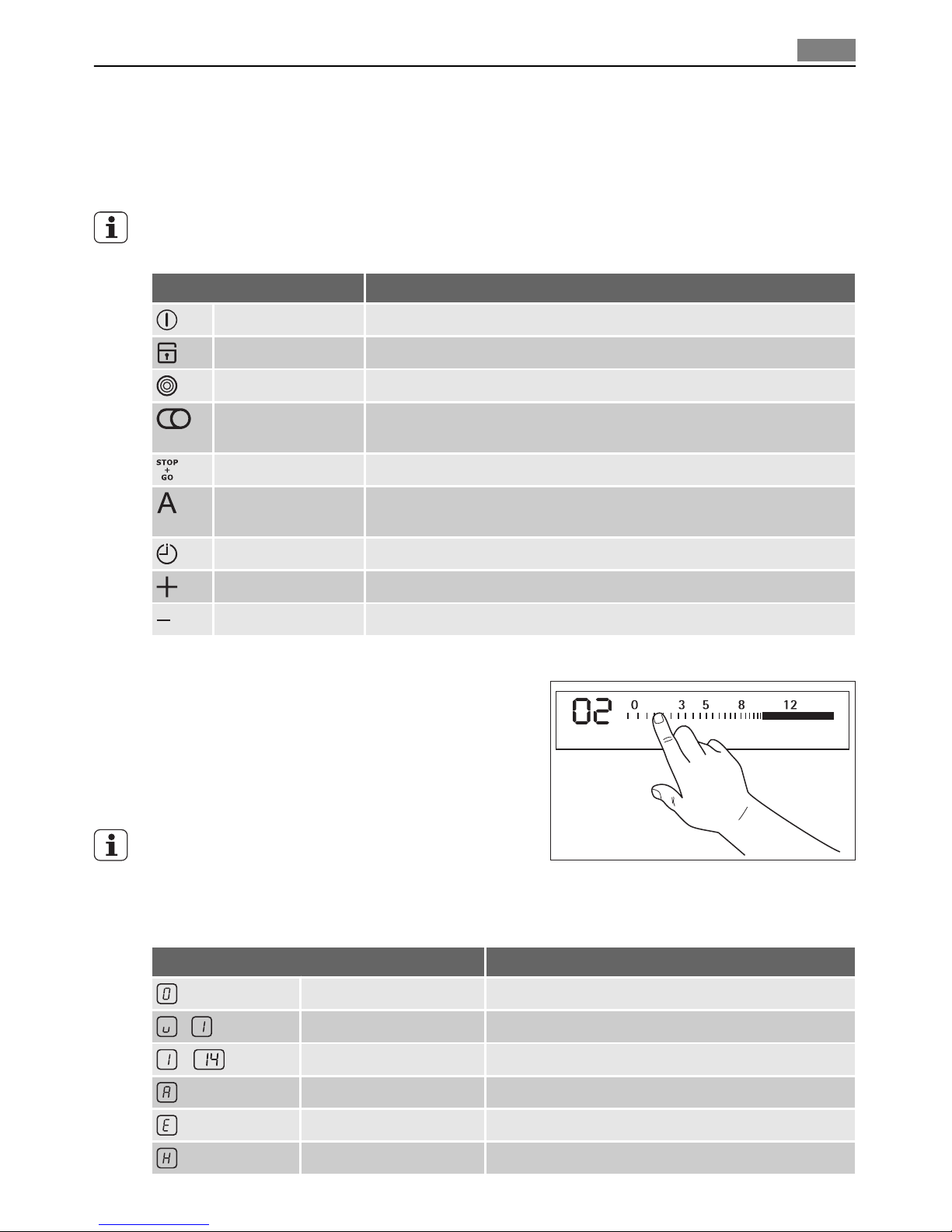

Touch Control sensor fields

The appliance is operated using Touch Control sensor fields. Functions are controlled by

touching sensor fields and confirmed by displays and acoustic signals. Only touch the sensor

fields which activate a desired function. Do not cover other sensor fields.

If the control bar is touched for longer than 6 seconds, a signal sounds and the appliance

switches itself off.

Sensor field Function

On / Off Switches appliance on and off

Child lock Locking control panel for children

Triple ring To switch outer rings on and off

Multi-purpose

zone

To switch outer rings on and off

STOP+GO To switch the Keep Warm setting on/ off

Automatic warm-

To switch the automatic warm-up function on and off

Timer Timer selection

Increase settings To increase Timer time

Reduce settings To reduce Timer time

Control bar

The control bar is a special Touch Control field. The

control bar is touched where the desired heat set-

ting is positioned. The heat setting is shown in the

display. Correct to the left or the right, if neces-

sary. Do not release before the desired heat setting

is reached.

If the control bar is touched for longer than 6

seconds, a signal sounds and the appliance

switches itself off.

Displays

Display Description

The cooking zone is switched off

/ Keep Warm settings Keep Warm / STOP+GO function is switched on

- Heat settings To set heat settings

Automatic Warm-up The Automatic Warm-up function is switched on

Fault Malfunction has occurred

Residual heat Cooking zone is still hot

Description of the appliance 5

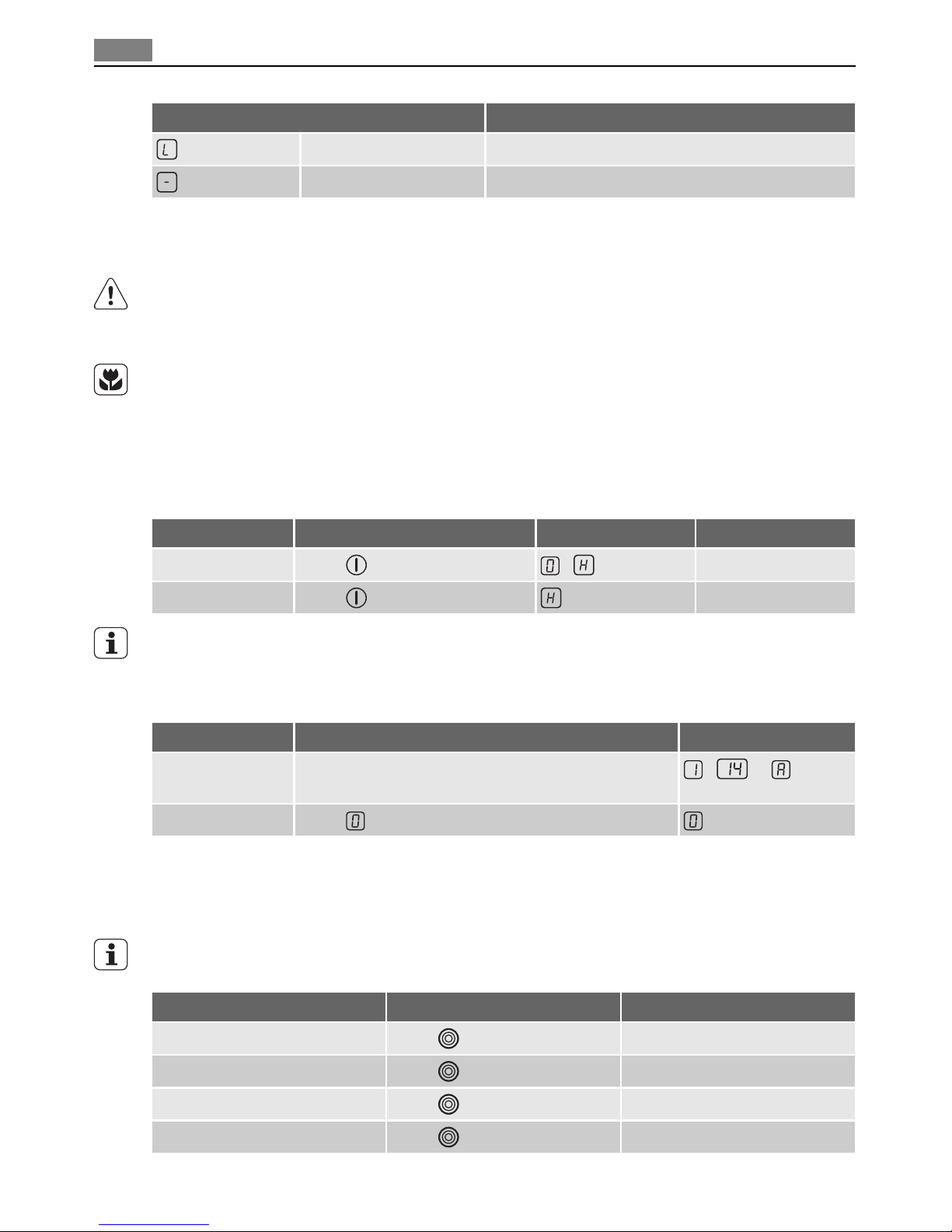

Display Description

Child safety device Lock/Child safety device is set

Automatic Switch off Switch off is active

Residual heat indicator

The residual heat indicator lights up, as soon as one cooking zone is hot.

WARNING!

Risk of burns from residual heat! After you switch the appliance off, the cooking zones

need some time to cool down. Look at the residual heat indicator.

Use residual heat for melting and keeping food warm.

Operating the appliance

Switching the appliance on and off

Control panel Display Pilot light

Switch on Touch for 1 second / lights up.

Switch off Touch for 1 second / none goes out.

After switching on, within approx. 10 seconds a heat setting or a function must be set,

otherwise the appliance automatically switches itself off.

Setting the heat setting

Control panel Display

To set the heat

setting

Touch the desired heat setting, if necessary, correct

up or down

/ to

Switch off Touch

Switching the outside ring on and off

By switching the outside rings on or off, the effective heating surface can be matched to

the size of the cookware.

Before an outside ring can be switched on, the inside ring must be switched on

Triple cooking zone Sensor panel Pilot light

To switch on the central ring Touch for 1-2 seconds. Second pilot light lights up

To switch on the outside ring Touch for 1-2 seconds. Third pilot light lights up

To switch off the outside ring Touch for 1-2 seconds. Third pilot light goes out

To switch off the central ring Touch for 1-2 seconds. Second pilot light goes out

6Operating the appliance

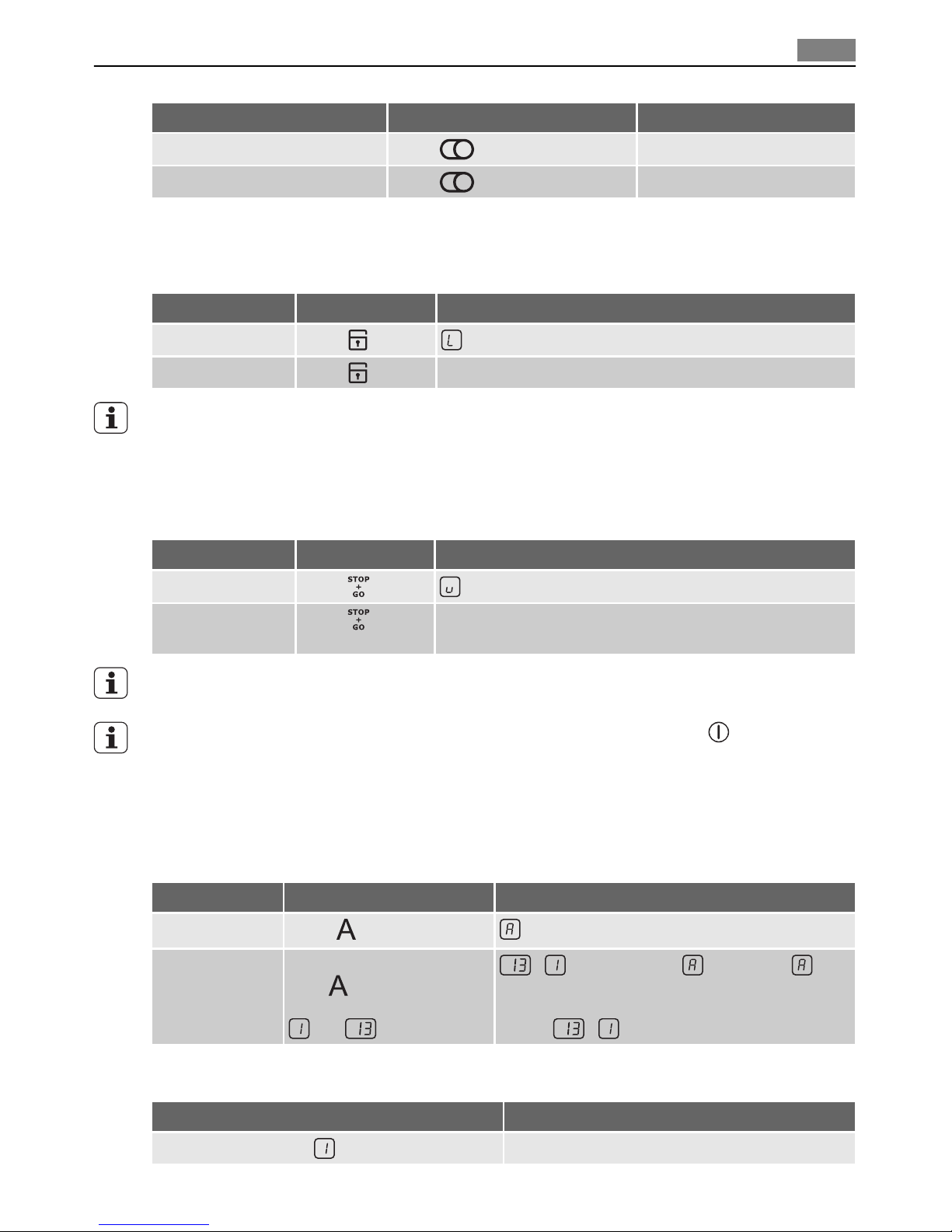

Multi-purpose zone Sensor field Pilot light

To switch on outside ring Touch for 1-2 seconds Second pilot light lights up

To switch off outside ring Touch for 1-2 seconds Pilot light goes out

Locking/unlocking the control panel

The control panel, with the exception of the “On/Off” sensor field, can be locked at any time

in order to prevent the settings being changed e.g. by wiping over the panel with a cloth.

Control panel Display

To switch on Touch (for 4 seconds)

To switch off Touch previously set heat setting

When you switch the appliance off, the locking function is automatically switched off.

Turning the STOP+GO function on and off

The STOP+GO function simultaneously toggles all active cooking zones to keep-warm mode

then back to the heat setting they were at before

Control panel Display

To switch on Touch

To switch off Touch Previous heat setting (not automatic warm-up or power

function)

STOP+GO does not stop timer functions.

STOP+GO controls the entire control panel apart from the sensor field .

Using the automatic warm-up function

All cooking zones are equipped with an automatic warm-up function. When setting a heat

setting using the automatic warm-up function, the cooking zone switches to full power

for a certain amount of time and then automatically switches back to the heat setting set.

Step Control Panel Display

1. Touch

2. Move your finger down

from to select the de-

sired heat setting between

and

/ after 5 seconds . As long as is

displayed, the appliance works at full power. After

the automatic warm up is completed, the heat

setting / is displayed again.

The length of time that the automatic warm up function operates depends on the heat

setting selected.

Heat setting Length of the automatic warm up [min:sec]

1:00

Operating the appliance 7

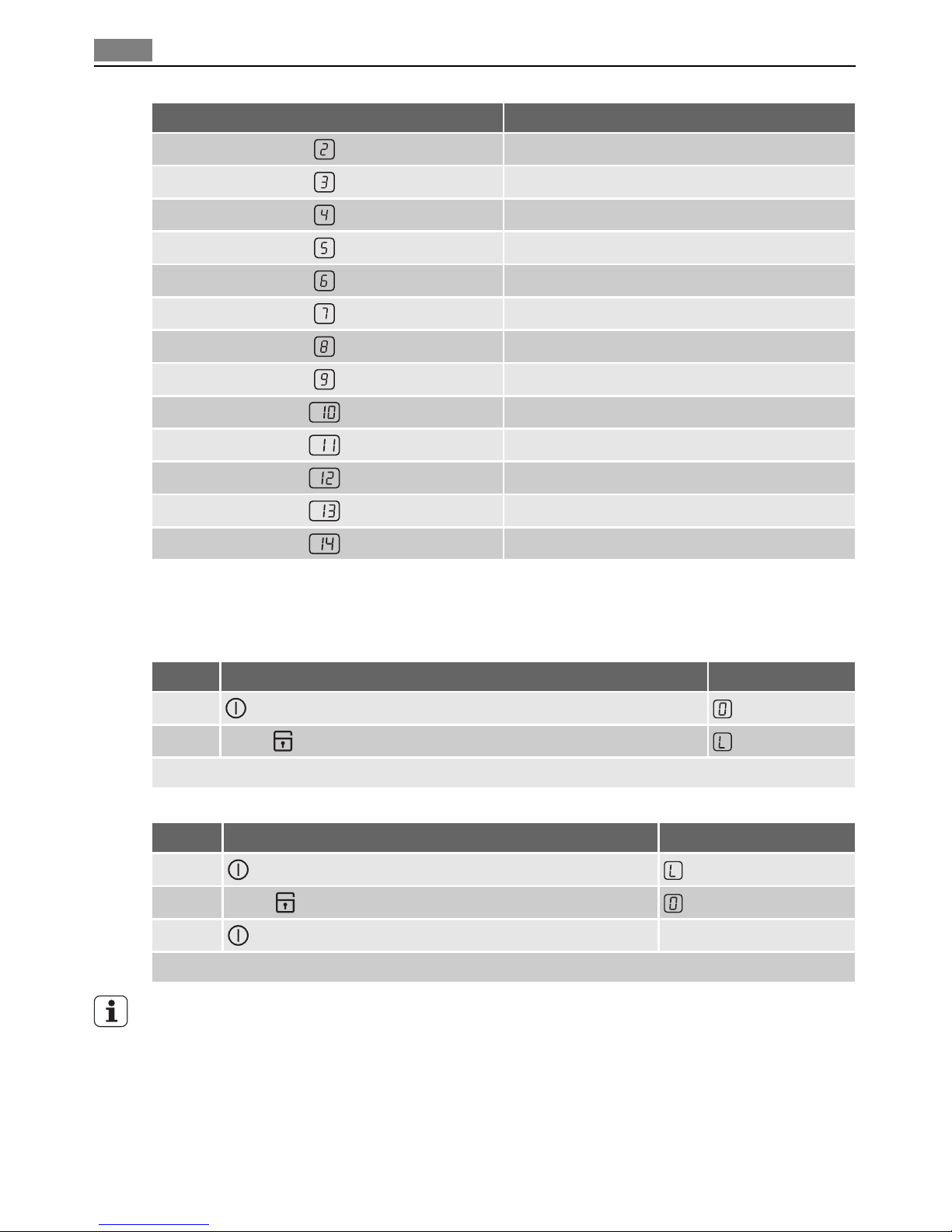

Heat setting Length of the automatic warm up [min:sec]

1:40

2:40

4:50

5:30

6:30

8:10

10:10

12:20

2:30

3:30

4:30

---

Using the child safety device

The child safety device prevents unintentional use of the appliance.

Switching on the child safety device

Step Control panel Display/Signal

1. Switch on appliance. Do not set a heat setting.

2. Touch for 4 seconds

The child safety device is switched on.

Switching off the child safety device

Step Control panel Display/Signal

1. Switch on appliance. Do not set a heat setting.

2. Touch for 4 seconds lights up

3. Switch appliance off.

The child safety device is switched off.

The child safety device can only be switched on and off if no heat setting is set.

Overriding the child safety device

The child safety device can be switched off in this way for a single cooking session; it remains

activated afterwards.

8Operating the appliance

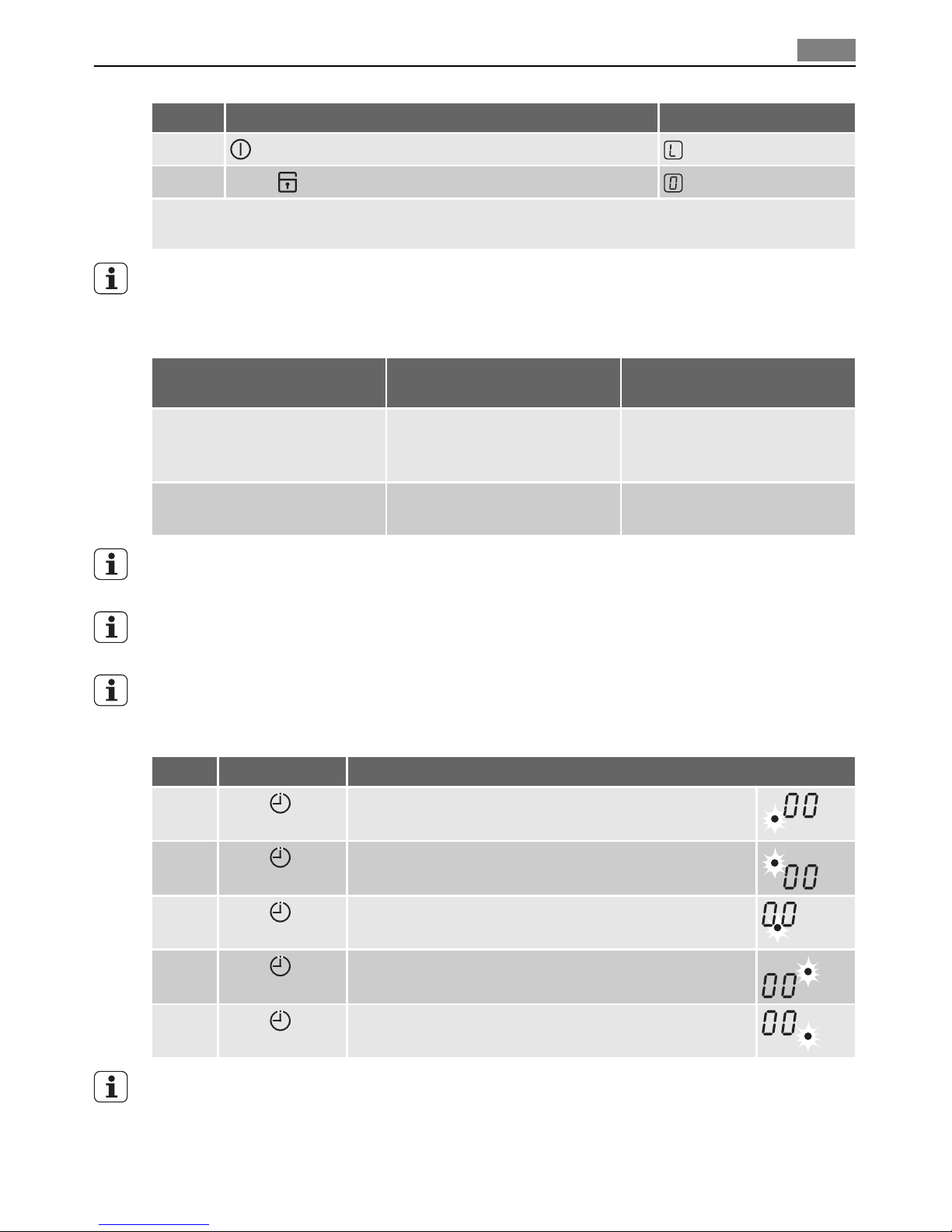

Step Control panel Display/Signal

1. Switch appliance on

2. Touch for 4 seconds lights up

Until the appliance is next switched off, it can used as normal. After switching off the appliance,

the child safety device is active again.

After overriding the child safety device, a heat setting or a function must be set within

approx. 10 seconds, otherwise the appliance automatically switches itself off.

Using the timer

Function Condition Outcome after the time has

elapsed

Automatic cut-out a heat setting is set acoustic signal

flashes

Cooking zone switches off

Countdown timer cooking zones not in use acoustic signal

flashes

If just one countdown value is set you can change it only when the appliance is switched

on.

If a heat setting is set on this cooking zone in addition to a countdown timer, the cooking

zone is switched off after the time set has elapsed.

If a cooking zone is switched off, the timer function set is also switched off.

Selecting a cooking zone

Step Control panel Display

1. Touch once Pilot light of the first cooking zone flashes

2. Touch once Pilot light of the second cooking zone flashes

3. Touch once Pilot light of the third cooking zone flashes

4. Touch once Pilot light of the fourth cooking zone flashes

5. Touch once Pilot light of the fifth cooking zone flashes

If other timer functions are set, after a few seconds the shortest remaining time of all the

timer functions is displayed and the corresponding pilot light flashes.

Operating the appliance 9

Setting the time

Step Control panel Display

1. Select cooking zone Pilot light for the cooking zone selected

flashes

2. Touch or /

minutes

After a few seconds the pilot light flashes more slowly.

The time is set.

The time counts down.

Switching off the timer function

Step Control panel Display

1. Select cooking zone Pilot light of cooking zone selected flashes faster

Time remaining is displayed

2. Touch The time remaining counts backwards to

The pilot light goes out.

The Timer function for the selected cooking zone is switched off.

Changing the time

Step Control panel Display

1. Selecting a cooking zone Pilot light of the selected cooking zone

flashes more quickly

Remaining time is displayed

2. Touch or

minutes

After a few seconds the pilot light flashes more slowly.

The time is set.

The time counts down.

Displaying the time remaining for a cooking zone

Step Control panel field Display

1. Select cooking zone Pilot light of the cooking zone selected flashes faster

The time remaining is displayed

After a few seconds the pilot light flashes more slowly.

Switching off the acoustic signal

Step Control panel field Acoustic signal

1. Touch Acoustic signal to acknowledge.

Acoustic signal stops.

Automatic switch off

Cooking surface

• If after switching on the cooking surface, a heat setting is not set for a cooking zone

within approx. 10 seconds, the cooking surface automatically switches itself off.

• If one or more sensor fields are covered by objects (a pan, etc.) for longer than approx.

10 seconds, a signal sounds and the cooking surface switches off automatically.

10 Operating the appliance

Inhaltsverzeichnis

Andere AEG Electrolux Kochfeld Handbücher

AEG Electrolux

AEG Electrolux 6000K Technisches Datenblatt

AEG Electrolux

AEG Electrolux 76301K-MN Bedienungsanleitung

AEG Electrolux

AEG Electrolux FM 7803K-an Bedienungsanleitung

AEG Electrolux

AEG Electrolux 34942 G Bedienungsanleitung

AEG Electrolux

AEG Electrolux 88032K-MN Bedienungsanleitung

AEG Electrolux

AEG Electrolux HK624000XB Bedienungsanleitung

AEG Electrolux

AEG Electrolux 95852 G Bedienungsanleitung

AEG Electrolux

AEG Electrolux 79301 KF-N Bedienungsanleitung

AEG Electrolux

AEG Electrolux 76301KFE-N Bedienungsanleitung

AEG Electrolux

AEG Electrolux 78001KF-MN Bedienungsanleitung

AEG Electrolux

AEG Electrolux 96901KF-N Bedienungsanleitung

AEG Electrolux

AEG Electrolux 88101KF-N Bedienungsanleitung

AEG Electrolux

AEG Electrolux 88031K-MN Bedienungsanleitung

AEG Electrolux

AEG Electrolux 78001KF-N Bedienungsanleitung

AEG Electrolux

AEG Electrolux EHS 8675 P Bedienungsanleitung

AEG Electrolux

AEG Electrolux 75580G-M Bedienungsanleitung

AEG Electrolux

AEG Electrolux HK624010FB Bedienungsanleitung

AEG Electrolux

AEG Electrolux 86700 K Bedienungsanleitung

AEG Electrolux

AEG Electrolux 6130M Bedienungsanleitung

AEG Electrolux

AEG Electrolux 78031KF-MN Bedienungsanleitung

AEG Electrolux

AEG Electrolux U30130 21602 G Bedienungsanleitung

AEG Electrolux

AEG Electrolux 78001KF-N Bedienungsanleitung

AEG Electrolux

AEG Electrolux 6530 DG-M Produkthandbuch

AEG Electrolux

AEG Electrolux Gas Hob Bedienungsanleitung

Beliebte Kochfeld Handbücher anderer Marken

Siemens

Siemens EX875KYV1E Technisches Datenblatt

AEG

AEG CERAMIC HOB 6010 K Bedienungsanleitung

VALERA

VALERA CT 70A Bedienungsanleitung

Zanussi

Zanussi ZGF 6420 Bedienungsanleitung

Gaggenau

Gaggenau CI 273 Bedienungsanleitung

G3 Ferrari

G3 Ferrari Energy Bedienungsanleitung

Pkm

Pkm IN4B Bedienungsanleitung

Award

Award H903BG Bedienungsanleitung

Zanussi

Zanussi VCH 5005 RZ Bedienungsanleitung

Miele

Miele KM 523 Bedienungsanleitung

Hotpoint

Hotpoint IS67V8CCXT/E Bedienungsanleitung

AEG

AEG HK854870XB Bedienungsanleitung

Cookology

Cookology SEP600BK Bedienungsanleitung

Bauknecht

Bauknecht Hob Bedienungsanleitung

Zanussi

Zanussi ZGM 782 Bedienungsanleitung

dipo INDUCTION

dipo INDUCTION DIBK218S Bedienungsanleitung

Miele

Miele KM 5987 Bedienungsanleitung

Miele

Miele KM 360 G Bedienungsanleitung
