User manual Built-under oven

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfectly

and most efficiently. To refer to this manual any time you need to, we recommend

you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

Contents

Safety information 2

Safety for children and incompetent

persons 2

Installation safety measures 3

Electrical safety 3

Operation safety measures 3

Product description 4

General overview 4

Oven accessories 5

Oven steam outlet 5

Before first use 5

Initial Cleaning 5

Setting the time 5

Daily use 5

Switch the oven on 6

Changing the oven temperature 6

Controlling the temperature 6

Switching the oven off 6

Cooling fan 6

Heat- up indicator 6

Rapid heat up 6

Cooking zones 7

Heat settings 7

Oven Functions 7

Inserting the Oven Accessories 8

Inserting/Removing the Fat Filter 9

Clock Functions 9

Setting the clock functions 9

Other functions 10

Switch on lock 10

Oven automatic cut-out 10

Helpful hints and tips 11

Inner side of door 11

Baking 12

Roasting 16

Grilling 18

Preserving 19

Drying 20

Defrosting 20

Care and cleaning 21

Pyrolytic cleaning 22

Shelf Support Rails 22

Oven lamp 23

Oven door and glass panels 23

What to do if… 25

Service and spare parts 26

Subject to change without notice

Safety information

Safety for children and incompetent persons

• People (including children) who, because of their physical, sensory or mental capabilities

or their inexperience of ignorance are not able to use the appliance safely, should not

use this appliance without supervision or instruction by a responsible person.

• Switch on the child lock when there are children. The child lock makes sure that children

do not accidentally switch on the appliance.

2Contents

Installation safety measures

• Let a registered electrician do the installation of the appliance. If you do not contact a

registered electrician, the guarantee becomes invalid if there is damage.

• For safety on installation, refer to "Installation"

Electrical safety

• Let a registered electrician do the electrical connection of the appliance.

• For safety on installation, refer to "installation".

Risk of fire

• Open the door carefully. The use of ingredients with alcohol can cause a mixture of

alcohol and air. There is risk of fire.

• Do not let sparks or open flames come near the appliance when you open the door. There

is risk of fire.

• Do not keep flammable materials in the appliance. There is risk of fire.

Operation safety measures

Discoloration of the oven enamel does not effect the performance of the appliance. The

guarantee does not become invalid.

• Only use the appliance to cook, roast and bake food

• When you connect electrical appliances to mains sockets, do not let cables touch or come

near the hot oven door.

• The inner side of the appliance becomes hot during use. There is risk of burns.

• Do not cover the appliance with aluminium foil to prevent damage to the oven enamel.

• Do not put baking trays, pots, etc. on the oven floor to prevent damage to the oven

enamel.

• Never put hot water directly into the appliance to prevent damage to or discoloration

of the oven enamel.

• User a deep baking tray for very moist cakes. If not, fruit juices can cause stains that can

be permanent.

• Do not apply pressure on an open appliance door.

• Be careful when you remove or install the glass panels.

• Do not keep moist food in the appliance to prevent damage to the oven enamel.

• After you switch off the cooling fan, do not keep uncovered food in the appliance.

Moisture can condense in the appliance or on the glass doors.

Care and cleaning

• Before maintenance, switch off the appliance and make sure that the appliance is cool.

• Do not clean the appliance with a steam cleaner or a high-pressure cleaner.

• Do not clean the glass oven door with abrasive fluids or metal scrapers, which could

cause scratches on the surface. The glass could break and shatter

Safety information 3

Product description

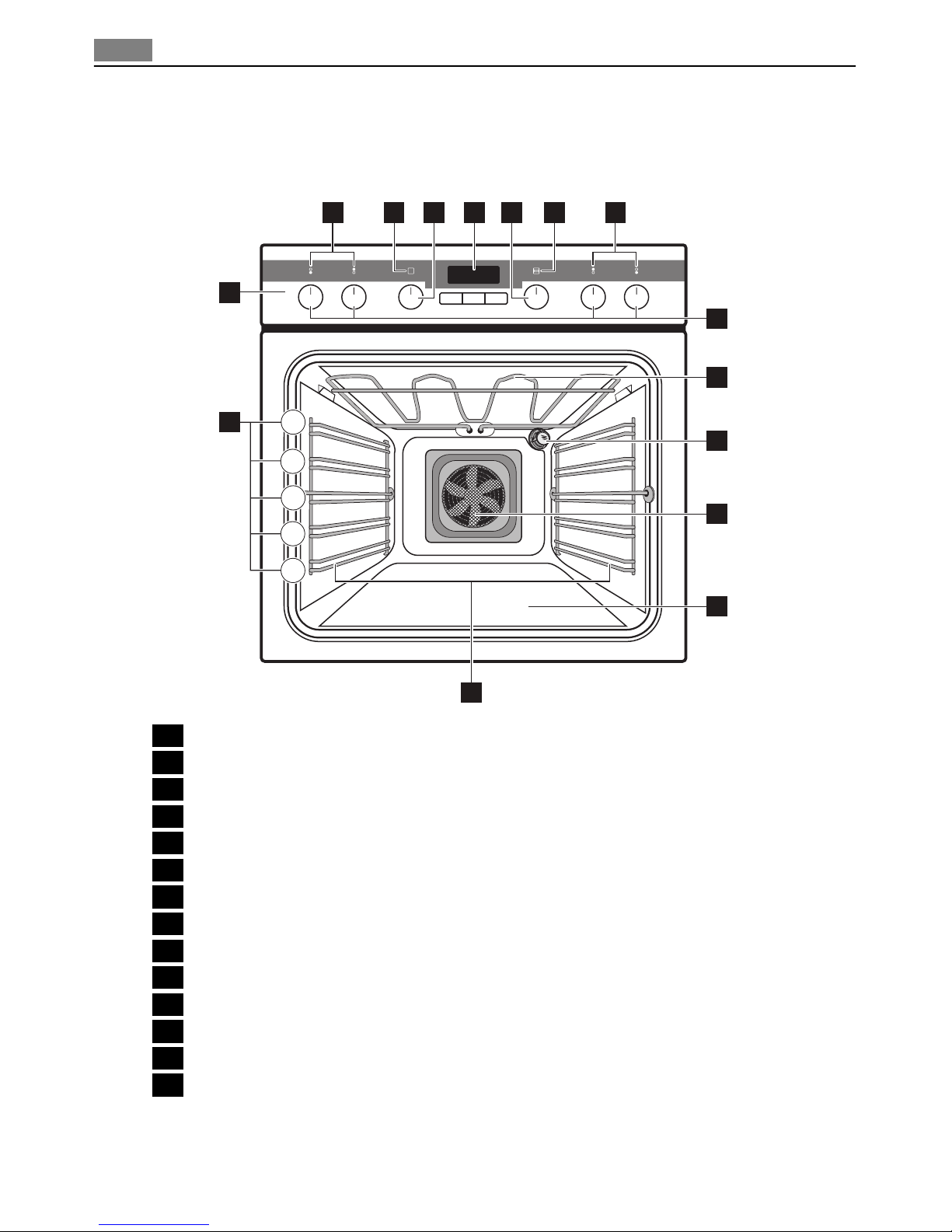

General overview

14 5

23 4 5 6 7

1Control panel

2Cooking zone indicators

3Power indicator

4Control knob for oven functions

5Display

6Control knob for temperature

8Control knobs for cooking zones

9Heating element

10 Oven lamp

11 Fan and fat filter

12 Bottom heat

13 Oven shelf runners, removable

14 Shelf positions

4Product description

Power indicator

Oven accessories

•Oven shelf

For cookware, cake tins, roasts.

•Flat baking tray

For cakes and biscuits.

•Deep roasting pan

To bake and roast or as pan to collect fat.

Oven steam outlet

The steam from the oven gets out through the outlet in the back left corner of the cooking

surface (see the Description of the appliance in hob user manual).

Before first use

Initial Cleaning

• Remove all parts from the appliance.

• Clean the appliance before first use.

CAUTION!

Do not use abrasive cleaning agents! This can damage the surface. Refer to chapter "Care

and Cleaning".

Setting the time

The oven only operates after time set.

1. Push the Selection button (refer to section

"Clock function") again and again until the

function indicator Time of day flashes.

2. Use the + / - knob to set the time.

After approx. 5 seconds, the flashing stops

and the display shows the time of day set.

The appliance is now ready to use.

For time change you must not set a clock

function ( Minute Minder, Duration or End) or

an oven function at the same time. Make sure

that the child safety device is not set.

Daily use

To use the oven, push the retractable knob. The knob then comes out.

Before first use 5

Switch the oven on

Turn the oven functions selector to a oven function. The power indicator comes on. The

temperature display shows the suggested temperature for the oven function set. The oven

starts to heat up. When the temperature is reached, an acoustic signal sounds.

Changing the oven temperature

Turn the + / - knob to raise or lower temperature. The setting changes in 5°C steps.

Controlling the temperature

Push Rapid heat up and Selection buttons at the same time. The temperature display shows

the current oven temperature.

Switching the oven off

Turn the oven functions selector to the OFF posi-

tion.

Cooling fan

When the appliance operates, the cooling fan switches on automatically to keep the sur-

faces of the appliance cool. If you switch off the appliance, the cooling fan continues to

operate until the appliance cools down.

Heat- up indicator

If you switch on an oven function, the bars on the display come on one by one. The bars

show that the oven temperature increases.

Rapid heat up

With the additional function Rapid heat up you decrease the pre-heating time.

Do not put the food into the oven, until Rapid heat up is completed and the oven operates

in the desired function.

1. Set an oven function.

2. Push the Rapid heat up button. The bars next to the symbol come up.

When the bars flash one by one, it shows that Rapid heat up operates.

When Rapid heat up is completed:

– the bars of the heat indicator come up,

– the bars next to the symbol go out,

– an acoustic signal sounds.

6Daily use

The oven now continues to heat according to the pre-set oven function and temper-

ature. Now you can put the food in the oven.

You can switch on the Rapid heat up function with the oven functions: True fan , Fan

baking , Conventional and Rotitherm .

Cooking zones

With the control knobs for cooking zones you operate the hob that you installed with the

oven. For more information about the hob, refer to the hob user manual.

Heat settings

Cooking zone indicators (refer to "General overview ") show which zone you set.

Control knob Function

Heat settings

(1 = lowest hest setting; 9 = highest heat setting)

1. Turn the control knob to a necessary heat setting.

2. To complete the cooking process, turn the control knob to the “0” position.

Automatic heat-up function

This information is applicable only if you install the hob with Automatic heat up function!

The automatic heat-up function heats the cooking zone with full power for some time.

1. To switch on the function, turn the control knob clockwise as far as possible (pass the

highest heat setting).

2. To continue the cooking process, turn the control knob to the necessary heat setting.

3. To complete the cooking process, turn the control knob to the “0” position.

Oven Functions

The oven has these functions:

Oven function Application

TRUE FAN To bake on maximum three oven levels at

the same time. Decrease the oven temper-

atures (20-40°C) compared with Conven-

tional.

FAN BAKING To bake on one oven level food with a more

intensive browning and a crispy base.

Decrease the oven temperatures (20-40°C)

compared with Conventional.

CONVENTIONAL To bake and roast on one oven level.

ROTITHERM To roast larger joints of meat or poultry on

one level. Also to gratinate and brown.

DUAL GRILL To grill flat food in large quantities and to

toast.

Daily use 7

Oven function Application

SINGLE GRILL To grill flat food in the middle of the grill an

to toast.

DEFROST To defrost frozen food.

BASE HEAT To bake cakes with crispy or crusty bases and

to preserve food.

PYROLUXE MENU For automatic pyrolytic cleaning of the

oven. It burns off residual dirt in the oven.

The oven heats up to approximately 500°C.

Inserting the Oven Accessories

Put in the slide-in accessories so that the double side edges are at the back of the oven and

point down to the bottom. Push the slide-in accessories between the guide-bars of one of

the oven levels.

The deep roasting pan and the oven shelf have

double side edges. These edges and the shape of

the guide-bars causes the anti-tilt safety for the

oven accessories.

Inserting the oven shelf and deep roasting

pan together

Put the oven shelf on the deep roasting pan. Push

the deep roasting pan between the guide-bars of

one of the oven levels.

8Daily use

Inserting/Removing the Fat Filter

Only use the fat filter when roasting to protect

the rear heating elements from fat splashes.

Inserting the fat filter

Hold the fat filter by the tab and insert the two mounts downwards into the opening on

the rear wall of the oven (fan opening).

Removing the fat filter

Hold the fat filter by the tab, unhook it and lift out.

Clock Functions

1 2

1Temperature / Time display

2Heat indicator

3Clock function indicators

4Selection button

5Change display

6Rapid heat up button

Setting the clock functions

1. Push the Selection button again and again until the desired function indicator flashes.

Daily use 9

2. To set the time for Minute Minder , Duration or End , use the + / - knob.

The related function indicator comes on.

When the time period is completed, the related function indicator flashes, the display

shows 0.00 and an acoustic signal sounds.

3. To stop the signal and the flashing:

- with Minute Minder push a button

- with Duration and End turn the oven functions selector to the position Off.

With Minute Minder an acoustic signal also sounds when 90% of the time period is com-

pleted.

With the functions Duration and End the oven switches off automatically.

Clock function Application

Time of day Shows the time. To set, change or check the time.

Minute mind-

To set a countdown time. A signal sounds, after the time period is com-

pleted. This function has no effect on the operation of the oven.

Duration To set how long the oven has to be in operation.

End To set the switch-off time for an oven function.

Duration and End can be used at the same time, if the oven is to be switched on

and off automatically later. First set Duration , then End .

Other functions

Switch on lock

When the switch on lock is switched on, you cannot operate the oven.

It makes sure that children do not accidentally switch on the appliance.

Do not set an oven function.

Switching on the switch on lock:

1. Turn + / - control knob to the left and hold it.

2. Push Selection button until the display shows "SAFE".

The switch on lock device is switched on.

To switch off the switch on lock device repeat the same procedure as for switching on the

switch on lock.

Oven automatic cut-out

The appliance switches off after some time:

• if you do not switch off the appliance.

• if you do not change the oven temperature.

Oven temperature Switch-off time

30 - 120 °C 12.5 h.

10 Daily use

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere AEG Electrolux Ofen Handbücher

AEG Electrolux

AEG Electrolux B3151-5 Bedienungsanleitung

AEG Electrolux

AEG Electrolux COMPETENCE B 8139-5-m Bedienungsanleitung

AEG Electrolux

AEG Electrolux B41012-5 Bedienungsanleitung

AEG Electrolux

AEG Electrolux E3050-6 Bedienungsanleitung

AEG Electrolux

AEG Electrolux B8871-4 Bedienungsanleitung

AEG Electrolux

AEG Electrolux USER MANUAL BUILT-IN ELECTRIC OVEN B5701-5 Bedienungsanleitung

AEG Electrolux

AEG Electrolux D67000VF Bedienungsanleitung

AEG Electrolux

AEG Electrolux MICROMAT KB9810E Bedienungsanleitung

AEG Electrolux

AEG Electrolux COMPETENCE B41012-4 Bedienungsanleitung

AEG Electrolux

AEG Electrolux B4001-5 Bedienungsanleitung

AEG Electrolux

AEG Electrolux E8831-5 Bedienungsanleitung

AEG Electrolux

AEG Electrolux MICROMAT KB9810E Bedienungsanleitung

AEG Electrolux

AEG Electrolux U88106 Bedienungsanleitung

AEG Electrolux

AEG Electrolux E43012-5 Bedienungsanleitung

AEG Electrolux

AEG Electrolux B41015-5 Bedienungsanleitung

AEG Electrolux

AEG Electrolux B4101-5 Bedienungsanleitung

AEG Electrolux

AEG Electrolux E43012-5 Bedienungsanleitung

AEG Electrolux

AEG Electrolux B3150-5 Bedienungsanleitung

AEG Electrolux

AEG Electrolux B4101-5 Bedienungsanleitung

AEG Electrolux

AEG Electrolux COMPETENCE D4101-4 Bedienungsanleitung

AEG Electrolux

AEG Electrolux E5701-5 Bedienungsanleitung

AEG Electrolux

AEG Electrolux COMPETENCE D4101-5 Bedienungsanleitung

AEG Electrolux

AEG Electrolux COMPETENCE E4401-4 Bedienungsanleitung

AEG Electrolux

AEG Electrolux B1100-5 Bedienungsanleitung

Beliebte Ofen Handbücher anderer Marken

Bosch

Bosch HVA531NS0 Bedienungsanleitung

Electrolux

Electrolux EOF6P46X Bedienungsanleitung

NEFF

NEFF B44S32 5GB Series Bedienungsanleitung

Combi

Combi BLODGETT BC142GDS Bedienungsanleitung

AEG

AEG COMPETENCE 311704300 Bedienungsanleitung

Falcon

Falcon DOMINATOR PLUS G3106 Series Benutzerhandbuch

Rational

Rational SCC WE 61G Bedienungsanleitung

Smeg

Smeg DOSPA38X Installations- und Betriebshandbuch

Electrolux

Electrolux air-o-convect 20 GN 2/1 Bedienungsanleitung

Miele

Miele HR 1954-2 Bedienungsanleitung

KHIND

KHIND OT50 Bedienungsanleitung

Henny Penny

Henny Penny Smoker Box Bedienungsanleitung

Lang

Lang ECOD-AP Bedienungsanleitung

AEG

AEG BEK455310M Bedienungsanleitung

Frigidaire

Frigidaire FNGE90JGR Bedienungsanleitung

Hotpoint

Hotpoint FE9 S831 JSH IX Bedienungsanleitung

GE Advantium SCB2000 Bedienungsanleitung

AEG

AEG DE401301DM Bedienungsanleitung
