AEG F89078VI-S Bedienungsanleitung

Dishwasher

User manual

PERFEKT IN FORM UND FUNKTION

Lave-vaisselle

Manuel d’instructions

F89078VI-S/M

Rev 0.0 3

CONTENTS EN

CONTENTS

1 INTRODUCTION ........................................................................................................................ 5

2 DESCRIPTION AND USE OF THE CONTROLS.................................................................. 7

2.1 Upper panel................................................................................................................................. 7

2.2 Setting the washing program and switching on and o............................................ 8

2.2.1 Switching on .............................................................................................................................11

2.2.2 Selecting and starting the program.................................................................................11

2.2.3 End of program........................................................................................................................12

2.2.4 Interrupting a program.........................................................................................................12

2.2.5 Changing the current program..........................................................................................12

2.2.6 Canceling the current program..........................................................................................13

2.2.7 Options .......................................................................................................................................13

2.2.8 Switching o.............................................................................................................................15

2.3 Additional features .................................................................................................................15

2.3.1 Adjusting the water softener..............................................................................................15

3 ENERGY SAVING AND ENVIRONMENTAL RESPECT ..................................................17

3.1 Reducing the consumption of detergent and respecting the environment.....17

4 REMOVING THE DISHES.......................................................................................................18

5 TROUBLESHOOTING .............................................................................................................19

4 Rev 0.0

Rev 0.0 5

INTRODUCTION EN

1 INTRODUCTION

Thank you for choosing one of our products. To use this dishwasher cor-

rectly and safely, please read this manual carefully. The manual is divided

into sections giving you a step-by-step guide to all your appliance’s fun-

ctions. The texts are easy to understand and are complete with detailed

illustrations. This user-friendly manual will provide answers to all your

questions about use of the dishwasher.

Before using this dishwasher, carefully read chapter 2 “Use and safety war-

nings” of the attached general manual.

For any other information about use and maintenance of the dishwasher,

read the enclosed general manual carefully.

This manual comprises the following sections:

INTRODUCTION: general information about the manual.

USER INSTRUCTIONS: advice on using the washing programs and infor-

mation about all the dishwasher functions.

Nomenclature of gures and tables:

The progressive number of each gure is shown in the bottom right-hand

corner of the relative box. An example of a progressive number is “Fig.

4-01”, where the rst number (4) indicates the section to which the gure

belongs, while the second number (01) indicates the progressive number

of the gure in section 4 (Fig. 4-01 is the rst gure in section 4). The tables

are numbered in the same way, bearing in mind that “Tab.” is used instead

of “Fig.” (e.g.: Tab. 4-01 is the rst table in section 4). If a table occupies

more than one page, a letter is added after the progressive number (e.g.:

“Tab. 4-01a”, Tab. 4-01b”).

6 Rev 0.0

INTRODUCTION

Symbols used in this manual (see tab. 1-01)

DANGER. This symbol highlights information and warnings which, if not

observed, may compromise personal safety or damage the appliance.

This symbol highlights general information and warnings.

Tab. 1-01

Rev 0.0 7

USER INSTRUCTIONS EN

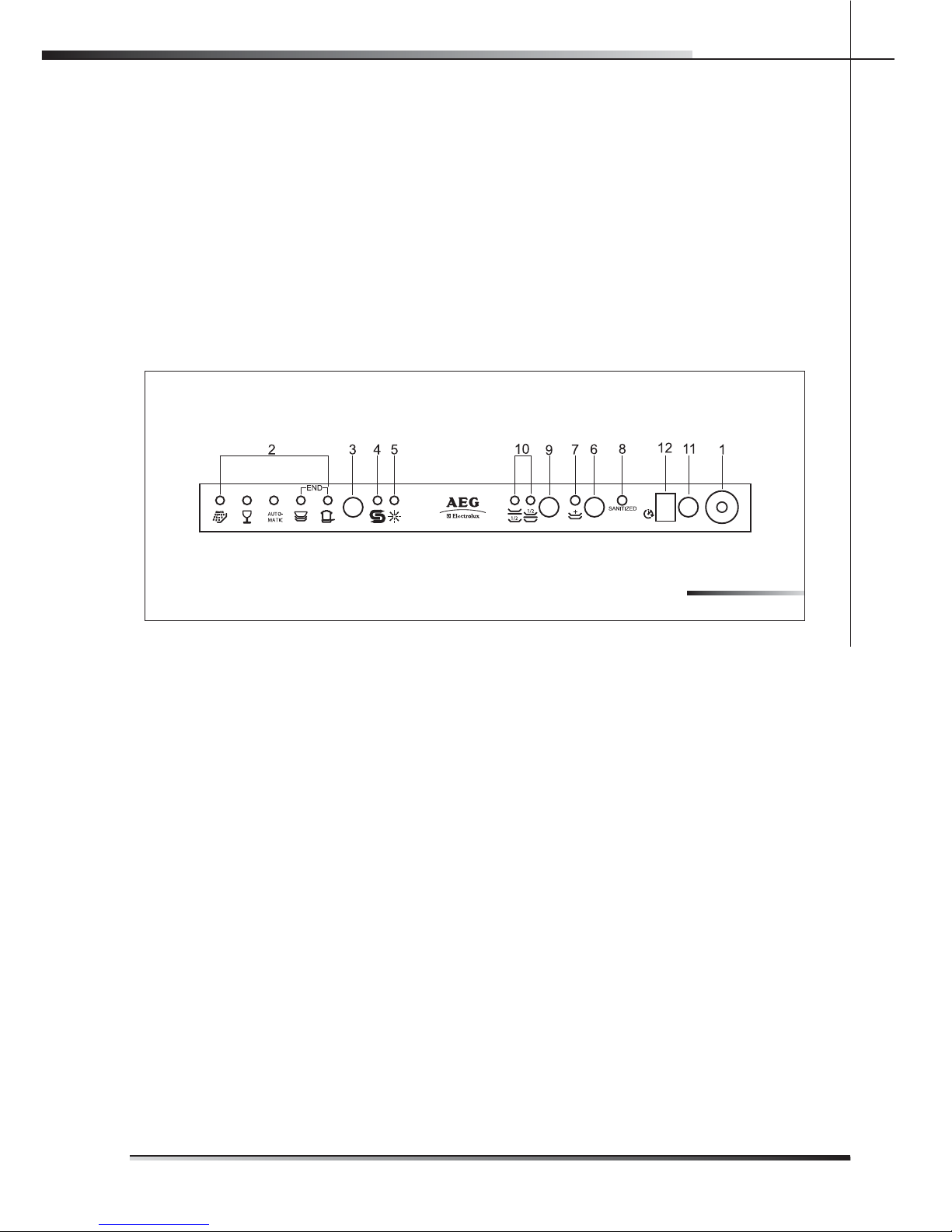

2 DESCRIPTION OF THE CONTROLS

2.1 Upper panel

All the dishwasher controls are grouped on the upper panel (see g. 2-01). The di-

shwasher can only be switched on, programmed, switched o, etc. with the door

open.

A brief description (see tab. 2-01) of the various controls on the upper panel is

given below.

FIG. 201

8 Rev 0.0

USER INSTRUCTIONS

1On/o button

Press to power the appliance.

Program indicator lights

These show which program is selected and whether there are any faults

(Troubleshooting).

3Program selection button

Press in sequence to select the required program.

4Add salt indicator light (only tted on some models)

Shows the appliance has run out of salt.

Add rinse aid

(only tted on some models)

Shows the appliance has run out of rinse aid.

6Supplementary program button

Press to select one of the ve supplementary programs (see table).

7Supplementary program indicator light

Shows that one of the ve supplementary programs will be run (see table).

8Sanitation indicator light

Shows that the function is active.

9Half-load wash button (only tted on some models)

Press to select the half-load wash option.

Half-load indicator lights (only tted on some models)

One of the lights shines to show that the half-load wash function has been selected in

the upper or lower rack.

Program delay button

(only tted on some models)

Press to delay the start of the program up to 9 hours.

12 Display (only tted on some models)

Tab. 2-01

2.2 Setting the washing program and switching on

and o

The dishwasher is equipped with a control panel (see g. 2-02) which is used to

program the appliance and switch it on and o.

FIG. 202

Rev 0.0 9

USER INSTRUCTIONS EN

To select the most suitable program for the dishes to wash, consult the following

table which species the most appropriate type of washing sequence depending

on the kind of dishes and how dirty they are (see tabs. 2-02a and 2-02b).

PROGRAM NUMBER AND

SYMBOL

DISHES AND

CUTLERY

PROGRAM

SEQUENCE

TIME CONSUMPTION

MINUTES

(2)

WATER

(1)

ENERGY

kWh (2)

1DISH

WARMING

Pans and

dishes to rinse

and dry

Rinse at 69°C

(156.2°F) Dry. 50’ 3.9 l

1,03 gal. 0.64

2CRYSTAL Moderately

dirty

Wash at 45°C

(113°F)

Cold rinse.

Rinse at 69°C

(156.2°F)

Dry.

70’ 10.8 l

2.85 gal. 0,6

AUTO SUPER

WASH

ETL SANITATION

LISTED

Moderately

dirty, including

dried-on

residue

Cold pre-wash

(Depending of

the type of dirty)

Wash at 65°C

(149°F).

Cold rinse.

Hot rinse at 70°C

(158°F).

Dry.

115’-130’

11-15 l

2.91-3.96

gal.

1-1.2

4NORMAL Moderately

dirty

Cold pre-wash.

Wash at 55°C

(131°F).

Cold rinse.

Rinse at 68°C

(154.4°F).

Dry.

112’ 14,8 l

3.91 gal. 0.8

EXTREME

WASH

ETL SANITATION

LISTED

Very dirty pans

and dishes,

including

dried-on

residue

Pre-wash at 45°C

(113°F).

Wash at 70°C

(158°F)

2 cold rinses

Rinse at 70°C

(158°F)

Dry.

122’ 18,3 l

4.83 gal. 1.12

Tab. 2-02a

10 Rev 0.0

USER INSTRUCTIONS

PROGRAM NUMBER AND

SYMBOL

DISHES AND

CUTLERY

PROGRAM

SEQUENCE

TIME CONSUMPTION

MINUTES

(2)

WATER

(1)

ENERGY

kWh (2)

RINSE

Pans and dishes

waiting to be

washed

Cold pre-wash 16’ 3.9 l

1.03 gal. 0.03

SHORT Slightly dirty

Wash at 38°C

(136.40°F)

Cold rinse.

Rinse at 58°C

(136.4°F).

37’ 10.6 l

2.8 gal. 0.38

AUTO

DELICATE

Wash

immediately

after use

Cold pre-wash

(Depending of

the type of dirty)

Wash at 55°C

(131°F).

Cold rinse.

Hot rinse at 69°C

(156.2°F).

Dry.

105’-120’

11-15 l

2.91-3.96

gal.

0.8-1

ECONOMY

Wash

immediately

after use

Wash at 55°C

(131°F).

Cold rinse.

Rinse at 69°C

(156.2°F).

Dry.

123’ 11,9 l

3.14 gal. 0.9

HEAVY

WASH

Moderately dirty

pans and dishes,

including dried-

on residue

Wash at 70°C

(158°F)

2 cold rinses.

Rinse at 70°C

(158°F)

Dry.

102’ 15.1 l

3.99 gal. 1,0

Tab. 2-02b

(1) Average water consumption with the softener set to level 0 (zero).

Any other setting will increase water consumption till 2.5 l (0.66 gal.) / cycles with setting 5.

(2) The cycle times listed in the use and care manual are based on normal soil loads and 120°F (49°C)

incoming water and will vary based on your actual conditions.

- Only“AUTO SUPER WASH” and “EXTREME WASH” programs conforms to NSF std 184 and are certied

by INTERTEK with the ETL SANITATION LISTED.

- When the “Sanitized” light shine it means that the dishwasher and its contents have been sanitized

according to the requirements of the National Sanitation Foundation (NSF).

- When the “AUTO PROGRAMMES” are selected, the dishwasher recognizes the type of dirt and auto-

matically adjusts the washing parameters as appropriate.

Rev 0.0 11

USER INSTRUCTIONS EN

Only run the soak program with half loads.

To run programs 6, 7, 8, 9, 10 (see tab. 2-02b), select the required standard pro-

gram (see programs 1, 2, 3, 4, 5 in tab. 2-02a) and then press the supplementary

program button (ref. 6 g. 2-02).

After using the above tables to choose the most suitable washing cycle, program

the appliance.

Before starting a washing program, make sure that:

The water supply tap is• open.

There is regenerating• salt in the water softener tank (to add salt,

see the instructions in the general manual).

The correct amount of detergent• has been added to the dispen-

ser (to add detergent, see the instructions in the general manual).

The spray arms are able to rotate• freely and without obstruction.

The racks have been• correctly loaded (see the instructions in the

general manual).

The dishwasher door• is securely closed.

2.2.1 Switching on

Press the on/o button (ref. 1 g. 2-02) to start the dishwasher. Then wait for one

of the program indicator lights to turn on (ref. 2 g. 2-02).
