AEG FAVORIT 44060 VIL Bedienungsanleitung

FAVORIT 44060 VIL

Dishwasher

Instruction book

PERFEKT IN FORM UND FUNKTION

152965 29/0en 11-02-2004 10:13 Pagina 1

Dear customer,

Please read this User Information carefully and keep it to refer to at a

later date.

Pass it on to any subsequent owner of the appliance.

The following symbols are used in the text:

Safety instructions

Warning! Notes that concern your personal safety.

Attention! Notes that show how to avoid damage to the appliance.

Useful tips and hints

Environmental information

Your dishwasher has the new washing system ”IMPULSE WASHING”.

With this dishwashing system the motor speed and spray pressure

are varied during the wash cycle to achieve better cleaning of the

dishes. It is for this reason that the noise level varies during the

dishwashing cycle.

152965 29/0en 11-02-2004 10:13 Pagina 2

CONTENTS

Operating instructions 4

Safety instructions 4

Disposal 6

Economical and ecological dishwashing 6

Description of the appliance 7

The control panel 8

Prior to using for the first time 10

Setting the water softener 10

Filling the with salt 13

Rinse aid 14

In daily use 17

Loading cutlery and dishes 17

The lower basket 19

The cutlery basket 20

The upper basket 21

Adjusting the height of the upper basket 22

Use of detergent 23

Different kinds of detergent 24

Washing programmes 26

Starting a washing programme 27

Unloading the dishwasher 29

Maintenance and cleaning 30

Cleaning the filters 30

What to do, when... 33

Service 36

Guarantee terms 37

Technical specifications 39

Installation instructions 40

Building-in 40

Levelling 40

Fixing to the adjacent units 40

Water supply connections 41

Water inlet hose with safety valve 42

Water outlet hose connection 43

Electrical connection 44

Hints for test centres 45

Contents

152965 29/0en 11-02-2004 10:13 Pagina 3

OPERATING INSTRUCTIONS

Safety instructions

The safety of AEG electrical appliances conforms to accepted rules of

technology and the Appliance Safety Act. We as manufacturers,

however, see ourselves as being obliged to familiarise you with the

following safety instructions.

It is most important that this instruction book should be retained

with the appliance for future reference. Should the appliance be

sold or transferred to another owner, or should you move house

and leave the appliance, always ensure that the book is left with

the appliance in order that the new owner can get to know the

functioning of the appliance and the relevant safety information.

This information has been provided in the interest of your safety.

You MUST read it carefully before installing or using the

appliance.

Installation

●Check your dishwasher for any transport damage. Never connect a

damaged machine. If your dishwasher is damaged, you should

contact your supplier.

●For safety reasons it is dangerous to alter the specifications or

attempt to modify this product in any way.

●Any electrical and plumbing work required to install this appliance

should be carried out by a qualified and competent person.

●Care must be taken to ensure that the appliance does not stand on

the electrical supply cable.

●The sides of the dishwasher must never be drilled to prevent

damage to hydraulic components.

Child safety

●This appliance is designed to be operated by adults.

●Children should not be allowed to tamper with the controls or play

with the product.

●Packaging parts may be dangerous for children, who could even be

suffocated! You should therefore keep all packaging well away

from children.

Operating instructions

152965 29/0en 11-02-2004 10:13 Pagina 4

●The water in your dishwasher is not for drinking. Detergent residues

may still be present in your machine. Keep children well away from

your dishwasher when the door is open.

●Keep all detergents in a safe place out of children’s reach.

Your dishwasher in day-to-day use

●Items that are contaminated by petrol, paint, steel or iron debris,

corrosive, acidic or alkaline chemicals must not be washed in this

dishwasher.

●Under no circumstances should you open the door whilst the

appliance is in operation, especially during the washing phase, hot

water may escape. However, if the door is opened, a safety device

ensures that the machine stops.

●Only use products (detergent, salt and rinse aid) specifically

designed for use in dishwashers.

●Long bladed knives stored in an upright position are a potential

hazard.

●Long and/or sharp items of cutlery such as carving knives must be

positioned horizontally in the upper basket.

●When finishing loading or unloading close the door, as an open

door can be a hazard.

●Do not sit or stand on the open door.

●Isolate the appliance from the power supply and turn off the water

supply after use.

●This product should be serviced by an authorised service engineer,

and only genuine spare parts should be used.

●Under no circumstances should you attempt to repair the machine

yourself. Repairs carried out by inexperienced persons may cause

injury or serious malfunctioning. Contact your local Service Force

Centre. Always insist on genuine spare parts.

Operating instructions

152965 29/0en 11-02-2004 10:13 Pagina 5

Disposal

Dispose of the dishwasher packaging material correctly.

All packaging materials can be recycled.

Plastic parts are marked with standard international abbreviations:

>PE< for polyethylene, e.g. sheet wrapping material.

>PS< for polystyrene, e.g. padding material (always CFC-free).

>POM< for polyoxymethylene, e.g. plastic clips.

Cardboard packaging is manufactured from recycled paper and should

be deposited in the waste paper collection for recycling.

As and when you cease to use your dishwasher and withdraw it from

service, your should render it unserviceable before having it disposed

of.

Warning! Children at play could lock themselves in your dishwasher or

otherwise endanger their lives. Therefore cut off the power supply

cable and make the door closing device unusable to prevent children

from being trapped inside.

For the disposing of the appliance please take it to a recycling centre

or to your dealer who will, for a small contribution to the costs,

dispose it for you.

Economical and ecological dishwashing

●Ensure that the water softener is correctly adjusted.

●Do not pre-wash under running water.

●Select the wash programme to suit the nature and degree of the

soiling on the dishes.

●Do not use more detergent, special salt and rinse aid than is

recommended in these operating instructions and by the

manufacturer of the respective product.

Operating instructions

152965 29/0en 11-02-2004 10:13 Pagina 6

Operating instructions

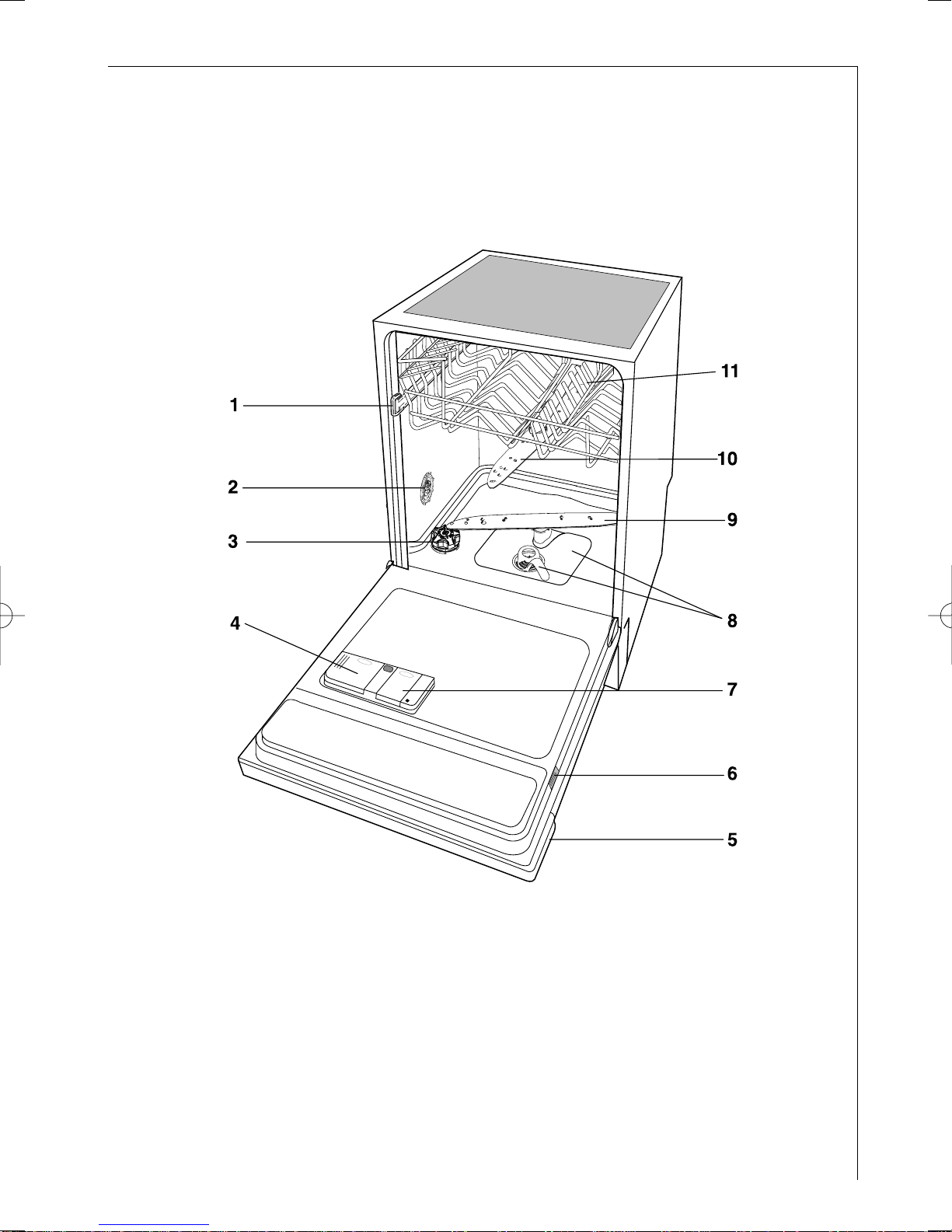

Description of the appliance

1. Upper basket stop

2. Water hardness switch

3. Salt container

4. Detergent dispenser

5. Control panel

6. Rating plate

7. Rinse aid dispenser

8. Filters

9. Lower spray arm

10. Upper spray arm

11. Upper basket

IN153

152965 29/0en 11-02-2004 10:13 Pagina 7

Operating instructions

Function push buttons: in addition to the dishwashing programme

selected, the following functions can also be set with the help of these

buttons:

- water softener setting,

- deactivation/activation of the inflow of rinse aid,

- deactivation/activation of the audible signals,

- the cancelling of a washing programme.

"Programme selection" push buttons: allows the selection of the

desired washing programme (see "Washing programmes" chart).

"Delay start" option push button: this option allows the start of

the programme to be delayed by 3, 6 or 9 hours.

Indicator lights: have the following meanings:

On/Off

push button Programme selection

push buttons

Function

push buttons

Indicator

lights

Delay start

option push button

1 2 3

Salt refilling indicator light, illuminates when the salt has

run out

Rinse aid refilling indicator light, illuminates when the rinse

aid has run out

End of programme: illuminates when the washing

programme has ended, it also has added functions

of visual signalling as:

-something not working with the machine,

-deactivation/activation of the inflow of rinse aid and of

the audible signals,

-the setting of the water softener

The control panel

152965 29/0en 11-02-2004 10:13 Pagina 8

Operating instructions

Audible signals

Audible signals have been introduced to help indicate which

operations the dishwasher is performing:

"Setting of the water softener"

"End of programme"

"Something not working with the machine"

Deactivation/activation of the audible signals

(The dishwasher must be switched off)

1. Press the On/Off push button. All programme selection push

buttons indicator lights will illuminate (setting mode).

If only one programme selection push button indicator light is

illuminated, this means that a washing programme has been

selected.

The programme must be cancelled: press simultaneously the

function push buttons 2and 3for about 2 seconds, the indicator

light of the setted programme push button starts flashing for

about 2 seconds.

After about 2 seconds the indicator lights of all the programme

selection push buttons will illuminate indicating that the setted

programme has been cancelled and that the machine is now in

setting mode.

2. Press simultaneously function push buttons 2and 3, the indicator

lights of the function push buttons 1, 2and 3start flashing.

3. Press the function push button 3, the indicator lights of function

push buttons 1and 2turn off while the indicator light of the push

button 3goes on flashing, at the same time the "end of

programme" indicator light illuminates indicating that the audible

signals are active.

4. To deactivate the audible signals, press again the function push

button 3, the "end of programme" indicator light turns off,

indicating that the audible signals have been deactivated.

5. To memorise the operation, switch off the dishwasher by pressing

the On/Off push button or wait about 60 seconds after which the

dishwasher will automatically return to setting mode.

152965 29/0en 11-02-2004 10:13 Pagina 9

Operating instructions

Prior to using for the first time

Before using your dishwasher for the first time:

1. Ensure that the electrical and water connections comply with the

installation instructions

2. Remove all packaging from inside the appliance

3. Set the water softener

4. Pour 1 litre of water inside the salt container and then fill with salt

5. Fill the rinse aid dispenser.

Setting the water softener

The dishwasher is equipped with a water softener designed to remove

minerals and salts from the water supply, which would have a

detrimental or adverse effect on the operation of the appliance.

The higher the content of these salts, the harder your water is.

Water hardness is measured in equivalent scales, German degrees,

French degrees and mmol/l (millimol per litre).

The softener should be adjusted according to the hardness of the water

in your area. Your local Water Authority can advise you on the

hardness of the water in your area.

The water softener must be set in both ways: manually, using the water

hardness switch and electronically, using the function push buttons on

the control panel.

Adjusting the water

hardness setting

3 3

no salt

necessary 1

Manually Electronically

Number of

flashes and

of audible

signals

2 2

Water hardness

51 - 70

43 - 50

37 - 42

29 - 36

23 - 28

9,0 - 12,5

7,6 - 8,9

6,5 - 7,5

5,1 - 6,4

4,0 - 5,0

11 - 14 1,9 - 2,5 II

< 4 < 0,7 I

4 - 10 0,7 - 1,8 I/II

19 - 22

15 - 18 3,3 - 3,9

2,6 - 3,2 III 5

°dH

(german

degrees)

91 - 125

76 - 90

65 - 75

51 - 64

40 - 50

19 - 25

< 7

7 - 18

33 - 39

26 - 32

°TH

(french degrees) mmol/l

(millimol per litre,

international unit for

the hardness of water)

Range

152965 29/0en 11-02-2004 10:13 Pagina 10

Inhaltsverzeichnis

Andere AEG Spülmaschine Handbücher

AEG

AEG FAVORIT 86070 VI Bedienungsanleitung

AEG

AEG GS60AV Bedienungsanleitung

AEG

AEG Favorit 865 i ELECTRONIC Bedienungsanleitung

AEG

AEG EEG67410L Bedienungsanleitung

AEG

AEG FAVORIT 40740 Bedienungsanleitung

AEG

AEG FAVORIT 75500 VI Bedienungsanleitung

AEG

AEG FAVORIT F88009 Bedienungsanleitung

AEG

AEG FAVORIT COMPACT 315 Bedienungsanleitung

AEG

AEG FFB83806PM Bedienungsanleitung

AEG

AEG FSE52600P Bedienungsanleitung

AEG

AEG FAVORIT 50860 i Bedienungsanleitung

AEG

AEG FSE62600P Bedienungsanleitung

AEG

AEG OKO FAVORIT 5450 VI Bedienungsanleitung

AEG

AEG OKO FAVORIT 8081 Bedienungsanleitung

AEG

AEG FFB53600ZM Bedienungsanleitung

AEG

AEG FAVORIT 55020 W0P Bedienungsanleitung

AEG

AEG OKO FAVORIT 4070 Bedienungsanleitung

AEG

AEG FSE63700P Bedienungsanleitung

AEG

AEG FAVORIT 88009 W0P/AU Bedienungsanleitung

AEG

AEG FAV55IM0P Bedienungsanleitung

AEG

AEG FSK73778P Bedienungsanleitung

AEG

AEG FAVORIT 65042 WOP Bedienungsanleitung

AEG

AEG FAVORIT 99705VI1P Bedienungsanleitung

AEG

AEG FAVORIT 65022 IM0P Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung

Siemens

Siemens SN 56N591 Bedienungsanleitung
