AEG 222 D Bedienungsanleitung

222 D

FumeExtractorHood

InstallationandOperatingInstructions

Printed on recycled paper.

AEG  putting words into action.

Contents

Introduction 4

Extraction mode 4

Recirculation mode 5

Electrical connections 6

Technical details 7

Installation 8

Safety warnings for kitchen unit installer 8

Wall unit mounting 10

Wall mounting 11

Hood operation 12

Safety warnings for user 13

Maintenance and care 14

Opening the grid 14

Grease filter 14

Carbon filter 15

Changing the light bulb 16

Cleaning 16

Accessories 17

Something not working 17

Service & Spare parts 18

Introduction

Extraction mode

●The hood is supplied as an extractor unit and can also be used with a

filtering function by fitting activated carbon filters (available as an

accessory).

●The unit features two outlet holes, one of which Ais located on the

top of the unit while the other Bis located on the rear.

●To connect up the hose, you should first fit the bayonet-mounting

flange C(Ø120 mm) on the outlet required (if using the top outlet,

fix the flange in place using the screw supplied as shown in Fig. 1).

Close off the unused hole using the bayonet fitting caps D.

●Important! To use the back hole B, remove switch Ffrom the

top hole.  Fig 2.

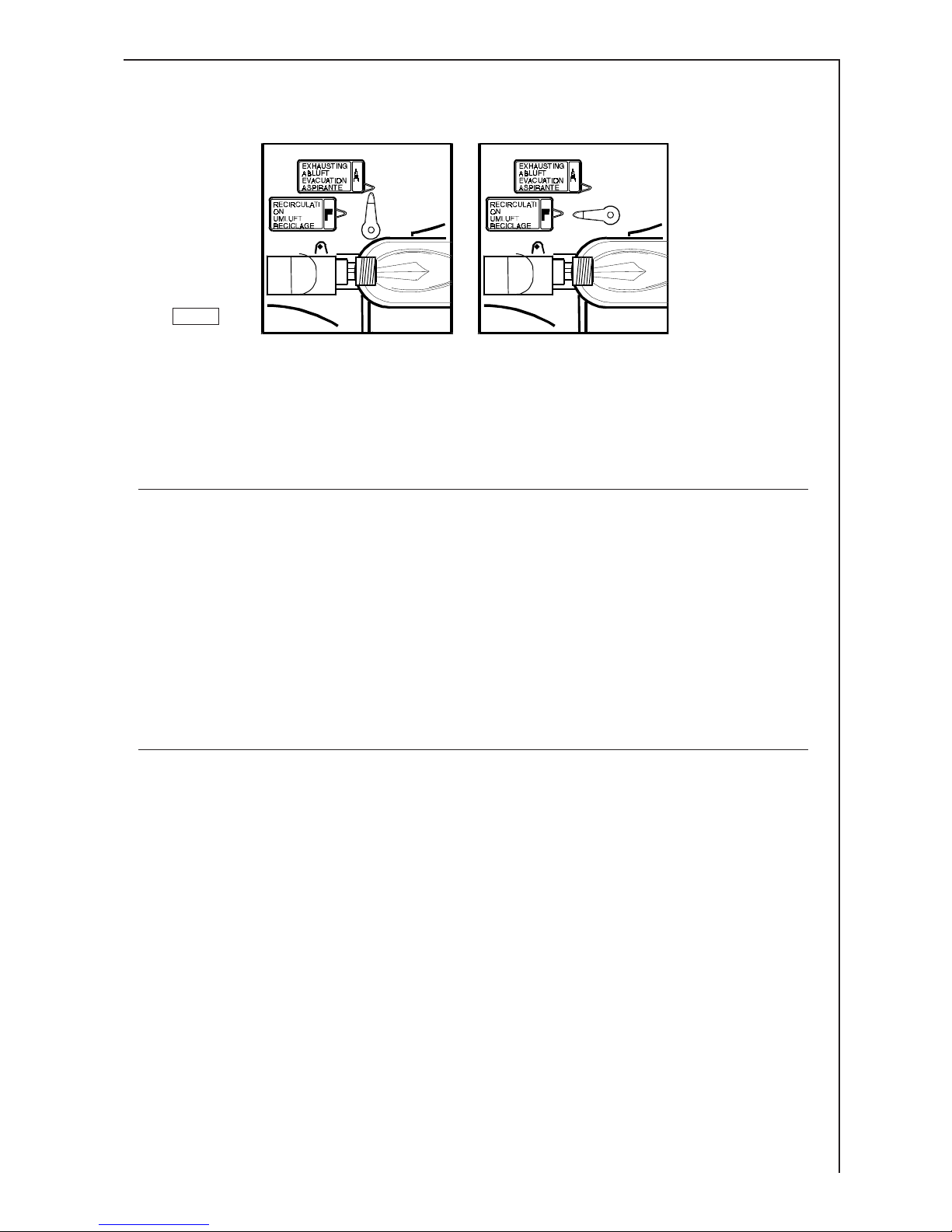

●Move the lever Lto position A Fig. 3.

●When connecting up the hood using a telescopic wall pipe,

you should use an uninflammable outlet hose ABS 120 (120

mm Ø) available as an accessory.

Recirculation mode

●The air is filtered and recirculated through the front grid.

●Move the lever Lto position F  Fig. 3.

You will need an original KFF activated carbon filter for filtering

function. (Available as an accessory).

Summer/Winter Hood Conversion

●To avoid excessive heat loss during the winter months, we

recommend that the hood be converted from extraction mode

to recirculation mode.

●In order to convert the hood, a charcoal filter (available as an

accessory) is required. Follow the instructions for operating the

hood to recirculate air.

●When the temperature outdoors becomes more mild (spring),

the filter can be removed and the hood converted once again for

to extraction. Please consult the assembly instructions for

operating the hood in extraction mode.

Electrical connection

220-240 V - using fixed power supply line with plug.

(The unit should only be connected up by an authorized electrician).

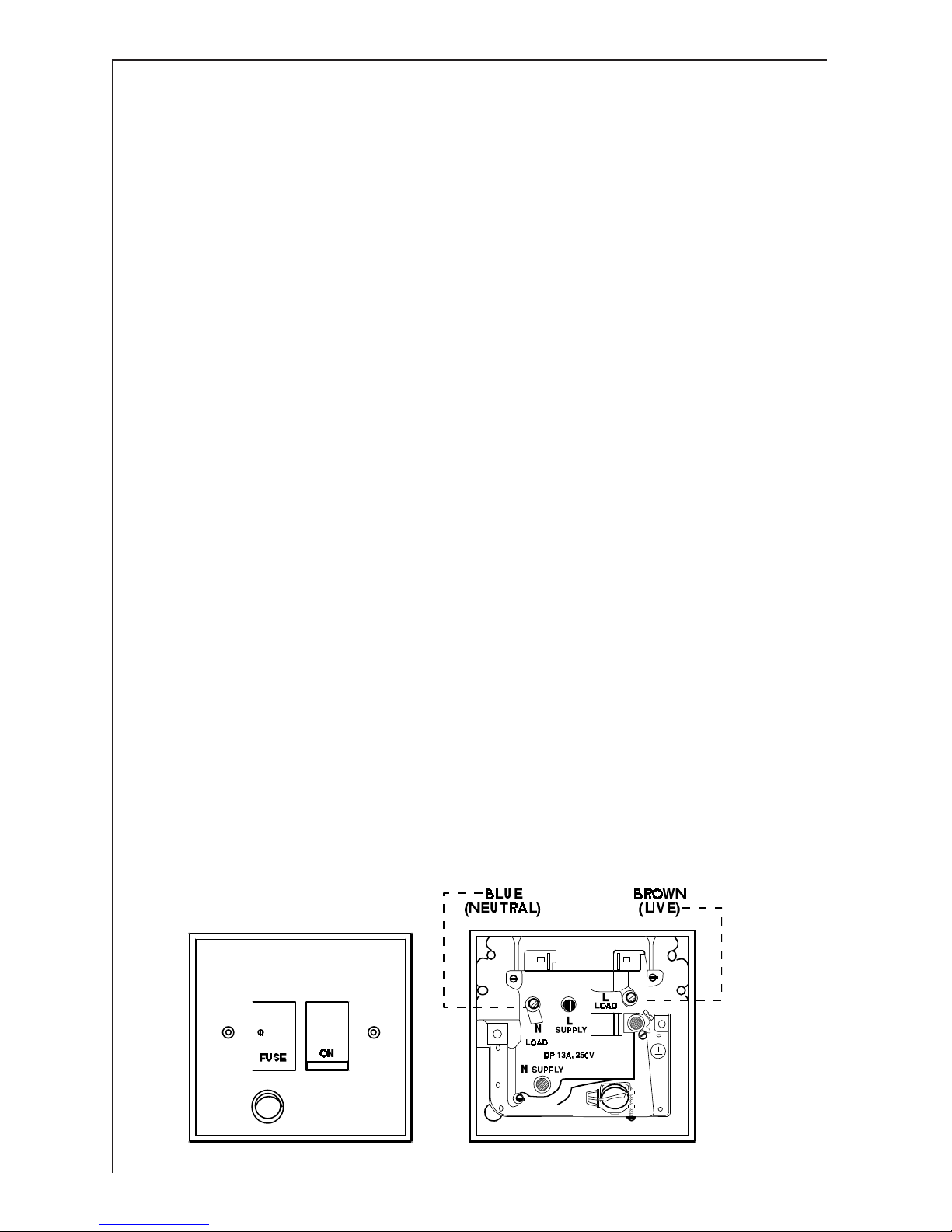

Your appliance must be connected to fixed wiring via the use of a double

pole swiched fused spur outlet with or without pilot lamp.

We strongly recommend the appliance is connected by a qualified

electrician who is a member of the NICEIC who will comply with the IEE

and any local regulations.

NOTE: the terminology DOUBLE POLE means that both the live

and neutral supplies are swiched and disconnected at the same time.

The terminations labelled SUPPLY are for the connection for the internal

house wiring and the terminations labelled LOAD are for the appliance.

IMPORTANT

The wires of the mains lead supplied with this appliance are

coloured in accordance with the following code:

Blue-Neutral

Brown-Live

As the colours of the flexible cord of this appliance may not

correspond with the coloured markings identifying the terminals in

your plug, proceed as follows: The whire which is coloured brown

must be connected to the terminal which is marked with the letter

L or coloured red.

The wire which is coloured blue must be connected to the terminal

which is marked with the letter N or coloured

black.

Technical details

Dimensions

Height x Width x Depth (in cm) 13 x 59,9 x 51

Weight

Net: 6,9 kg

Gross: 7,8 kg

Maximum absorbed power: 205 W

Motor absorption 1 x 125 W

Lighting: 2 x 40 W

Length of the cable: 110 cm

Fan powers (speed), speed in compliance with DIN 44971

Extraction mode

Speed 1 115 m3/h

Speed 2 145 m3/h

Speed 3 180 m3/h

Intensive speed 210 m3/h

Recirculation mode

Speed 1 110 m3/h

Speed 2 117 m3/h

Speed 3 125 m3/h

Intensive speed 145 m3/h

Flange:120 mm Ø

Installation

Safety warnings for kitchen unit installer

●When used as an extractor unit, the hood must be fitted with a

120mm diameter hose.

●If the fumes must be forced out through the wall, you must

obtain a MKZ sizable wall exhaust pipe (with external exhaust and

air intake), E-Nr.- 610 899 004 (Ø 120 mm) which is one of our

optional parts.

●When installing the hood, make sure you respect the fol-

lowing minimum distance from the top edge of the cooking

hob/ring surfaces:

electric cookers 650 mm

gas cookers 700 mm

●The hood cannot be connected to flues of other appliances that

run on energy sources other than electricity.

●The air outlet must not be connected to chimney flues or com-

bustion gas ducts. The air outlet must under no circumstances be

connected to ventilation ducts for rooms in which fuel-burning

appliances are installed.

●It is advisable to apply for authorization from the relevant

controlling authority when connecting the outlet to an unused

chimney flue or combustion gas duct.

The air outlet installation must comply with the regulations laid

down by the relevant authorities.

●When the unit is used in its extractor version, a sufficiently large

ventilation hole must be provided, with dimensions that are

approximately the same as the outlet hole.

●National and regional building regulations impose a number of

restrictions on using hoods and fuel-burning appliances connected

to a chimney, such as coal or oil room-heaters and gas fires, in

the same room.

●The national decree on fuel-burning systems specifies a maximum

depression of 0.04 bar in such rooms.

●Hoods can only be used safely with appliances connected to a

chimney if the room and/or flat (air/environment combination) is

ventilated from outside using a suitable ventilation hole approxi-

mately 500-600 cm2 large to avoid the possibility of a depression

being created during operation of the hood.

If you have any doubts, contact the relevant controlling authority

or building inspectors office.

●Since the rule for rooms with fuel burning appliances is outlet

hole of the same size as the ventilation hole, a hole of 500-600

cm2, which is to say a larger hole, could reduce the performance

of the extractor hood.

●If the hood is used in its filtering function, it will operate simply

and safely in the above conditions without the need for any of the

aforementioned measures.

●When the hood is used in its extractor function, the following

rules must be followed to obtain optimal operation:

 short and straight outlet hose

 keep bends in outlet hose to a minimum

 never install the hoses with an acute angle, they must

always follow a gentle curve only

 keep the hose as large as possible (120 mm Ø min.).

●Failure to observe these basic rules will drastically reduce the

performance and increase the noise levels of the extractor hood.

Wall unit mounting

●Make the holes on the bottom of the cupboard, using

the drilling template .

●From inside the cupboard, insert the 4 supplied screws

and tighten them in the appropriate holes on the

appliance.  Fig. 4.
