Troubleshooting
No piezo signal
Make sure that the jack connector
inside the guitar is connected properly.
There should be an audible“click“ when
the ball-ended jack safely sits in the 2.5
mm plug. It can take a little eort.
No mic signal
Please listen carefully rst as you may
just expect way more microphone than
we provide for good reasons and bare
in mind: in many cases the reference for
functionality is including the negative
bit… we are not proving this range as
we want to make sure that you can use
the microphone up to its best.
No output signal
Ensure that the battery still has enough
charge to operate the system
Ensure that the strap holder on the end-
pin is screwed on tightly. Strap move-
ments sometimes loosen the strap
holder (although the rubber O-ring
should prevent this) which may lead to
a contact fault in the endpin socket.
Terms of warranty
This product is under guarantee for a
period of two years.
The guarantee covers manufacturing and
material faults and will only apply if the
product has been used for the intended
purpose, under normal conditions.
It does not cover normal wear and tear
nor any alterations made by the customer.
We have taken every possible care while
making and transporting this product. If you
also take every possible care when using it,
you will be able to enjoy your product for a
longer time.
Damage due to anything other than
manufacturing or material faults will not be
covered by any form of warranty, but can be
repaired at a reasonable charge. If you’d like
to make use of this service, please return the
product to the retailer where you originally
purchased the product.
Make sure to clean the product before
returning it. Unacceptably dirty products
will not be handled and will be returned
to sender.
Products will only be considered for
guarantee if the bill is enclosed.

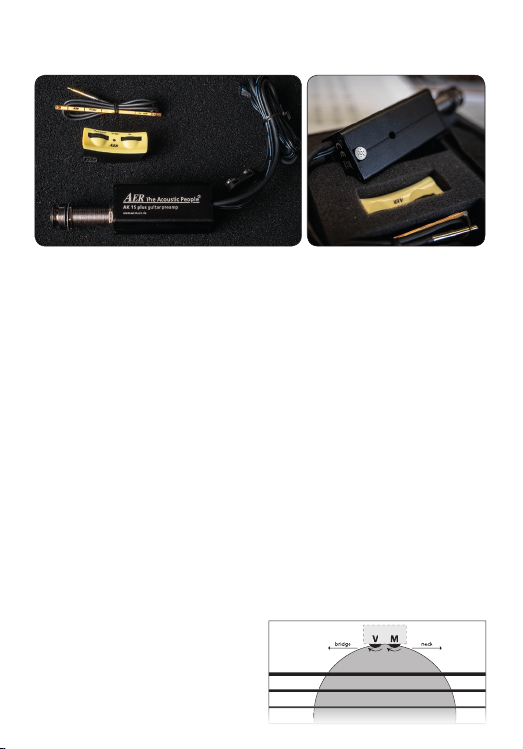

This packet contains:
AK 15 plus
• Endpin PreAmp with
built in microphone
• Soundhole Control (SHC)
• 2 x Piezo elements
PG 607 for classic guitars
(2.6 x 58 mm)
PG 617 for steelstring guitars
6 or 12 string (2.6 x 55 mm)
• Battery bag
• Mounting material
aer music gmbh
Haberstrasse 46
D-42551 Velbert
Phone: +49 (0) 20 51 60721 –13
Fax: +49 (0) 20 51 60721 –78
www.aer-music.de
Technical Specications:
Max. Outut: +10 dBV
Ouput Impedance: < 5 k Ω
Supply Voltage: 9 V Battery
Supply Current: 5.8 mA
Design: Low Noise Class A/B output stage
Low Noise FET input stage
DC-DC Converter
Specications and appearance are subject to change without
notice. Register at: www.aer-music.de, follow us on
https://www.facebook.com/AERGermany/
https://www.instagram.com/aer__music/
https://twitter.com/aer_amps

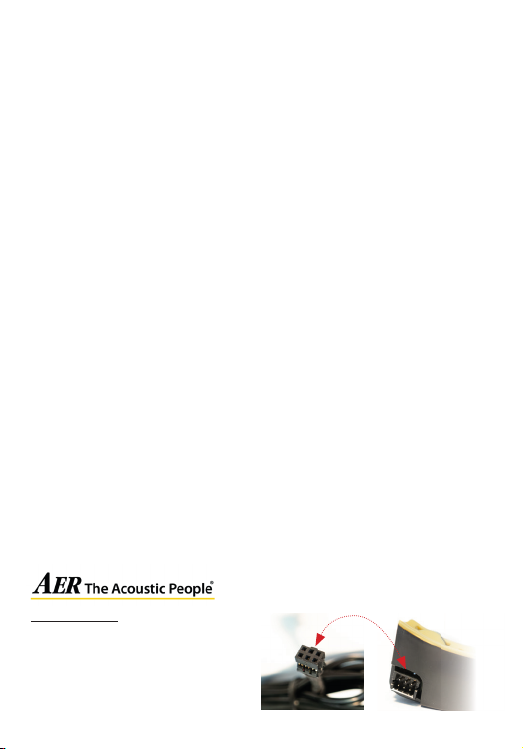

Plug-in endpin to the SHC: take care of the right
position. The little catch must be at the top side.
